QUANTUM NEW LINE 350 SERIES CUTTING LINE


QUANTUM NEW LINE 350 SERIES CUTTING LINE

89,800.00

New automatic CNC cutting Line Mod. NEW LINE 350 for 90° cuts, suitable for cutting hollow or solid bars with round, square or rectangular section featuring automatic loading and unloading of pieces.

NEW LINE 350 Cutting Capacities and Specifications:

  • Round Tube: 4" O.D.

  • Square Tube: 3.125" Square

  • Rectangular Tube: 2.25"H x 3.125"W

  • Minimum Cutting Capacity: 0.63"ø / 0.63" x 0.63"

  • Minimum Cutting Length: 0.80"

  • Maximum Cutting Length: 9'-10" / 118"

  • Blade Size Diameter: 14" / 350mm

  • Blade Bore Size Diameter: 32mm

  • Maximum Vice Opening: 4.40" x 112mm

  • Vice Jaw Height: 2.75" / 70mm

  • Blade Rotation: 50 - 100 R.P.M.

  • Bar Feed Speed: 10 - 90 Meters per Minute

  • Worktable Height: 43.7" / 1,110mm

  • Unloading Height (Front / Rear): 27.5" / 700mm

  • Weight: 4,410 lbs.

Click Here to Pre-Order

NEW LINE 350 CUTTING LINES FEATURES:

"CI" type automatic loader with inclined worktable designed for loading hollow or solid bars with round, square or rectangular section; rapid centralized adjustment of bar dimensions by means of just two hand wheels, or "CF" type automatic bundle loader with anti-overlapping device for hollow or solid bar loading with round, square or rectangular section; rapid centralized adjustment of bar dimensions by means of just two hand wheels.

  • Bar feed unit supplied with rollers and driven by a gear motor assisted by an inverter controlling rapid feed speed and the associated acceleration and deceleration ramps for bar feeding.

  • Cutting head with 2-speed electric motor, motor amperometric absorption control, tempered and ground oil-bathed reducing gears, cutting head downstroke speed adjustment, blade double lubrication system (with emulsifiable oil or oil microlubrication).

  • Bar locking with double vice and pressure adjustment of bar feed rollers and double vice.

  • Bar stop with digital instrument displaying bar cutting length, vertically movable stop retainer providing maximum accuracy of cutting repeatability.

  • Automatic unloader provided with inclinable table for the selection of the side from which faced, cut or end-trimmed pieces are unloaded.

  • New programming instrument with 5" backlit graphic display for the management and optimisation of cutting parameters and settings.

OPTIONAL EQUIPMENT:

  • Extra bar stop adding a second cutting size option in sequence.

  • Blade rotation inverter for speed variation according to the type of the material to be cut.

  • Cutting-head with inclined linear movement, suitable for cutting square and rectangular pipes, with an entry into the bar which reduce at the minimum the frazes.

  • Inclined vice of 45°, for a better blocking of the piece to cut.

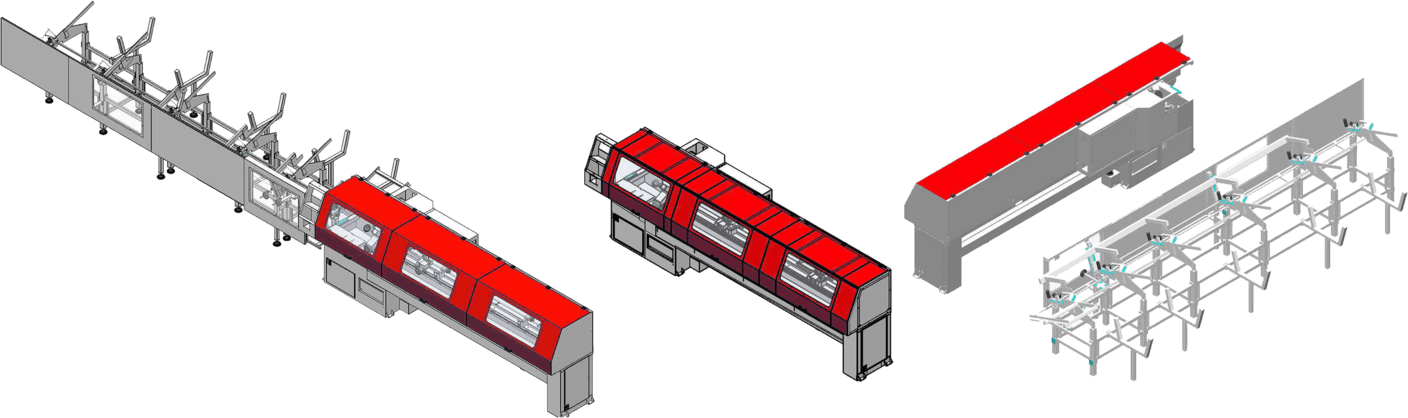

NEWLINE350-CUTTING LINE.png
