System 22 2400x1200mm (94"x47") Siegmund Welding Table with Plasma Nitration (Item No. 4-220030.PD)

Copy of Copy of Copy of DSC_1222_9b2f40e7-f70b-41c1-bc39-db797d1d5461.jpg
Copy of Copy of Copy of DSC_1222_9b2f40e7-f70b-41c1-bc39-db797d1d5461.jpg

System 22 2400x1200mm (94"x47") Siegmund Welding Table with Plasma Nitration (Item No. 4-220030.PD)

5,790.00

$5,790 (IN-STOCK)

The ALL-NEW System 22 Welding Table Series: More Stable than the System 16 Series, More Cost-Effective than the System 28 Series.

(Item No. 4-220030.PD, also known as S4-220030.PD)

Welding Table Features:

  • Overall Tabletop Size: 2400x1200x150mm (94.48" x 47.24" x 5.9")

  • Welding Table Series: Professional 750

  • Welding Table Material Thickness: Approx. 17 – 19mm (0.66" - 0.75")

  • Welding Table Material Type and Finish: This Welding Table is manufactured of high quality S355J2+N Tool Steel, Plasma Nitrided and BAR-Coated.

  • Official Welding Table Part No.: 4-220030.PD

  • Approximate Table Weight: 1,600 lbs. / 726 kg.

  • Borehole: Ø 22mm (0.86")

Add To Cart

To place an order on this welding table or if you have any questions, feel free to call our office at (909)476-8007, or you can send an email to our Quantum Welding Table Experts at sales@weldingtablesandfixtures.com

If you would like to place an order for this table online.
Please click the button directly below.

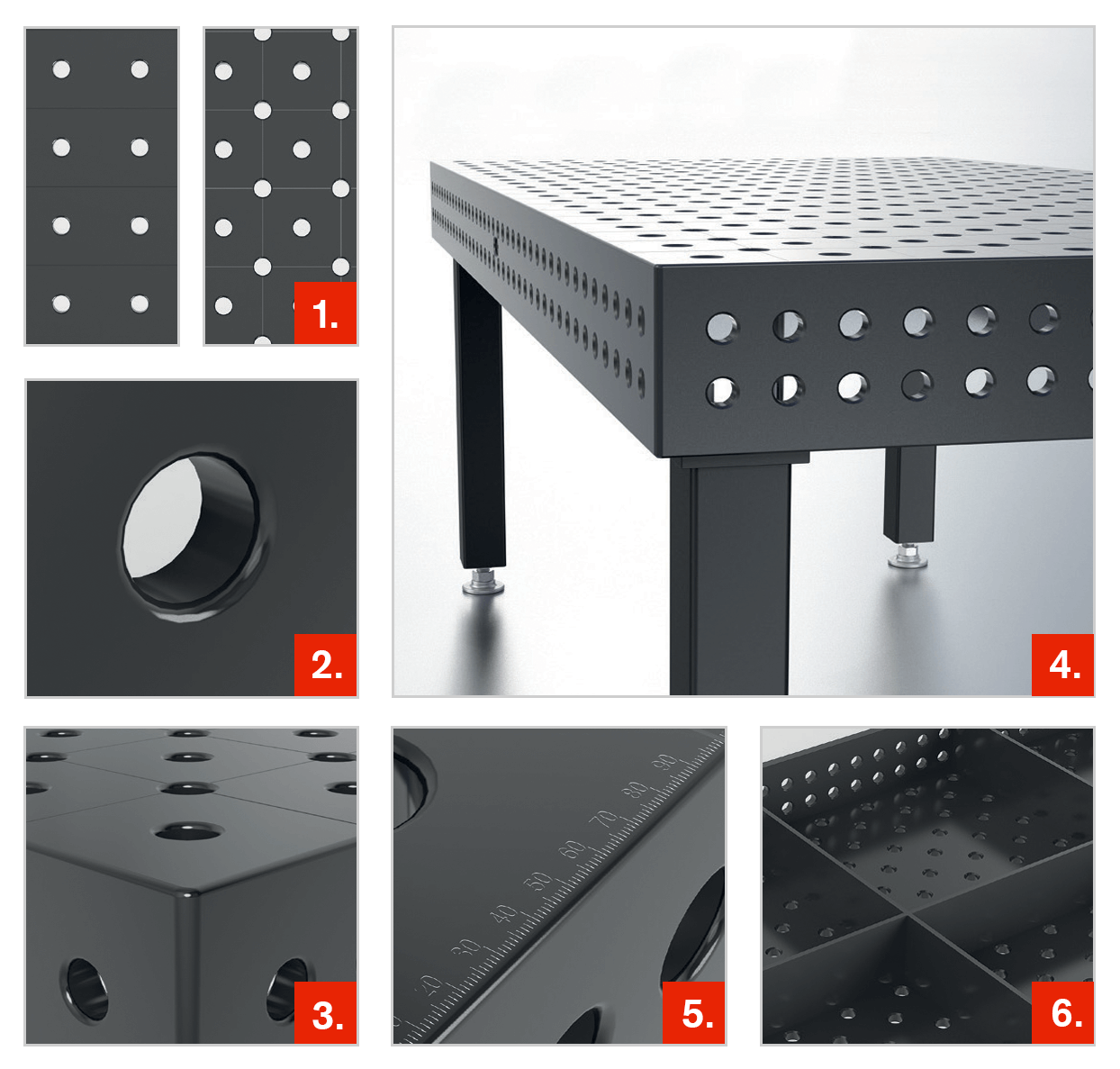

Welding Table Features:

  1. Boreholes on the surface are in a Diagonal Grid Configuration.

  2. Boreholes have a 2.5mm Radius (0.098").

  3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.

  4. Height of table side 150mm (5.90") - Borehole spacing of table side 50mm (1.96")

  5. Metric Scaling on the surface.

  6. Construction reinforced with ribbing.

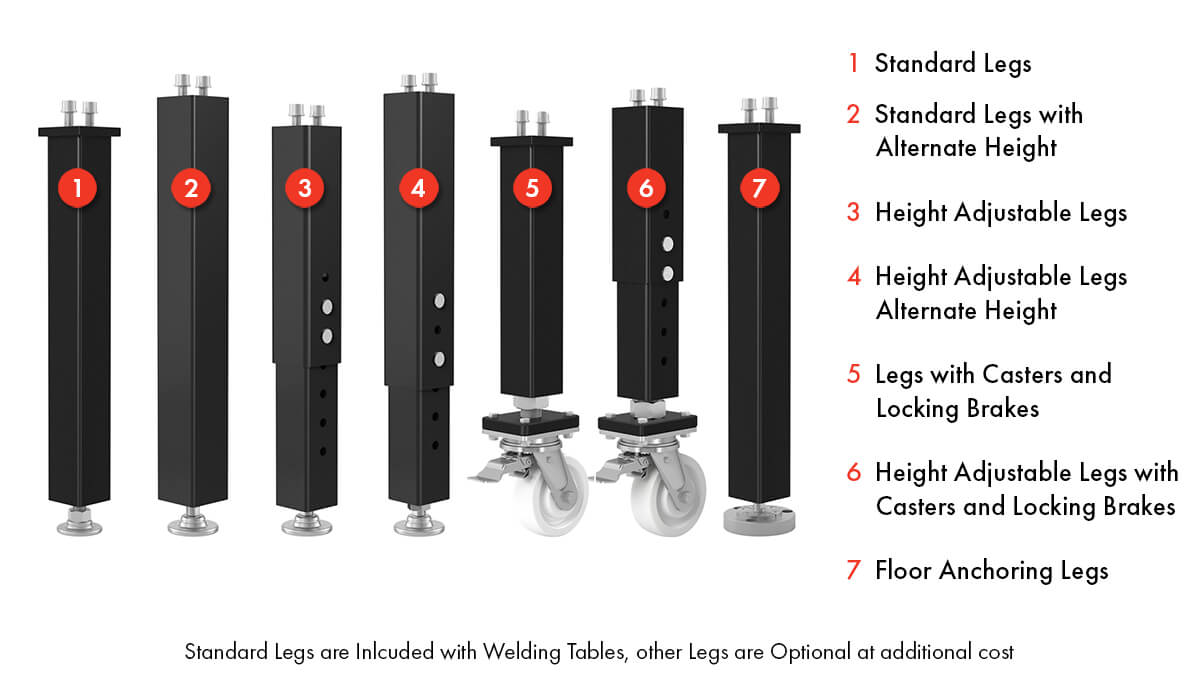

Welding Table Leg Options Part Numbers, Specs and Pricing:




1. Standard Siegmund Leg(s)

  • Item No.: 220858
  • Leg Height: 27.5"
  • Table Height: 33.4"
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)



2. Standard Siegmund Leg(s) "Alternative Height"

  • Item No.: 280857.X
  • Leg Height: 29.5"
  • Table Height: 37.4"
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $0 (Can be substituted with Purchase of Table in place of the "Standard Siegmund Legs" shown above.)
  • Cost Per 4 Leg Set: $0 (Can be substituted with Purchase of Table in place of the "Standard Siegmund Legs" shown above.)



3.Height Adjustable Siegmund Leg(s)

  • Item No.: 4-280878.XX
  • Leg Height (Adjustable): 17.7" - 27.5"
  • Table Height (Adjustable): 23.6" - 33.4"
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $98
  • Cost Per 4 Leg Set: $588



4. Height Adjustable Siegmund Leg(s) "Alternative Height"

  • Item No.: 4-280877.XX
  • Leg Height (Adjustable): 21.6" - 35.4"
  • Table Height (Adjustable): 27.5" - 41.3"
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $98
  • Cost Per 6 Leg Set: $588

5. Siegmund Leg(s) for Floor Anchoring

    • Item No.: 4-220874.XX
    • Leg Height: 27.5"
    • Table Height: 33.4"
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 2,200 lbs.
    • Cost Per Leg: $78
    • Cost Per 6 Leg Set: $468



6. Height Adjustable Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 280879.XX
  • Leg Height (Adjustable): 21.6" - 29.5"
  • Table Height (Adjustable): 29.5" - 37.4"
  • Fine Adjustment: 0.78" / 20mm
  • Capacity Per Table Leg: 1,770 lbs.
  • Cost Per Leg: $178
  • Cost Per 4 Leg Set: $712
  • Note: These welding table legs that are equipped with casters and locking brakes are not recommended for Welding Tables with 6 or 8 Table Leg Configurations.



7. Siegmund Leg(s) for Floor Anchoring

  • Item No.: 280874.XX
  • Leg Height: 25.5"
  • Table Height: 33.4"
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $78
  • Cost Per 4 Leg Set: $312
