DS60BV PLUS: 50mm Shaft, Entry-Level Tauring Roll Bender


DS60BV PLUS: 50mm Shaft, Entry-Level Tauring Roll Bender

13,900.00

$13,900 (PRE-ORDER)

Ready to place an order, or do you have any questions? Call us at (909) 476-8007

STANDARD FEATURES:

  • 3 Driving Rolls

  • 8 R.P.M.

  • 50mm (2") Shaft Diameters

  • High-Quality, Italian Build

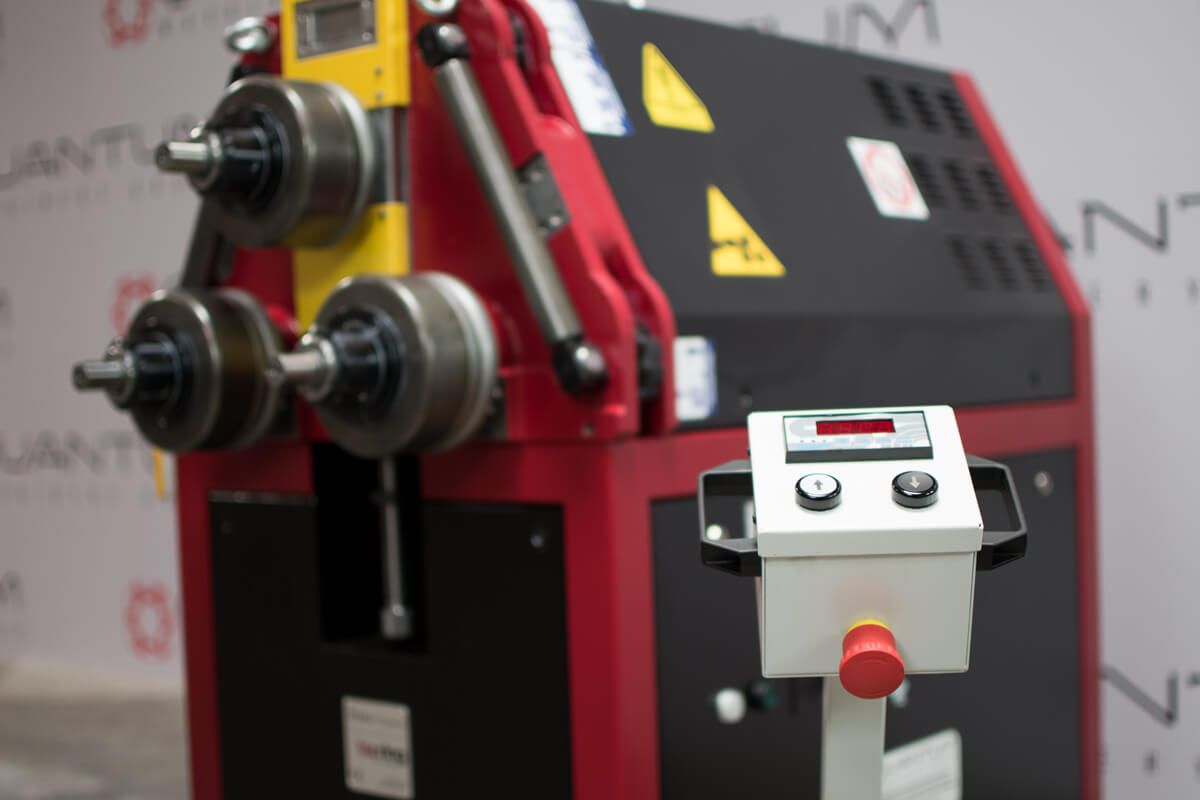

  • Equipped with the BV Control (Entry-Level)

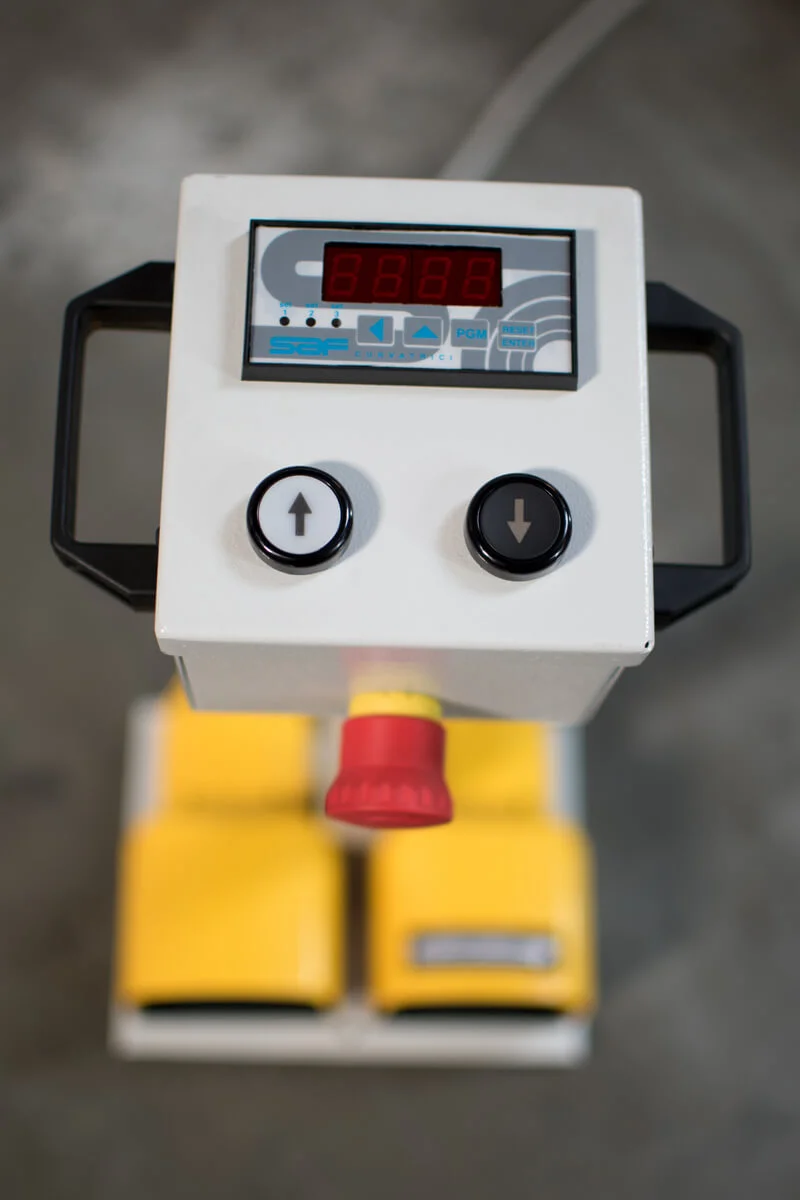

  • LED Display for Digital Readout of Top Roll Position

  • Includes Interchangeable Universal Tooling

  • 4.5" Standard Shaft Working Length

  • Weighs Approximately 1,250 lbs.

  • Machine Dimensions: 26" x 53" x 59"

Click Here to Purchase

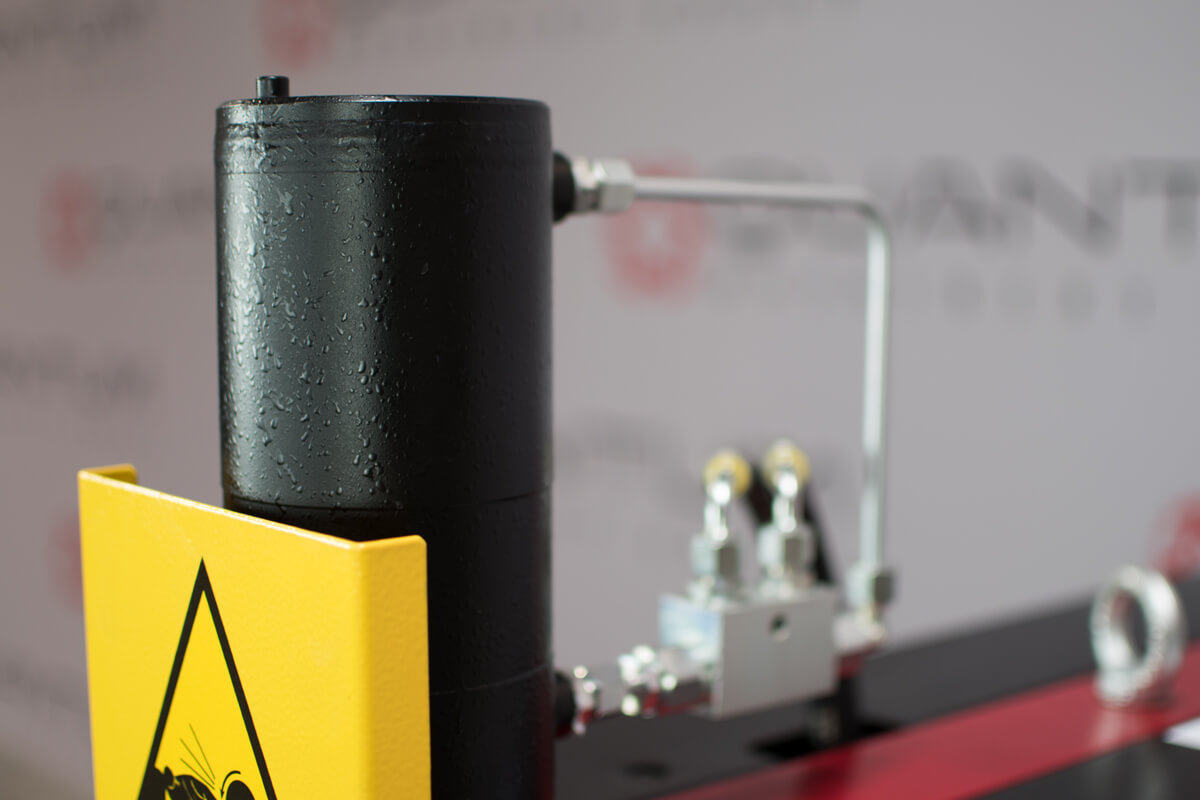

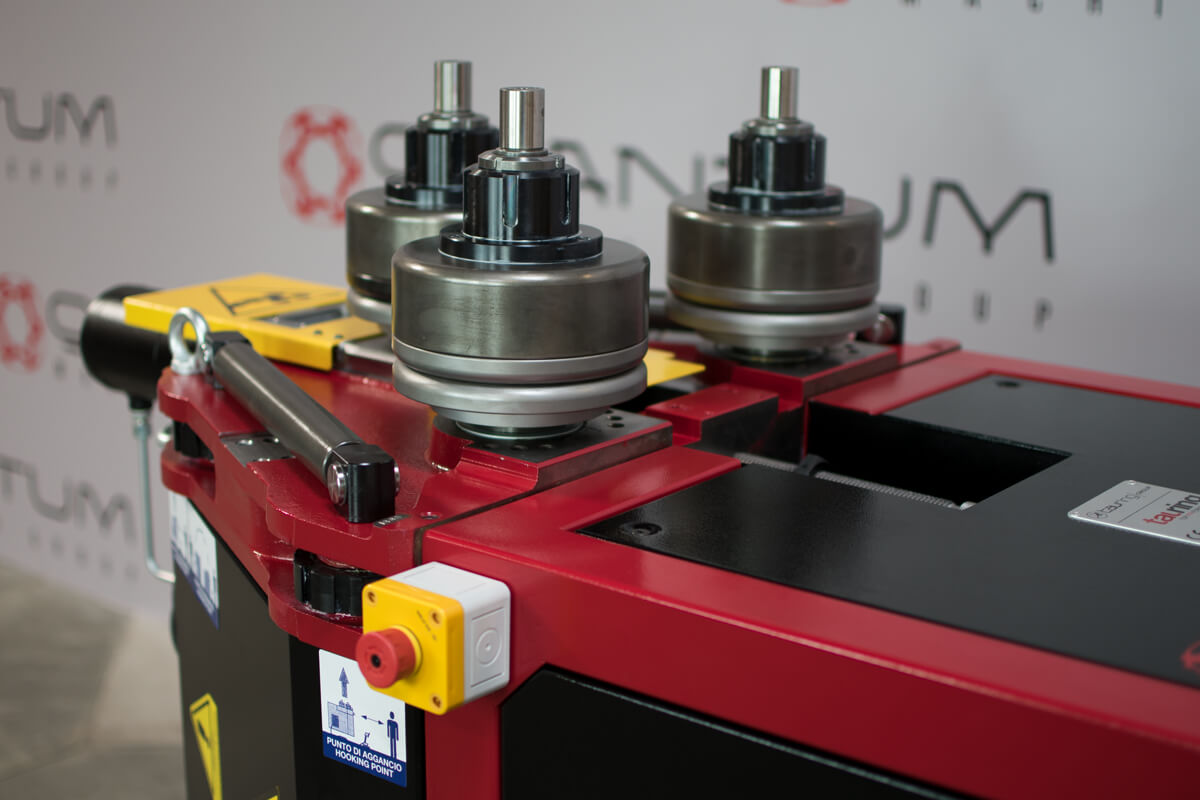

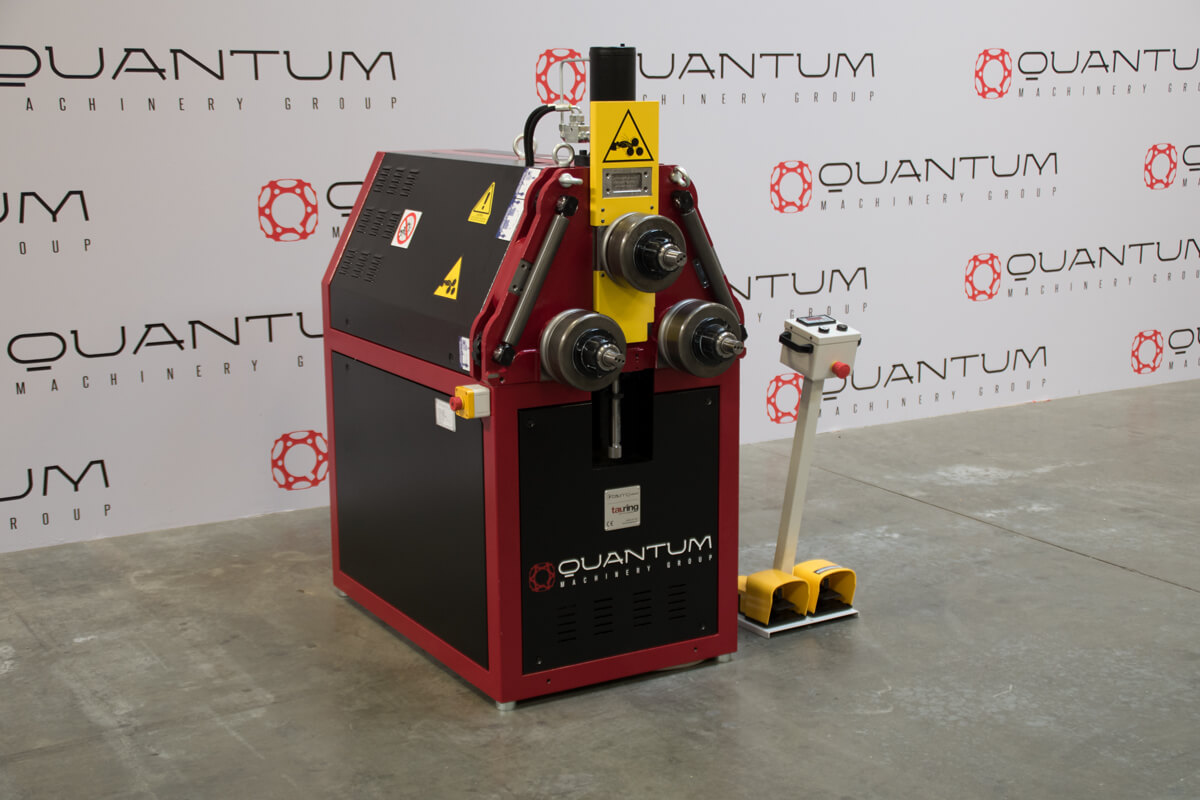

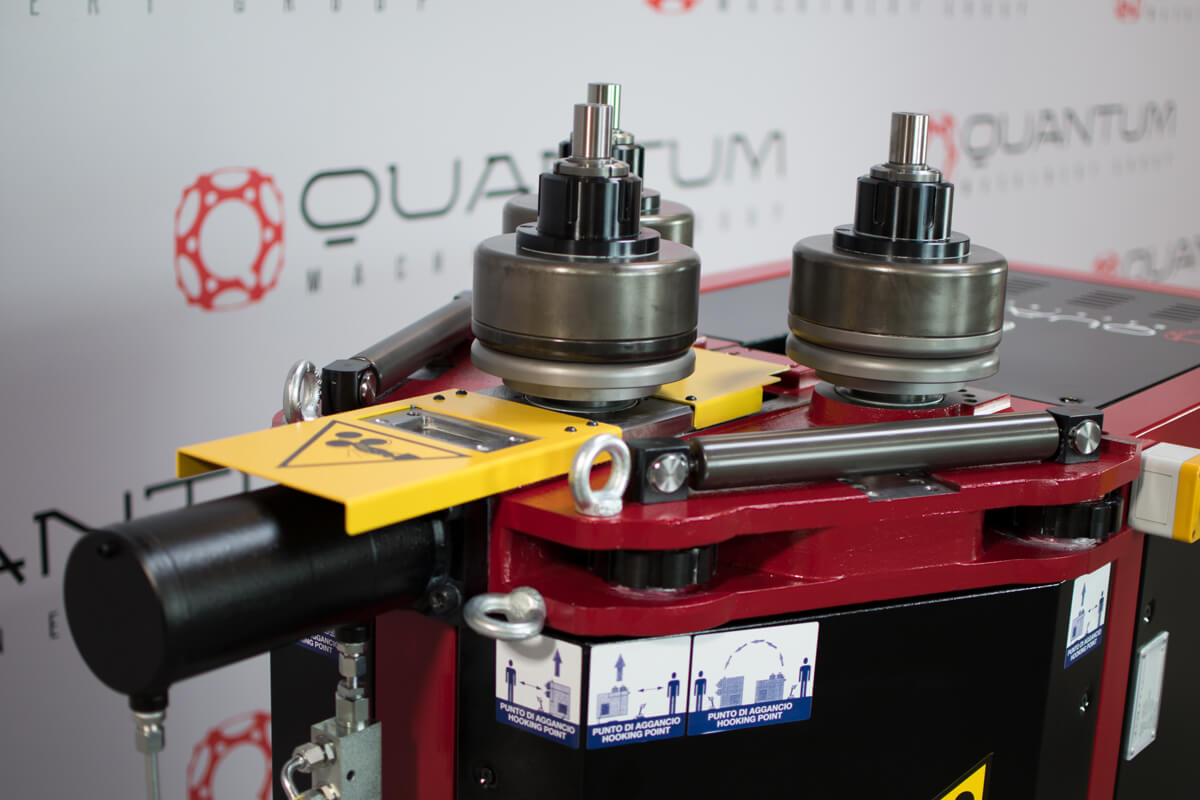

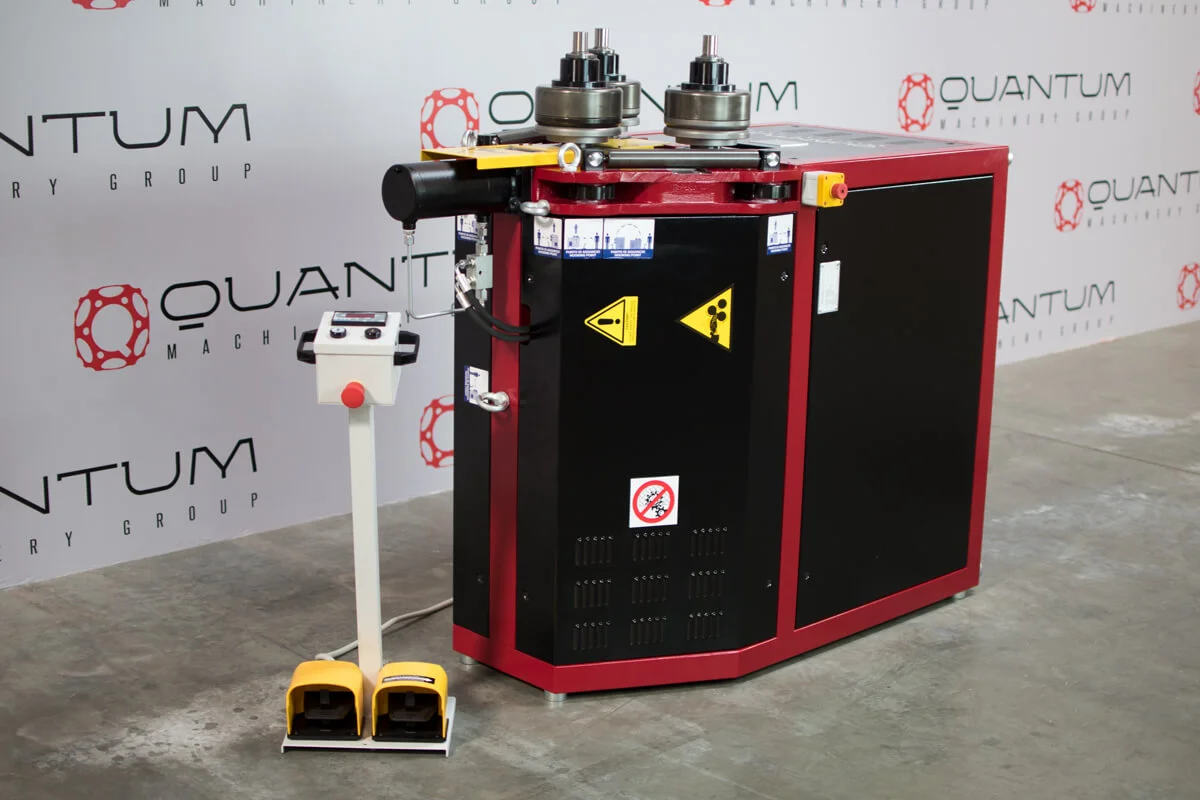

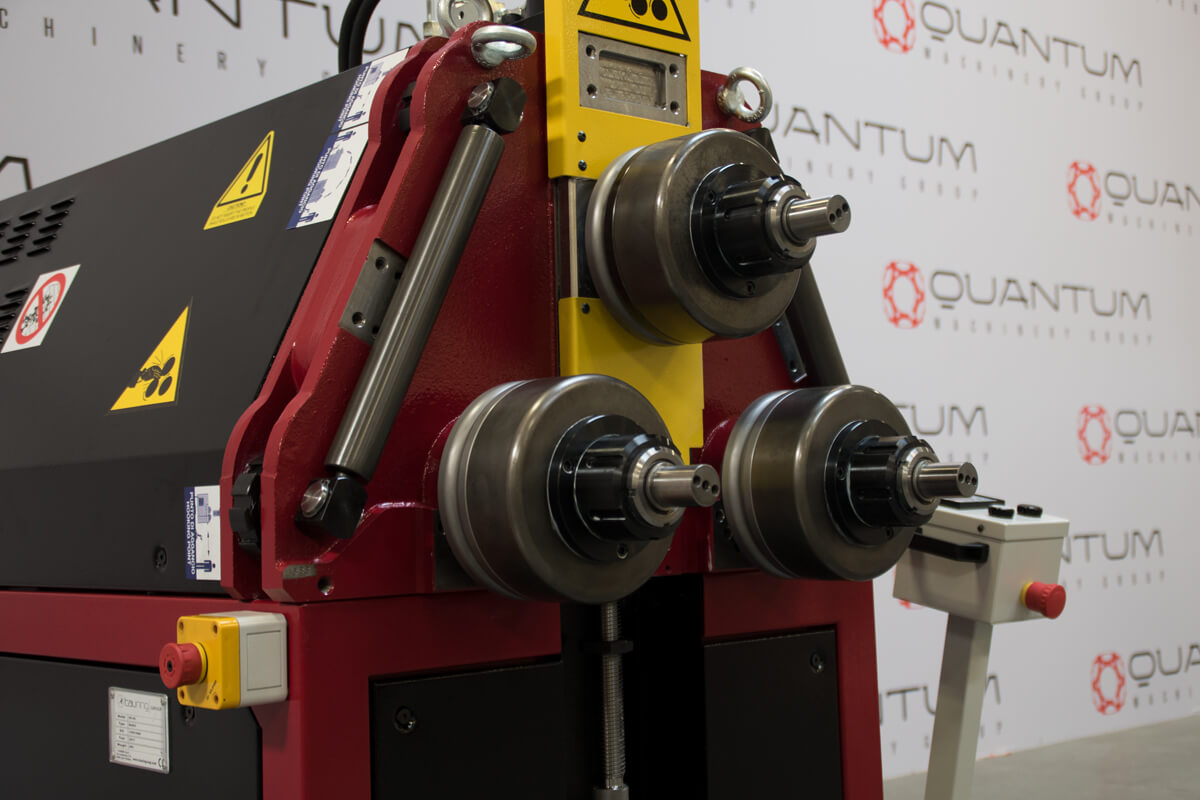

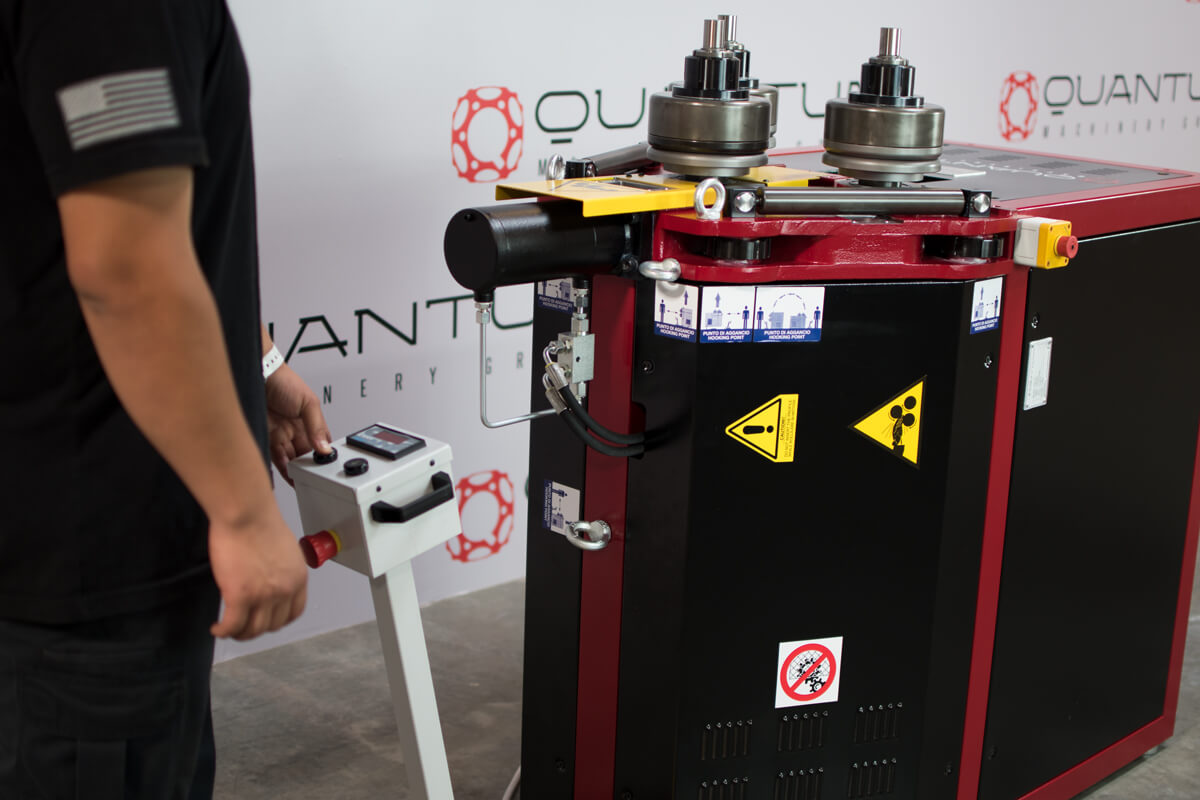

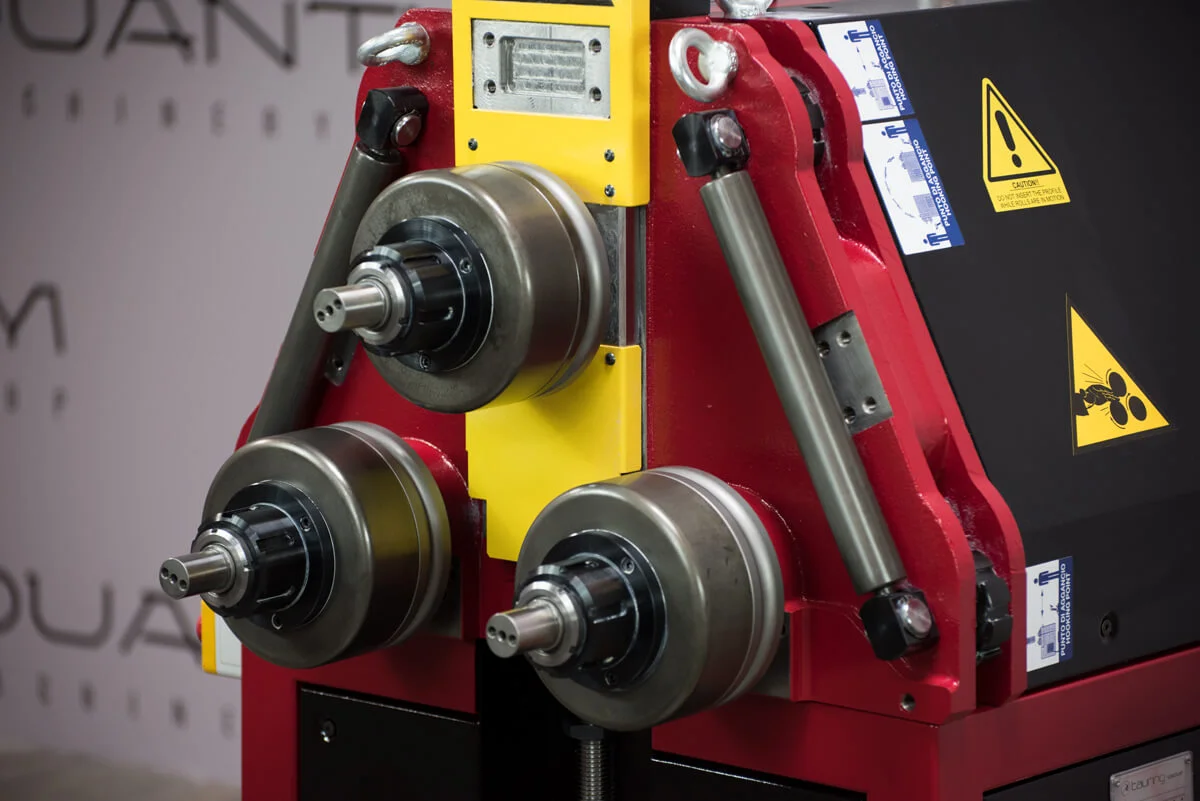

The Tauring DS60BV PLUS is a pyramid-style, hydraulic Roll Bender - Ideal for bending a wide variety of applications. All three shafts are gear driven and hardened. They are composed of ground high strength steel, which are supported by sealed roller bearings for anti-friction operation. The frame is made out of rugged cast iron that comes standard with to insure durability. The Tauring DS60 BASIC PLUS comes with a self-braking motor and is in conformity with “CE” Regulations (98/37 CE). Electromagnetic compatibility, (89/336) Low tension (73/23, 93/68). This roll bender is equipped with a single speed motor rated at 8 R.P.M.


STANDARD CAPACITIES:

  • Pipe: 2" Sch. 40 Pipe (2.375" O.D.)

  • Round Tube: 3" x .090" with a 56" Minimum Radius

  • Solid Round: 3" x .090" with a 36" Minimum Radius

  • Square Tube: 2" x .120" with a 36" Minimum Radius

  • Rectangular Tube (Easy Way): 3" x 1.50" x .120" with a 36" Minimum Radius

  • Solid Square: 1.5" x 1.5" with a 40" Minimum Radius

  • Angle (Leg-Out): 2.25" x .39" with a 28" Minimum Radius

  • Angle (Leg-In): 2.25" x .39" with a 28" Minimum Radius

  • Flat Bar (Easy Way): 4" x 1" with a 12" Minimum Radius

  • Flat Bar (Hard Way): 3" x 0.50" with a 36" Minimum Radius

  • C-Channel (Easy Way): 2.50" x 1" with a 24" Minimum Radius

  • C-Channel (Hard Way): 2.50" x 1" with a 24" Minimum Radius

  • T-Channel (Easy Way): 3" x .375" with a 18" Minimum Radius

  • T-Channel (Hard Way): 3" x .375" with a 18" Minimum Radius

    (PLEASE NOTE – The minimum radii shown may require Multi-Pass. PLEASE ALSO NOTE - The sizes shown above are the of the maximum capacity with the minimum radii; when bending smaller profiles, the machine will be able to bend smaller radii.)
