MT150A: Ornamental Bar Twisting and Bending Machine


MT150A: Ornamental Bar Twisting and Bending Machine

7,995.00

$7,995

Ready to place an order, or do you have any questions? Call us at (909)476-8007

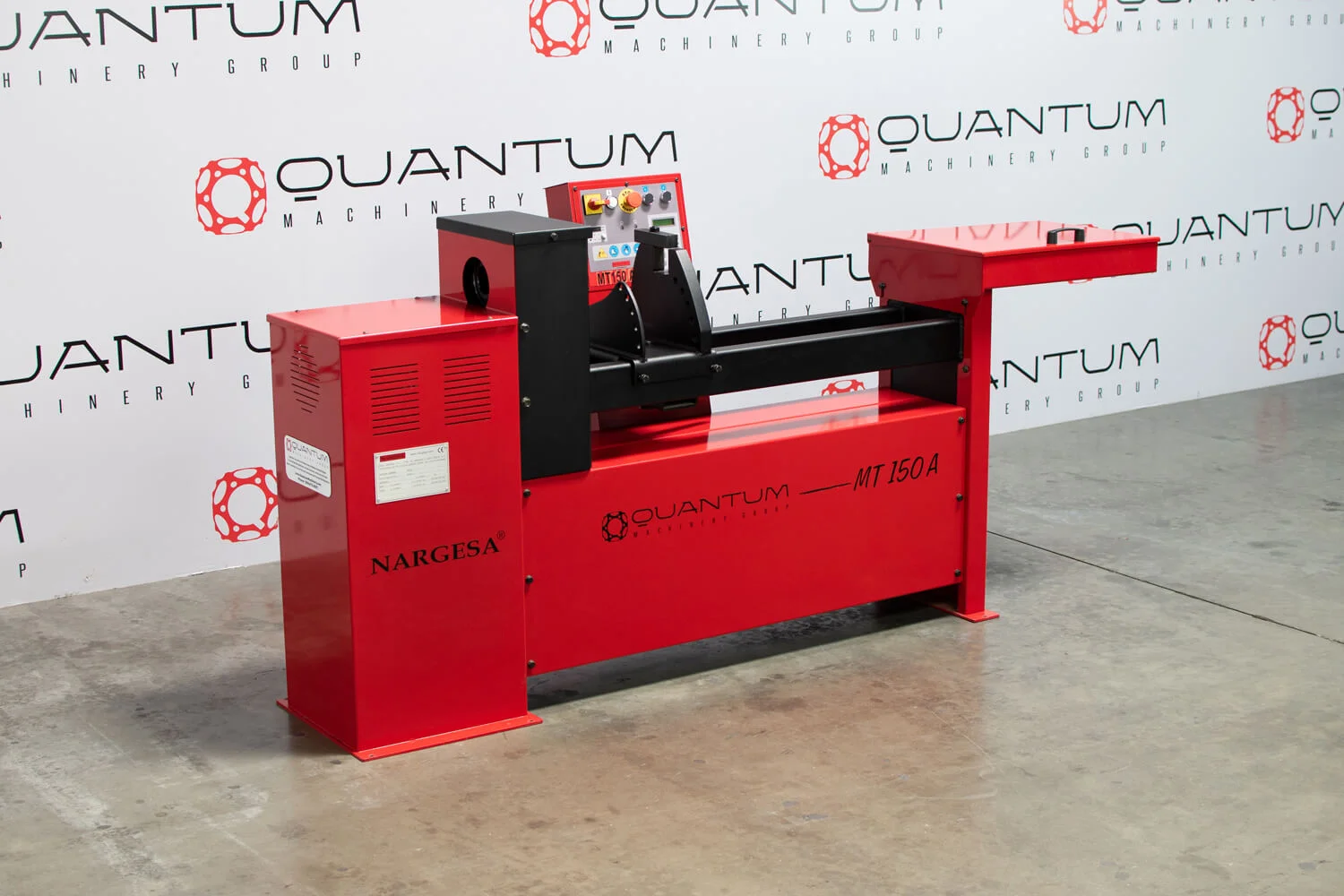

Automatic Decorative Wrought Iron MT150A NARGESA. It has been made in a welded and mechanized steel monoblock. It is made to work cold iron. Ideal for making all kinds of ornamental pieces for ornamental forging, balusters, volutes, etc... Used in: Window grills, balusters, tables, chairs... making a lot of different shapes in round, square, tubular profiles, handrails, flat bars, etc...

  • Working method by twisting and flexing in COLD.
  • Machine suitable for small, medium and big production.
  • Safe and reliable transmission by a motor reducer with flat treated pinions, achieving a remarkable performance and least maintenance.
Add To Cart

Perfect for making all kinds of ornamental standard parts. The MT150A is essential for our in-house designs, which are highly demanded in the market. The pieces requested by architects, technicians and final customers, make it a very important piece of equipment in a blacksmith workshop.

In order to hit the ground running as soon as you receive your Nargesa MT150A Bar Twisting and Bending Machine, we supply you with the essentials to get started, as you will see in the listing's images above. The Nargesa MT150A Twisting Machine is equipped with a complete set of Standard Tooling, by means of which the user can make a great deal of shapes: Twists, Scrolls, Bendings, Hooks, Chains, etc.... There is also the possibility of buying optional tooling: Belly Top Railing Tooling, British Rail, Flat Ben Rings, Decorative Baskets and more!! We also can provide the user with fitting plates, under request, so the very customer can make his own designs / tooling himself.

Technical Features:

  • Max. Twisting Capacity: 20mm or 3/4" inch.
  • Max. Bending Capacity: 16mm or 5/8" inch.
  • Max Twisting and Bending Capacity in Flat Bar,  Cold or Handrail: 35 x 10mm or 1-1/4" x 3/8" inch.
  • Possibility of buying the tooling for the machine in mm or inches
  • Max. Continuous Scrolling Length: 960mm
  • Engine Power: 0.37Kw / 0.5 HP.
  • CNC Programmer to repeat Series, Piece Counter, Automatic Unbolt, Memory for Storage of Programs...

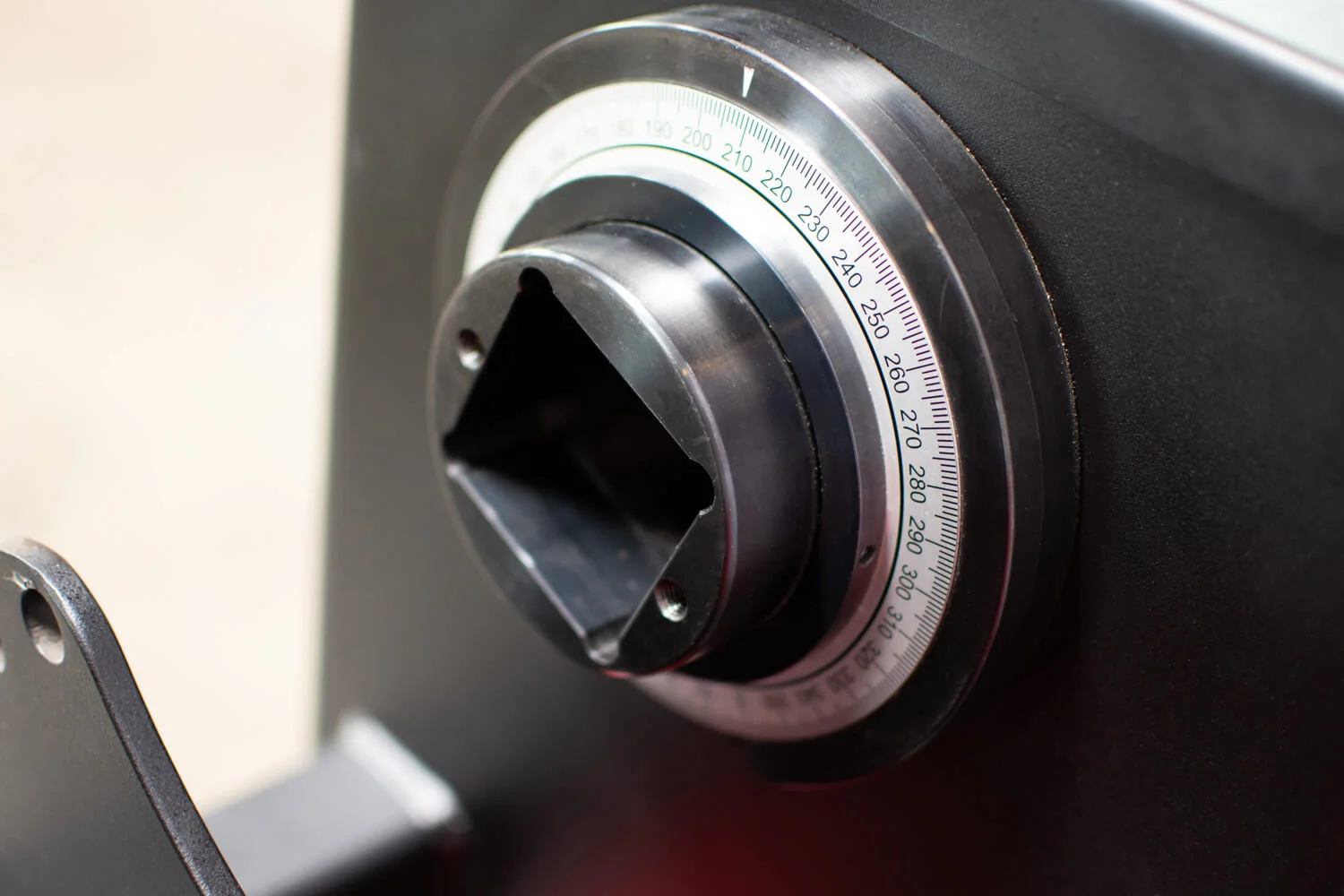

  • Adjustable millimeter scale on its head to make all parts the same.

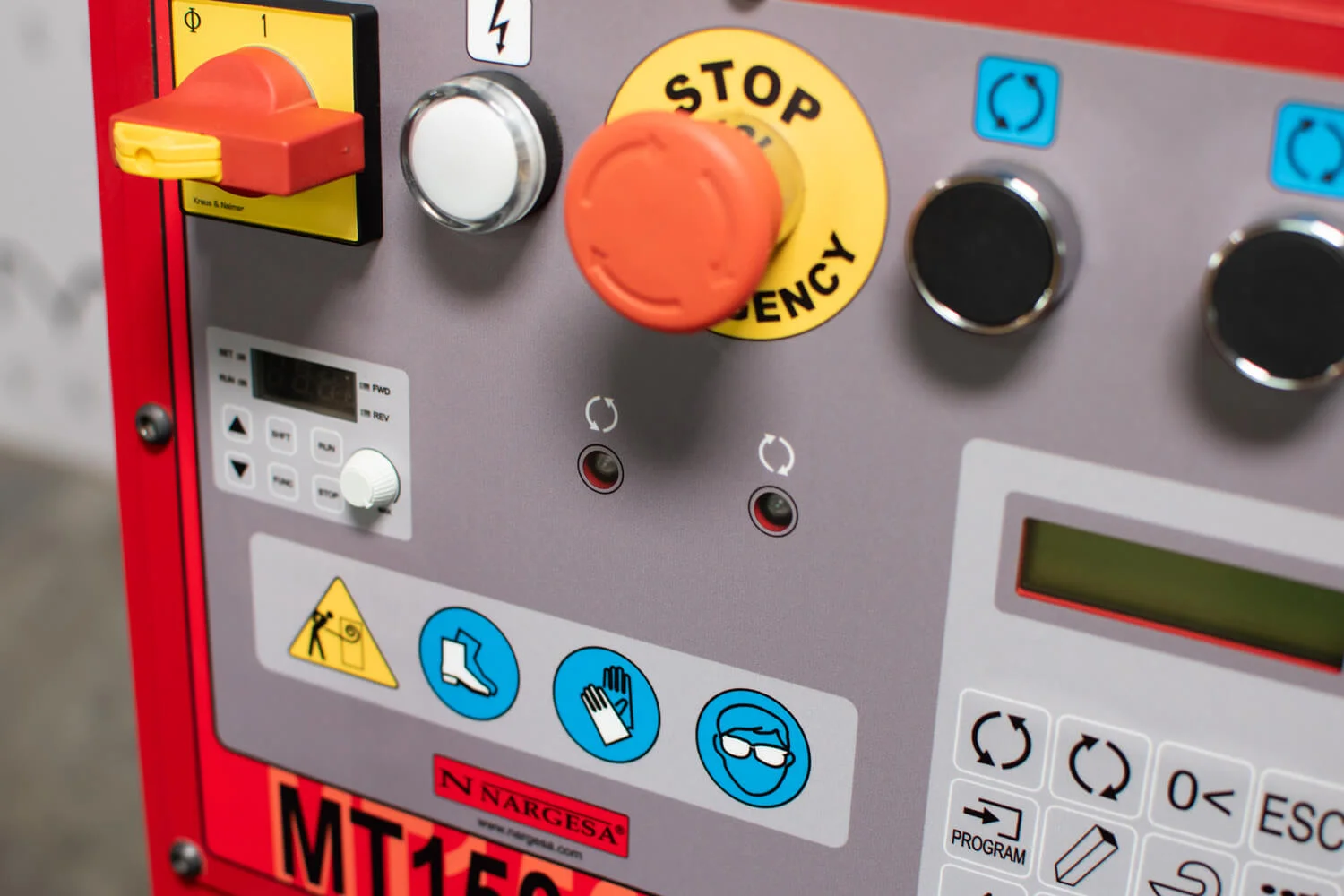

  • Electric panel command with double button, right and left , which makes it a very easy handling machine.
  • Voltages Available: 220V / 3 Phase / 60Hz or 220V / 1 Phase / 60Hz
  • Rotation Speed Controller
  • Adjustable Rotation Speed from: 0 to 5 R.P.M.
  • Lower bench palletized to move the machine easily to the working site or storage.
  • Its robustness, versatility and easy handling condition turn it into one of the best machines for an ornamental blacksmith workshop.
