NEW 250 DV: 10" Manual Cold Saw (2-3/4" Round Tube Capacity)


NEW 250 DV: 10" Manual Cold Saw (2-3/4" Round Tube Capacity)

2,800.00

$2,800

Ready to place an order, or do you have any questions? Call us at (909) 476-8007

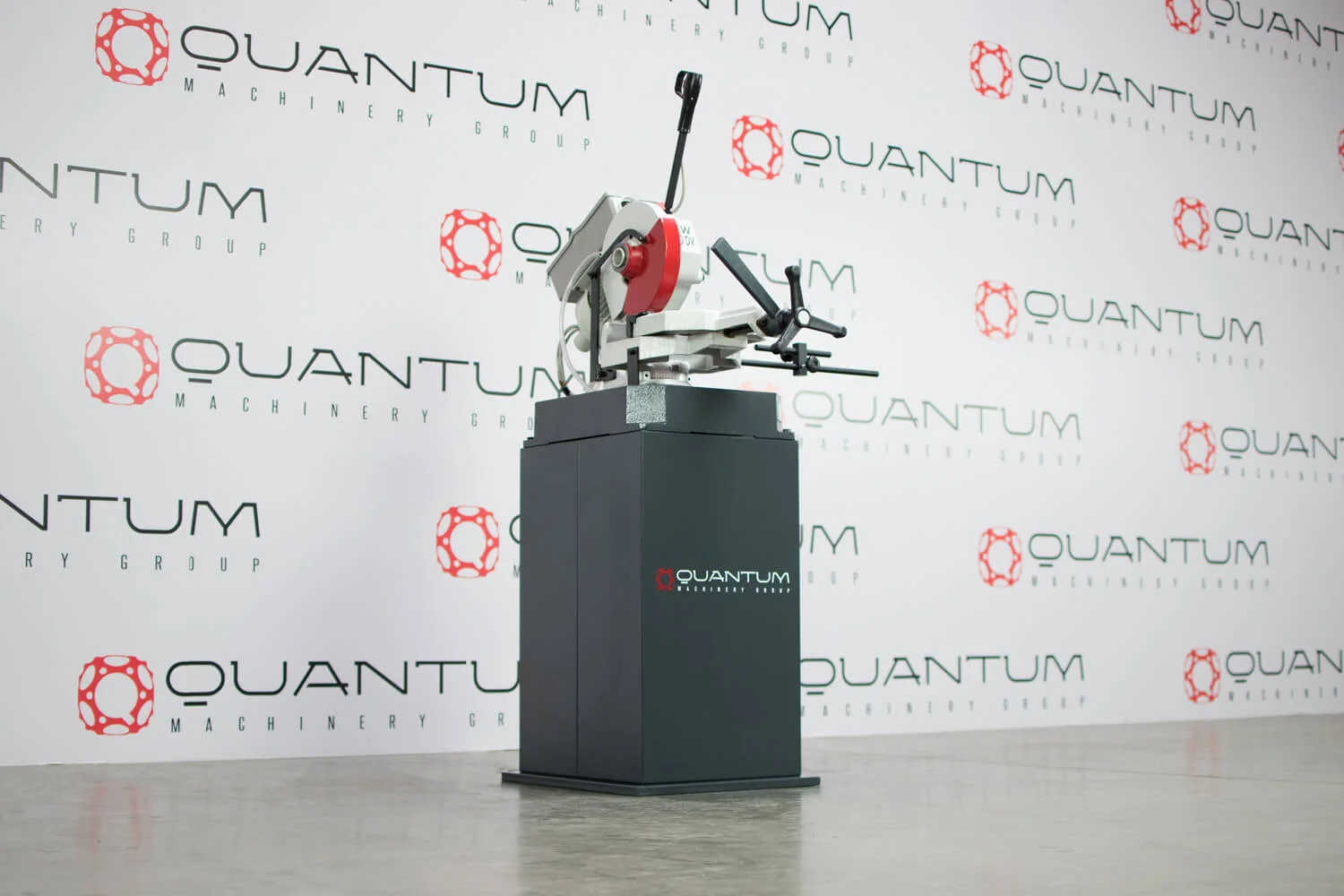

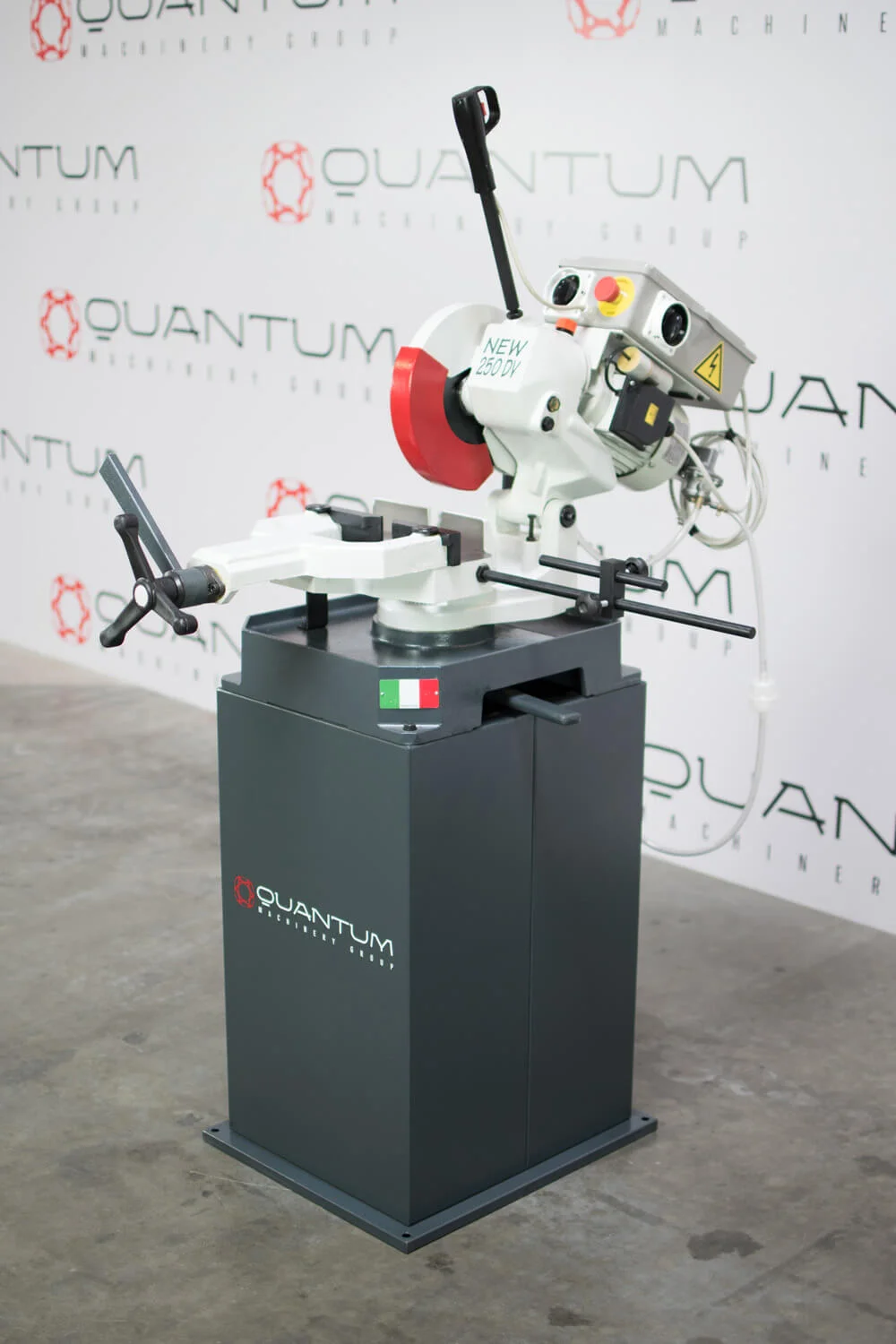

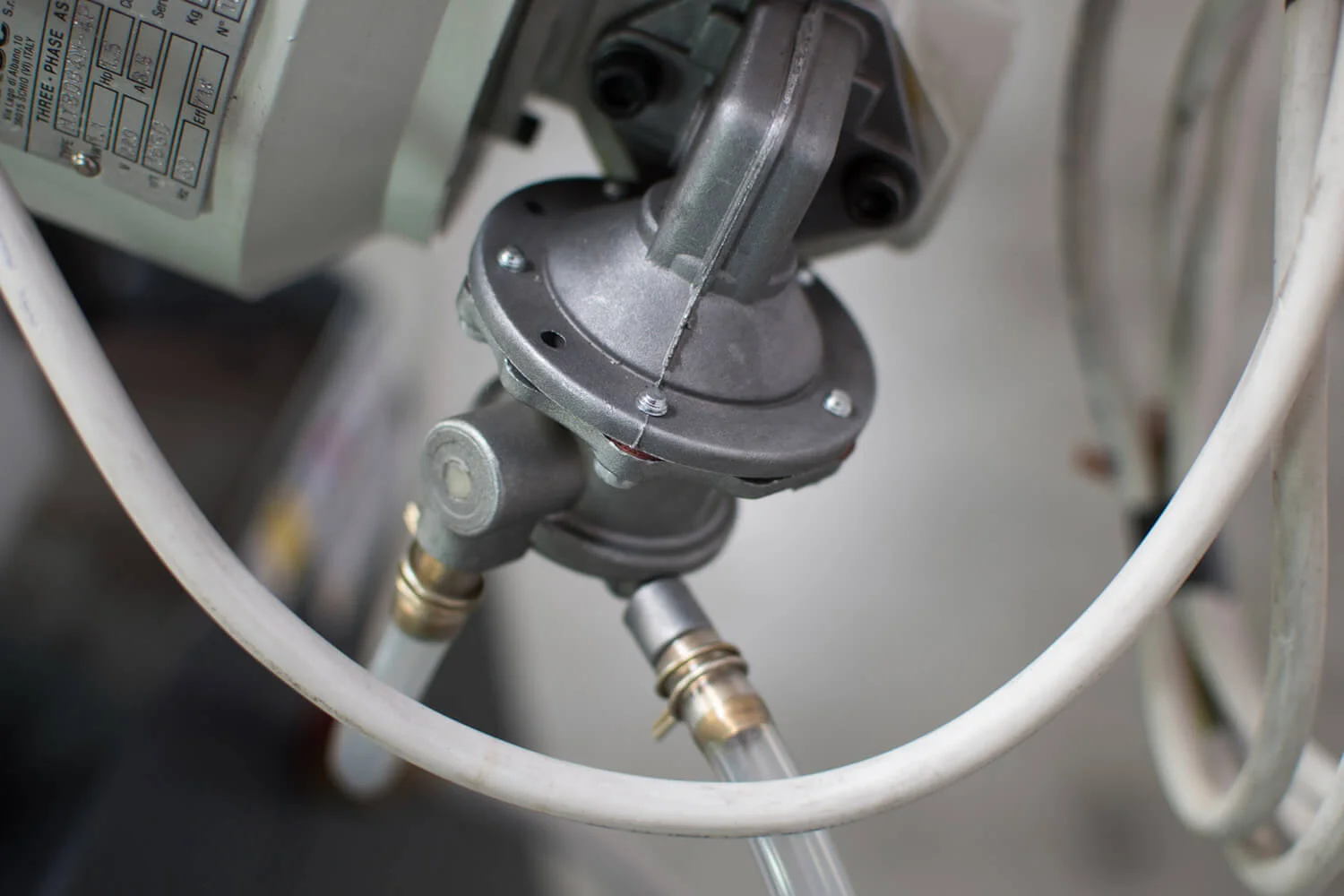

The Quantum NEW 250 DV Manual (Pivot-Style) Cold Saw has the capability of moving the head 45 degrees left and 45 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and Incorporated Recirculating Mechanical Coolant System (Coolant Filter). The NEW 250 DV is equipped with a double-vice and counter-vice that comes complete with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal. This NEW 250 DV will be equipped with a 250mm Quantum Blade ($70 Value).

  • Weight: 210 lbs.
  • Max Vice Opening: 3.9"
  • Overall Dimensions: 22"W x 65"H x 44"L
  • 2 Speed Options: 40 R.P.M. and 80 R.P.M.
  • Blade Size Used: 250mm x 32mm x 2.5mm Thick
    (10" x 1.25" x 0.10" Thick)
Add To Cart

NEW 250 DV Cutting Capacities and Specifications:

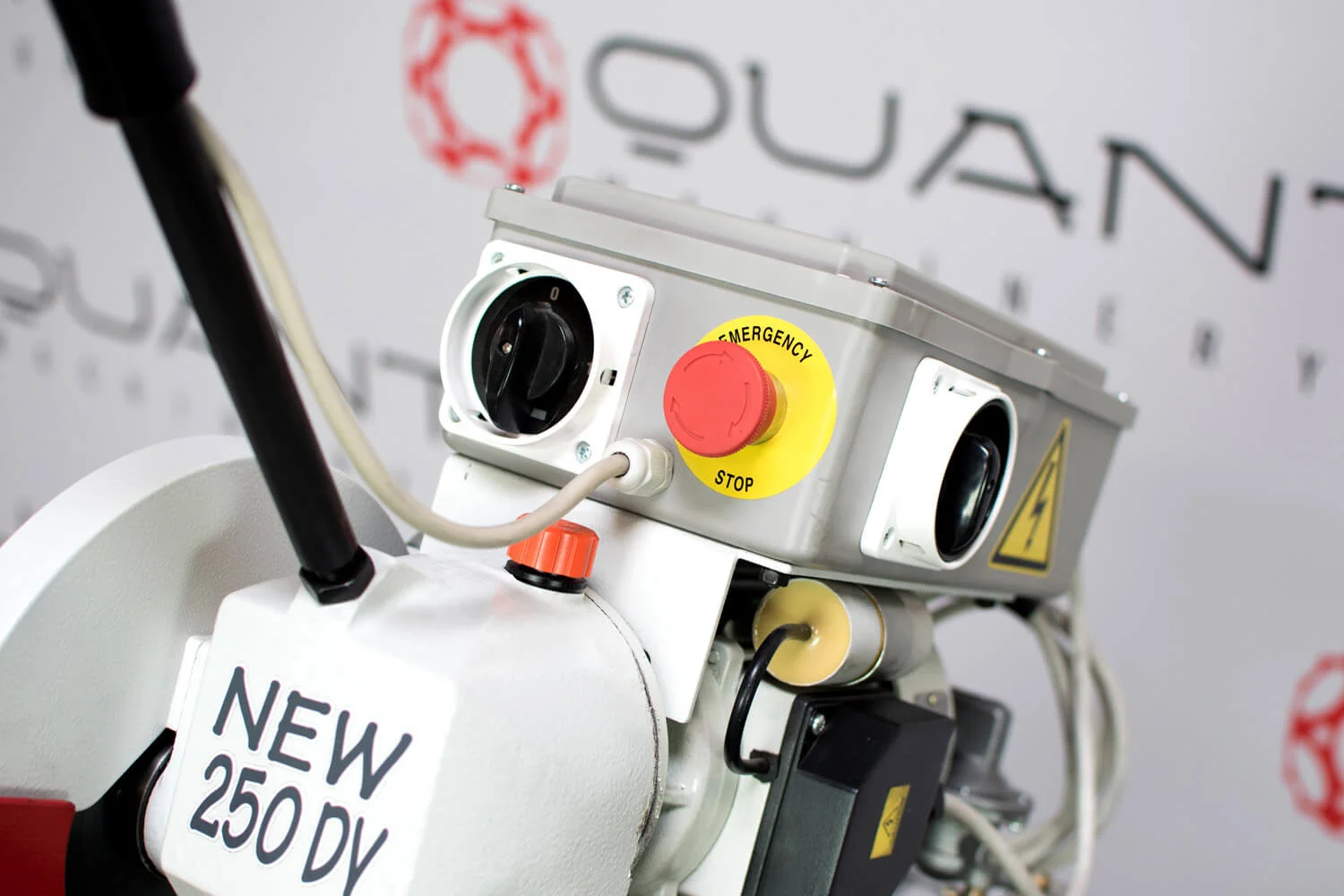

  • Trigger Switch Operation.

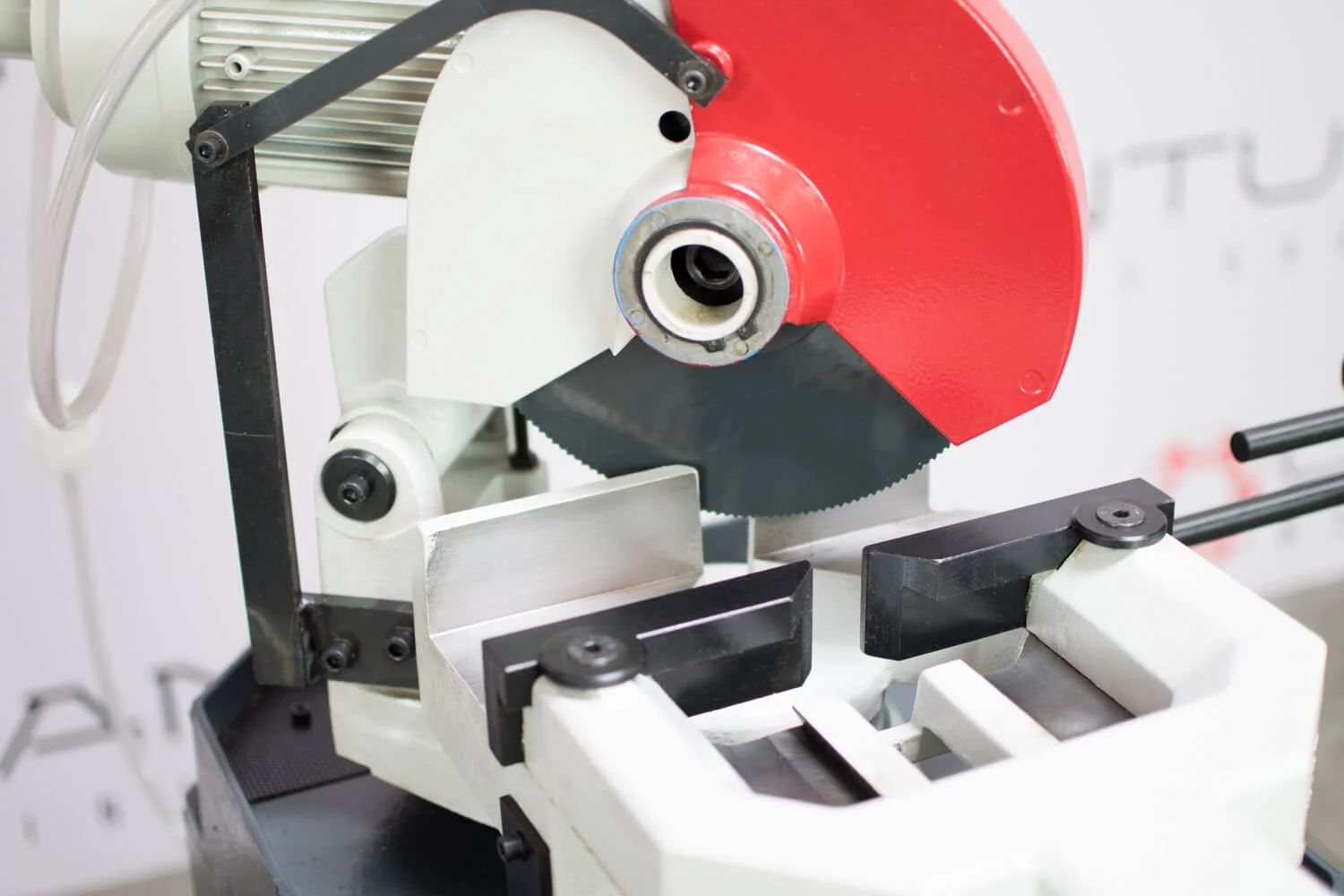

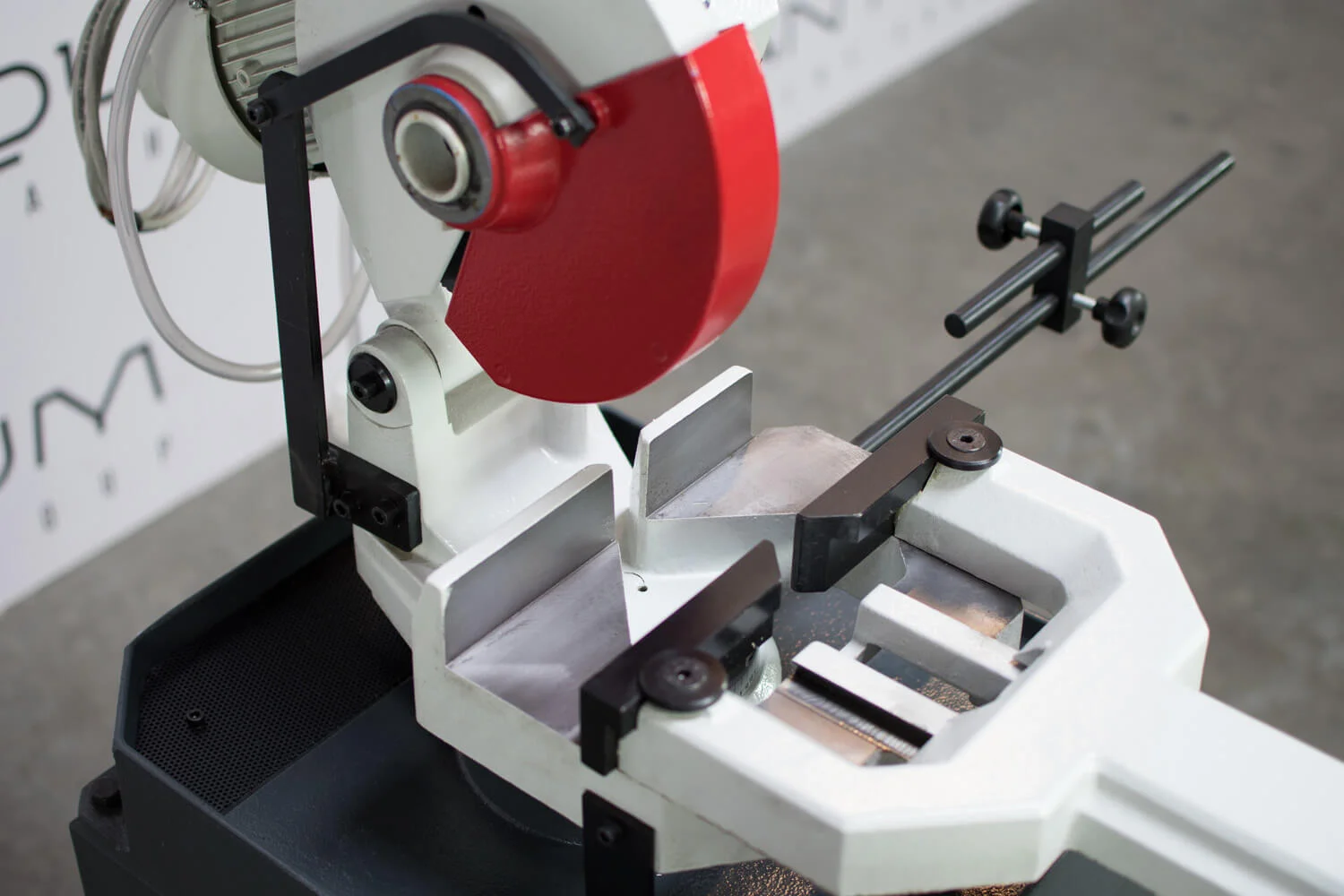

  • Quick Locking Double-Vice.
  • Comes complete with blade.

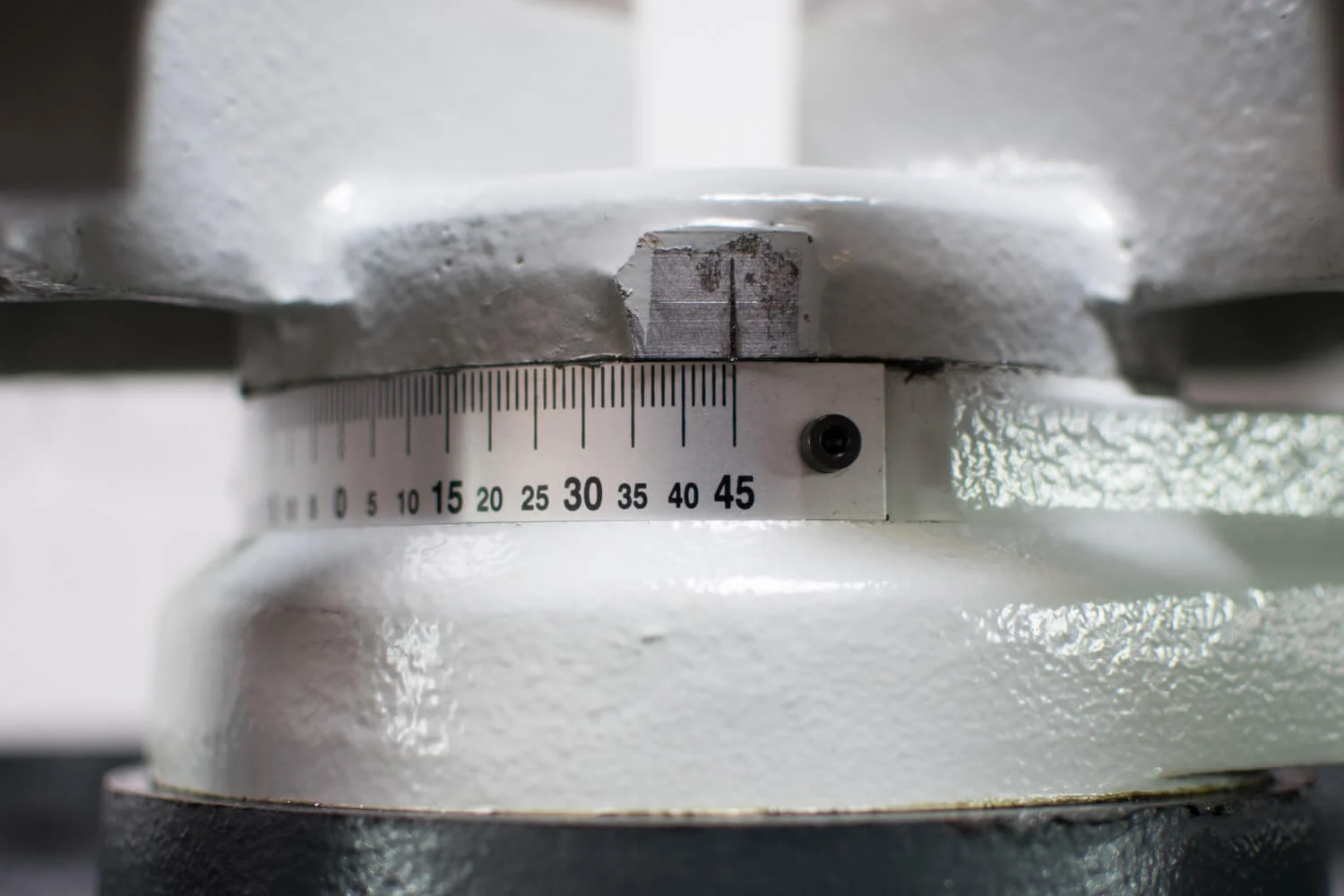

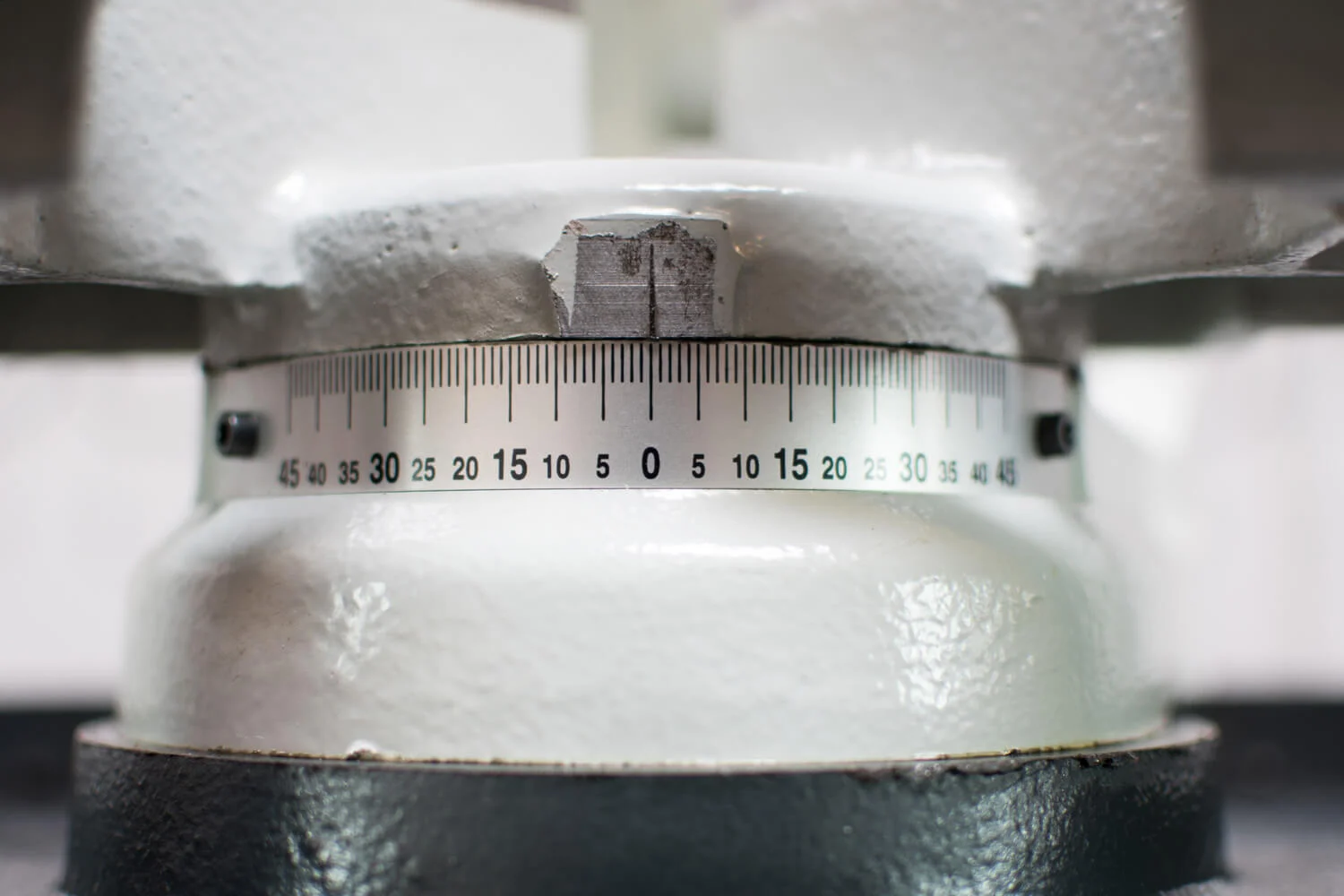

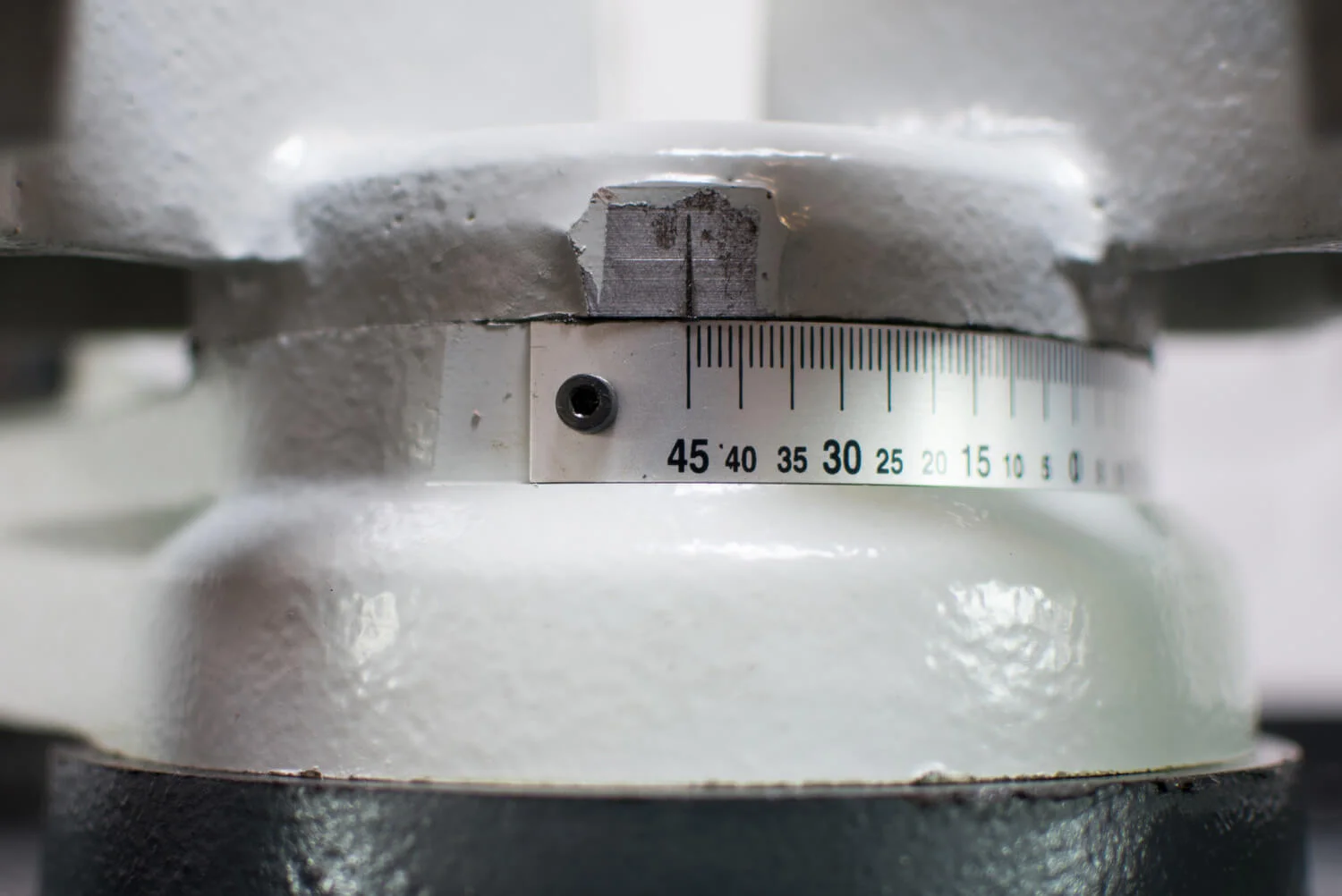

  • Swivel Head 45° Left & Right.
  • Italian Made = Supreme Quality.
  • Include Bar Stop, Service Tools and Manual.
  • Adjustable material stop for Repetitive Production.
  • Round Tube Cutting at 90 Degrees: 2.75"
  • Round Tube Cutting at 45 Degrees: 2.50"
  • Square Tube Cutting at 90 Degrees: 2.75"
  • Square Tube Cutting at 45 Degrees: 2.0"
  • Solid Round Cutting at 90 Degrees: 1.50"
  • Solid Round Cutting at 45 Degrees: 1.25"
  • Rectangular Tube Cutting at 90 Degrees: 2"H x 3.75"W
  • Rectangular Tube Cutting at 45 Degrees: 1.75"H x 2.25"W
