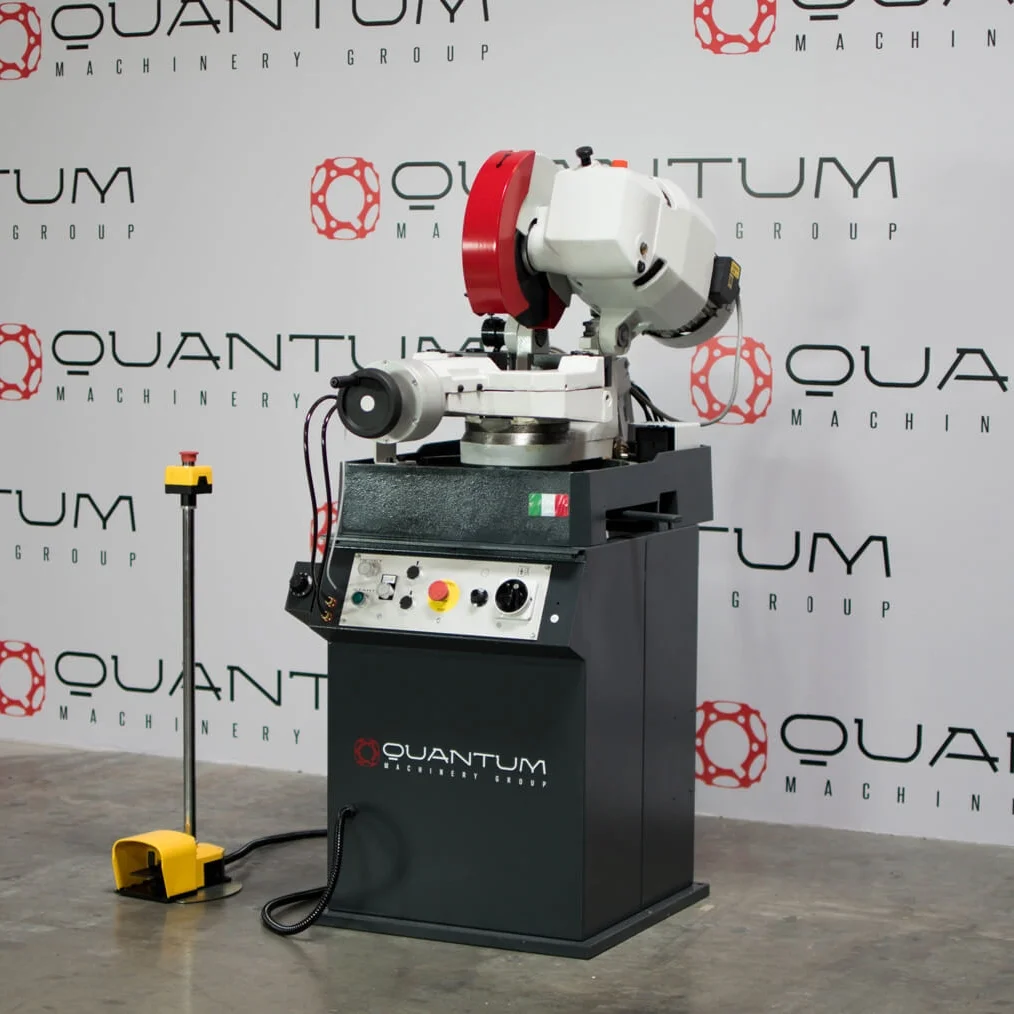

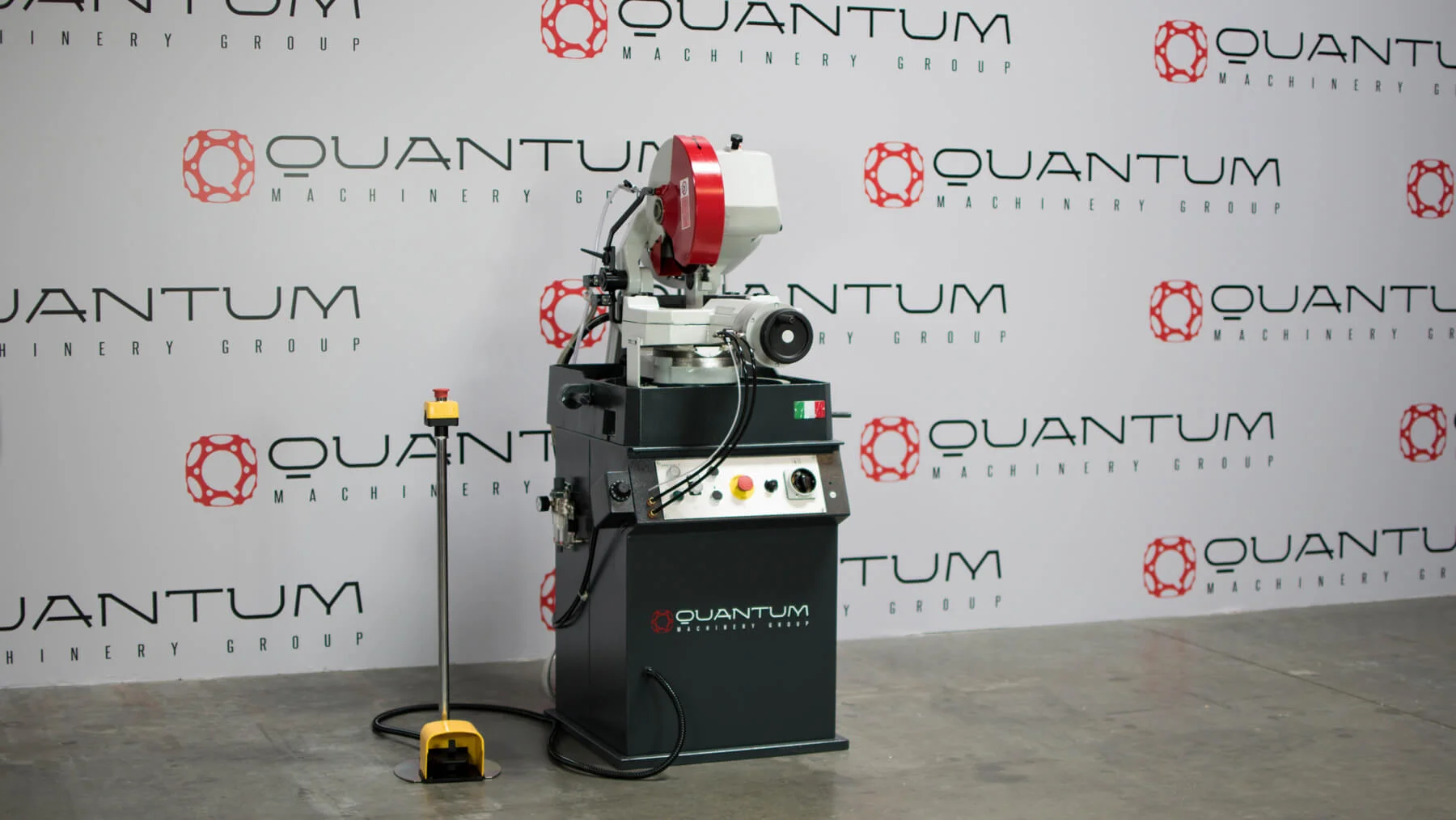

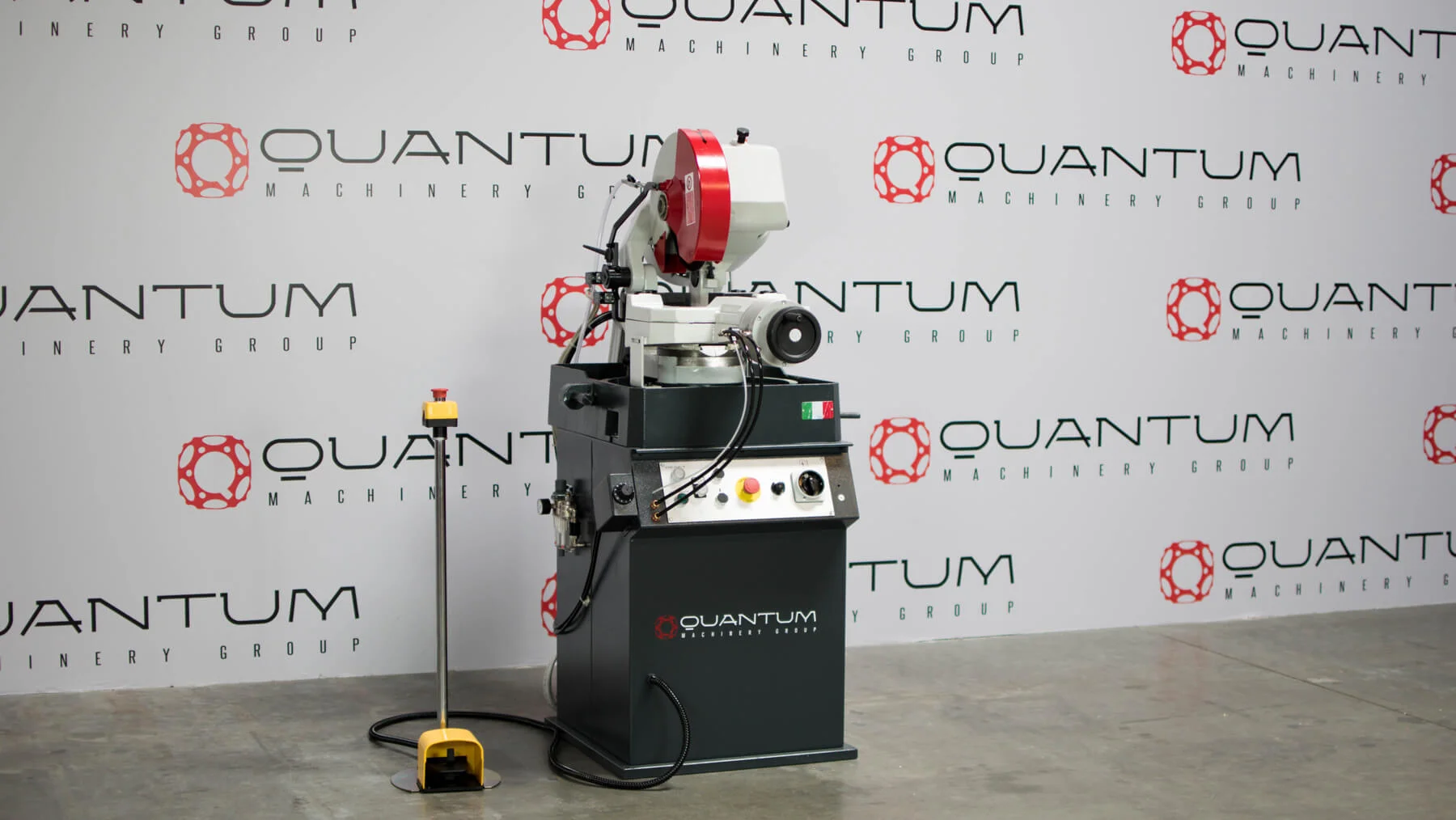

NEW 350-S: 14" Semi-Auto Cold Saw (4-1/4" Round Tube Capacity)


NEW 350-S: 14" Semi-Auto Cold Saw (4-1/4" Round Tube Capacity)

7,900.00

$7,900

Ready to place an order, or do you have any questions? Call us at (909)476-8007

This NEW 350-S is equipped with a Variable Speed Inverter. The Quantum NEW 350-S Semi-Automatic (Pivot-Style) Cold Saw has the capability of moving the head 45 degrees left and 45 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and Incorporated Recirculating Mechanical Coolant System (Coolant Filter). The NEW 350-S is equipped with a double-vice and counter-vice that comes complete with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal. This NEW 350-S will be equipped with a 350mm Quantum Blade ($120 Value).

  • Weight: 750 lbs.
  • Max Vice Opening: 4.7"
  • Overall Dimensions: 39"W x 58"H x 47"L
  • 2 Speed Options: 40 R.P.M. and 80 R.P.M.
  • Blade Size Used: 350mm x 32mm x 2.5mm Thick
    (14" x 1.25" x 0.10" Thick)
Add To Cart

NEW 350-S Cutting Capacities and Specifications:

  • Trigger Switch Operation.
  • Sliding Quick Locking Double-Vice for Longitudinal Cutting.
  • Reduction Unit in Oil Bath.
  • Comes complete with blade.

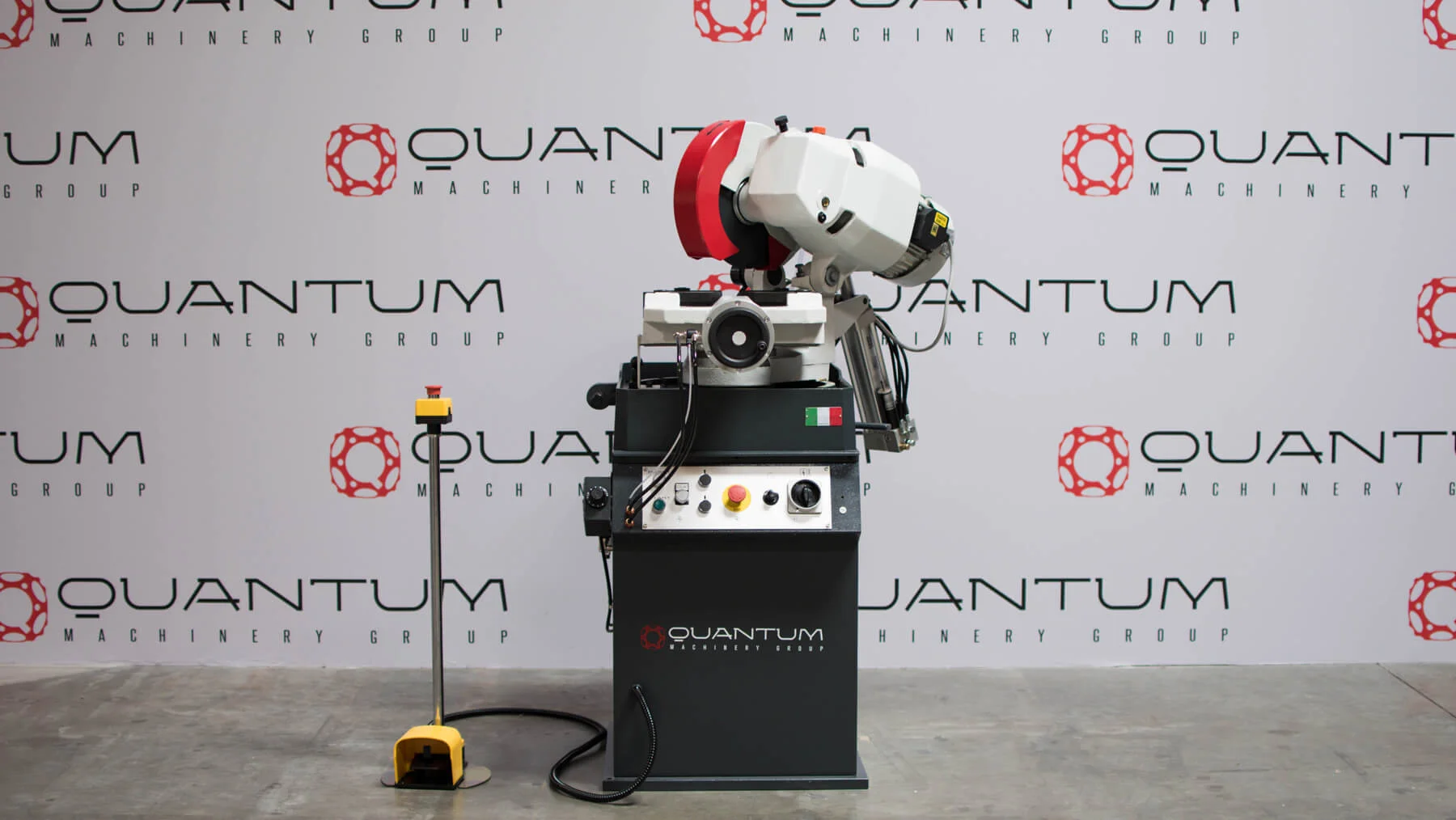

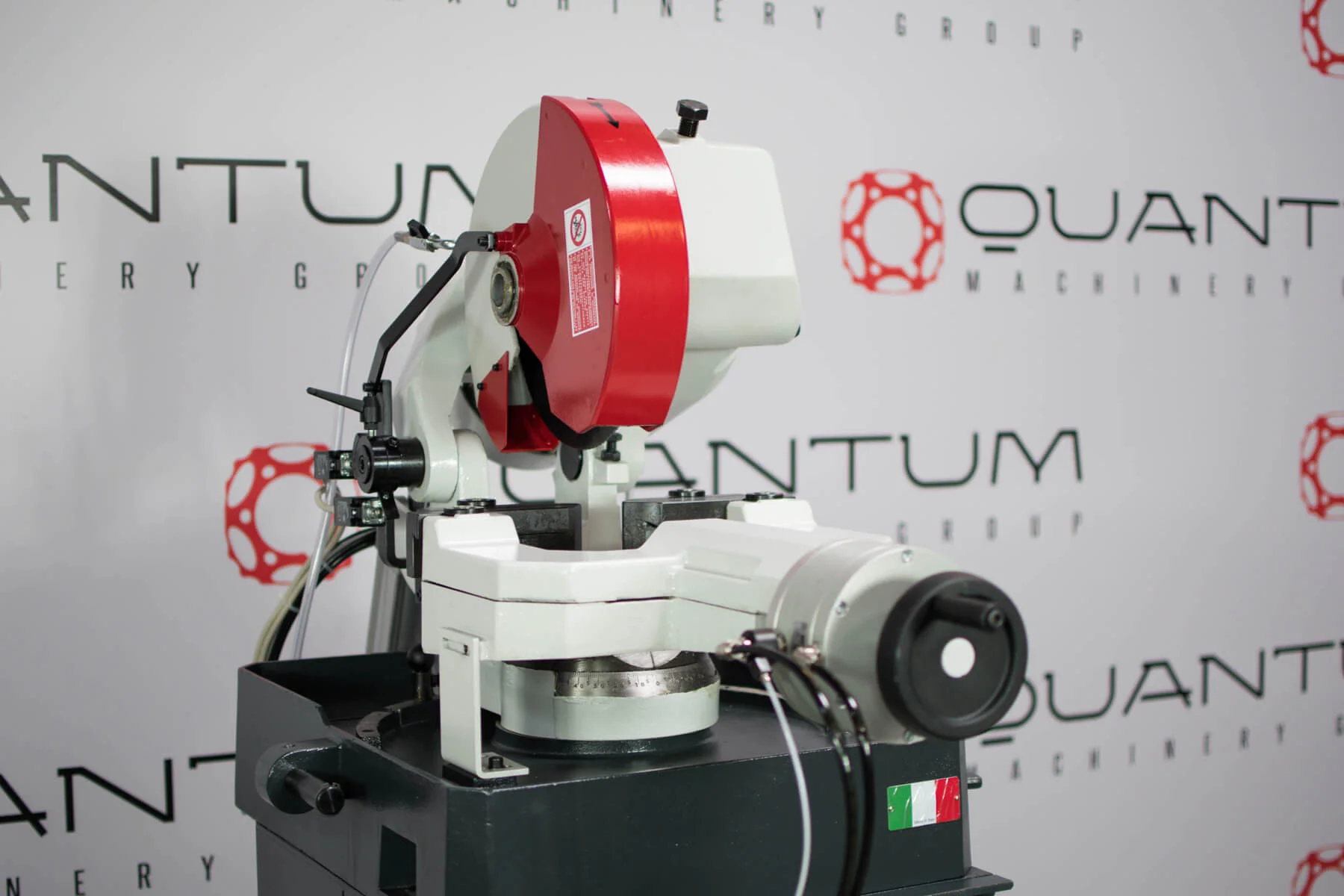

  • Swivel Head 45° Left & Right.
  • Head Rotation Stops 45° - 0° - 45°
  • Italian Made = Supreme Quality.
  • Double-Hinged Pin with Eccentric Bush.

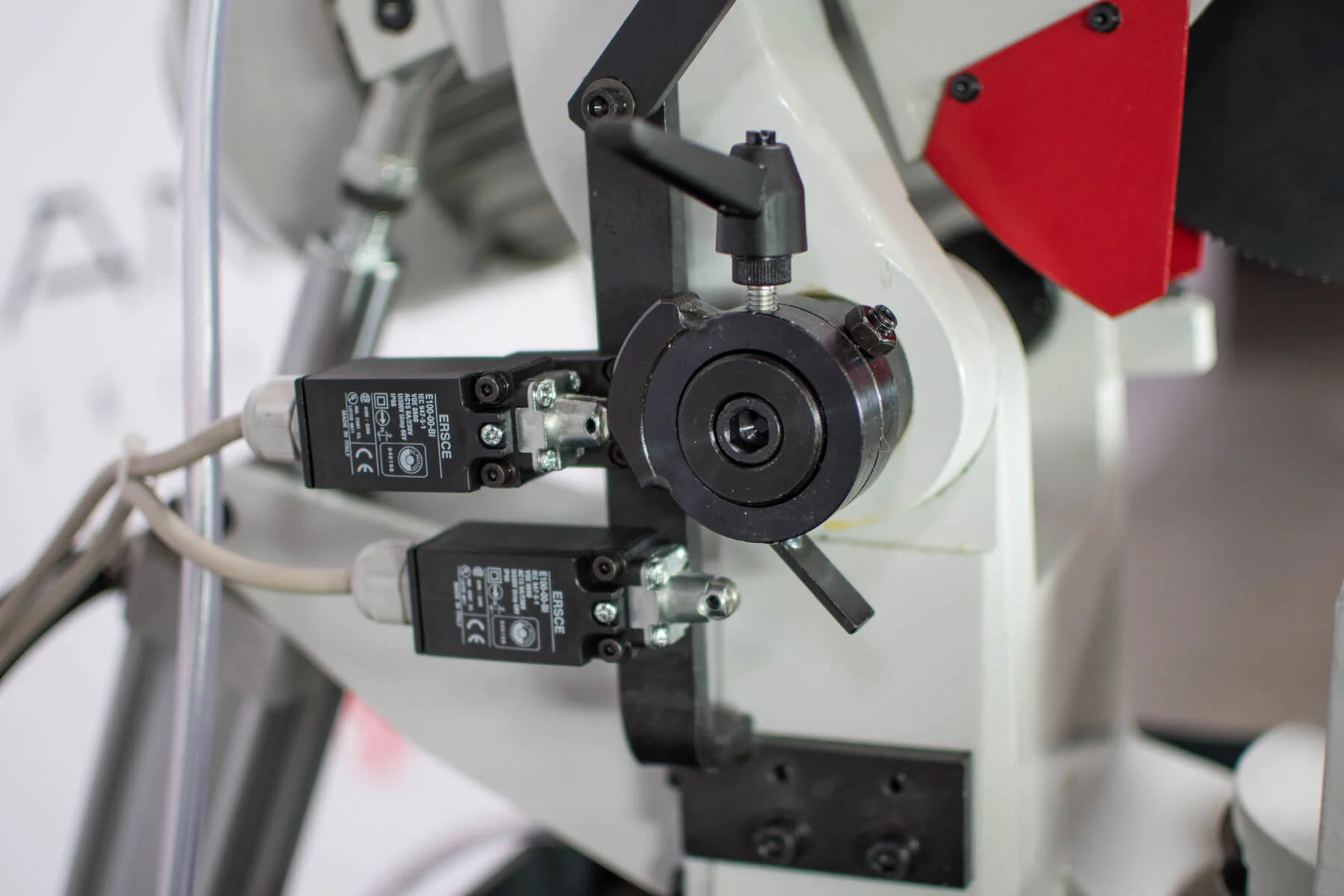

  • Adjustable stops for head stroke.
  • Jet separation system to keep blade oiled.
  • Include Bar Stop, Service Tools and Manual.
  • 0.035 kW Power - Driven pump for band cooling.
  • Adjustable material stop for Repetitive Production.
  • Round Tube Cutting at 90 Degrees: 4-1/4"
  • Round Tube Cutting at 45 Degrees: 3-1/8"
  • Square Tube Cutting at 90 Degrees: 4"
  • Square Tube Cutting at 45 Degrees: 3-1/8"
  • Solid Round Cutting at 90 Degrees: 2-1/4"
  • Solid Round Cutting at 45 Degrees: 2-1/8"
  • Rectangular Tube Cutting at 90 Degrees: 3-1/8"H x 4-1/2"W
  • Rectangular Tube Cutting at 45 Degrees: 3-1/8"H x 3-1/8"W

Operation:

Cycle start is obtained by pressing the relevant start pedal. The machine performs the following operations during the cutting cycle:
1. Vice closing and activation of blade motor
2. Cutting head down stroke
3. Return of head to initial position and blade motor stop
4. Vice opening
