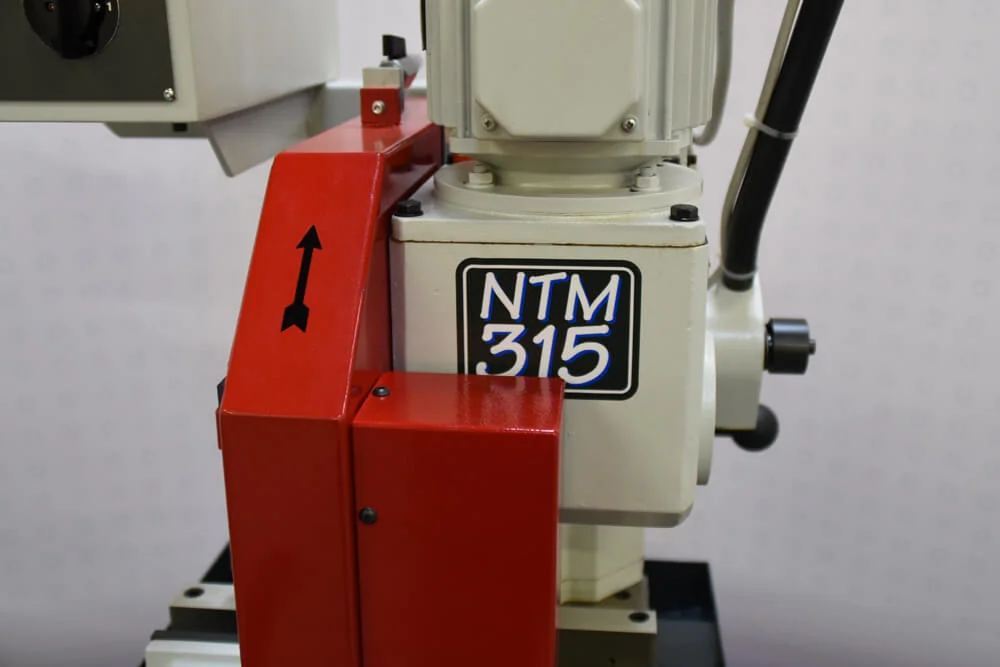

NTM 315: 12-1/2" Manual Double-Column Cold Saw (3-7/8" Round Tube Capacity)


NTM 315: 12-1/2" Manual Double-Column Cold Saw (3-7/8" Round Tube Capacity)

5,700.00

$5,700

Ready to place an order, or do you have any questions? Call us at (909)476-8007

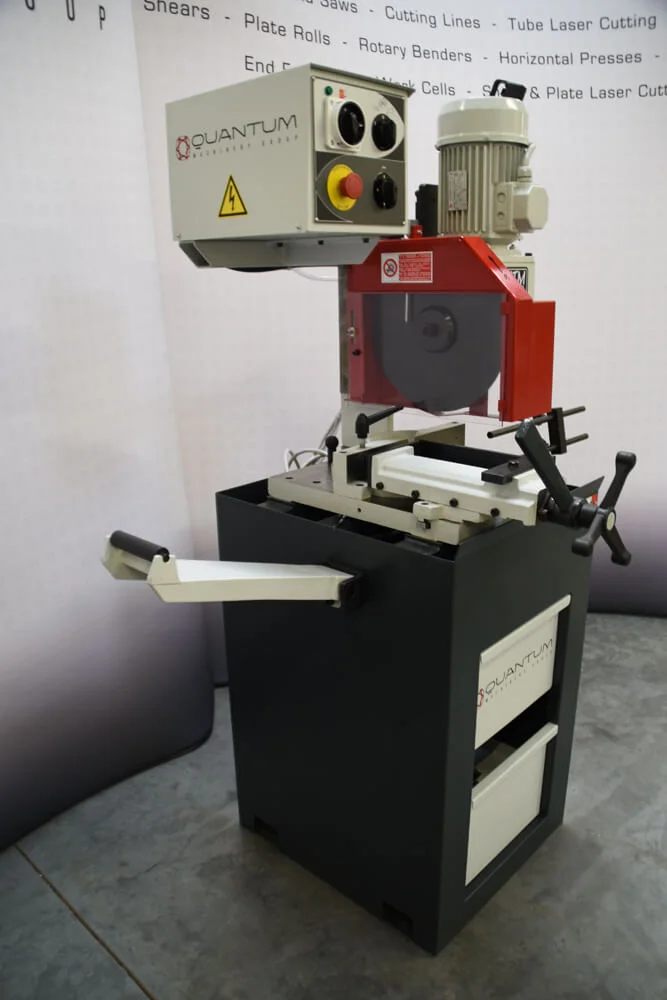

The Quantum NTM 315 Manual (Double-Column Style) Cold Saw has the capability of moving the head up to 45 degrees left and up to 60 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and Incorporated Recirculating Mechanical Coolant System (Coolant Filter). The NTM 315 is equipped with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal. This NTM 315 will be equipped with a 315mm Quantum Blade ($100 Value).

  • Weight: 600 lbs.
  • Max Vice Opening: 6-1/4"
  • Overall Dimensions: 26"W x 67"H x 59"L
  • 2 Speed Options: 33 R.P.M. and 66 R.P.M.

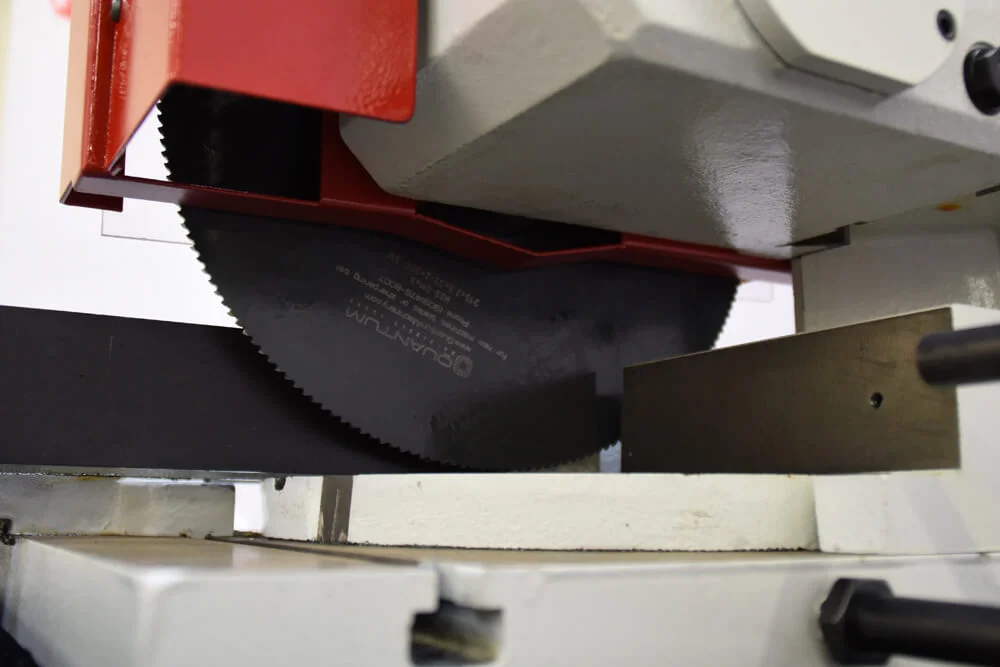

  • Blade Size Used: 315mm x 32mm x 2.5mm Thick
    (12.40" x 1.25" x 0.10" Thick)
Add To Cart

Optional Additions for the NTM 315 Double Column Manual Cold Saw:

  • Air Vice (Add $600 to the Total)
  • Variable Speed Inverter (Add $1,100 to the Total)

NTM 315 Cutting Capacities and Specifications:

  • Trigger Switch Operation.
  • Vice complete with Anti-Burr Device.
  • Reduction Unit in Oil Bath.
  • Comes complete with blade.
  • Swivel Head up to 60° Left & up to 45° Right.

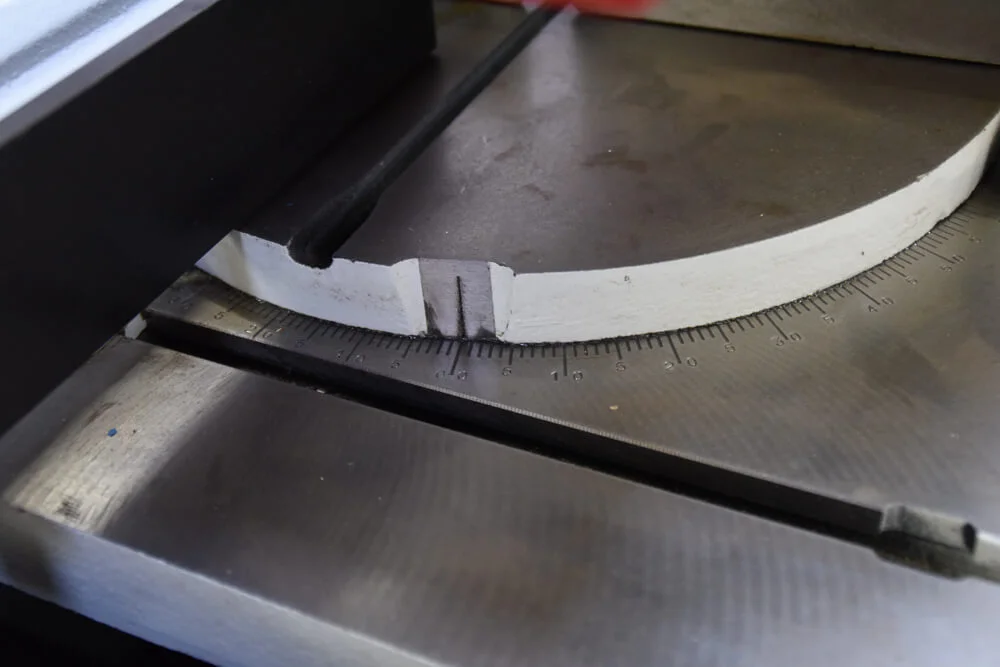

  • Head Rotation Stops: 45° - 0° - 45° - 60°
  • Adjustable stops for Head Vertical Stroke.
  • Italian Made = Supreme Quality.
  • Double-Hinged Pin with Eccentric Bush.
  • Shave Breaker to keep the blade cleaned.
  • Motor Pump for Blade Lubrication.
  • Jet separation system to keep blade oiled.
  • Include Bar Stop, Service Tools and Manual.
  • Adjustable material stop for Repetitive Production.
  • Round Tube Cutting at 90°: 3-7/8"
  • Round Tube Cutting at 45° Left: 3-7/8"
  • Round Tube Cutting at 45° Right: 3-7/8"
  • Round Tube Cutting at 60° Right: 3-1/8"
  • Square Tube Cutting at 90°: 3-1/2"
  • Square Tube Cutting at 45° Left: 3-1/2"
  • Square Tube Cutting at 45° Right: 3-1/2"
  • Square Tube Cutting at 60° Right: 2-3/4"
  • Solid Round Cutting at 90°: 2-3/4"
  • Solid Round Cutting at 45° Left: 2-3/4"
  • Solid Round Cutting at 45° Right: 2-3/4"
  • Solid Round Cutting at 60° Right: 2-3/4"
  • Rectangular Tube Cutting at 90°: 3-1/8"H x 5-1/4"W
  • Rectangular Tube Cutting at 45° Left: 3-1/8"H x 3-7/8"W
  • Rectangular Tube Cutting at 45° Right: 3-1/8"H x 3-7/8"W
  • Rectangular Tube Cutting at 60° Right: 2-3/4"H x 2-3/4"W
