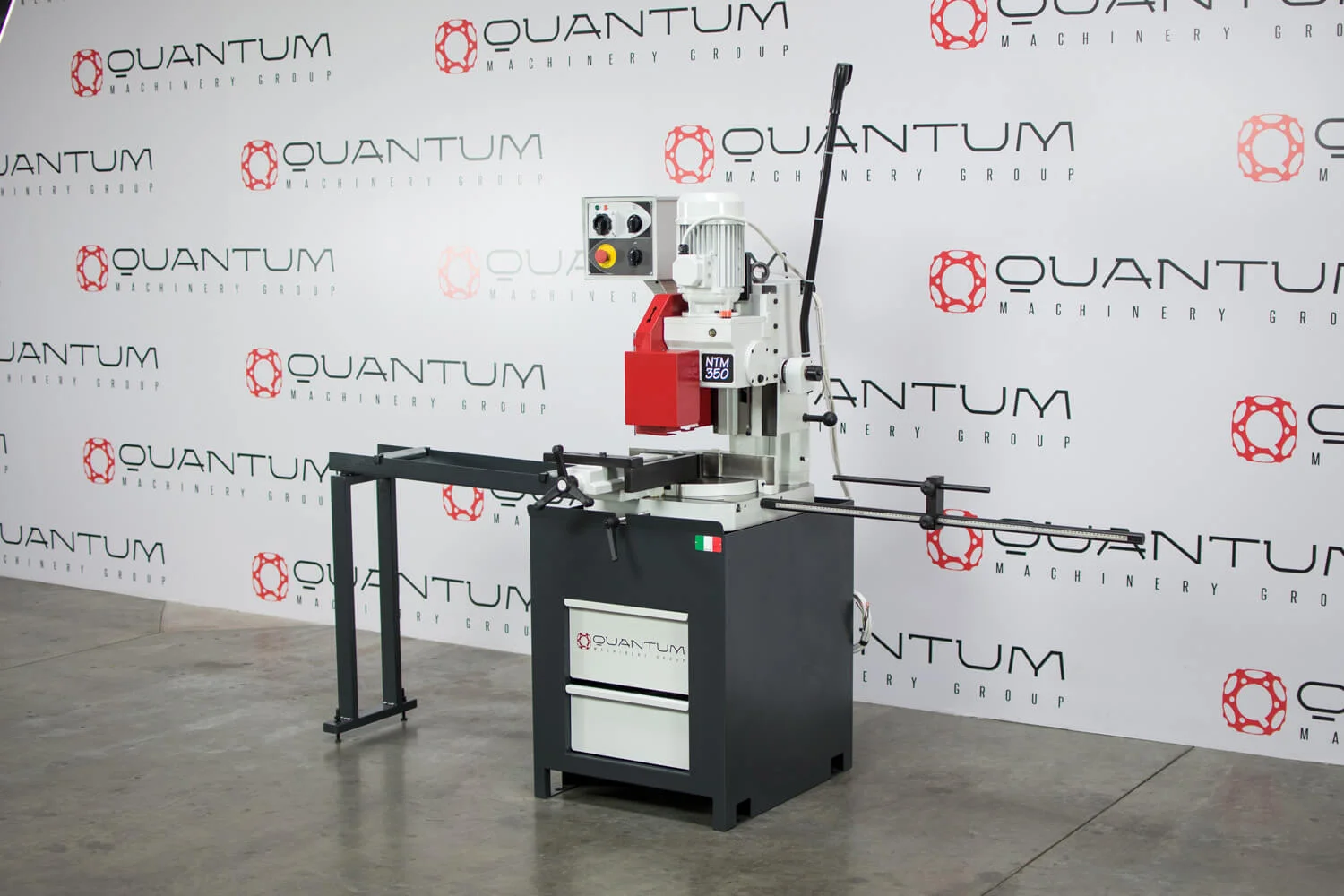

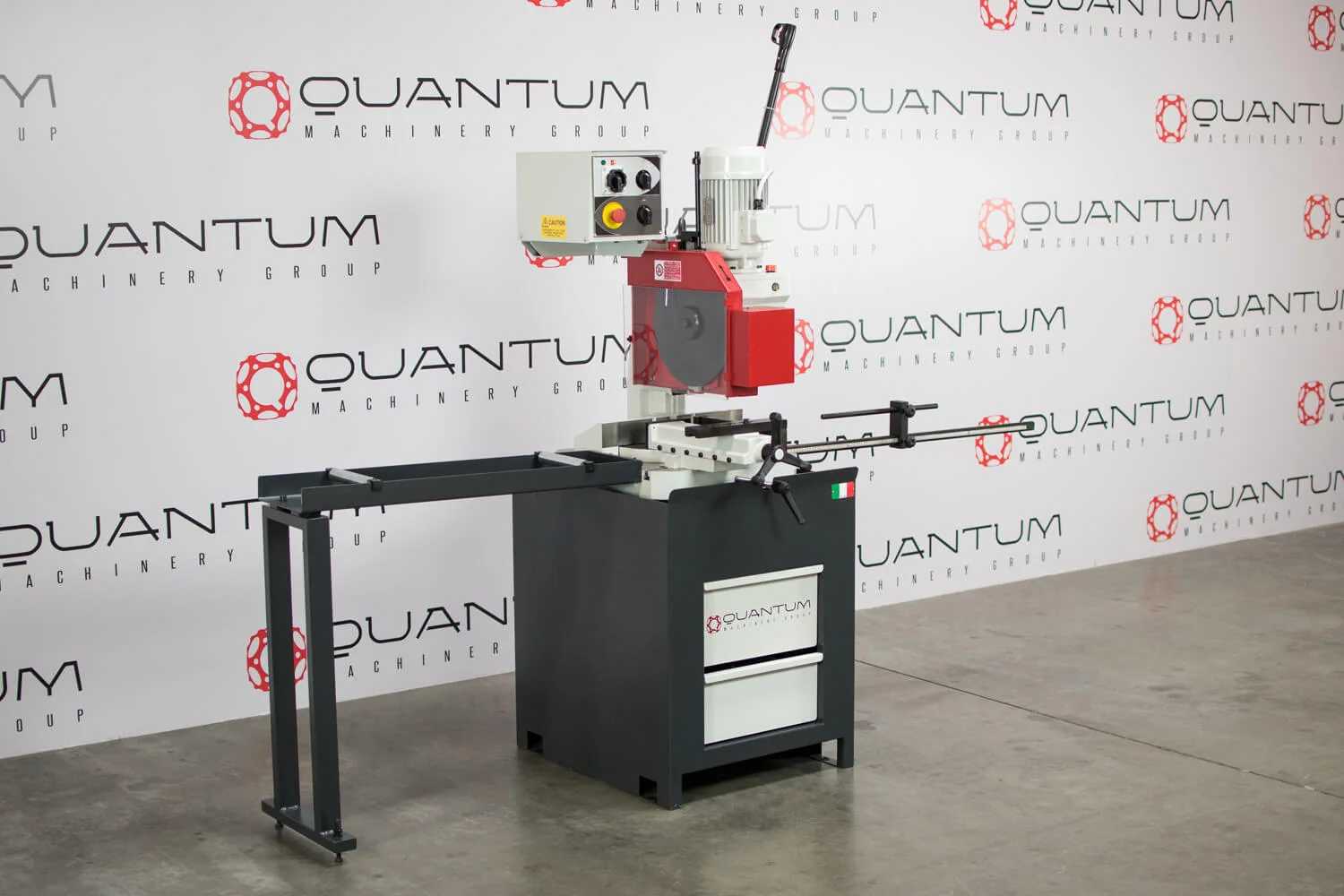

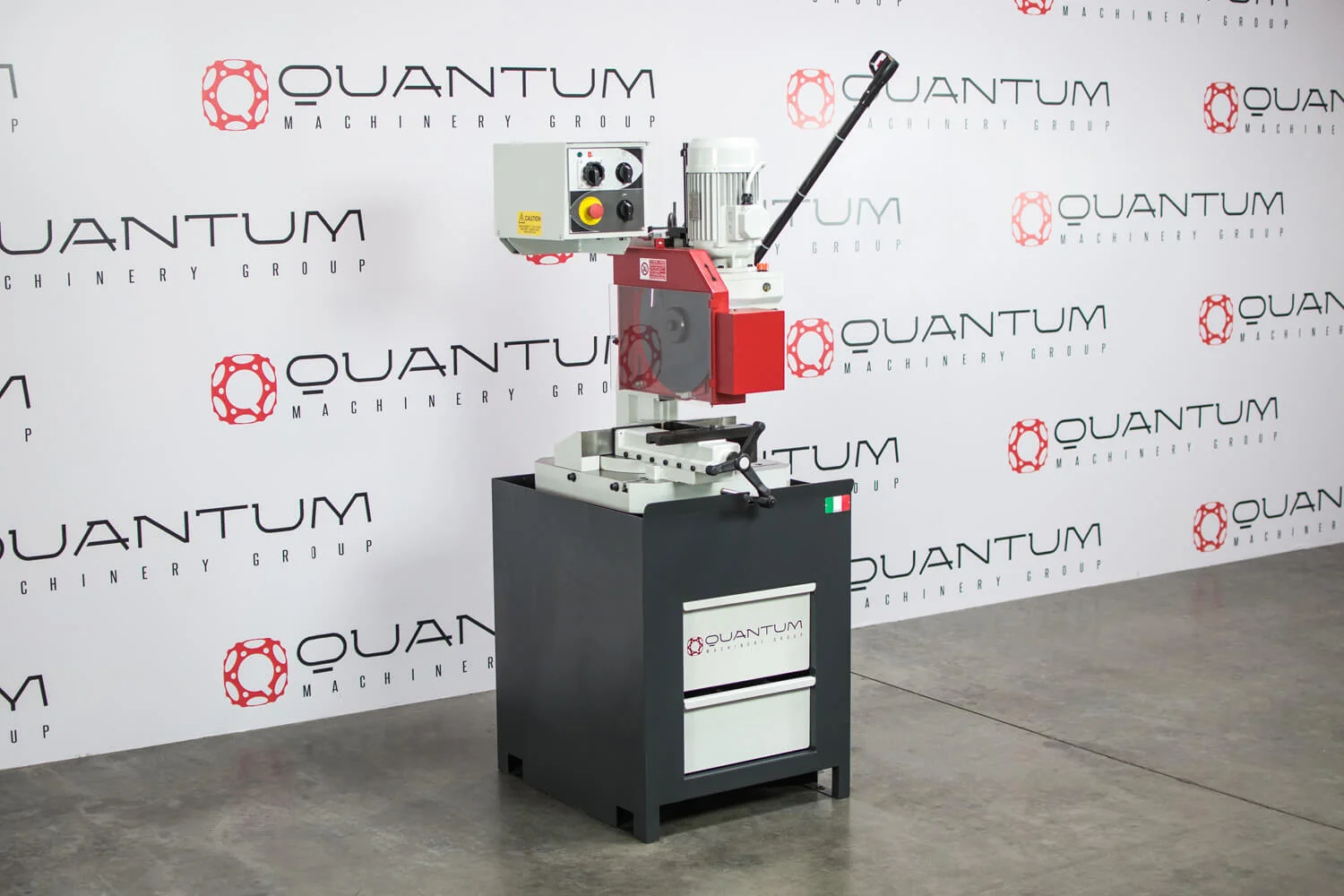

NTM 350: 14" Manual Double-Column Cold Saw (4-5/8" Round Tube Capacity)


NTM 350: 14" Manual Double-Column Cold Saw (4-5/8" Round Tube Capacity)

7,000.00

$7,000

Ready to place an order, or do you have any questions? Call us at (909)476-8007

The Quantum NTM 350 Manual (Double-Column Style) Cold Saw has the capability of moving the head up to 45 degrees left and up to 60 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and Incorporated Recirculating Mechanical Coolant System (Coolant Filter). The NTM 350 is equipped with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal. This NTM 350 will be equipped with a 350mm Quantum Blade ($120 Value).

  • Weight: 1,000 lbs.
  • Max Vice Opening: 7-1/4"
  • Overall Dimensions: 40"W x 73"H x 42"L
  • 2 Speed Options: 36 R.P.M. and 72 R.P.M.
  • Blade Size Used: 350mm x 32mm x 2.5mm Thick
    (14" x 1.25" x 0.10" Thick)
Add To Cart

Optional Additions for the NTM 350 Double-Column Manual Cold Saw:

  • Variable Speed Inverter (Add $1,100 to the Total)
  • Air Vice (Add $600 to the Total)

NTM 350 Cutting Capacities and Specifications:

  • Trigger Switch Operation.

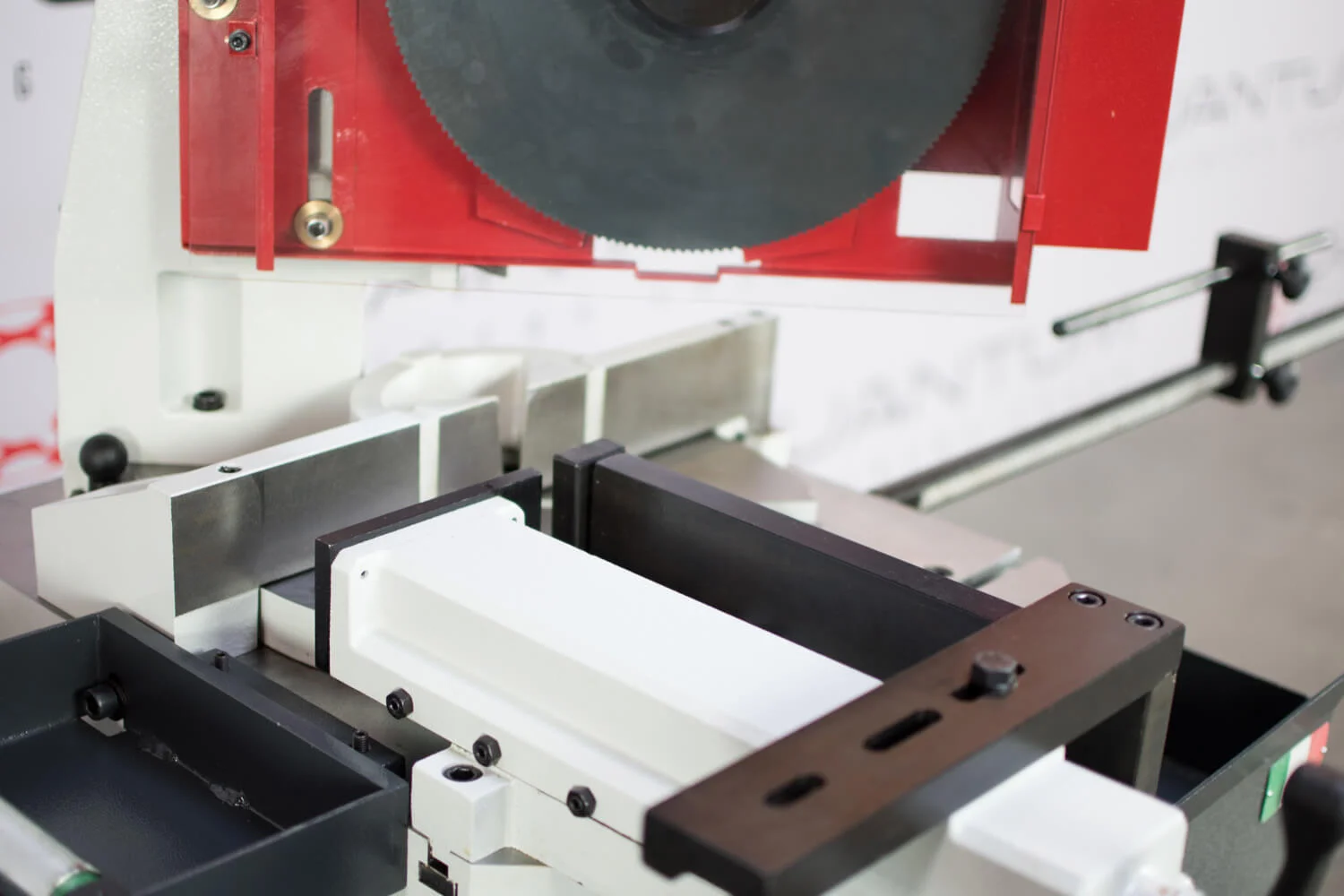

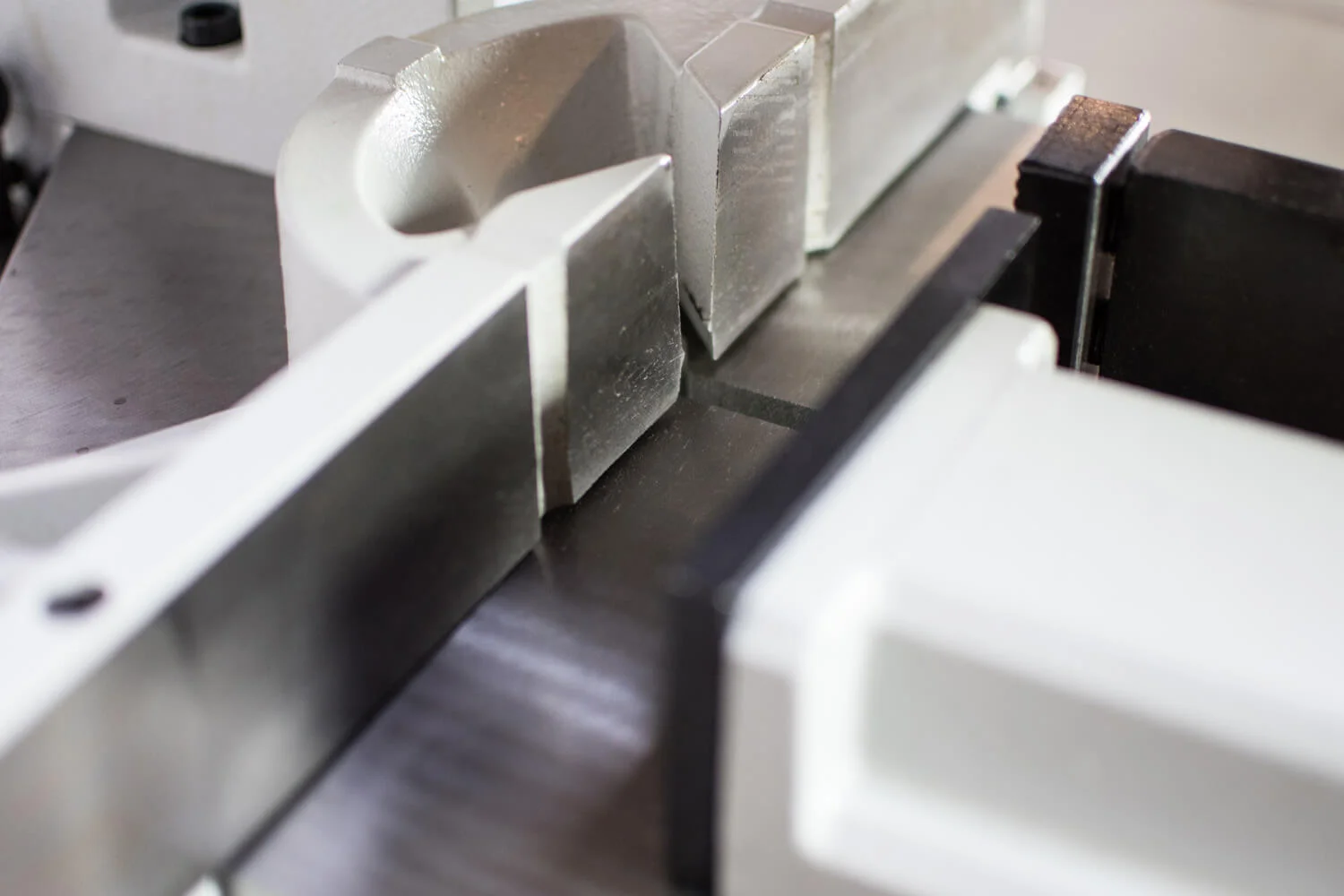

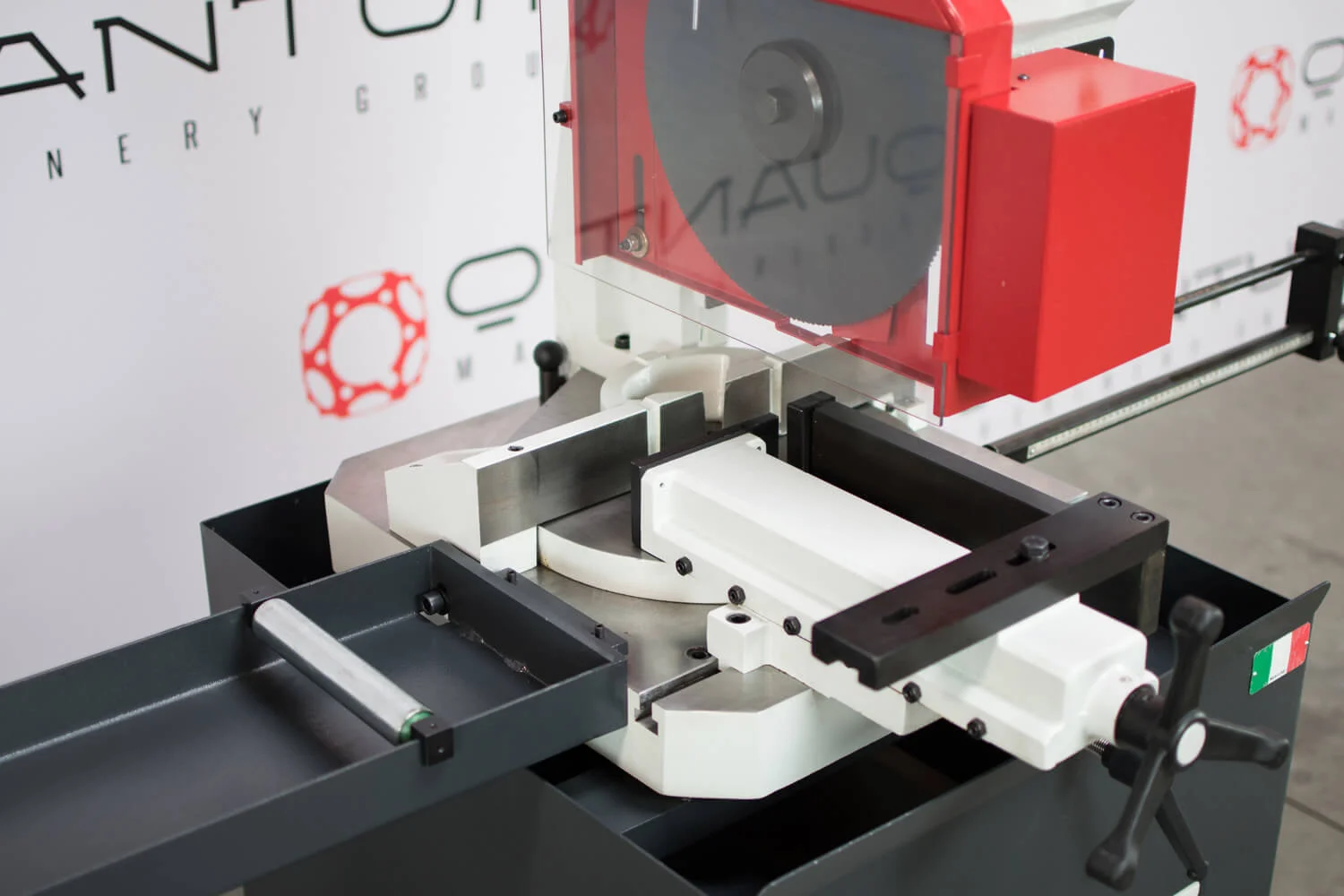

  • Vice complete with Anti-Burr Device.

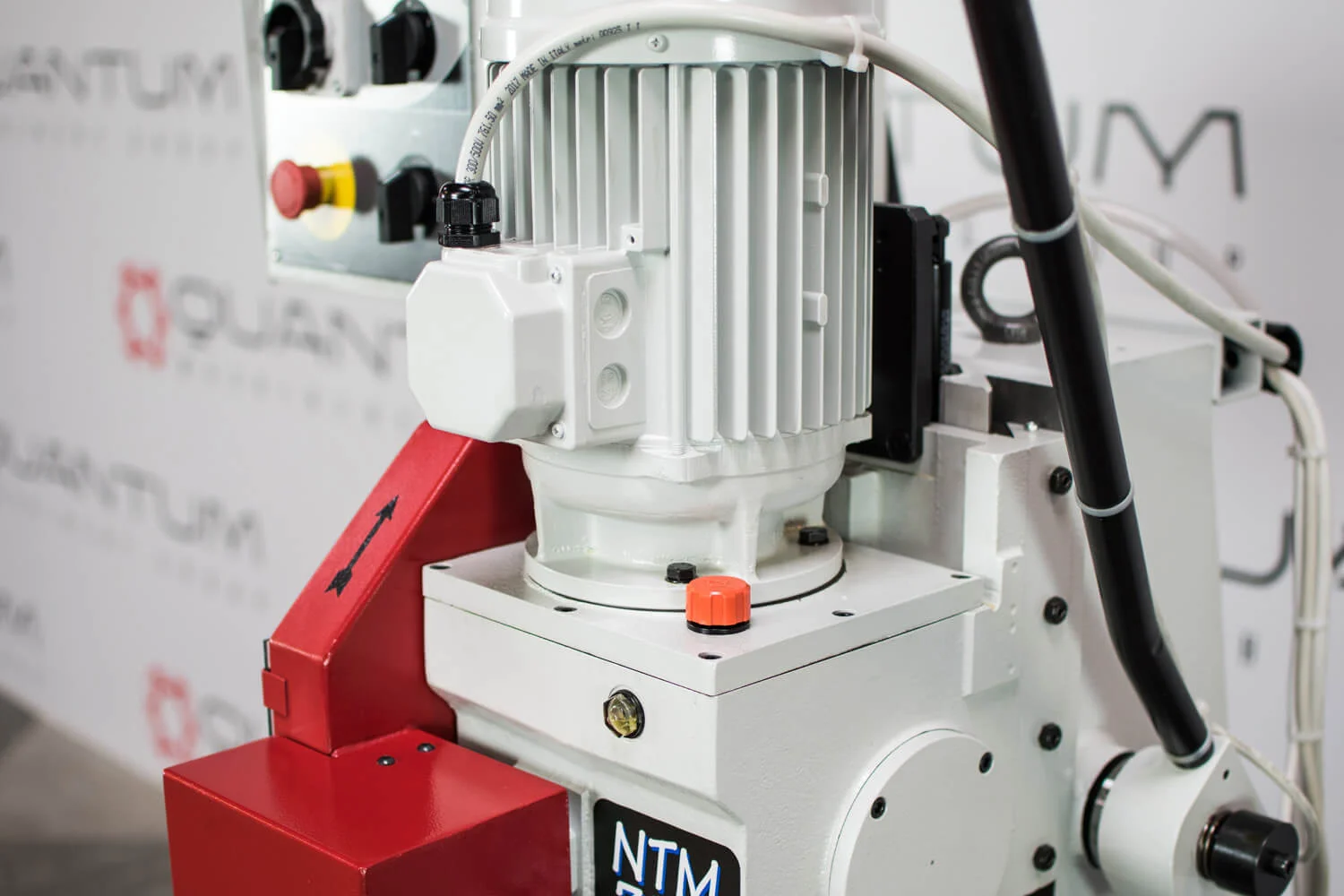

  • Reduction Unit in Oil Bath.
  • Comes complete with blade.

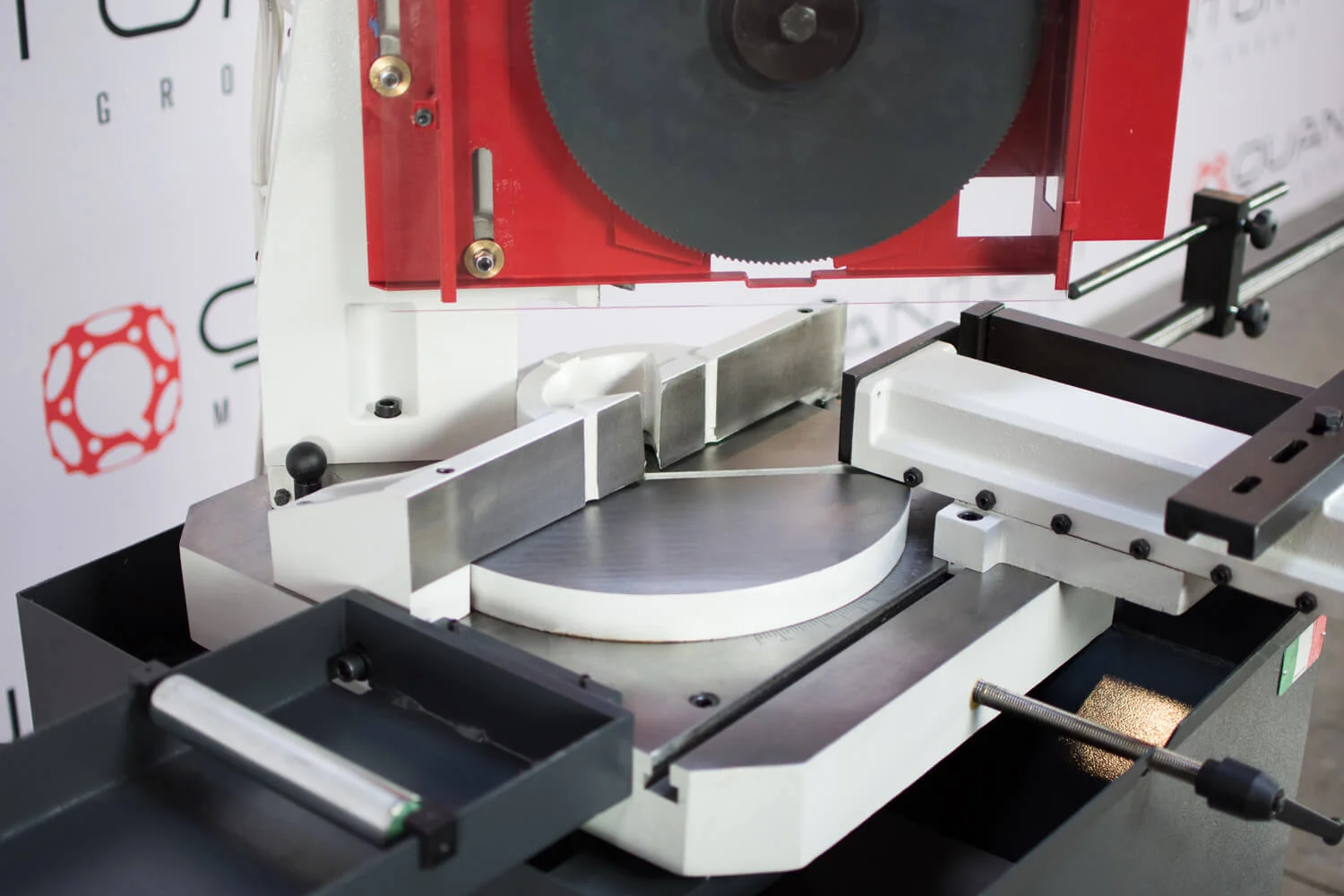

  • Swivel Head up to 60° Left & up to 45° Right.

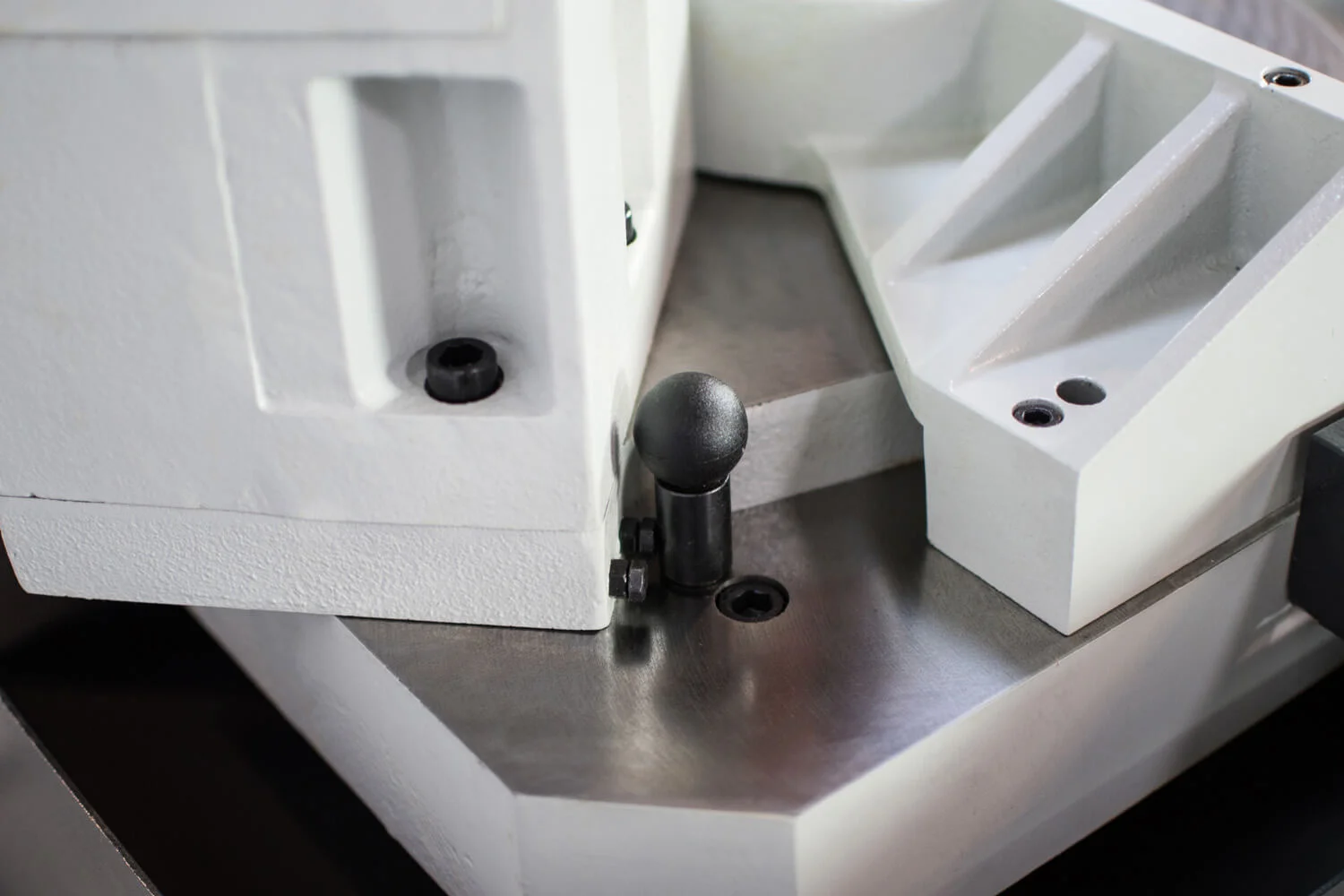

  • Head Rotation Stops: 45° - 0° - 45° - 60°
  • Adjustable stops for Head Vertical Stroke.
  • Italian Made = Supreme Quality.

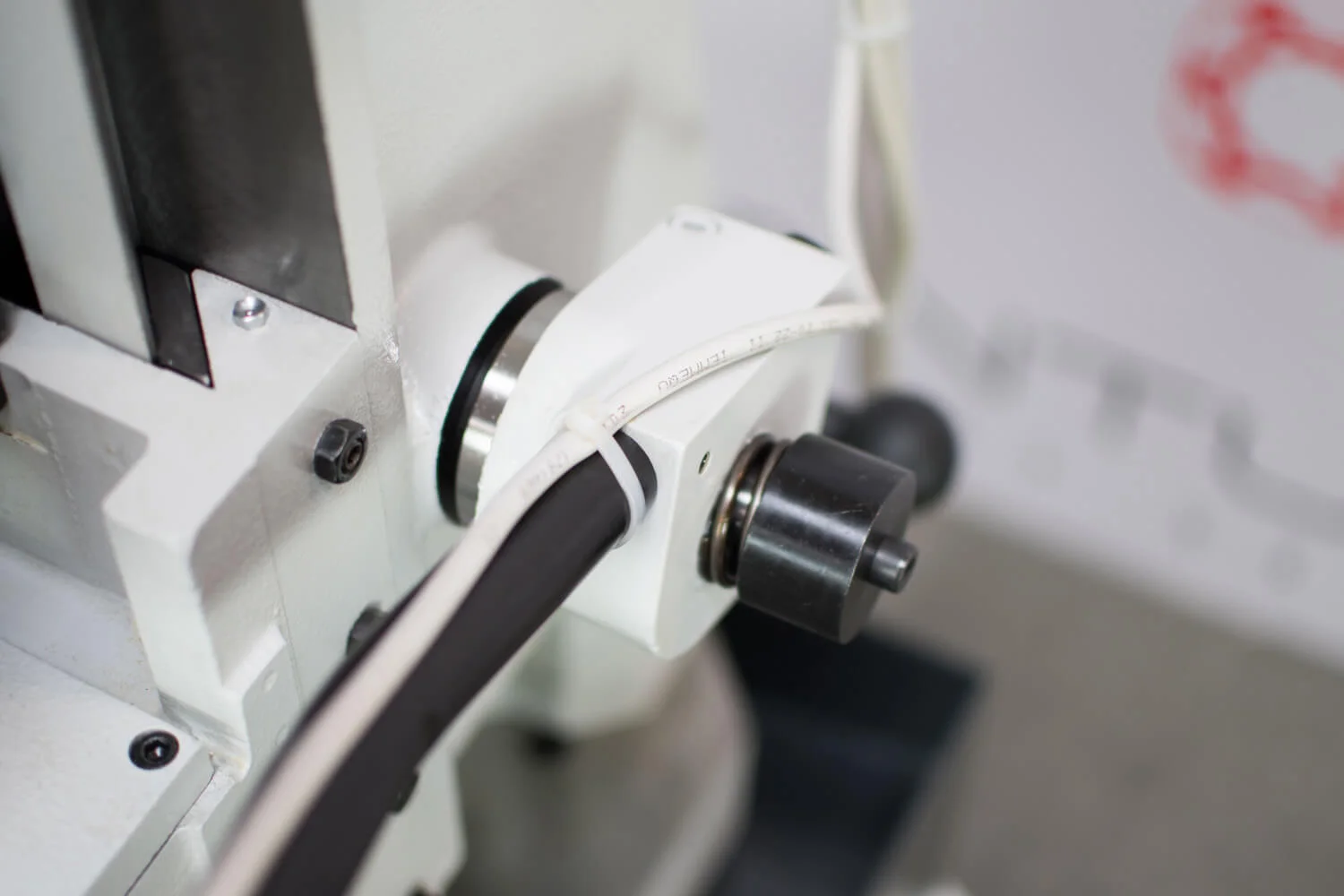

  • Double-Hinged Pin with Eccentric Bush.
  • Shave Breaker to keep the blade cleaned.
  • Motor Pump for Blade Lubrication.

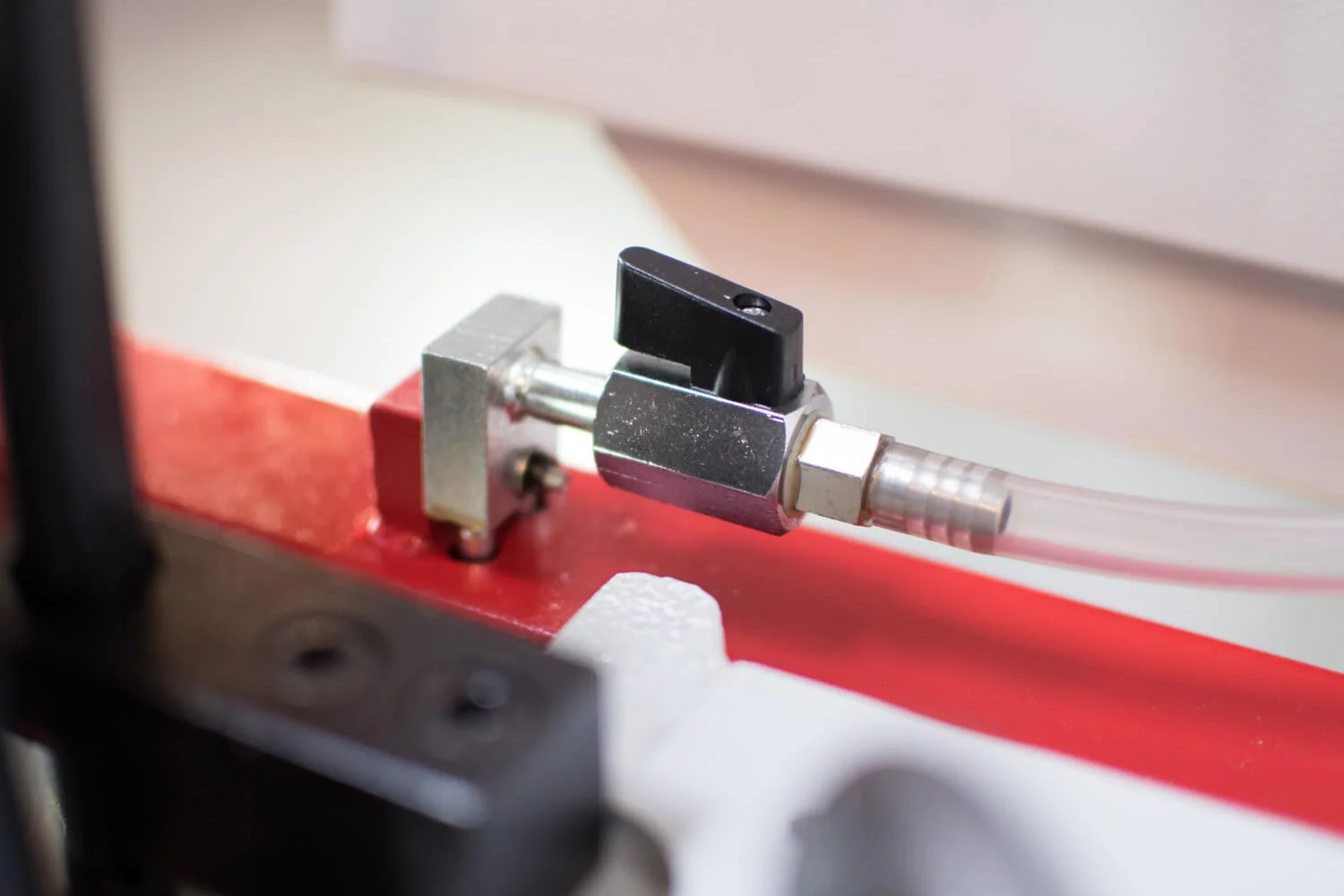

  • Jet separation system to keep blade oiled.
  • Include Bar Stop, Service Tools and Manual.
  • Adjustable material stop for Repetitive Production.
  • Round Tube Cutting at 90°: 4-5/8"
  • Round Tube Cutting at 45° Left: 4-5/8"
  • Round Tube Cutting at 45° Right: 4-5/8"
  • Round Tube Cutting at 60° Right: 3-1/2"
  • Square Tube Cutting at 90°: 3-7/8"
  • Square Tube Cutting at 45° Left: 3-1/2"
  • Square Tube Cutting at 45° Right: 3-1/2"
  • Square Tube Cutting at 60° Right: 3-1/2"
  • Solid Round Cutting at 90°: 3-7/8"
  • Solid Round Cutting at 45° Left: 3-7/8"
  • Solid Round Cutting at 45° Right: 3-7/8"
  • Solid Round Cutting at 60° Right: 3-1/2"
  • Rectangular Tube Cutting at 90°: 3-1/2"H x 6-5/8"W
  • Rectangular Tube Cutting at 45° Left: 3-1/2"H x 4-7/8"W
  • Rectangular Tube Cutting at 45° Right: 3-1/2"H x 4-7/8"W
  • Rectangular Tube Cutting at 60° Right: 3-1/2"H x 3-1/2"W
