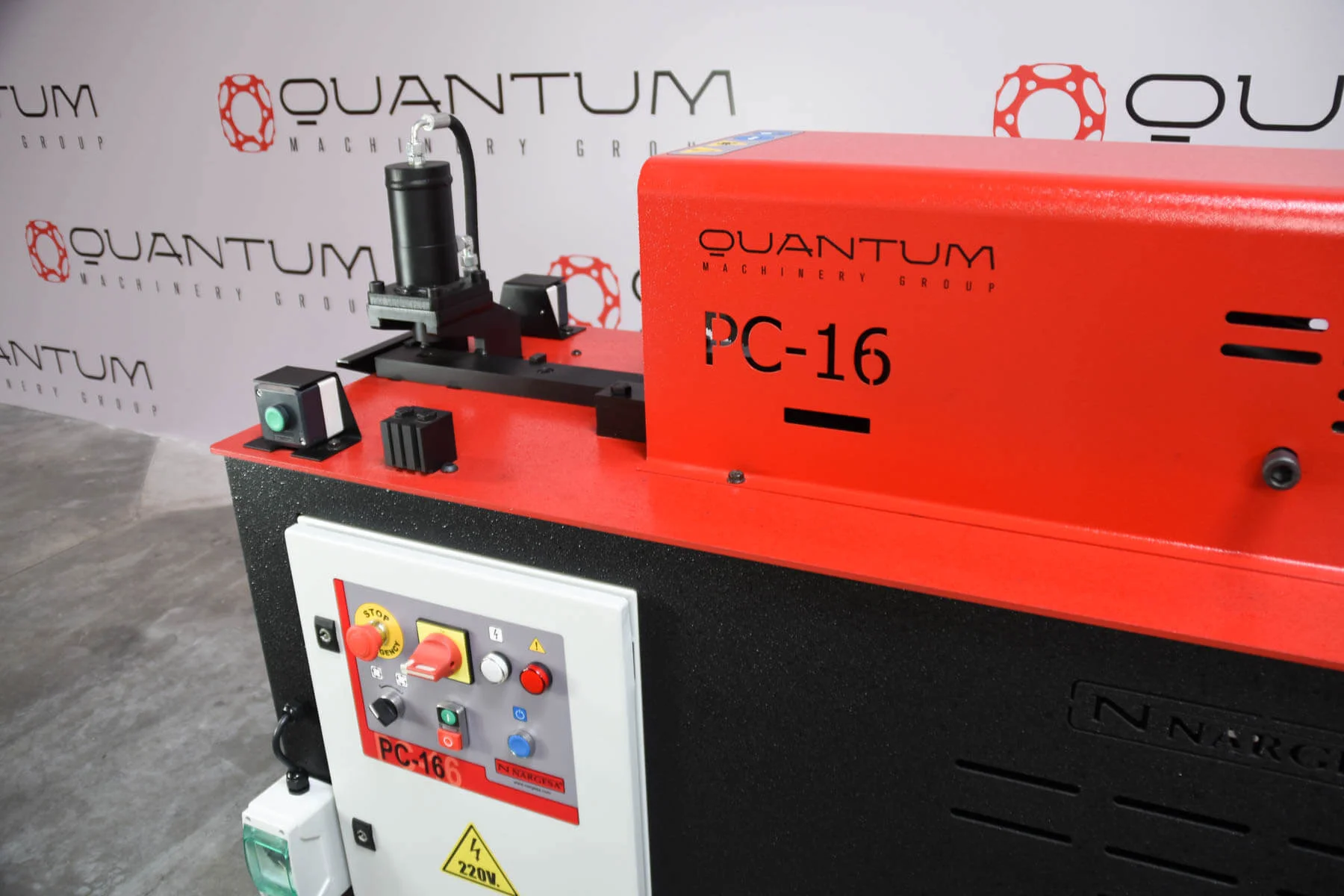

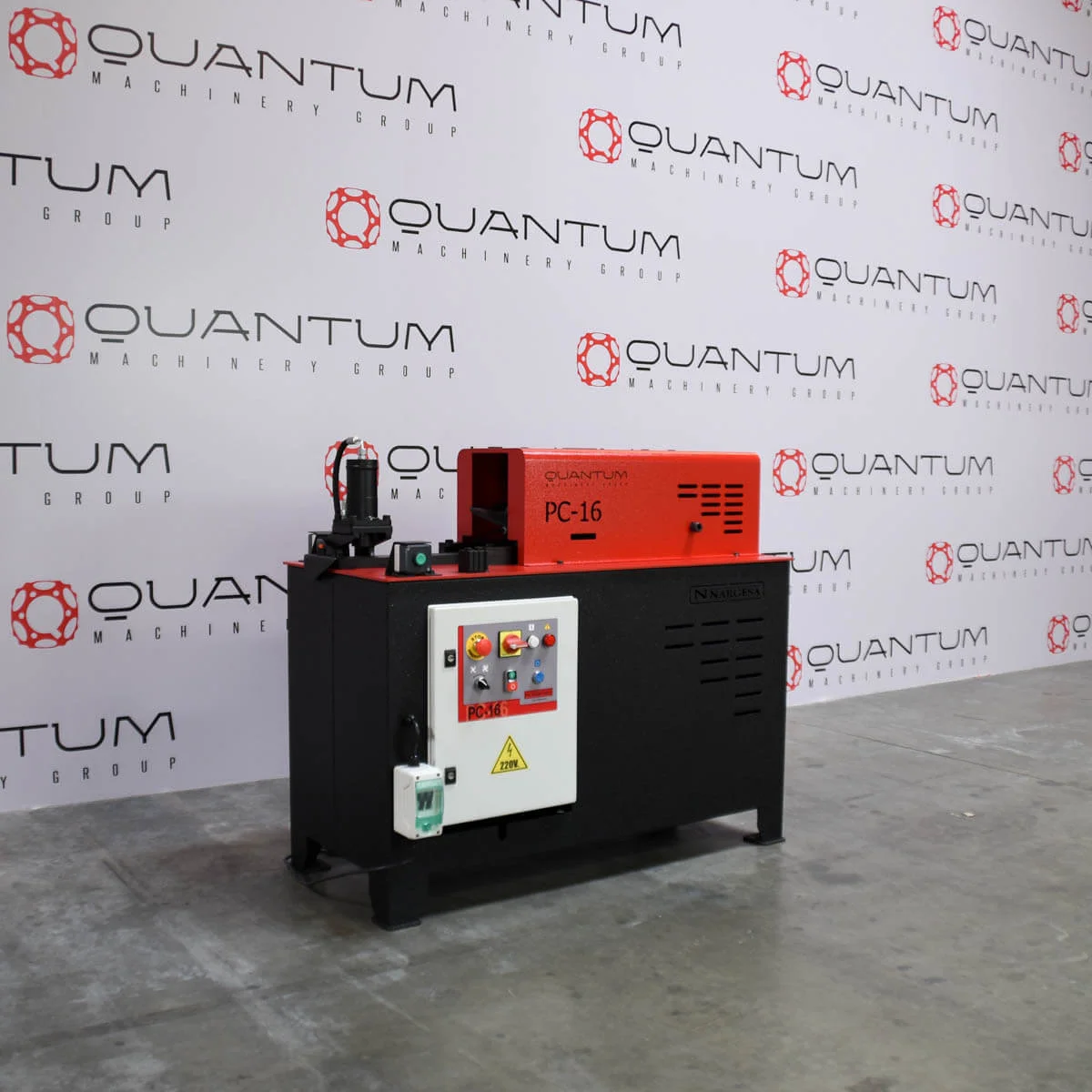

PC16: Industrial End-Wrought Iron Machine

DSC_4057a (1).jpg
DSC_4057a (1).jpg

PC16: Industrial End-Wrought Iron Machine

6,895.00

$6,895 (PRE-ORDER)

Ready to place an order, or do you have any questions? Call us at (909)476-8007

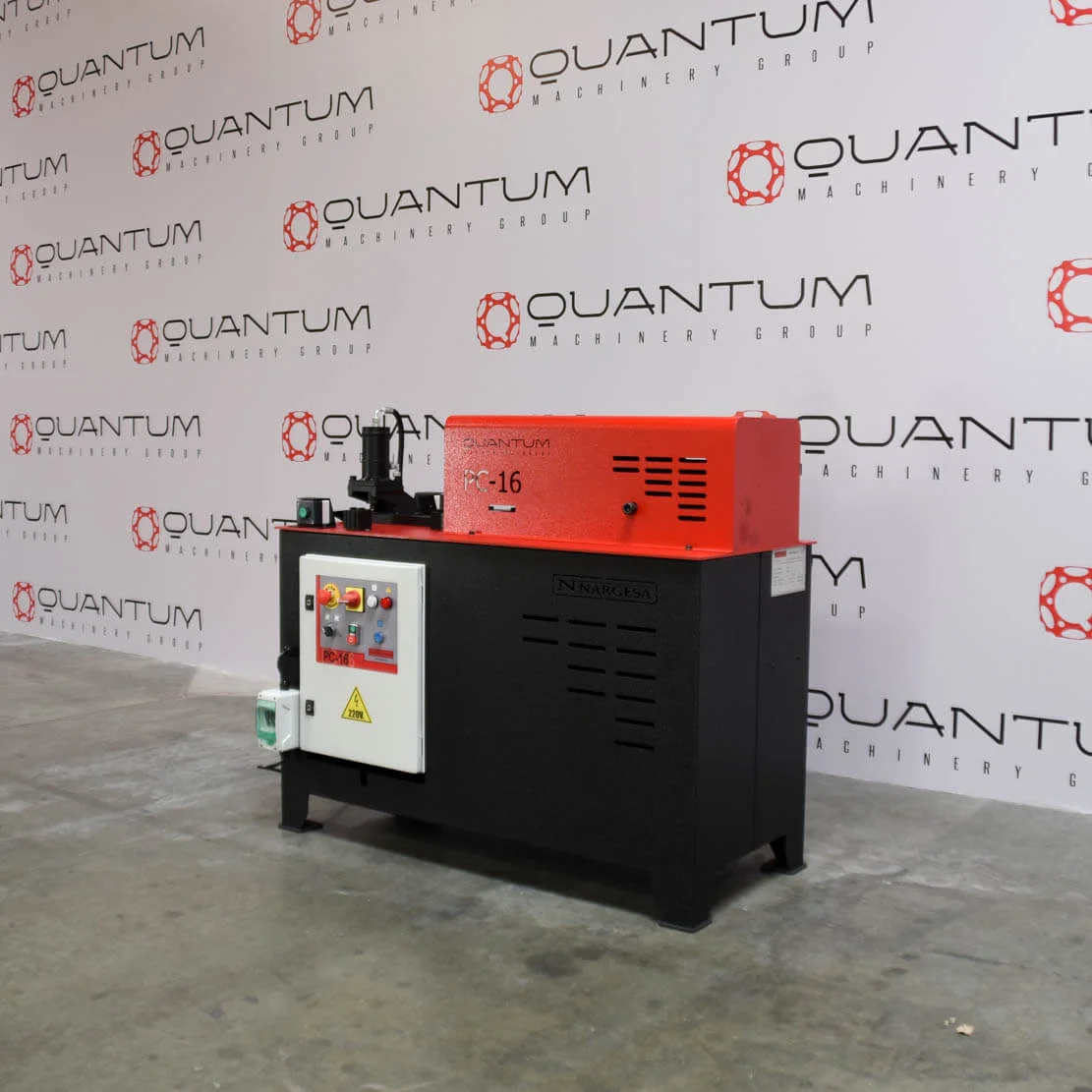

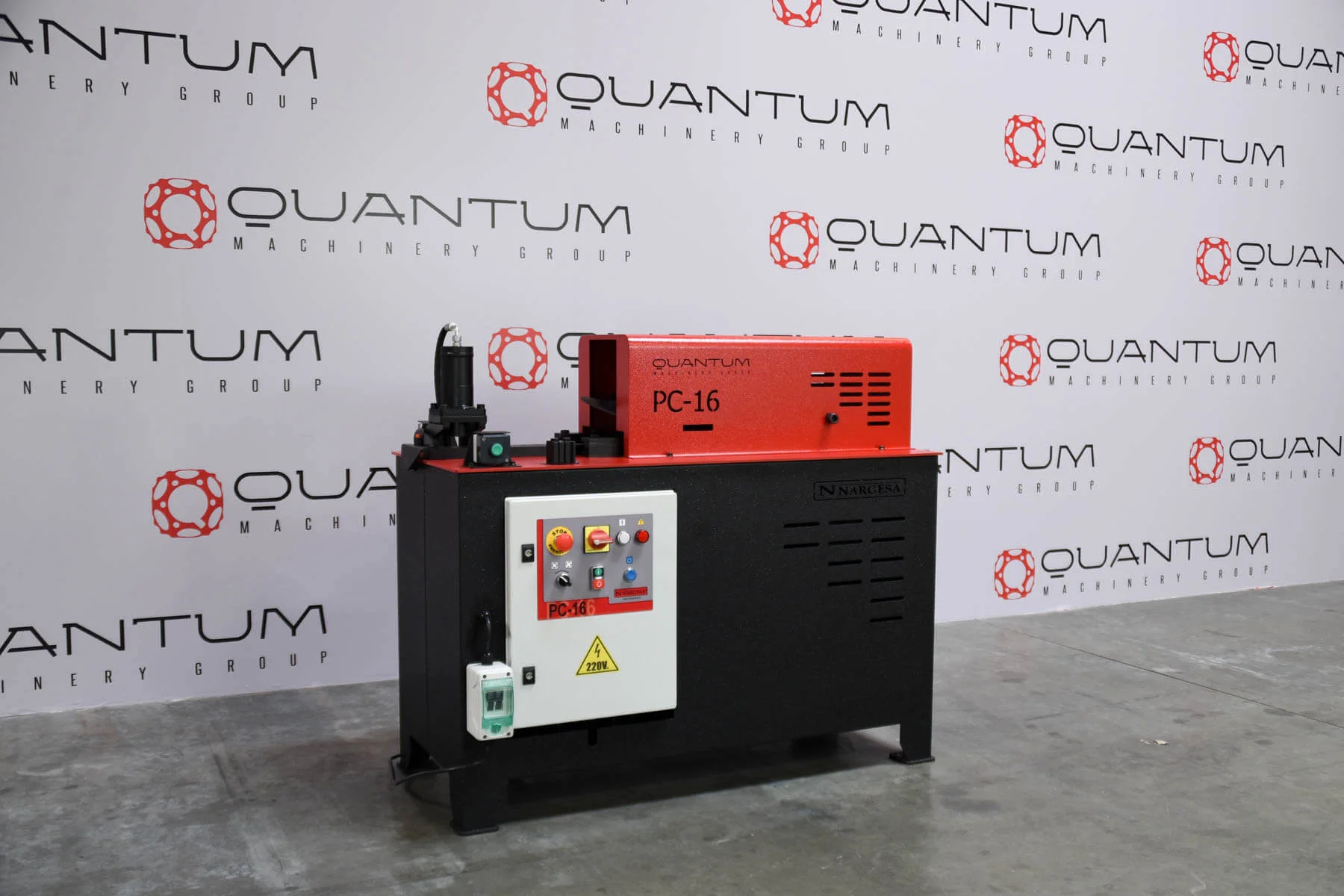

The End Hot Wrought Machine Nargesa PC16, eases up the rolling job of hot steel. It rolls up the snail forged shaped end. These decorations are commonly used as extremes in scrolls and decorative parts. Gates, windows, fencing, metal furniture, etc...

  • Adjustment of displacement or turns.
  • Adjustment of pressure according to material thickness.

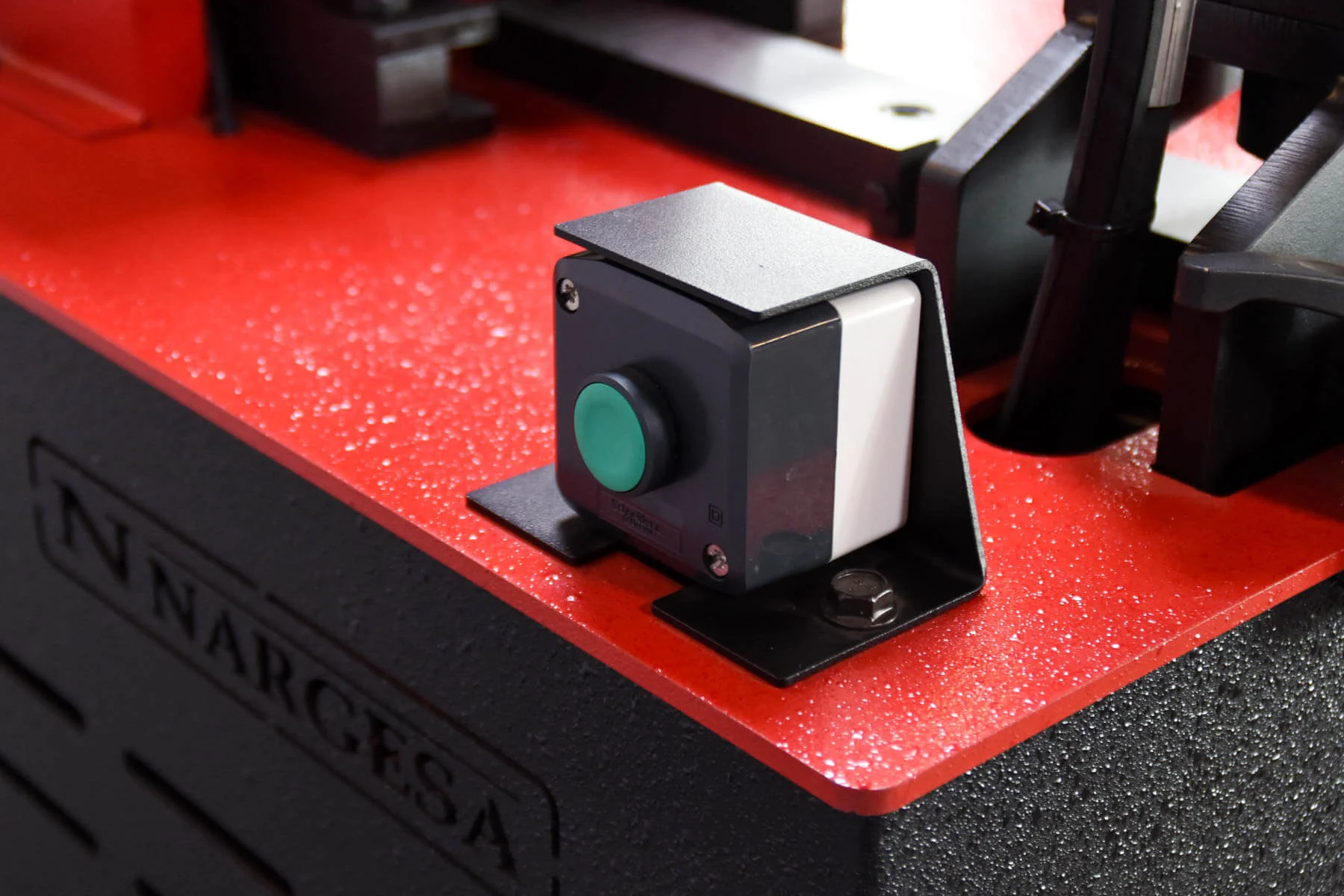

  • Safety double command for the cycle drive.

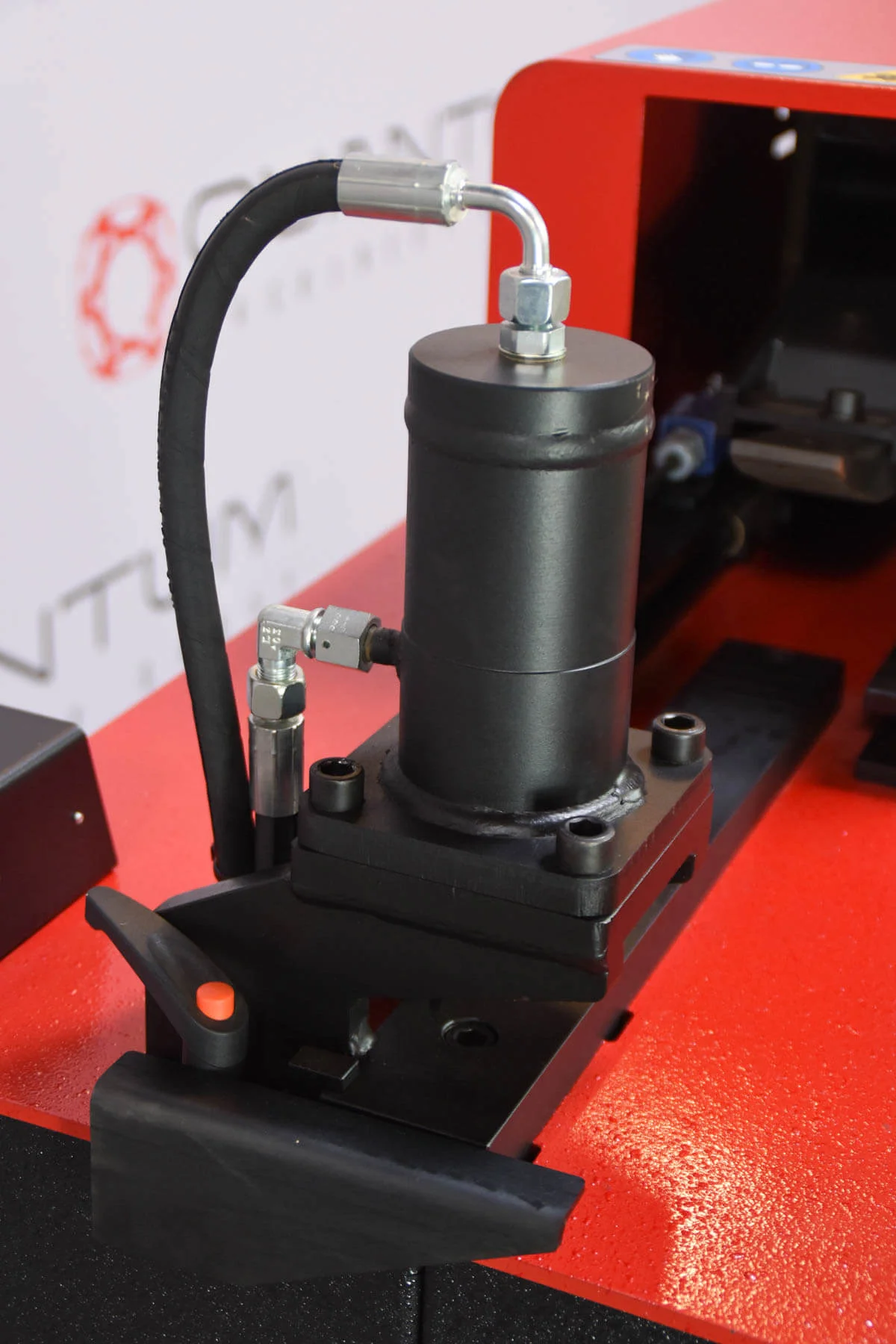

  • Hydraulic clamp for the piece fastening.
Add To Cart
Quantum Machinery Nargesa Machines 3 Year Warranty.png

The End Hot Wrought Machine Nargesa PC16, eases up the rolling job of hot steel. It rolls up the snail forged shaped end. This decorations are commonly used as extremes in scrolls and decorative parts.Gates, windows, fencing, metal furniture, etc...


PC16 END-WROUGHT IRON MACHINE (OFFICIAL VIDEO)


TECHNICAL FEATURES

  • Easy handling: Any worker is able to carry out this job, even without any previous preparation.
  • Readiness: Thousands of parts can be made in one working day.
  • Value and prestige: There are few craftsmen who can make these kinds of wrought jobs.
  • Sales: Possibility of selling parts with the forged extremes to different companies or steel stores.
  • Adjustment of displacement or turns.
  • Adjustment of pressure according to material thickness.

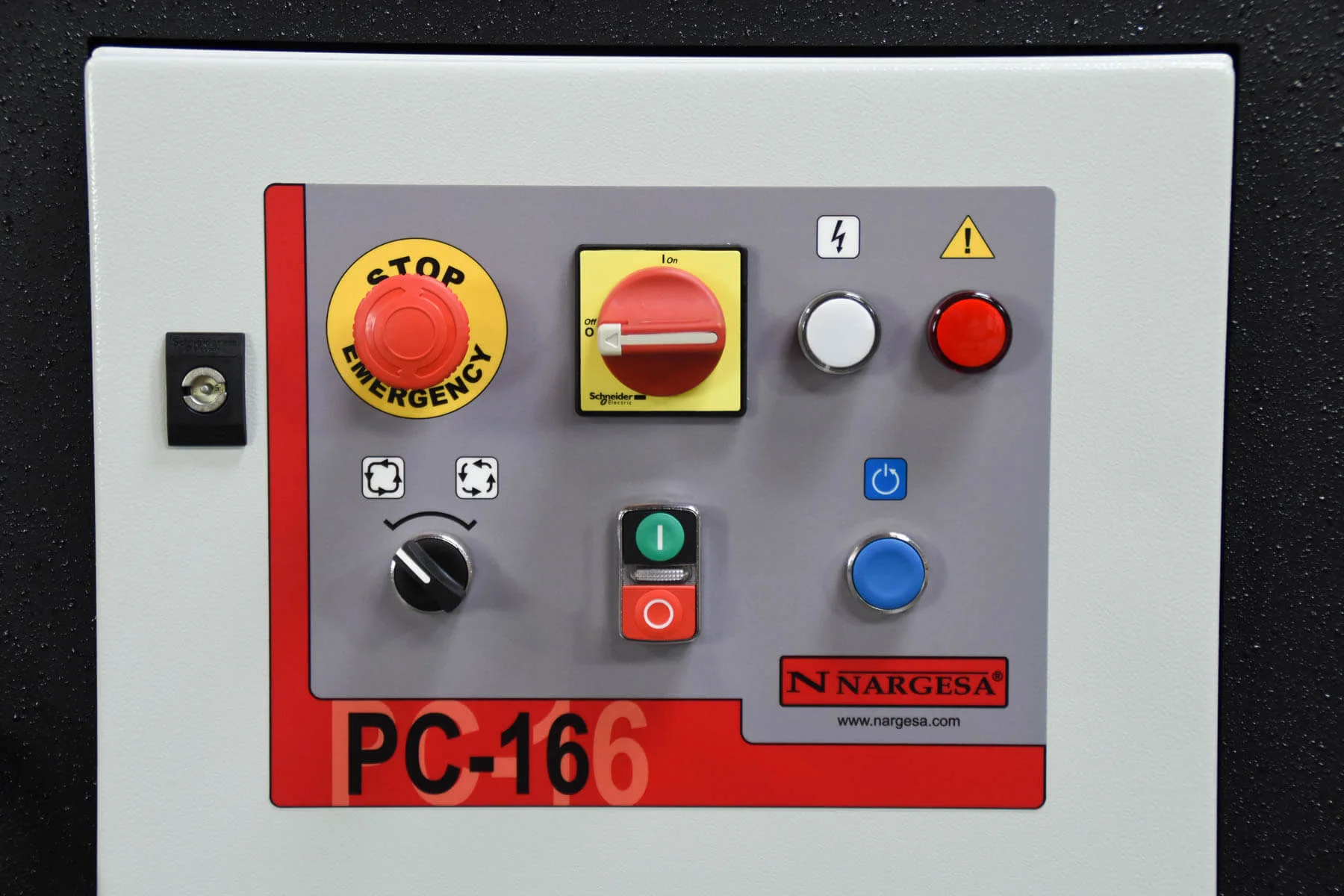

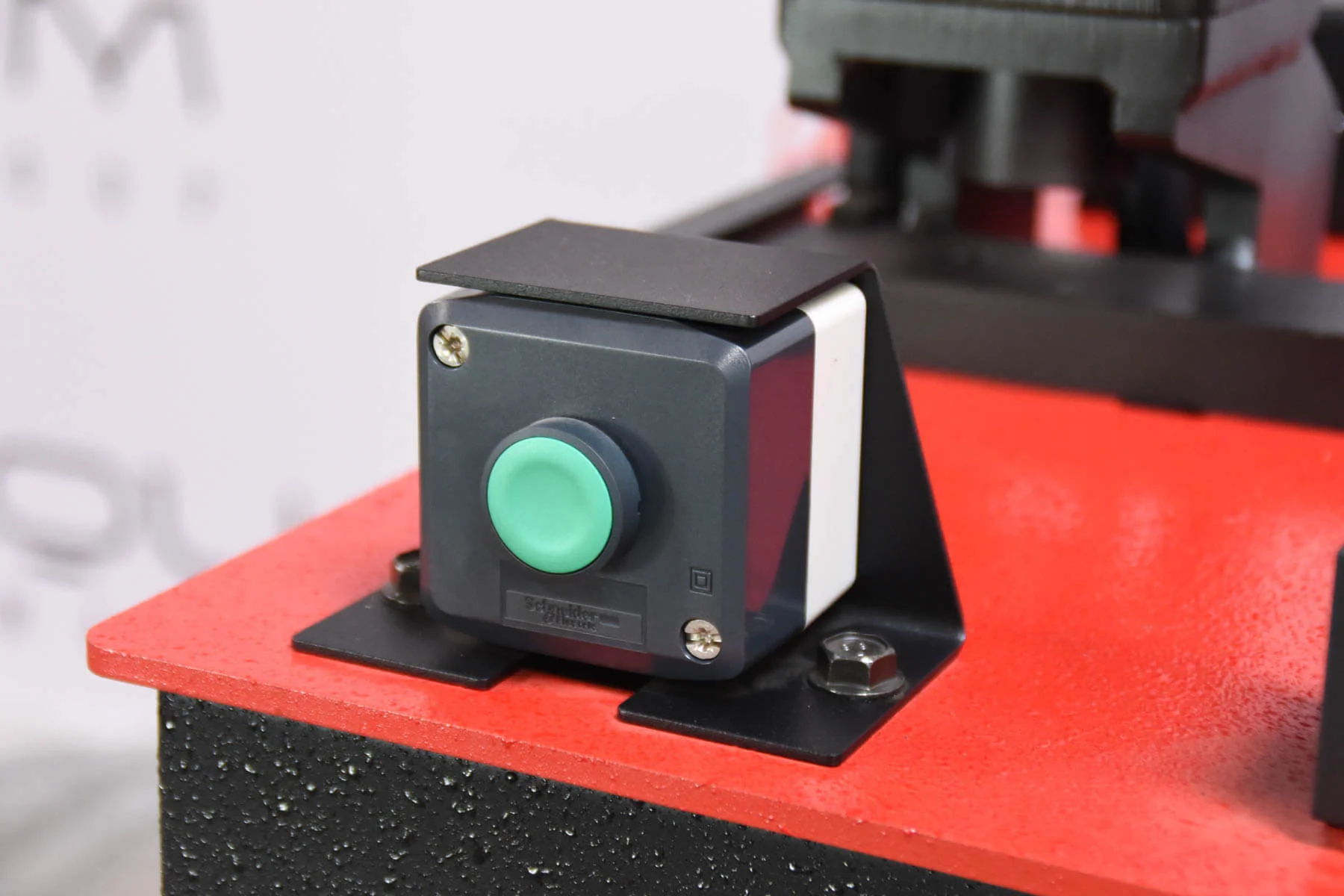

  • Safety double command for the cycle drive.

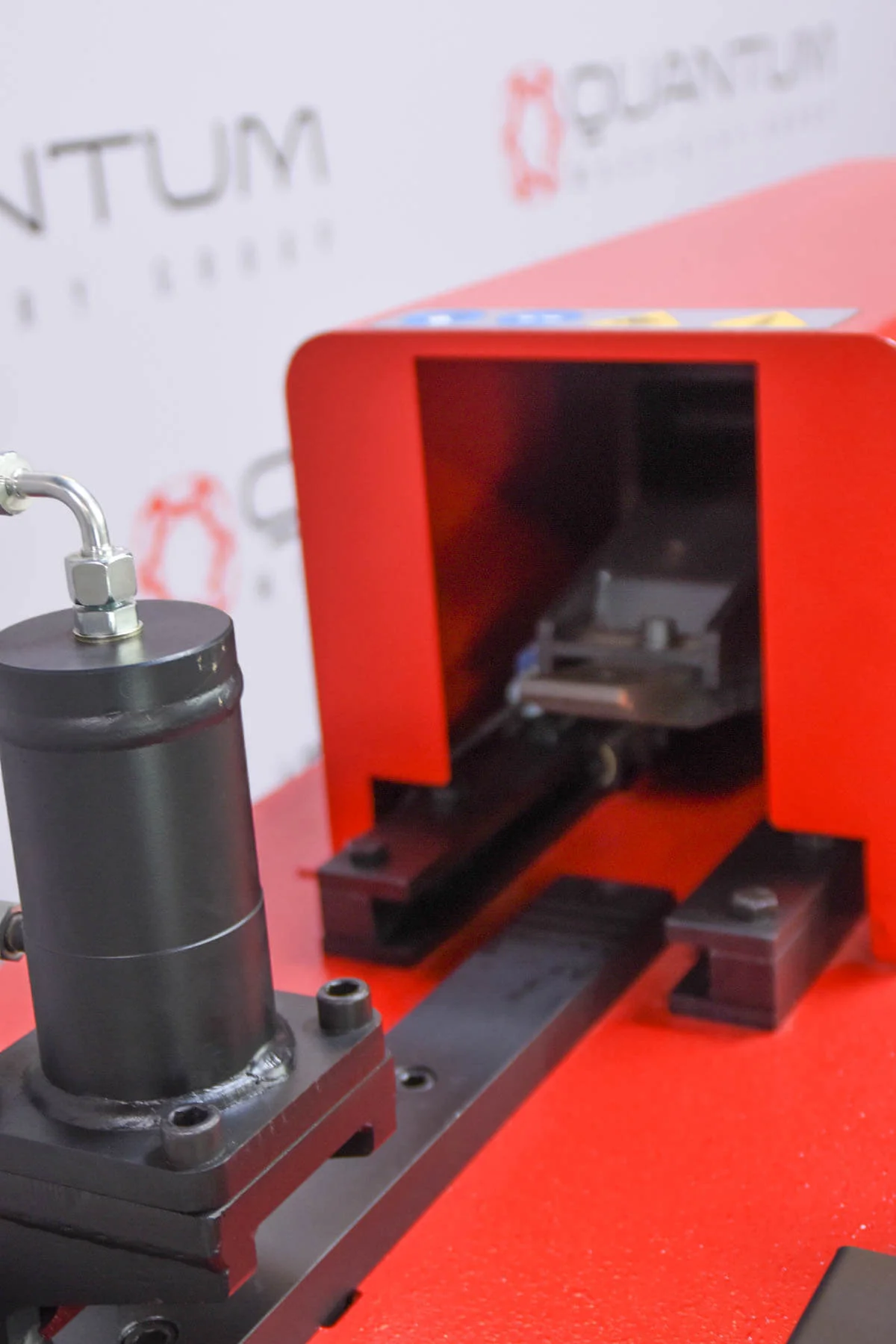

  • Hydraulic clamp for the piece fastening.
  • Maximum Capacity in Round: 3/4" (20mm)
  • Maximum Capacity in Square: 3/4" (20mm)
  • Maximum Capacity in Flat Bar: 1.95" x .39" (50x10mm)
  • Working Speed: 45 mm/s
  • Return Speed: 70 mm/s
  • Cycle Time: 10 Seconds
  • Pieces Per Minute: 4 Pieces.
  • Engine Power: 2.2 KW/ 3 CV (HP)
