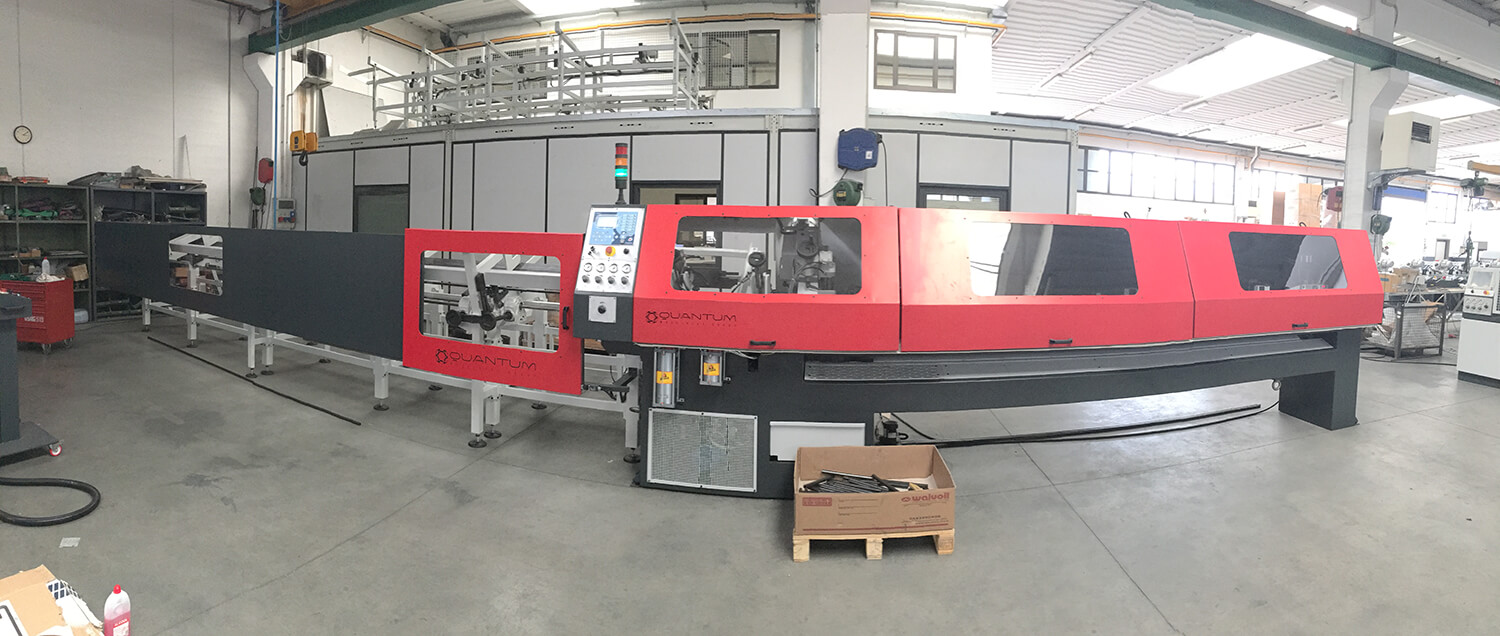

QUANTUM NEW LINE 350 SERIES CUTTING LINE

QUANTUM NEW LINE 350 SERIES CUTTING LINE-01.jpg
QUANTUM NEW LINE 350 SERIES CUTTING LINE-01.jpg

QUANTUM NEW LINE 350 SERIES CUTTING LINE

99,000.00

$99,000

Questions? (909) 476-8007

TECHNICAL DATA:

New automatic CNC cutting Line Mod. NEW LINE 350 for 90° cuts, suitable for cutting hollow or solid bars with round, square or rectangular section featuring automatic loading and unloading of pieces and made up of the following:

Add To Cart


QUANTUM NEW LINE 350 SERIES CUTTING LINE-02.jpg

Specifications:

  • Blade Size Diameter: 14" / 350mm
  • Blade Bore Size Diameter: 32mm
  • Maximum Vice Opening: 4.40" x 112mm
  • Vice Jaw Height: 2.75" / 70mm
  • Blade Rotation: 50 - 100 R.P.M.
  • Bar Feed Speed: 10 - 90 Meters per Minute
  • Worktable Height: 43.7" / 1,110mm
  • Unloading Height (Front / Rear): 27.5" / 700mm
  • Weight: 4,410 lbs.

Capacities:

  • Round Tube: 4" O.D.
  • Square Tube: 3.125" Square
  • Rectangular Tube: 2.25"H x 3.125"W
  • Minimum Cutting Capacity: 0.63"ø / 0.63" x 0.63"
  • Minimum Cutting Length: 0.80"
  • Maximum Cutting Length: 9'-10" / 118"

 STANDARD COMPONENTS:

  • Integral hydraulic system, with all hydraulic protections at EC norms.
  • Electrical system complete with all “overload” protections at EC norms.
  • Mobile control console for a secure and correct position of the operator .
  • Hydraulic machine opening for the pipe ejection.
  • Multiple stop system that grants the best security.

This Quantum machine is reliable and effective. Side roll parallelism is maintained by a torsion bar system which connects both ends of the roll together, eliminating the weakness of extra encoders and hydraulic circuits. Our 2 central rolls are driven by hydraulic motors and high efficiency planetary gearboxes, coupled directly to the rolls. The Quantum solution (along with the rolls being mounted in low friction sealed bearings) greatly reduces the torque lost by clutches and synchronization systems used on other machines.

  • "CI" type automatic loader with inclined worktable designed for loading hollow or solid bars with round, square or rectangular section; rapid centralized adjustment of bar dimensions by means of just two hand wheels, or "CF" type automatic bundle loader with anti-overlapping device for hollow or solid bar loading with round, square or rectangular section; rapid centralized adjustment of bar dimensions by means of just two hand wheels.
  • Bar feed unit supplied with rollers and driven by a gear motor assisted by an inverter controlling rapid feed speed and the associated acceleration and deceleration ramps for bar feeding.
  • Cutting head with 2-speed electric motor, motor amperometric absorption control, tempered and ground oil-bathed reducing gears, cutting head downstroke speed adjustment, blade double lubrication system (with emulsifiable oil or oil microlubrication).
  • Bar locking with double vice and pressure adjustment of bar feed rollers and double vice.
  • Bar stop with digital instrument displaying bar cutting length, vertically movable stop retainer providing maximum accuracy of cutting repeatability.
  • Automatic unloader provided with inclinable table for the selection of the side from which faced, cut or end-trimmed pieces are unloaded.
  • New programming instrument with 5" backlit graphic display for the management and optimisation of cutting parameters and settings.



OPTIONAL EQUIPMENT:

  • Extra bar stop adding a second cutting size option in sequence.
  • Blade rotation inverter for speed variation according to the type of the material to be cut.
  • Cutting-head with inclined linear movement, suitable for cutting square and rectangular pipes, with an entry into the bar which reduce at the minimum the frazes.
  • Inclined vice of 45°, for a better blocking of the piece to cut.
