Siegmund Workstation with 50x50mm Grid - 1200x800x12mm (47"x31"x0.47") System 16 (Item No. 4-167198)


Siegmund Workstation with 50x50mm Grid - 1200x800x12mm (47"x31"x0.47") System 16 (Item No. 4-167198)

3,490.00

$3,490 (IN-STOCK)

The ALL-NEW Revolutionary "All in One" Workbench from the World Market Leader in Welding Tables and Fixtures.

(Item No. 4-167100, also known as S4-167198)

A Welding Table. A Work Bench. A Mobile Workshop. The new and revolutionary System 16mm Siegmund Workstation combines all of these things to give you much versatility with large advantages for a vast variety of applications.

16mm Welding Table Accessory Kit Included:

  • (4x) 2-160620 - Basic Screw Clamp - Burnished

  • (12x) 2-160510 - Fast Clamping Short Bolt

  • (8x) 2-160420.N - Universal Stop 115 L - Nitrided

  • (2x) 2-160110.N - Stop and Clamping Square 90 L - Nitrided

  • (4x) 2-160108.N - Stop and Clamping Square 90 X - Nitrided

  • (1x) 2-164100 -  Set of 4 Casters for the Workstation

  • (1x) 2-164210 - 180mm (7") Drawer

  • (1x) 2-160920 - Burner Holder - Burnished

  • (1x) 2-160852 - Allen Wrench 4

  • (1x) 2-160820 - Brush Ø17 with Protecting Cover

  • (1x) 2-000942 - Oilstone 150x50x25

  • (1x) 2-160402 - Eccentric Stop Ø75 with M10 Thread

Add To Cart

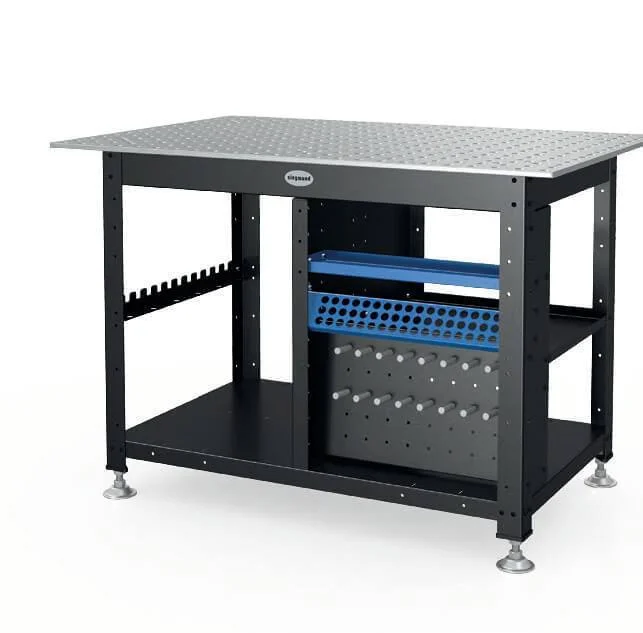

With the new Siegmund Workstation you create your perfect workplace in a modular system. The Siegmund Workstation can be adapted and expanded to fit your individual needs. Whether sawing, drilling or welding – the absolute all-rounder in every workshop!

system-16-welding-tables-siegmund-workstation-with-50x50mm-grid-1200x800x12mm-47-x31-x0-47-system-16-item-no-4-167100-3_1024x1024.jpg

Welding Table Specs and Features:

  • Overall Tabletop Size: 1200x800x12mm (47.24" x 31.5" x 0.47")

  • Welding Table Series: Professional Extreme X8.9 Series

  • Welding Table Material Thickness: Approx. 12mm (0.47")

  • Official Welding Table Part No.: 4-167100

  • Borehole: Ø 16mm (0.629")

  • All Siegmund System 16 Accessories are compatible with the Siegmund Workstation.

  • Overall the Workstation provides a space of 600mm (23.6") on the left side and 180mm (7") on the right side for drawers.


system-16-welding-tables-siegmund-workstation-with-50x50mm-grid-1200x800x12mm-47-x31-x0-47-system-16-item-no-4-167100-7_1024x1024.jpg
system-16-welding-tables-siegmund-workstation-with-50x50mm-grid-1200x800x12mm-47-x31-x0-47-system-16-item-no-4-167100-5_1024x1024.jpg

  TABLE TOP:   The table plate is made of through-hardened tool steel. For the hardening process, Siegmund uses a specially developed alloy.

TABLE TOP:

The table plate is made of through-hardened tool steel. For the hardening process, Siegmund uses a specially developed alloy


SUFFICIENT STORAGE:

The Siegmund Workstation features defined storage for tooling and accessories that can be shelved for easy reach. (Drawers are optional / at an additional cost.


DIRT PROTECTION:

Three (3) movable plates below the table plate protect tools beneath from weld spatter and dirt. The simple sliding mechanism allows for ease of removal and cleaning with very little effort


TABLE LEGS:

The combined foot and (optional) caster(s), gives mobility to the Siegmund Workstation. Base plates have fine adjustments to enable a precise working surface. (Casters are optional / at an additional cost.





To place an order on this welding table or if you have any questions, feel free to call our office at (909)476-8007, or you can send an email to our Quantum Welding Table Experts at sales@weldingtablesandfixtures.com

If you would like to place an order for this table online.
Please click the button directly below.
