System 22 3000x1500mm (118"x59") Siegmund Welding Table with Plasma Nitration (Item No. 4-220040.PD)

Copy of Copy of DSC_1222_9b2f40e7-f70b-41c1-bc39-db797d1d5461.jpg
Copy of Copy of DSC_1222_9b2f40e7-f70b-41c1-bc39-db797d1d5461.jpg

System 22 3000x1500mm (118"x59") Siegmund Welding Table with Plasma Nitration (Item No. 4-220040.PD)

8,424.00

$8,424 (IN-STOCK)

The ALL-NEW System 22 Welding Table Series: More Stable than the System 16 Series, (Item No. 4-220040.PD, also known as S4-220040.PD) More Cost-Effective than the System 28 Series.

Welding Table Specs and Features:

  • Overall Tabletop Size: 3000x1500x150mm (118" x 59" x 5.9")

  • Welding Table Series: Professional 750

  • Welding Table Material Thickness: Approx. 17 – 19mm (0.66" - 0.75")

  • Welding Table Material Type and Finish: This Welding Table is manufactured of high quality S355J2+N Tool Steel, Plasma Nitrided and BAR-Coated.

  • Official Welding Table Part No.: 4-220040.PD

  • Approximate Table Weight: 2,366 lbs. / 1,073 kg.

  • Borehole: Ø 22mm (0.86")

  1. Boreholes on the surface are in a Diagonal Grid Configuration.

  2. Boreholes have a 2.5mm Radius (0.098").

  3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.

  4. Height of table side 150mm (5.90") - Borehole spacing of table side 50mm (1.96")

  5. Metric Scaling on the surface.

  6. Construction reinforced with ribbing.

Add To Cart

To place an order on this welding table or if you have any questions, feel free to call our office at (909)476-8007, or you can send an email to our Quantum Welding Table Experts at sales@weldingtablesandfixtures.com

If you would like to place an order for this table online.
Please click the button directly below.

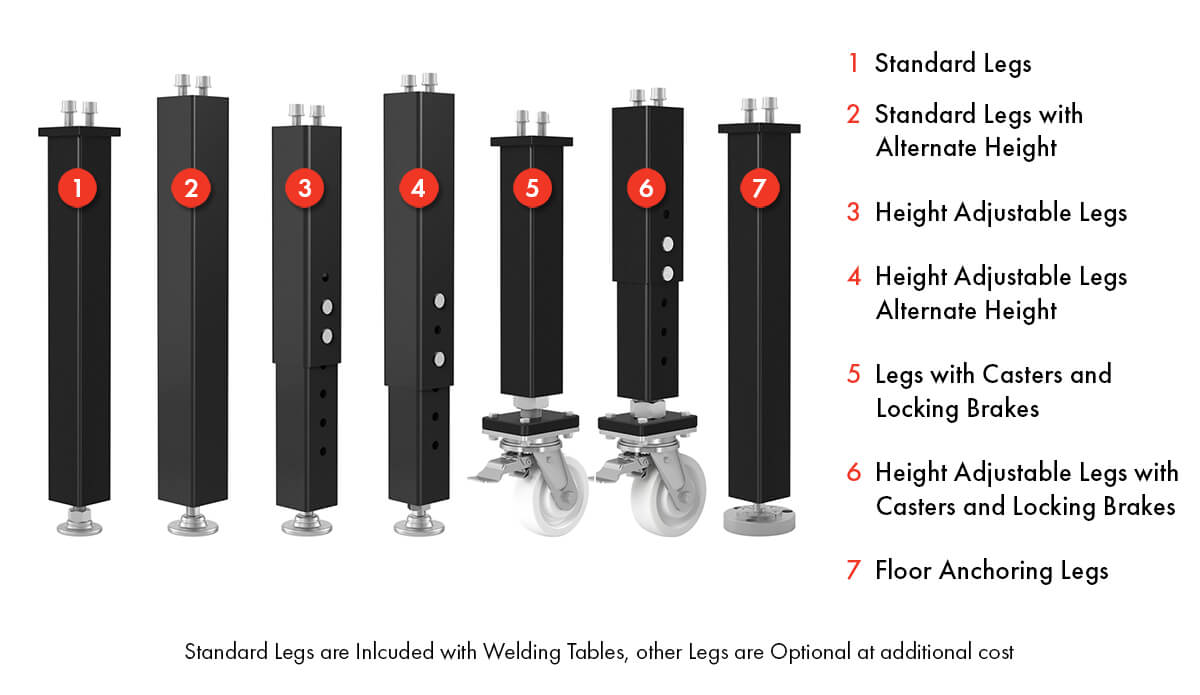

Welding Table Leg Options
Part Numbers, Specs and Pricing:

  • Standard Siegmund Leg(s)
    • Item No.: 220858
    • Leg Height: 27.5"
    • Table Height: 33.4"
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 2,200 lbs.
    • Cost Per Leg: $0 (Included with Welding Table as a Standard)
    • Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
  • Standard Siegmund Leg(s) "Alternative Height"
    • Item No.: 280857.X
    • Leg Height: 29.5"
    • Table Height: 37.4"
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 4,400 lbs.
    • Cost Per Leg: $0 (Can be substituted with Purchase of Table in place of the "Standard Siegmund Legs" shown above.)
    • Cost Per 4 Leg Set: $0 (Can be substituted with Purchase of Table in place of the "Standard Siegmund Legs" shown above.)
  • Height Adjustable Siegmund Leg(s)
    • Item No.: 4-280878.XX
    • Leg Height (Adjustable): 17.7" - 27.5"
    • Table Height (Adjustable): 23.6" - 33.4"
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 4,400 lbs.
    • Cost Per Leg: $98
    • Cost Per 4 Leg Set: $588
  • Height Adjustable Siegmund Leg(s) "Alternative Height"
    • Item No.: 4-280877.XX
    • Leg Height (Adjustable): 21.6" - 35.4"
    • Table Height (Adjustable): 27.5" - 41.3"
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 4,400 lbs.
    • Cost Per Leg: $98
    • Cost Per 6 Leg Set: $588
    • Siegmund Leg(s) for Floor Anchoring
      • Item No.: 4-220874.XX
      • Leg Height: 27.5"
      • Table Height: 33.4"
      • Fine Adjustment: 1.96" / 50mm
      • Capacity Per Table Leg: 2,200 lbs.
      • Cost Per Leg: $78
      • Cost Per 6 Leg Set: $468
