System 28 2000x2000mm (78"x78") Siegmund Welding Table with Plasma Nitration (Item No. 4-280045.XD7)

28 Table Legs Info.jpg
28 Table Legs Info.jpg

System 28 2000x2000mm (78"x78") Siegmund Welding Table with Plasma Nitration (Item No. 4-280045.XD7)

10,910.00

$10,910 (IN-STOCK)

The System 28 Welding Table Series was created with Heavy Duty Applications in mind.

(Item No. 4-280045.XD7, also known as S4-280045.XD7)

Welding Table Specs:

  • Overall Tabletop Size: 2000x2000x200mm (78.74" x 78.74" x 7.87")

  • Welding Table Series: Professional Extreme 8.7 Series

  • Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96" - 1.06")

  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated

  • Official Welding Table Part No.: 4-280045.XD7

  • Approximate Table Weight: 2,866 lbs. / 1300 kg.

  • Borehole: Ø 28mm (1.10")

Add To Cart

To place an order on this welding table or if you have any questions, feel free to call our office at (909)476-8007, or you can send an email to our Quantum Welding Table Experts at sales@weldingtablesandfixtures.com

If you would like to place an order for this table online.
Please click the button directly below.

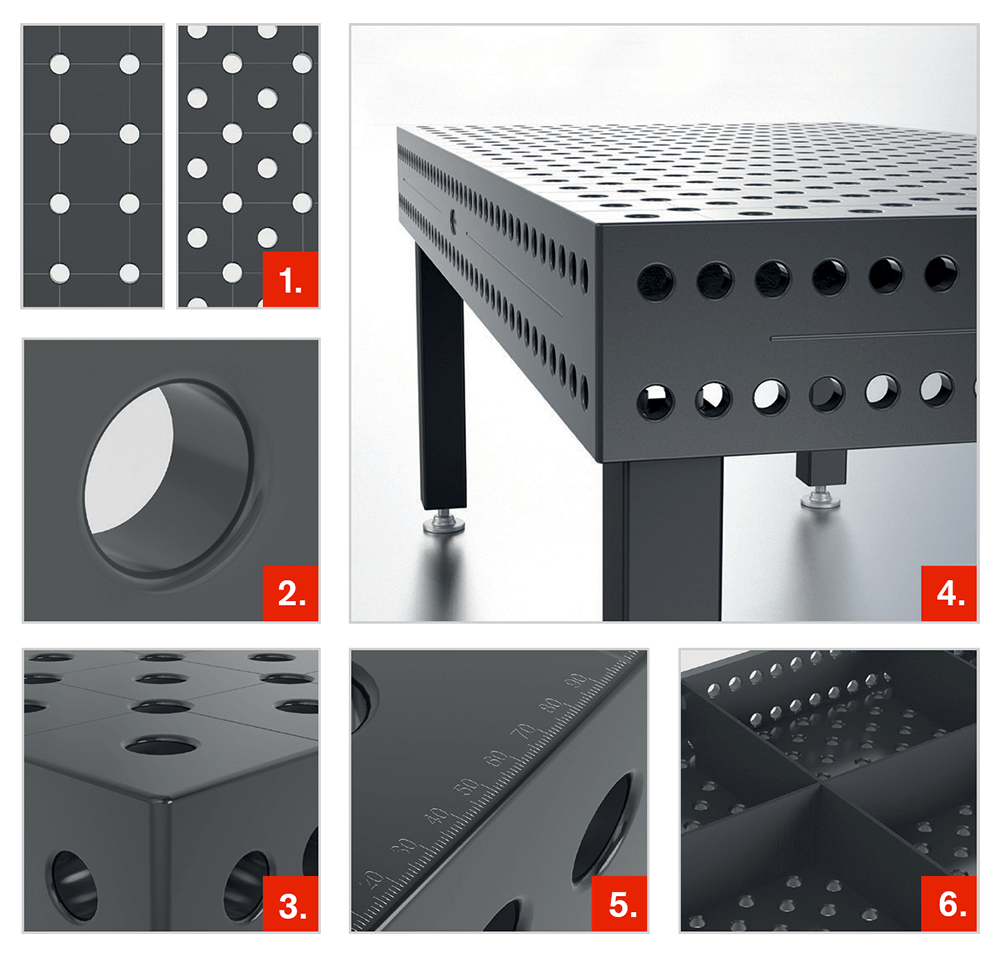

Welding Table Features:

  1. Boreholes on the surface are in a Diagonal Grid Configuration.
  2. Boreholes have a radius of 3mm (0.118").
  3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
  4. Height of table side 200mm (7.87") - Borehole spacing of table side 50mm (1.96")
  5. Metric Scaling on the surface.
  6. Construction reinforced with ribbing.


Welding Table Leg Options Part Numbers, Specs and Pricing:


28 Table Legs Info.png


1. Standard Siegmund Leg(s)

  • Item No.: 280858.XLeg Height: 25.6"
  • Table Height: 33.4"
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)

2. Standard Siegmund Leg(s) "Alternative Height"

  • Item No.: 280857.X
  • Leg Height: 29.5"
  • Table Height: 37.4"
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $0 (Can be substituted with Purchase of Table in place of the "Standard Siegmund Legs" shown above.)
  • Cost Per 4 Leg Set: $0 (Can be substituted with Purchase of Table in place of the "Standard Siegmund Legs" shown above.)



3. Height Adjustable Siegmund Leg(s)

  • Item No.: 280878.XX
  • Leg Height (Adjustable): 17.7" - 27.5"
  • Table Height (Adjustable): 25.5" - 35.4"
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $98
  • Cost Per 4 Leg Set: $392



4. Height Adjustable Siegmund Leg(s) "Alternative Height"

  • Item No.: 280877.XX
  • Leg Height (Adjustable): 21.6" - 35.4"
  • Table Height (Adjustable): 29.5" - 43.3"
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $98
  • Cost Per 4 Leg Set: $392

5. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 280876.XX
  • Leg Height: 25.6"
  • Table Height: 33.4"
  • Fine Adjustment: 0.78" / 20mm
  • Capacity Per Table Leg: 1,770 lbs.
  • Cost Per Leg: $138
  • Cost Per 4 Leg Set: $552
  • Note: These welding table legs that are equipped with casters and locking brakes are not recommended for Welding Tables with 6 or 8 Table Leg Configurations.



6. Height Adjustable Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 280879.XX
  • Leg Height (Adjustable): 21.6" - 29.5"
  • Table Height (Adjustable): 29.5" - 37.4"
  • Fine Adjustment: 0.78" / 20mm
  • Capacity Per Table Leg: 1,770 lbs.
  • Cost Per Leg: $178
  • Cost Per 4 Leg Set: $712
  • Note: These welding table legs that are equipped with casters and locking brakes are not recommended for Welding Tables with 6 or 8 Table Leg Configurations.



7. Siegmund Leg(s) for Floor Anchoring

  • Item No.: 280874.XX
  • Leg Height: 25.5"
  • Table Height: 33.4"
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $78
  • Cost Per 4 Leg Set: $312
