MP1400 HYDRAULIC PRESS BRAKE

MP1400 Press Brake Squared.png
MP1400 Press Brake Squared.png

MP1400 HYDRAULIC PRESS BRAKE

42,495.00

Ready to place an order, or do you have any questions? Call us at (909) 476-8007

Electrical Options and Pricing:

  • 220V / 3PH / 60Hz - $42,495

  • 480V / 3PH / 60Hz - $42,495

Optional: R Axis (Add $3,500 to machine cost)

The Hydraulic Press Brake QUANTUM NARGESA MP1400 CNC takes sheet metalworking to a new level, offering outstanding efficiency and precision. With a chassis of welded, stabilized and machined steel, external design featuring stripped-down lines for a solid appearance, and improved structural calculations, these new hydraulic press brakes set themselves up as the new cornerstone for the sheet metalwork industry.

Fitted with high-specification CNC control, the operation of these complex machines is now easier and more intuitive than ever before. Its colour, high-resolution touchscreen graphics interface and powerful CPU enable the most complicated bending operations to be processed effortlessly and sophisticated algorithms to be calculated in mere microseconds, so you get the highest performance out of these pieces of engineering excellence.

Click Here to Pre-Order



STANDARD EQUIPMENT INCLUDED

  • Automatic control of vertical bending axis (Y axis).
  • Back gauge fitted with BOSCH REXROTH recirculating ball screw guides, ESA servo motor automatic control of horizontal axis (X axis), manual control of vertical axis (R axis) and manual control of transverse axis (Z axis) with parallel alignment and curvature adjustment.
  • Motorised vertical axis (R axis) of back gauge, controlled by ESA servo motor. (Optional accessories, not included with the machine)
  • Promecam punch clamping system with segmented flanges.
  • Euro Promecam system with die guiderail.
  • Promecam punch, reference PS.135.85.R08, induction tempered in working and grinding zones.
  • Promecam die, reference M.460.R, induction tempered in working and grinding zones.
  • ESA numerical control, reference S630.
  • Adaptive electronic pressure control.
  • Chassis bending electronic compensator.
  • GIVI MISURE high-precision optical encoder, 0.005 mm resolution.
  • Hydraulic unit with 24 VDC redundant safety valves with optics and pressure indication.
  • Electronic compensation of hydraulic oil temperature.
  • Front arms which slide on linear recirculating ball screw guides for optimum sheet metal grip.
  • Side doors with electronic safety control.
  • High-frequency laser sensor system unaffected by external light sources.
  • Software-configured electronic muting system.
  • LED directional light strip for bending zone.
  • Ethernet 10/100 Mbit LAN connectivity.
  • USB 2.0 ports and VGA connector for updates, backup and peripherals.
  • 10" colour touchscreen graphics interface, high-resolution, multi-language (over 20 languages).
  • Basic software installed in the CNC control containing a full library of Promecam punches and dies, and for creating, modifying and editing bending programs in numerical mode, which can be enlarged with additional software modules.
  • Optional installation in the basic CNC control of software modules with bending simulator and CNC optimizer for the creation of 2-D graphics of bending program with the most efficient sequence. (Optional accessories, not included with the machine)
  • Complete software for Windows PC with bending simulator and CNC optimizer for 2-D graphics programming of bending sequence, with full library of Promecam punches and dies.

TECHNICAL FEATURES

  • Punch working speed: 9,3 mm/s.
  • Return speed of the punch: 29,8 mm/s.
  • Lowering speed of the punch: 29,8 mm/s.
  • Maximum punch displacement: 115 mm.
  • Inner folding length: 1255 mm.
  • Total folding length: 1455 mm.
  • Back gauge displacement: 600 mm.
  • Neck: 185 mm.
  • Motor power: 4 KW / 6 HP
  • Three phase power: 230 / 400 V
  • Hydraulic Power: 40 Tn
  • Dimensions: 1966x1520x2035 mm
  • Weight: 2900 Kg


ESA NUMERICAL CONTROL S630

  • PC simulator and optimiser for identification and 2D and 3D graphic programming for the fastest and most reliable bending sequence.
  • CNC simulator and optimiser for identification and 2D graphic programming for the fastest and most reliable bending sequence (optional).
  • Program and tool file explorer in real time.
  • Local and remote self-diagnostic system
  • Multi-language

INCLUDED ACCESSORIES FOR HYDRAULIC PRESS BRAKE MP1400 CNC

PRESS BRAKE PUNCH PROMECAM PS.135.85.R08.png

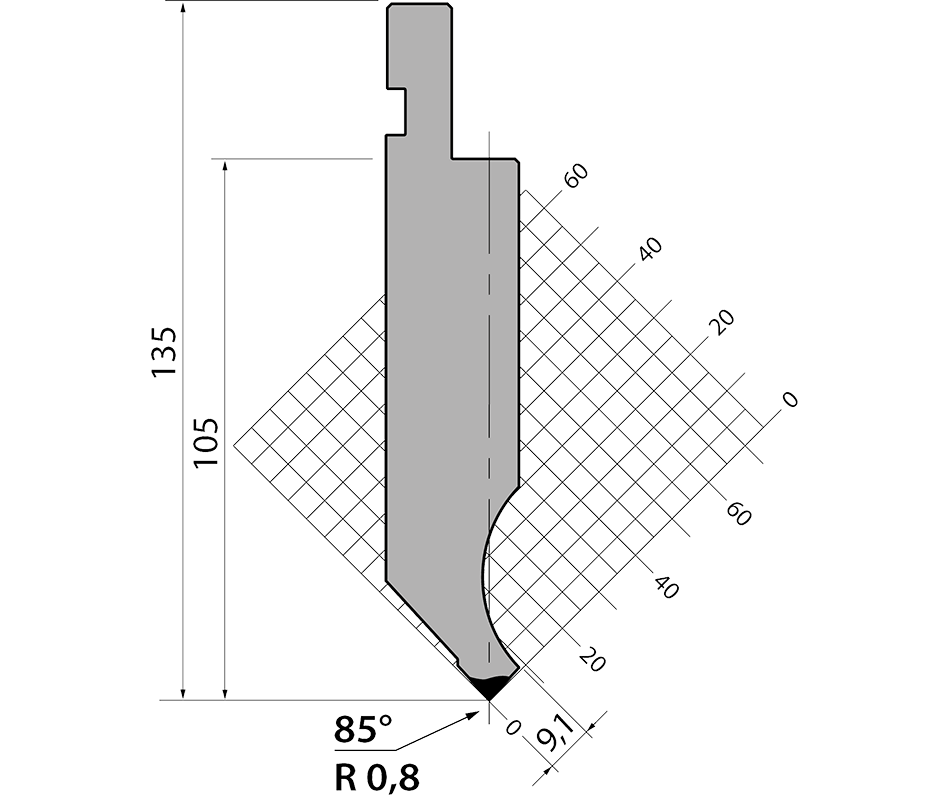

PRESS BRAKE PUNCH PROMECAM PS.135.85.R08

Nargesa press brakes models are equipped with the standard punch PS.135.85.R08, which goes through an induction hardening treatment on working areas and it is also grinding.

MATERIAL TYPE: C45
MECHANICAL RESISTANCE: 560 - 710 N/mm2
HARDNESS: 54 - 60 HRC

LENGTH:

  • 835 mm.
  • 415 mm.
  • 795 mm. Fraccionado: 100, 250, 20, 25, 30, 35, 40, 45, 50, 100, 100 mm.
  • 805 mm. Fraccionado: 100, 370, 10, 15, 20, 40, 50, 100, 100 mm.

* The customer can choose another type of punch to be supplied with the machine. (consult the manufacturer)


PRESS BRAKE DIE PROMECAM M.460.R.png

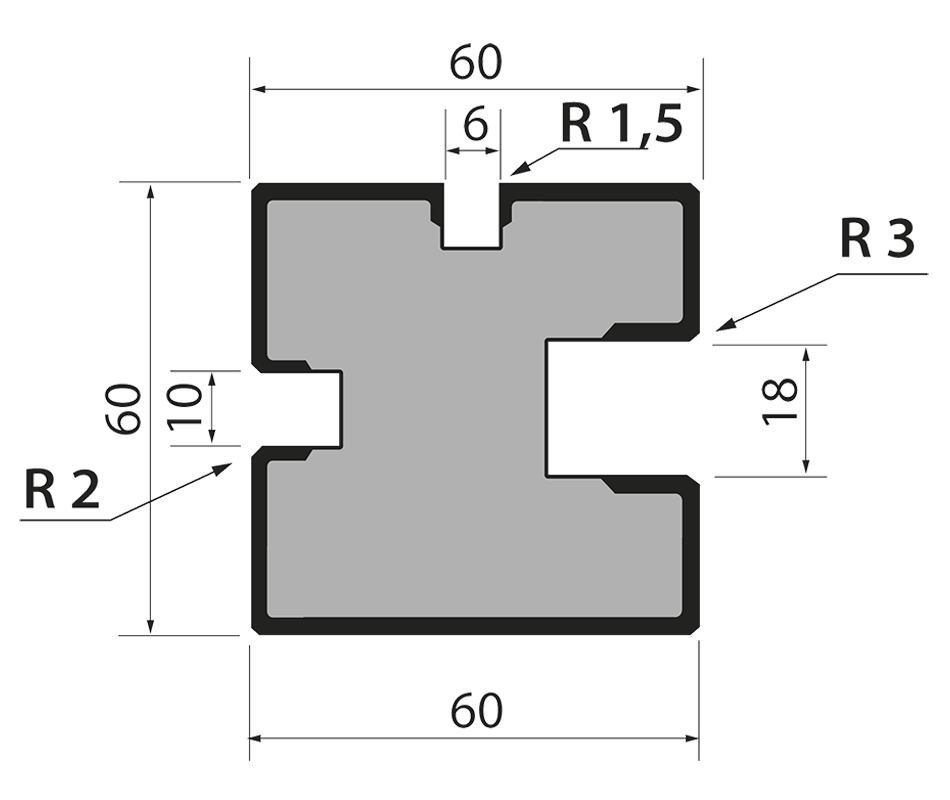

PRESS BRAKE DIE PROMECAM M.460.R

Nargesa press brakes models are equipped with the standard die M.460.R, which goes through an induction hardening treatment on working areas and it is also grinding.

MATERIAL TYPE: C45
MECHANICAL RESISTANCE: 560 - 710 N/mm2
HARDNESS: 54 - 60 HRC

LENGTH:

  • 835 mm.
  • 415 mm.
  • 795 mm. Fraccionado: 100, 250, 20, 25, 30, 35, 40, 45, 50, 200 mm.
  • 805 mm. Fraccionado: 100, 370, 10, 15, 20, 40, 50, 200 mm.

* The customer can choose another type of die to be supplied with the machine. (consult the manufacturer)


SOFTWARE FOR PC AND CNC

Hydraulic press brakes Nargesa is provided with a standard complete software for its PC installation and also with a basic software installed on the CNC

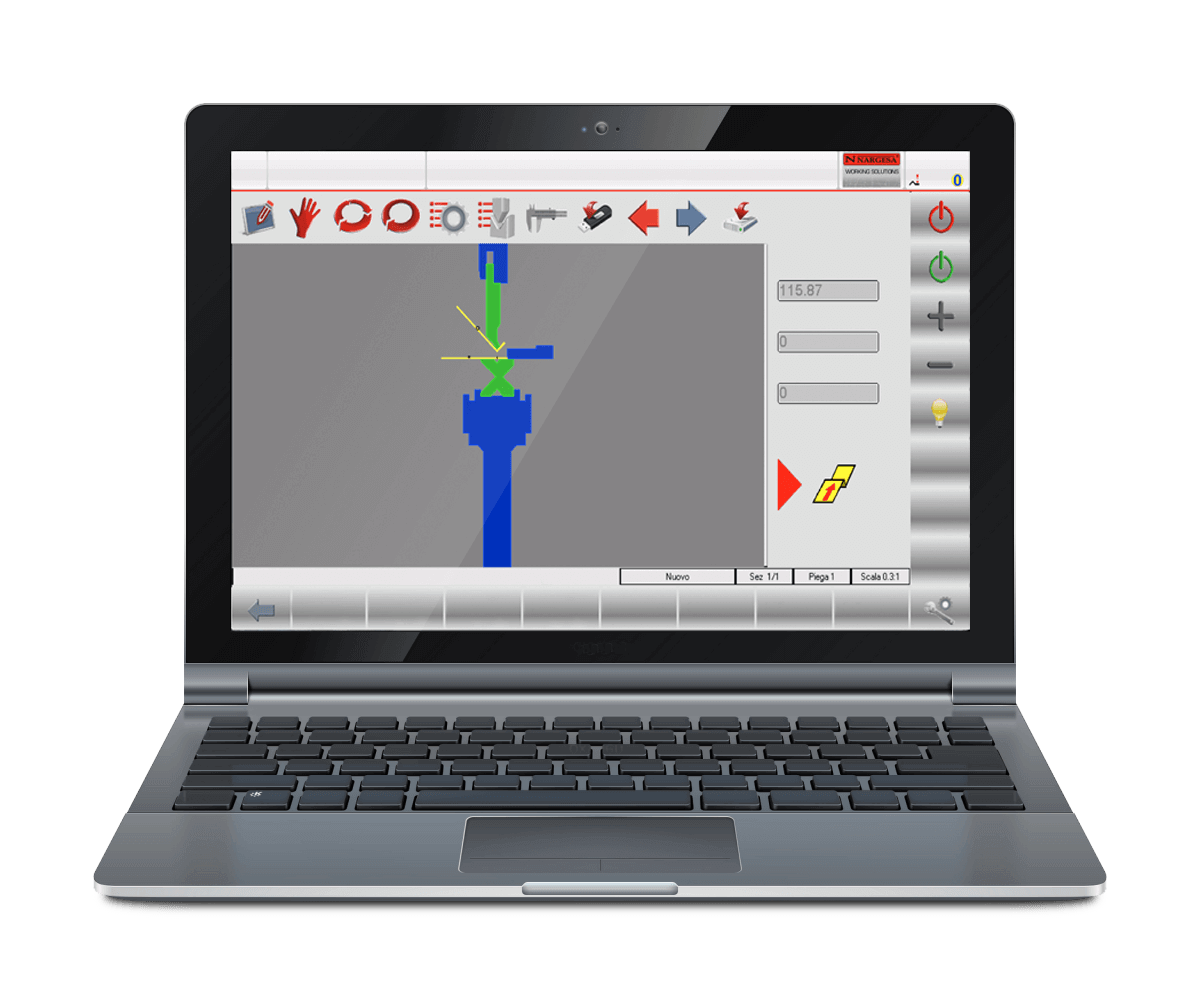

  • PC simulator and optimiser for identification and 2D and 3D graphic programming for the fastest and most reliable bending sequence.
  • Program and tool file explorer in real time.
  • Local and remote self-diagnostic system
  • Multi-language

OPTIONAL TOOLING FOR HYDRAULIC PRESS BRAKE MP1400 CNC

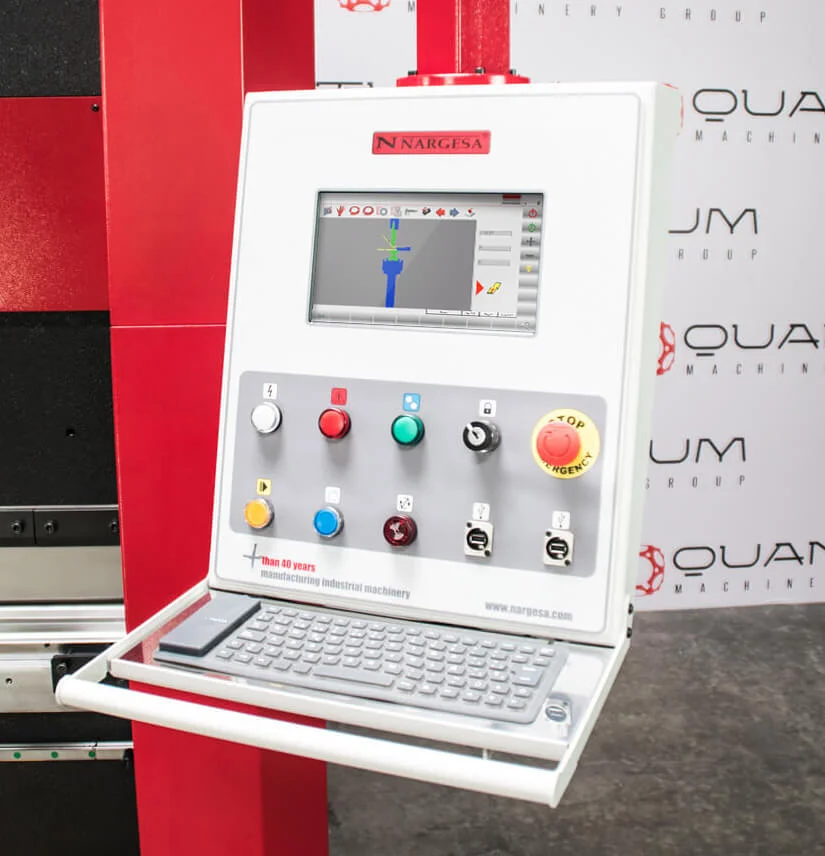

Graphs and folding calculation on CNC.jpg



Graphs and folding calculation on CNC

CNC simulator and optimiser for identification and 2D graphic programming for the fastest and most reliable bending sequence. The user can incorporate the optional software on the press brake CNC and buy it later on. There is also the possibility of carrying out the remote software installation, by our Nargesa Technicians.

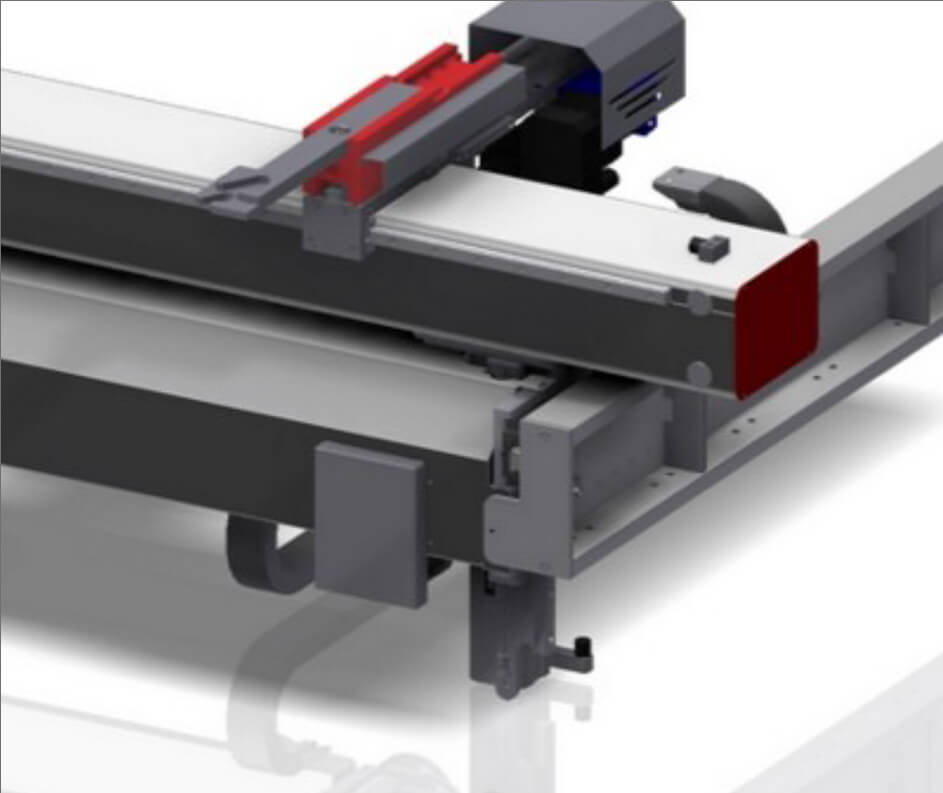

R-AXIS

You can include the R axis to the Press brake Nargesa to make the purchase or later. This Axis has a Canopen communication system that enables it to be installed in a rapid and simple manner to the machine. The operator needs only to connect it to the motor of the X axis and Nargesa's technicians will configure the CNC remotely.

  • High speed measurement search: 130 mm/seg
  • Lineal guides with high precision recirculating balls
  • Servo motor: 1 Nm to 5000 rpm.
  • R axes limit: 150 mm.
  • Mechanical precision: 0,05 mm.


Additional Punches and Dies for the MP1400 Press Brake

We have a wide selection of punches and dies of all kinds. You will be able to take a closer look at all sorts and sizes in our Catalog.

Download Catalog


INFO HYDRAULIC PRESS BRAKE MP1400 CNC

TECHNICAL FEATURES OF THE R AXIS

  • High speed measurement search: 565 mm/sec.
  • High precision recirculating ball lineal guides.
  • Needles rolling on recirculating ball lineal guides.
  • Servo motor: 1 Nm to 5000 rpm.
  • Displacement 600 mm.
  • Mechanical precision: 0.05 mm.

Technical characteristics of the R Axis (Optional)*

  • High speed measurement search: 130 mm/sec.
  • Lineal guides with high precision recirculating balls.
  • Servo motor: 1 Nm to 5000 rpm.
  • R Axis limit: 150 mm.
  • Mechanical precision: 0.05 mm.

* The R Axis is not supplied as standard with the machine; the client may include it when purchasing the machine or add it later. This Axis has a Canopen communication system that enables it to be installed in a rapid and simple manner to the machine. The operator needs only to connect it to the motor of the X axis and Nargesa's technicians will configure the CNC remotely.


Dimensions

DIMENSIONS OF THE MACHINE HYDRAULIC PRESS BRAKE MP1400 CNC

Dimensions of the machine: 1966x1520x2035 mm.

Weight: 2900 Kg.

Tariff Item Code:  84622110

Other features:

  • The machine is delivered completely assembled.

USES OF THE MACHINE: HYDRAULIC PRESS BRAKE MP1400 CNC

Hydraulic Press brake MP1400 CNC from the last generation, permits folding or bending any kind of metal in an accurate way. It has been designed so that the machine is self-programming, it just needs the operator to enter the dimensions of the part to be made and the CNC will have the axes in the correct positions and sequences for an optimum bending of the part.
