ALPHA 40 CNC-4 ROLL BENDER
ALPHA 40 CNC-4 ROLL BENDER
Ready to place an order, or do you have any questions? Call us at (909)476-8007
THE TAURING ALPHA 40 CNC-4 IS A PYRAMID-STYLE, HYDRAULIC ROLL BENDER WITH RECTILINEAR GUIDED BOTTOM ROLLS, IDEAL FOR BENDING A WIDE VARIETY OF APPLICATIONS.
- 3 Driving Rolls
- 7.7 R.P.M.
- 40mm Shaft Diameters
- High-Quality, Italian Build
- Equipped with the Tauring CNC-4 (Touchscreen NC Control)
- LED Display for Digital Readout of Top Roll Position
- Includes Interchangeable Universal Tooling
- 3.7" Standard Shaft Working Length
- Weighs Approximately 1,200 lbs.
- Machine Dimensions: 24" x 37" x 40"
All three shafts are gear driven and hardened. They are composed of ground high strength steel, which are supported by sealed roller bearings for anti-friction operation. The frame is made out of rugged cast iron that comes standard with to insure durability. The Tauring ALPHA 40 CNC-4 comes with a self-braking motor and is in conformity with “CE” Regulations (98/37 CE). Electromagnetic compatibility, (89/336) Low tension (73/23, 93/68). This roll bender is equipped with a single speed motor rated at 7.7 R.P.M.
ALPHA 40 CNC-4 ROLL BENDER STANDARD CAPACITIES:
(PLEASE NOTE – The minimum radii shown may require Multi-Pass. PLEASE ALSO NOTE - The sizes shown are the of the maximum capacity with the minimum radii; when bending smaller profiles, the machine will be able to bend smaller radii.)
- Round Tube: 2.25" x .075” with a 33" Minimum Radius
- Solid Round: 1.15" with a 15" Minimum Radius
- Square Tube: 1.75” x 1.75" x .090" with a 42" Minimum Radius
- Angle (Leg-Out): 1.75" x 1.75" x .250" with a 24" Minimum Radius
- Flat Bar (Easy Way): 2.25" x .75” with a 14" Minimum Radius
- Pipe: 1" Sch. 40 Pipe (1.315" O.D.) with a 16" Minimum Radius
- Rectangular Tube (Easy Way): 2.25" x 1.1” x .090" with a 45" Minimum Radius
- Solid Square: 1.1" x 1.1” with a 27" Minimum Radius
- Angle (Leg-In): 1.75" x 1.75" x .180" with a 29" Minimum Radius
- Flat Bar (Hard Way): 1.75" x .375” with a 15" Minimum Radius
THE CNC-2: NC TOUCHSCREEN CONTROL

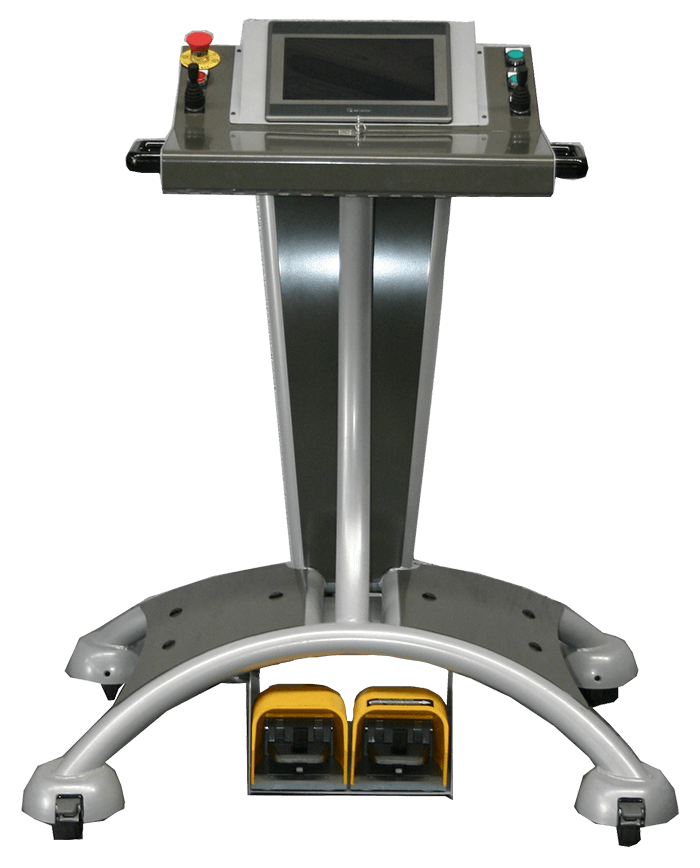

• Numerical Control on wheel-mounted console.
• Joystick grip for axis movement command.
• Double command pedals for the right and left rotation.
• Emergency button for mechanical stop.
• Locked compartment for ARC Meter, pen drive, instruction manual.

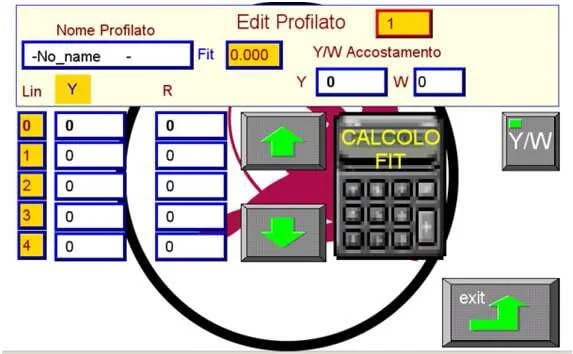

• 10” LCD colors monitor LCD touch screen.
• N ° 200 storable programs, each with up to 250 steps.
• N ° 50 Storable Profiles.
• Automatic FIT calculation (Profile Accuracy).
• N° 20 Speed Set for Each Axis.
• Positioning accuracy 50 µm.
PROPRIETARY SOFTWARE & GRAPHIC INTERFACE:
• Completely made according to Tauring specifics.
• Simple and intuitive, with the main controls at users’ disposal thank to its touchscreen 10”.
INDEPENDENT AXIS REGULATION:
Each bending axis can be managed in a completely independent way. The user can have at his disposal up to 20 different speeds per each axis.
It is possible to insert the significant data of each profile, so as to create a characteristic bent that allows to directly set up the desired bending radii.
INTUITIVE AND SIMPLIFIED PROGRAMMING:
Of every shape or bending radius, thanks to the direct insert of material development and bending radii. The adjustable speeds allow the user to manage in an easy way the joints between straight and bent parts or between different bending radii.
MACRO FOR PREDETERMINED SHAPES:
The users have at their disposal many pre-programmed macro, in order to simplify the creation of the most common shapes, like pointed arch, spiral, Mediterranean arch and many others. By inserting few simple data. The users can quickly realize complete programs for bending many different shapes.
