DELTA 80 PQI ROLL BENDER


DELTA 80 PQI ROLL BENDER

55,800.00

Ready to place an order, or do you have any questions? Call us at (909)476-8007

THE TAURING DELTA 80 PQI IS A PYRAMID-STYLE, HYDRAULIC ROLL BENDER, IDEAL FOR BENDING A WIDE VARIETY OF APPLICATIONS.

STANDARD FEATURES:

  • 3 Driving Rolls

  • 9.5 R.P.M.

  • 80mm Shaft Diameters

  • High-Quality, Italian Build

  • Equipped with the Tauring HP PLC Control

  • LED Display for Digital Readout of Top Roll Position

  • Includes Interchangeable Universal Tooling

  • 8.6" Standard Shaft Working Length

  • Weighs Approximately 3,800 lbs.

  • Machine Dimensions: 41" x 74" x 60"

Click Here to Pre-Order

All three shafts are gear driven and hardened. They are composed of ground high strength steel, which are supported by sealed roller bearings for anti-friction operation. The frame is made out of rugged cast iron that comes standard with to insure durability. The Tauring DELTA 80 PQI comes with a self-braking motor and is in conformity with “CE” Regulations (98/37 CE). Electromagnetic compatibility, (89/336) Low tension (73/23, 93/68). This roll bender is equipped with a single speed motor rated at 9.5 R.P.M.


(PLEASE NOTE – The minimum radii shown may require Multi-Pass. PLEASE ALSO NOTE - The sizes shown are the of the maximum capacity with the minimum radii; when bending smaller profiles, the machine will be able to bend smaller radii.)

DELTA 80 PQI ROLL BENDER Standard Capacities:

  • Round Tube: 4.25" x .10” with a 115" Minimum Radius

  • Solid Round: 2.8”” with a 64" Minimum Radius

  • Square Tube: 3.50” x 3.50" x .25" with a 100" Minimum Radius

  • Angle (Leg-Out): 3.5" x 3.5" x .35" with a 76" Minimum Radius

  • Flat Bar (Easy Way): 7" x .10” with a 40" Minimum Radius

  • T-Channel (Easy Way): 3.15" x 3.15” x .35" with a 45" Minimum Radius

  • Pipe: 3.50" Sch. 40 Pipe (4.0" O.D.) with a 48" Minimum Radius

  • Rectangular Tube (Easy Way): 4.25" x 2.8” x .175" with a 60" Minimum Radius

  • Solid Square: 2.50" with a 29" Minimum Radius

  • Angle (Leg-In): 3.5" x 3.5" x .35" with a 76" Minimum Radius

  • Flat Bar (Hard Way): 4.25" x .70” with a 52" Minimum Radius

  • T-Channel (Hard Way): 3.15" x 3.15” x .35" with a 45" Minimum Radius

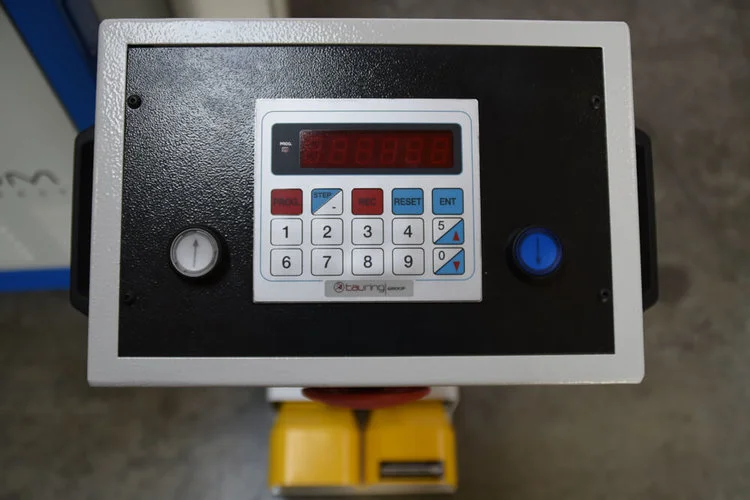

TAURING HP PLC CONTROL PANEL


The Tauring HP PLC allows the ability to store 10 "quote-positions" saving the position of the upper roll for quick reference and repeatability.
HP Features:
- Led display.
- Keypad has 15 keys.
- Direct quote positioner allows direct entry on keypad (Self-learning procedure).
- Instrument configuration in mm.
- Easy and quick programming.
