DS80HP: PLC Controlled 60mm Shaft Tauring (Hydraulic) Roll Bender


DS80HP: PLC Controlled 60mm Shaft Tauring (Hydraulic) Roll Bender

27,800.00

$27,800 (PRE-ORDER)

Ready to place an order, or do you have any questions? Call us at (909)476-8007

  • 3 Driving Rolls
  • 7.7 R.P.M.
  • 60mm Shaft Diameters
  • High-Quality, Italian Build
  • Equipped with the Tauring HP PLC Control
  • LED Display for Digital Readout of Top Roll Position
  • Includes Interchangeable Universal Tooling
  • 6.3" Standard Shaft Working Length
  • Weighs Approximately 2,250 lbs.
  • Machine Dimensions: 41" x 59" x 67"
Add To Cart

The Tauring DS80HP is a Pyramid-Style, Hydraulic Roll Bender; ideal for bending an extremely wide variety of applications. All three shafts are gear driven and hardened. They are composed of ground high strength steel, which are supported by sealed roller bearings for anti-friction operation.

The frame is made out of rugged cast iron that comes standard with to insure durability. The Tauring DS80HP comes with a self-braking motor and is in conformity with “CE” Regulations (98/37 CE). Electromagnetic compatibility, (89/336) Low tension (73/23, 93/68). This roll bender is equipped with a single speed motor rated at 7.7 R.P.M.

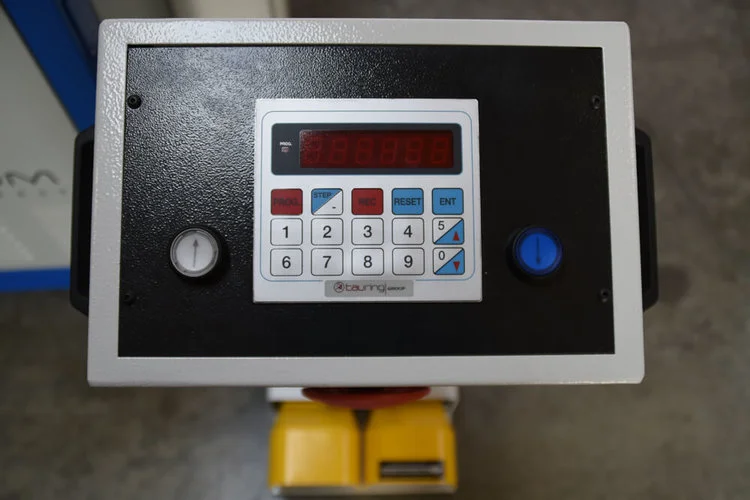

TAURING HP PLC CONTROL PANEL


The Tauring HP PLC allows the ability to store 10 "quote-positions" saving the position of the upper roll for quick reference and repeatability.
HP Features:
- Led display.
- Keypad has 15 keys.
- Direct quote positioner allows direct entry on keypad (Self-learning procedure).
- Instrument configuration in mm.
- Easy and quick programming.


DS80HP Roll Bender Standard Capacities:

(PLEASE NOTE – The minimum radii shown may require Multi-Pass. PLEASE ALSO NOTE - The sizes shown are the of the maximum capacity with the minimum radii; when bending smaller profiles, the machine will be able to bend smaller radii.)

  • Round Tube: 4" x .125" with a 40" Minimum Radius
  • Pipe: 3" Sch. 40 Pipe (3.50" O.D.)
  • Solid Round: 2.50" with a 16" Minimum Radius
  • Square Tube: 3.75" x .150" with a 40" Minimum Radius
  • Solid Square: 2.25" x 2.25" with a 16" Minimum Radius
  • Rectangular Tube (Easy Way): 5" x 1.5" x .20" with a 40" Minimum Radius
  • Angle (Leg-Out): 3.25" x .25" with a 24" Minimum Radius
  • Angle (Leg-In): 3.25" x .25" with a 24" Minimum Radius
  • Flat Bar (Easy Way): 5.5" x 1" with a 16" Minimum Radius
  • Flat Bar (Hard Way): 3.75" x 0.75" with a 28" Minimum Radius
  • T-Channel (Easy Way): 4.5" x 2.75" with a .25" Minimum Radius
  • T-Channel (Hard Way): 4.5" x 2.75" x 0.25" with a 18" Minimum Radius
