QMS-42 Mandrel Rotary Bender with Carriage on Wheels

60,000.00

Ready to place an order, or do you have any questions?
Call us at (909)476-8007

The clockwise QMS42 Rotary Bender series is an accurate and powerful Rotary Mandrel Bending Machine capable of bending tubes with a maximum diameter of 1.6” O.D. (42.4 mm) and a pipe thickness of 0.125” (3.25 mm). The maximum bending radius is 4.7” (120 mm). The optimal and constant bending radii does not deform bent pipes: it is the ideal machine to satisfy most user requirements in the plumbing, nautical, hydraulic, and ornamental facilities.

Click Here to Pre-Order

CAPACITIES AND TECHNICAL FEATURES

  • Max. Capacity, Mild Steel Round Tube: 1.6” x 0.125” (42.4 x 3.25 mm)

  • Max. Capacity, Stainless Steel Round Tube: 1.6” x 0.110” (42.4 x 2.9 mm)

  • Max. Capacity Mild Steel Round Tube: 1-1/4'' SCH. 10 (0.110” Thick Wall)

  • Max. Capacity Mild Steel Square Tube: 1.18” x 1.18” x 0.078” (30x30x2 mm)

  • Max. Radius: 4.7” (120 mm)

  • Modulus of Resistance: 1.96” (5 cm3)

  • Bending Speed (ø/Sek.): 29

  • Repeat Accuracy Bending Axis (ø): +/- 0.003” (0.1 mm)

  • Power Output: 4.5 kW

  • Switch Panel Low Tension: 24V

  • Weight: 1,800 lbs. - 2,500 lbs. (800-1100 kg)

  • Bending Direction: Left + Right

  • Bending Speed: 17 Degrees Per Second

  • Bending Accuracy: +/- 0.1 Degree

  • Cast iron body on metal steel-work base.

  • Digital electronic control board with microprocessor and display to set and control the required bend and recovery angle.

  • 180° Maximum allowed bending angle.

  • Computerized hydraulic system per the closing and opening of locking and bending tools.

  • The mandrel’s extraction can be set up for a high definition of the bend.

  • Digital Display of the Length/Torsional Twisting: Standard

  • Premature Mandrel Retraction: Standard

  • Mandrel Lubrication: Optional

  • Revolving Counter-Bearing: Optional

  • Radius Enlargement: Optional


OPTIONS (THESE FEATURES ARE AVAILABLE AT AN ADDITIONAL COST)

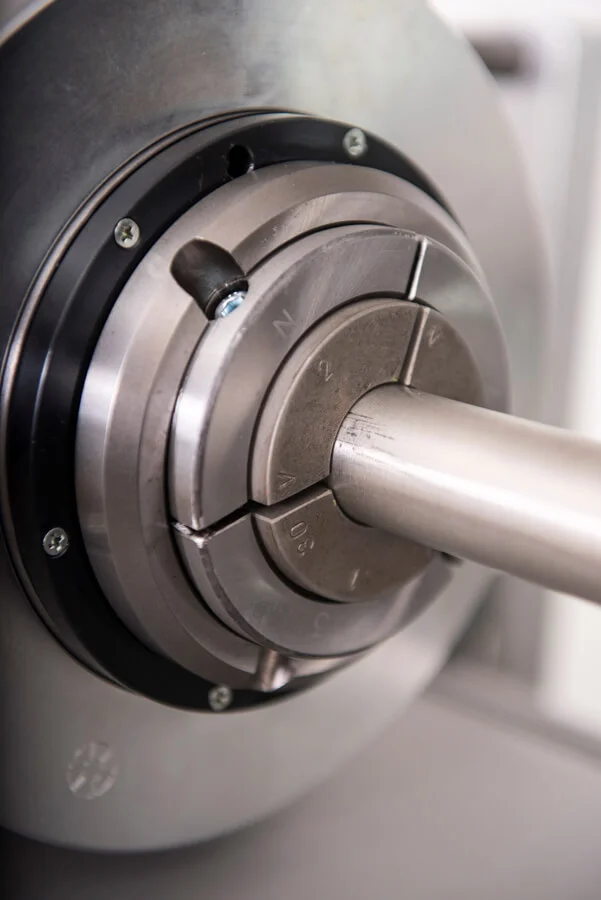

QMS-60 -- 8.jpg

Option #1:

Pneumatic quick clamp and pneumatic rotation by control in 15 degree increments.


QMS-60 -- 9.jpg

Option #2:

Pneumatic programmable length stop.

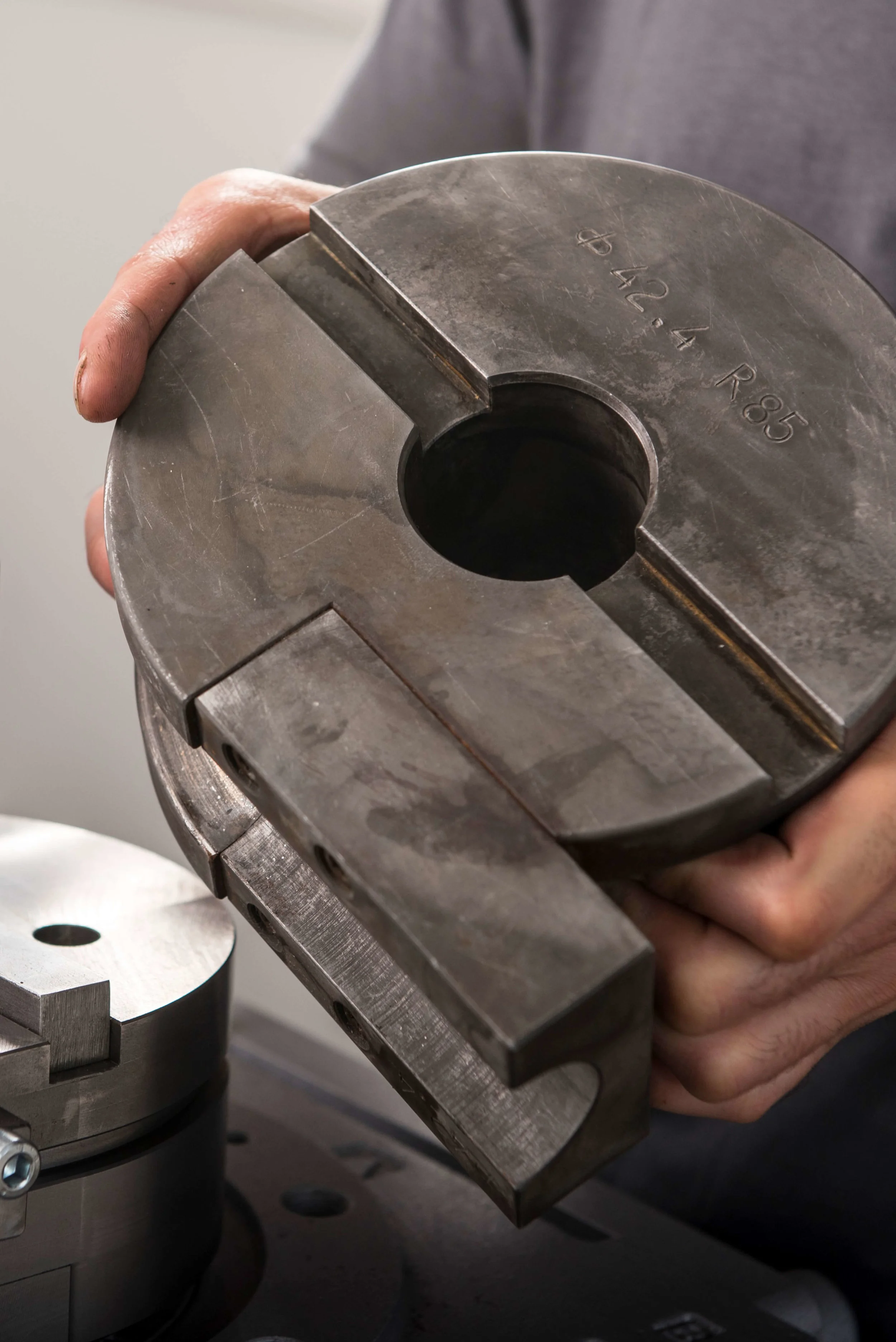

Optional Tooling:

Any O.D. (Outer Diameter Size) or custom profile tooling within machine’s capacity.
