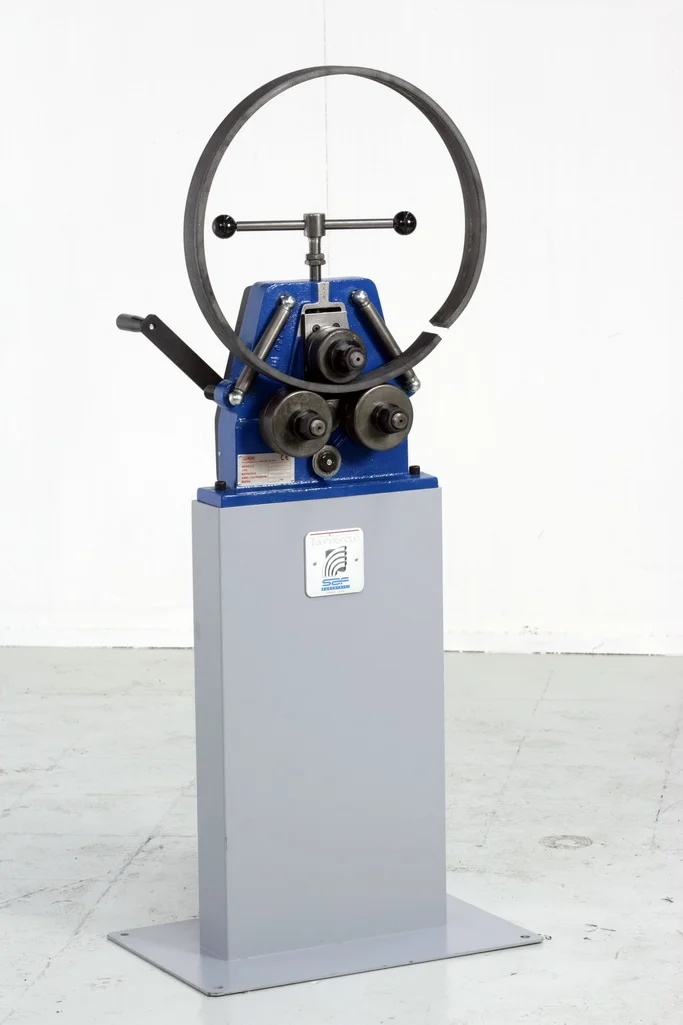

SAF - BS40M Roll Bender

This manual roll bender is great for any small side bending project. Many times this is manual roller is great for accuracy and energy savings. capable of bending a good variety of materials, Quantum's BS40 is a good machine for any buyer with small bending projects.

Would you like to speak to one of our knowledgeable and friendly Quantum Machinery Sales Experts? Give us a call at (909)476-8007




(Click on titles below to expand)

+ BS40M Capacities

  • Round Tube - Size: 1.25" x .08" / Min. Radius: 7" (TT)
  • Square Tube - Size: 1" x 1" x .08" / Min. Radius: 16" (RSP)
  • Flat Bar (Easy Way) - Size: 2" x 0.5" / Min. Radius: 10" (TRS)
  • Flat Bar (Hard Way) - Size: 1.25" x 3.125" / Min. Radius: 8" (TRS)
  • Angle (Leg Out) - Size: 1.25" x 1.25" x .125" / Min. Radius: 16" (TRS)
  • Solid Round - Size: 0.75" / Min. Radius: 8" (RSP)

TRS = Set of standard rolls
RSP = Rolls for special profiles
TT = Set of grooved rolls for tube and pipe

*PLEASE NOTE – MINIMUM RADII SHOWN MAY REQUIRE MULTI- PASS*



+ BS40M Specifications

  • Driven Rolls - 2
  • Mechanical Roll Adjustment
  • Upper Shaft Diameter - 35 mm
  • Lower Shaft Diameter - 30 mm
  • Upper Roll Diameter - 88 mm
  • Lower Roll Diameter - 108 mm
  • Standard Shaft Working Length - 60 mm
  • Universal Knurled Rolls - 1 Set
  • Machine Dimensions - 40x30x50h cm
  • Machine Weight - 120 lbs.
