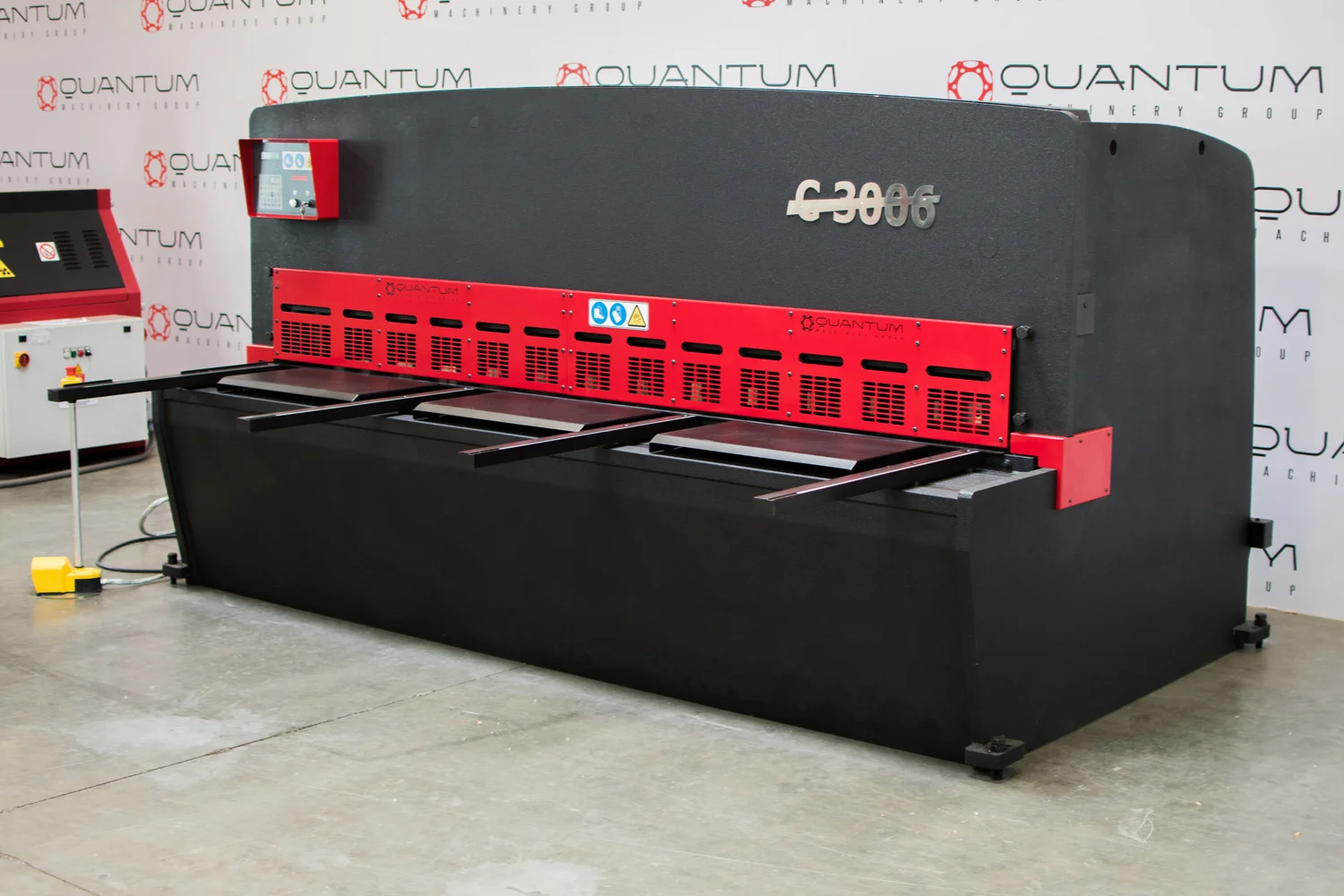

C3006: 10 Foot Hydraulic Vertical Cut Shears with CNC Control

C3006 Shear TinyPNG.png
C3006 Shear TinyPNG.png

C3006: 10 Foot Hydraulic Vertical Cut Shears with CNC Control

49,900.00

Ready to place an order, or do you have any questions?
Call us at (909) 476-8007

Price: $49,900

Electrical Options:

  • 220V / 3PH / 60Hz

  • 480V / 3PH / 60Hz

The last generation of NARGESA CNC Vertical cut shears are made of stabilized, welded steel that allows to take on big jobs without deformation.

Cutting Length: 10' / 3030mm
Max. Thickness in Mild Steel: 0.250" / 6.35mm
Max. Thickness in Stainless Steel: 0.150" / 4mm

Add To Cart

ADVANTAGES OF VERTICAL CUT INSTEAD OF SWING CUT:

Energetic saving:
Resistance of material in vertical cut is much lower, which becomes a considerable energetic saving.

Cutting quality:
Clean, perfect and accurate cut.

Life of the blades:
The blades wear is almost nule. The life of the blades is 4 times higher than other shearing systems.

          Technical Features

  • Cutting length: 3030mm.

  • Cutting capacity: 6mm in steel (450N/mm2)andy 4mm in S.S.(700N/mm2)

  • CNC back gauge.

  • Digital display.

  • Gauge displacemnt: 700mm.

  • Accuracy and repeatability of positioning from +/- 0,1mm.

  • 4-edged lower and upper blades Suitable for stainless steel.

  • Goose neck for cuts with bigger length: 173mm.

  • Cutting area lit up by leds.

  • Thin marking zone for manual cutting.

  • Strokes per minute: 12 Strokes. (All length)

  • Independent hydraulic rammers: 15 units.

  • Millimeter squaring arm, 1000mm length.

  • Two 1000mm-millimetered stand arms.

  • Fix cut inclination: 1.75º

  • Driving with safety pedal and emergency stop.

  • Back overture with safety optoelectronic devices.

  • Motor power: 9,2 KW/ 12 HP

  • 3-Phased tension: 400 V.

  • Hydraulic Pump: 22 liters.

  • Container capacity: 96 liters.
