SOMMER QMS60




Would you like to speak to one of our knowledgeable and friendly Quantum Machinery Sales Experts?
Give us a call at (909) 476-8007

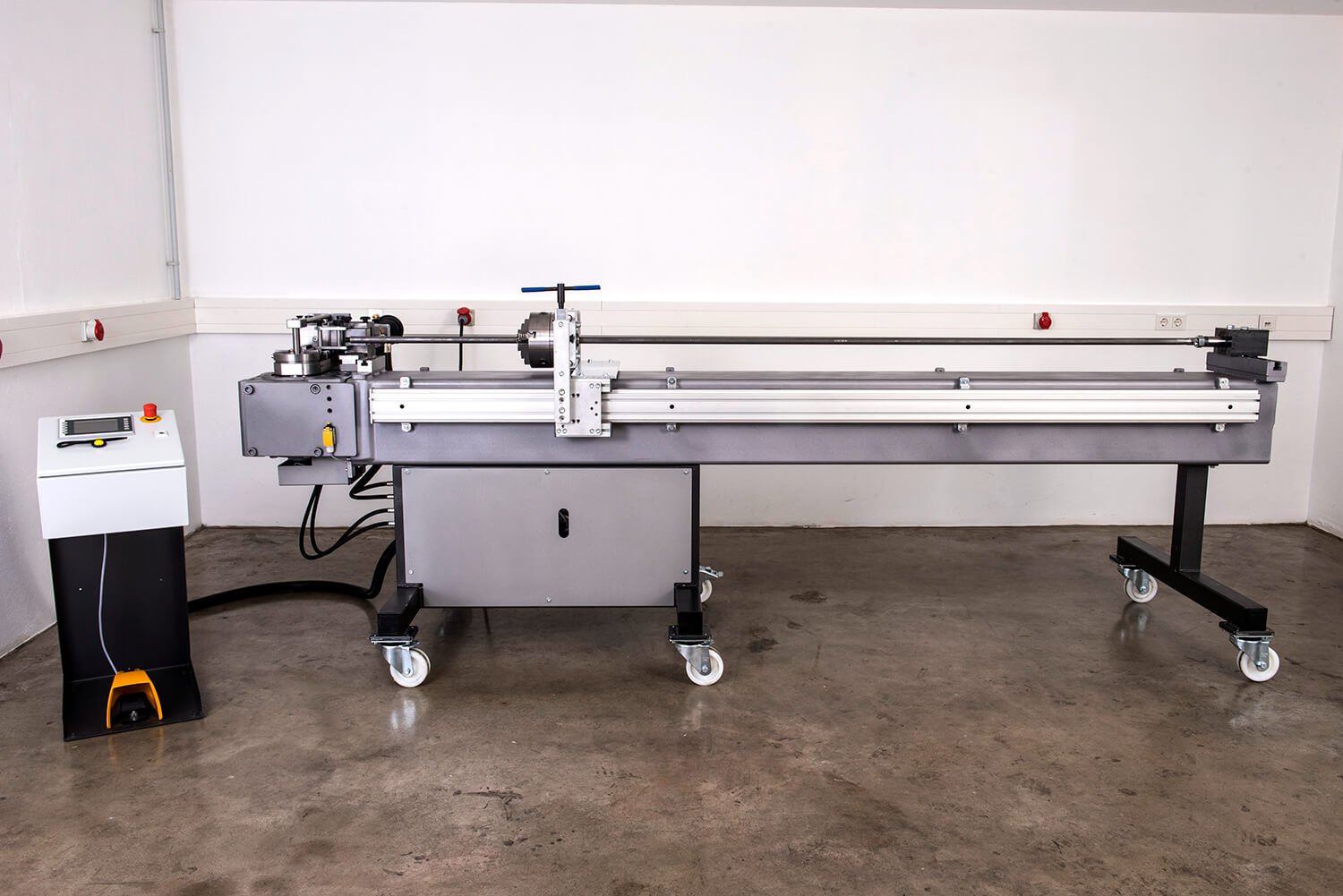

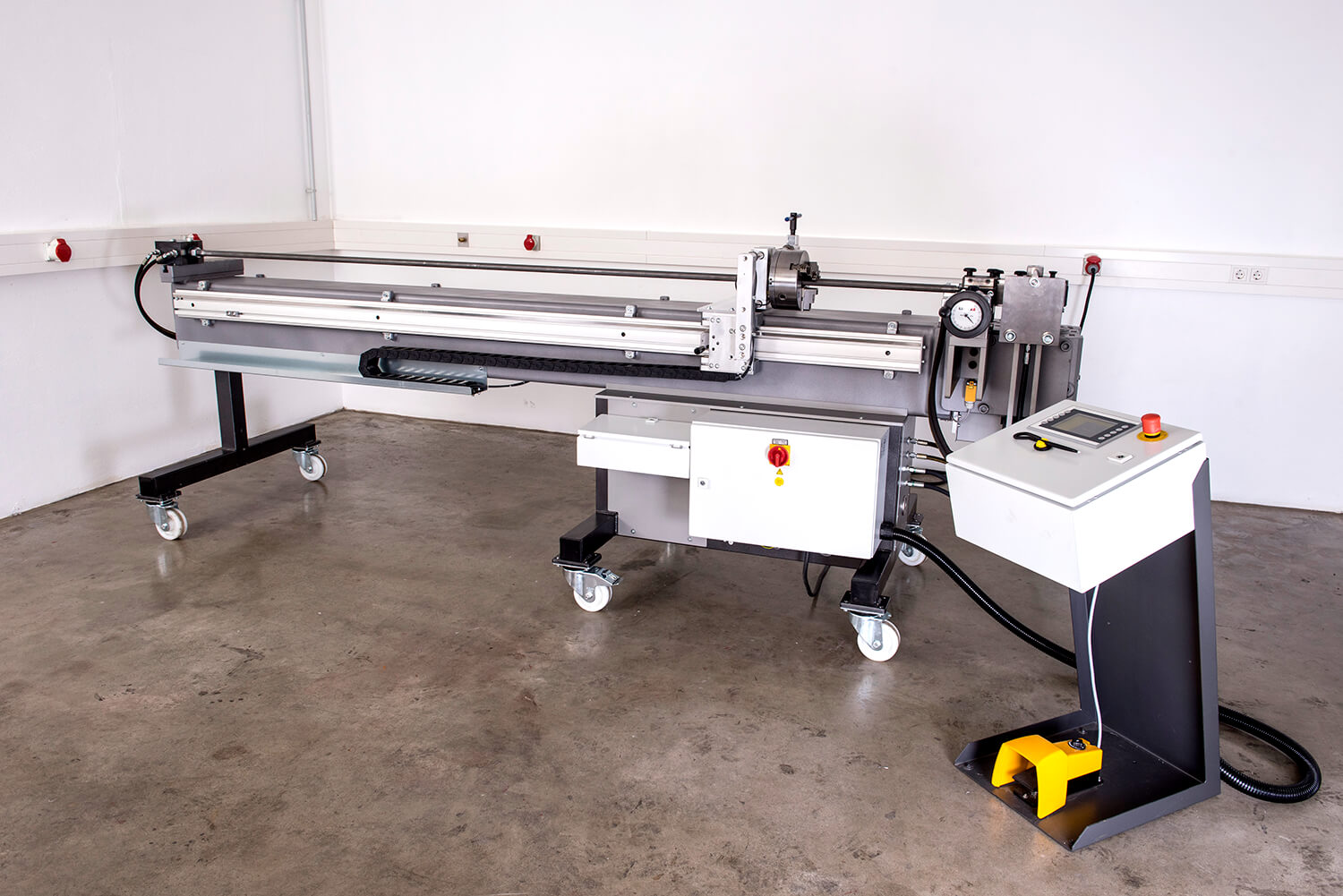

Our S60 mandrel bending machine is designed for bending pipes with a maximum diameter of 2.5" and a pipe thickness of 0.15". The maximum bending radius is 5.9".

TECHNICAL SPECIFICATIONS

Max. capacity, steel pipe  2.3”,3x4

Max. capacity, stainless steel pipe 2.3”,3x2,9

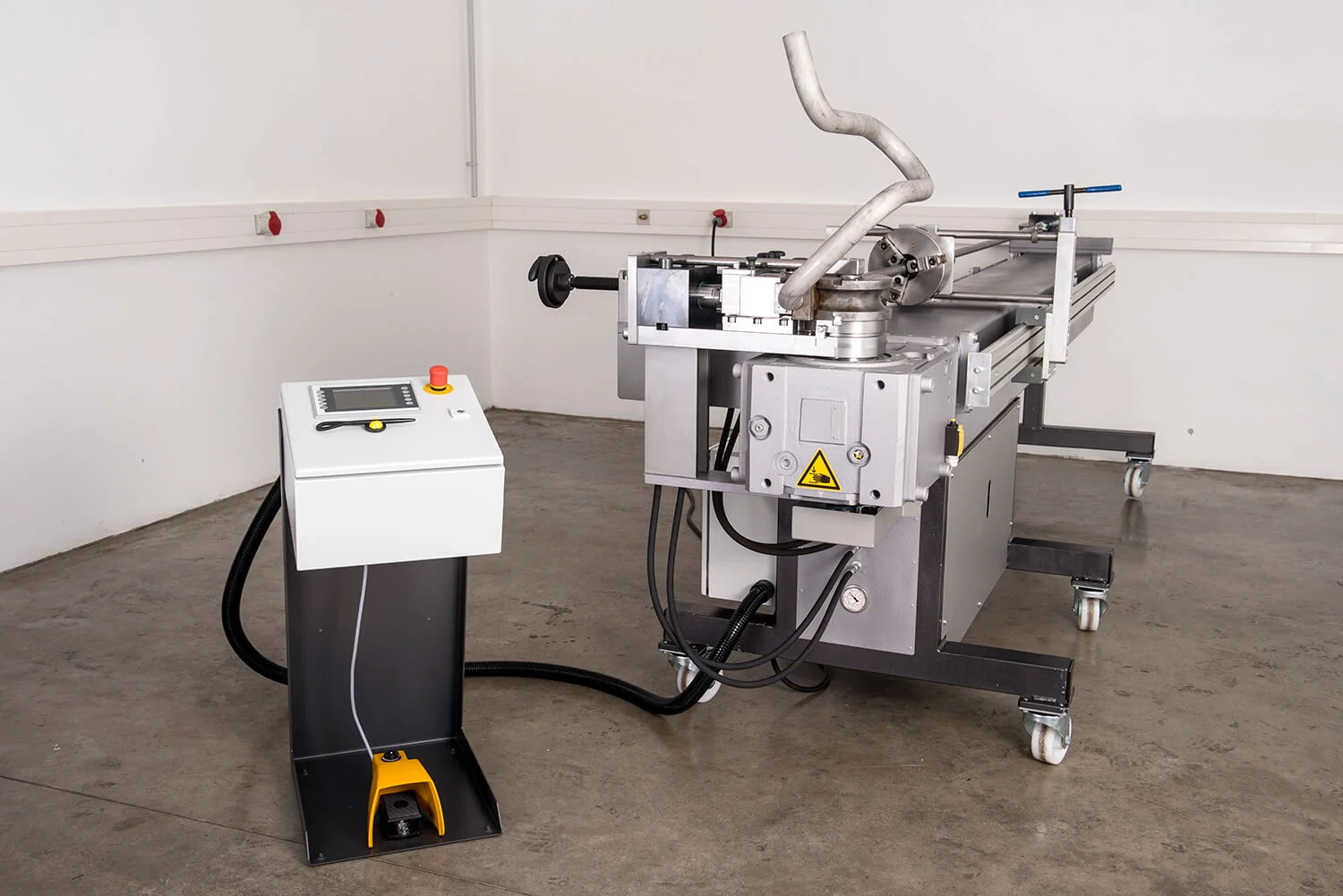

Quantum Mandrel Bender - 3.jpg

Steelpipe 2'' SCH40

Square pipe, steel 1.5”x1.5”x0.1

Max. radius 5.9”

Modulus of resistance (cm3) 1.9

Bending speed (ø/Sek.) 29

Repeat accuracy bending axis (ø) +/- 0,1

Output (kW) 5,2

Weight (kg) 2645 lb-3527 lb

Bending direction lelft + right

Digital display of the length/torsional twisting standard

Digital display of the length/torsional twisting standard

Mandrel lubrication optional

Revolving counter bearing optional

Radius enlargement optional
