BM25 HYDRAULIC VERTICAL BROACHING MACHINE
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Price: $18,700
Electrical Options and Pricing:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
- 220V / 1PH / 60Hz

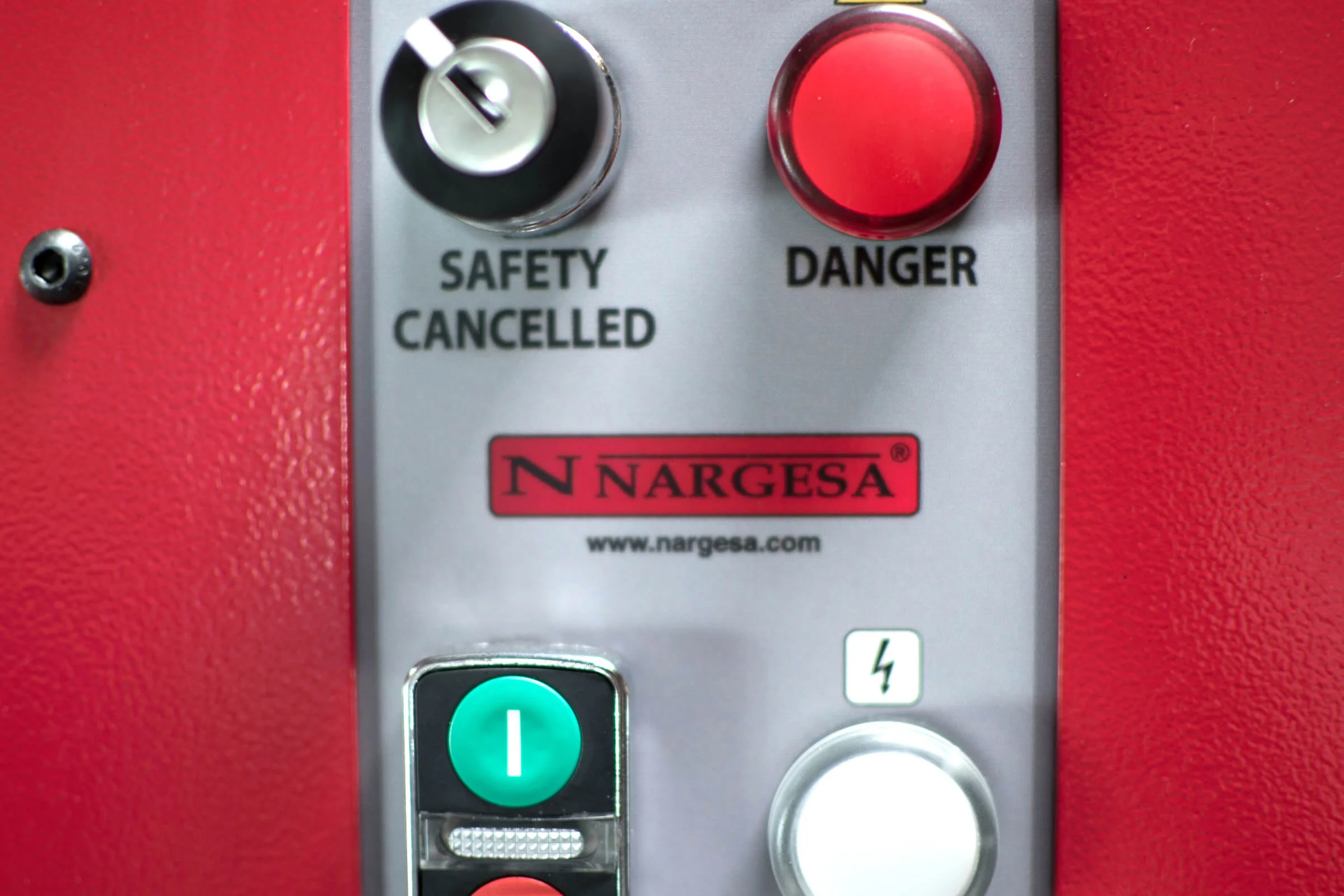

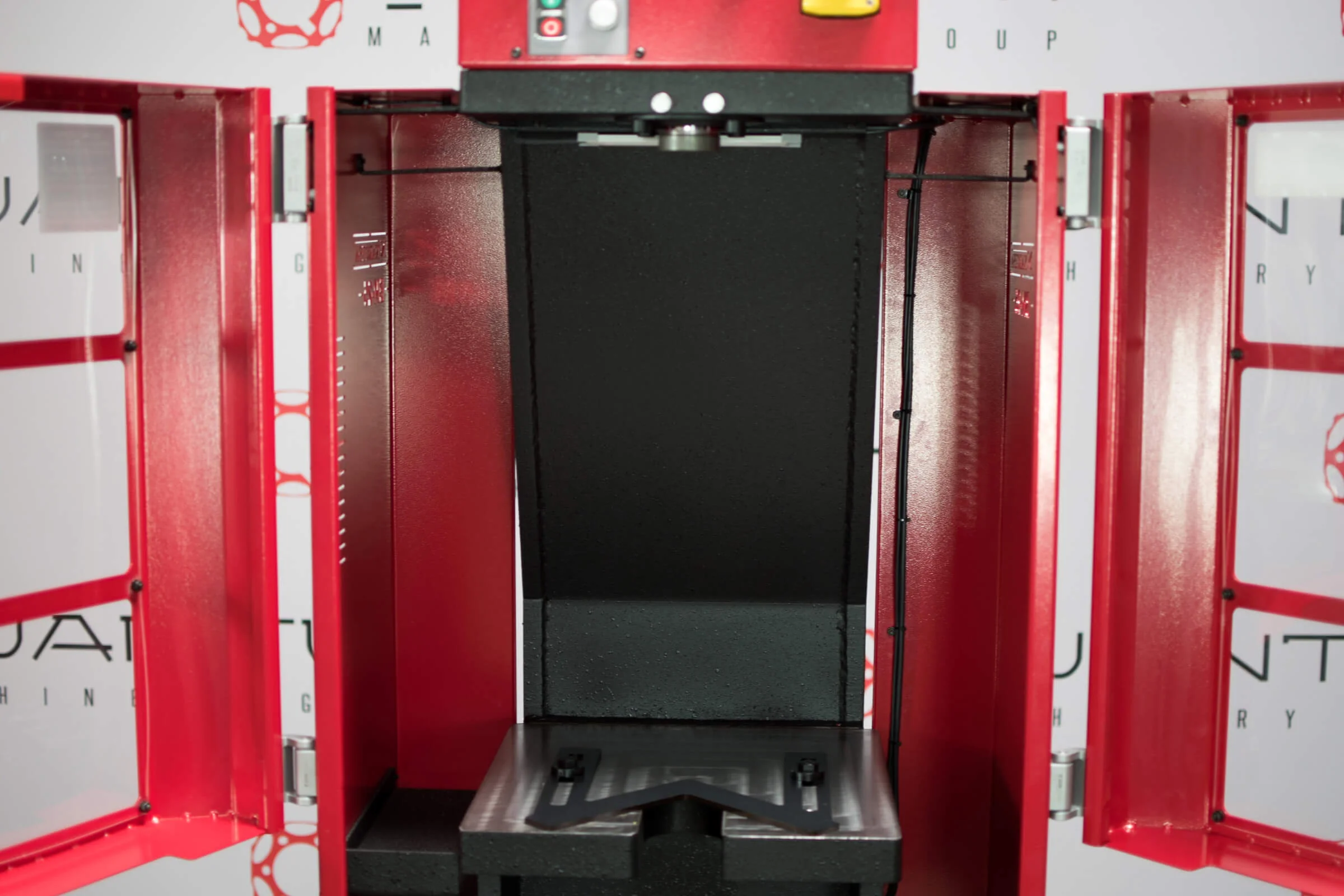

Hydraulic Broaching machine QUANTUM NARGESA BM25 has been fabricated in a welded and mechanized steel monoblock. It's a machine useful for making notches and keyways in all kinds of pieces: sprockets, pulleys, gears, etc...
It is also used like a press to unbolt oxidated parts, assembling and dismantling bearings, etc...
The Vertical Broaching machine BM25, has been thought for smallmedium productions, it is characterized by its great versatility, reliability and fast setting up.
VERSATILITY: It's used for making small and big pieces. All kinds of broaching and different tolerances. 2mm keyways from 2 up to 25mm or 1" inch.
RELIABILITY: Due to its way of use the keyway is alwaysmade with the required tolerance.
EASY USE: Anyone can make a keyway, there's no need to be a skillful operative.
FAST SETTING UP: The preparation time of the machine before making a broaching operation is approximately 1 min.
ADVANTAGES: The machine can be moved easily next to a lathe or machining center. While those machines work, the same operative can make the broaching operation.
The broachers we offer are one of the best trademarks in the market, internationally speaking. They are manufactured under strict quality controls, guaranteeing the higher liability and durability, Made in the USA. Some shims are provided with each broach, the ones used for accomplishing the required tolerance.
Broaches in millimeters and inches.
Broaches of different kinds and tolerances: ISO J-9, ISO P-9.
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Price: $18,700
Electrical Options and Pricing:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
- 220V / 1PH / 60Hz
Hydraulic Broaching machine QUANTUM NARGESA BM25 has been fabricated in a welded and mechanized steel monoblock. It's a machine useful for making notches and keyways in all kinds of pieces: sprockets, pulleys, gears, etc...
It is also used like a press to unbolt oxidated parts, assembling and dismantling bearings, etc...
The Vertical Broaching machine BM25, has been thought for smallmedium productions, it is characterized by its great versatility, reliability and fast setting up.
VERSATILITY: It's used for making small and big pieces. All kinds of broaching and different tolerances. 2mm keyways from 2 up to 25mm or 1" inch.
RELIABILITY: Due to its way of use the keyway is alwaysmade with the required tolerance.
EASY USE: Anyone can make a keyway, there's no need to be a skillful operative.
FAST SETTING UP: The preparation time of the machine before making a broaching operation is approximately 1 min.
ADVANTAGES: The machine can be moved easily next to a lathe or machining center. While those machines work, the same operative can make the broaching operation.
The broachers we offer are one of the best trademarks in the market, internationally speaking. They are manufactured under strict quality controls, guaranteeing the higher liability and durability, Made in the USA. Some shims are provided with each broach, the ones used for accomplishing the required tolerance.
Broaches in millimeters and inches.
Broaches of different kinds and tolerances: ISO J-9, ISO P-9.
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Price: $18,700
Electrical Options and Pricing:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
- 220V / 1PH / 60Hz
Hydraulic Broaching machine QUANTUM NARGESA BM25 has been fabricated in a welded and mechanized steel monoblock. It's a machine useful for making notches and keyways in all kinds of pieces: sprockets, pulleys, gears, etc...
It is also used like a press to unbolt oxidated parts, assembling and dismantling bearings, etc...
The Vertical Broaching machine BM25, has been thought for smallmedium productions, it is characterized by its great versatility, reliability and fast setting up.
VERSATILITY: It's used for making small and big pieces. All kinds of broaching and different tolerances. 2mm keyways from 2 up to 25mm or 1" inch.
RELIABILITY: Due to its way of use the keyway is alwaysmade with the required tolerance.
EASY USE: Anyone can make a keyway, there's no need to be a skillful operative.
FAST SETTING UP: The preparation time of the machine before making a broaching operation is approximately 1 min.
ADVANTAGES: The machine can be moved easily next to a lathe or machining center. While those machines work, the same operative can make the broaching operation.
The broachers we offer are one of the best trademarks in the market, internationally speaking. They are manufactured under strict quality controls, guaranteeing the higher liability and durability, Made in the USA. Some shims are provided with each broach, the ones used for accomplishing the required tolerance.
Broaches in millimeters and inches.
Broaches of different kinds and tolerances: ISO J-9, ISO P-9.
CHARACTERISTICS OF BM25 BROACHING MACHINE:
Motor power: 2,2Kw / 3 Hp.
3-phased tension: 230/400 V.
Hydraulic power: 10 Tons.
Max. broaching capacity: 25mm.
Working speed: 24mm/s
Return speed: 54mm/s
Pump Flow 7,5 Liters
Shank displacement: 600mm.
Gooseneck: 300mm.
Max. piece diameter: 600mm.
Bench dimensions: 420mm X 420mm.
HOW TO BROACH AND CALCULATION OF GUIDE BUSHES
In the attached PDF file we'll show you how the steps to follow in order to carry out a correct broaching operation. Taking pictures as samples, we will present the different accessories and its correct use. Besides you will find the necessary information to manufacture the guide bushes according to the diameter and the broach.
OPTIONAL TOOLING FOR VERTICAL BROACHING MACHINE BM25
Broaches 20, 22, 24 and 25mm Tolerance JS9
(OPTIONAL)
Broaches made of treated and rectified steel of first level to optimize the perfect finish of the piece and the exact tolerance.
Each set of broach is equipped with its required shims.
BROACH 20mm REF: 125-09-01-BR-00014
BROACH 22mm REF: 125-09-01-BR-00015
BROACH 24mm REF: 125-09-01-BR-00016
BROACH 25mm REF: 125-09-01-BR-00017
TOLERANCE: JS9
SIZES: WIDTH 25.40mm x LENGTH 488.95mm
MODEL: VI
NUMBER OF SHIMS: 4 units
MIN. CUTTING LENGTH: 19.05mm
MAX. CUTTING LENGTH: 152.40mm
FOR HOLES FROM: 75mm to 115mm
WEIGHT: 3.5 Kg. Approximate.
Broaches of 16 and 18mm Tolerance JS9
(OPTIONAL)
Broaches made of first quality treated and rectified steel to optimize the perfect finish of the piece and exact tolerance.
Each set of broach is equipped with the required shims.
BROACH OF 16mm REF: 125-09-01-BR-00012
BROACH OF 18mm REF: 125-09-01-BR-00013
TOLERANCE: JS9
SIZES: WIDTH 19.05mm x LENGTH 387.35mm
MODEL: V
NUMBER OF SHIMS: 3 units
MIN. CUTTING LENGTH: 19.05mm
MAX. CUTTING LENGTH: 152.40mm
FOR HOLES FROM: 52mm to 72mm.
WEIGHT: 1.5 Kg. Approximate.
Broaches of 10, 12 and 14mm Tolerance JS9
(OPTIONAL)
Broaches made of first quality treated and rectified steel to optimize the perfect finish of the piece and the exact tolerance.
Each set of broach is equipped with the required shims.
BROACH 10mm REF: 125-09-01-BR-00009
BROACH 12mm REF: 125-09-01-BR-00010
BROACH 14mm REF: 125-09-01-BR-00011
TOLERANCE: JS9
SIZES: WIDTH 14.29mm x LARGO 352.42mm
MODEL: IV
NUMBER OF SHIMS: 2 units
MIN. CUTTING LENGTH: 19.05mm
MAX. CUTTING LENGTH: 152.40mm
FOR HOLES FROM: 32mm to 56mm.
WEIGHT: 1 Kg. Approximate.
Broaches of 5 (long), 6 and 8mm Tolerance JS9
(OPTIONAL)
Broaches made of first quality treated and rectified steel to optimize the perfect finish of the piece and the exact tolerance.
Each set of broach is equipped with the required shims.
BROACH 5mm REF: 125-09-01-BR-00005
BROACH 6mm REF: 125-09-01-BR-00006
BROACH 8mm REF: 125-09-01-BR-00008
TOLERANCE: JS9
SIZES: WIDTH 9.52mm x LENGTH 301.25mm
MODEL: III
NUMBER OF SHIMS: 1 unit
MIN. CUTTING LENGTH: 10.31mm
MAX. CUTTING LENGTH: 63.54mm
FOR HOLES FROM: 17mm to 36mm.
WEIGHT: 0.350 Kg. Approximate.
Broaches of 4 and 5mm (Short) Tolerance JS9
(OPTIONAL)
Broaches made of first quality treated and rectified steel to optimize the perfect finish of the piece and the exact tolerance.
Each set of broach is equipped with the required shims.
BROACH 4mm REF: 125-09-01-BR-00003
BROACH 5mm REF: 125-09-01-BR-00004
TOLERANCE: JS9
SIZES: WIDTH 6.35mm x LENGTH 177.86mm
MODEL: II
NUMBER OF SHIMS: 1 unit
MIN. CUTTING LENGTH: 7.54mm
MAX. CUTTING LENGTH: 42.86mm
FOR HOLES FROM: 11mm a 19mm.
WEIGHT: 0.100 Kg. Approximate.
Broaches of 2 and 3mm Tolerance JS9
(OPTIONAL)
Broaches made of first quality treated and rectified steel to optimize the perfect finish of the piece and the exact tolerance.
Each set of broach is equipped with the required shims.
BROACH 2mm REF: 125-09-01-BR-00001
BROACH 3mm REF: 125-09-01-BR-00002
TOLERANCE: JS9
SIZES: WIDTH 3.175mm x LENGTH 133.35mm
MODEL: I
NUMBER OF SHIMS: 0 units
MIN. CUTTING LENGTH: 5.15mm
MAX. CUTTING LENGTH: 28.57mm
FOR HOLES FROM: 6mm to 10mm.
WEIGHT: 0.020 Kg. Approximate.
INFO VERTICAL BROACHING MACHINES BM25
The Broaching machine BM25 is not only capable of making slots for keyways (notches), but also polygonal shapes from cylindrical holes (squares, rectangles, hexagons,...) It is also possible to make a given number of slots from the same hole and even getting to generate inner grooves.
DIMENSIONS OF THE VERTICAL BM25 BROACHING MACHINE
Dimensions of the machine: 813x1225x2364 mm.
Weight: 820 Kg.
Tariff Item Code: 84624990
USES OF THE MACHINE: VERTICAL BROACHING MACHINES BM25
The Hydraulic Broaching machine BM25 NARGESA is an equipment to make notches and slots or keyways in all kinds of pieces: Sprockets, pulleys, gears, etc... it is thought for small and medium productions, it is characterized by its great versatility, reliability, easy handling and fast setting up.
READY TO PLACE AN ORDER, OR DO YOU HAVE ANY QUESTIONS?
CALL US AT (909)476-8007
The Latest BM25 Broaching Machine Testimonial
“Last year we purchased the BM25 Broaching Machine from Quantum Machinery. With the BM25, we are now able to broach more accurately, more securely and more quickly. Ultimately that greatly impacts our operations – all the while putting at the forefront the safety of our employees. Our Sales Engineer, Tony Solano, was able to help us evaluate what we were looking for in a machine and help us get the unit that best met our needs. I would not hesitate to purchase another Quantum machine.”
- Bill Chadwick
(Maintenance Manager of Madison Environmental Resources, Inc.)
