MT150A: INDUSTRIAL SCROLLING AND TWISTING MACHINE


MT150A: INDUSTRIAL SCROLLING AND TWISTING MACHINE

7,995.00

Call us at (909)476-8007 to check on availability.

Electrical Options and Pricing:

  • 115V / 1PH / 60Hz - $7,995

  • 220V / 1PH / 60Hz - $7,995

Automatic Decorative Wrought Iron QUANTUM NARGESA MT150A. Was patented by Prada Nargesa many years ago and it makes us become a leading company at manufacturing this kind of equipment. It has been made in a welded and mechanized steel monoblock. It is thought to work cold iron. Ideal for making all kind of pieces for the ornamental forging, balausters, volutes, etc... Used in: Window grills, balausters, tables, chairs... making a lot of different shapes in round, square, tubular profiles, handrails, flat bars, etc...

Working method by twisting and flexion in COLD.

  • Machine suitable for small and medium production.

  • Safe and reliable transmission by a motor reducer with flat treated pinions, achieving a remarkable performance and least maintenance.

  • Perfect for making all kinds of ornamental standard parts and essential to make our own designs, a lot more demanded in the market. The pieces requested by architects, technicians and final customers, make it a very important tooling in a blacksmith workshop.

  • In order to make this kind of special job, Nargesa provides the user with the fitting plates, under request, so the very customer can make his own designs himself.

  • The twisting machine Nargesa MT150A is equipped with a complete set of standard tooling, by means of which the user can make a great deal of shapes: twisted, scrolls, bending, hooks,  chains...

  • There is also the possibility of buying optional tooling: Belly top railing tooling, British rail, flat ben rings, decorative baskets...

  • The MT150A has an NC that enables it to make bigger productions.

  • Possibility of buying the tooling for the machine in mm or inches.

  • NC programmer to repeat series, piece counter, automatic unbolt, memories…

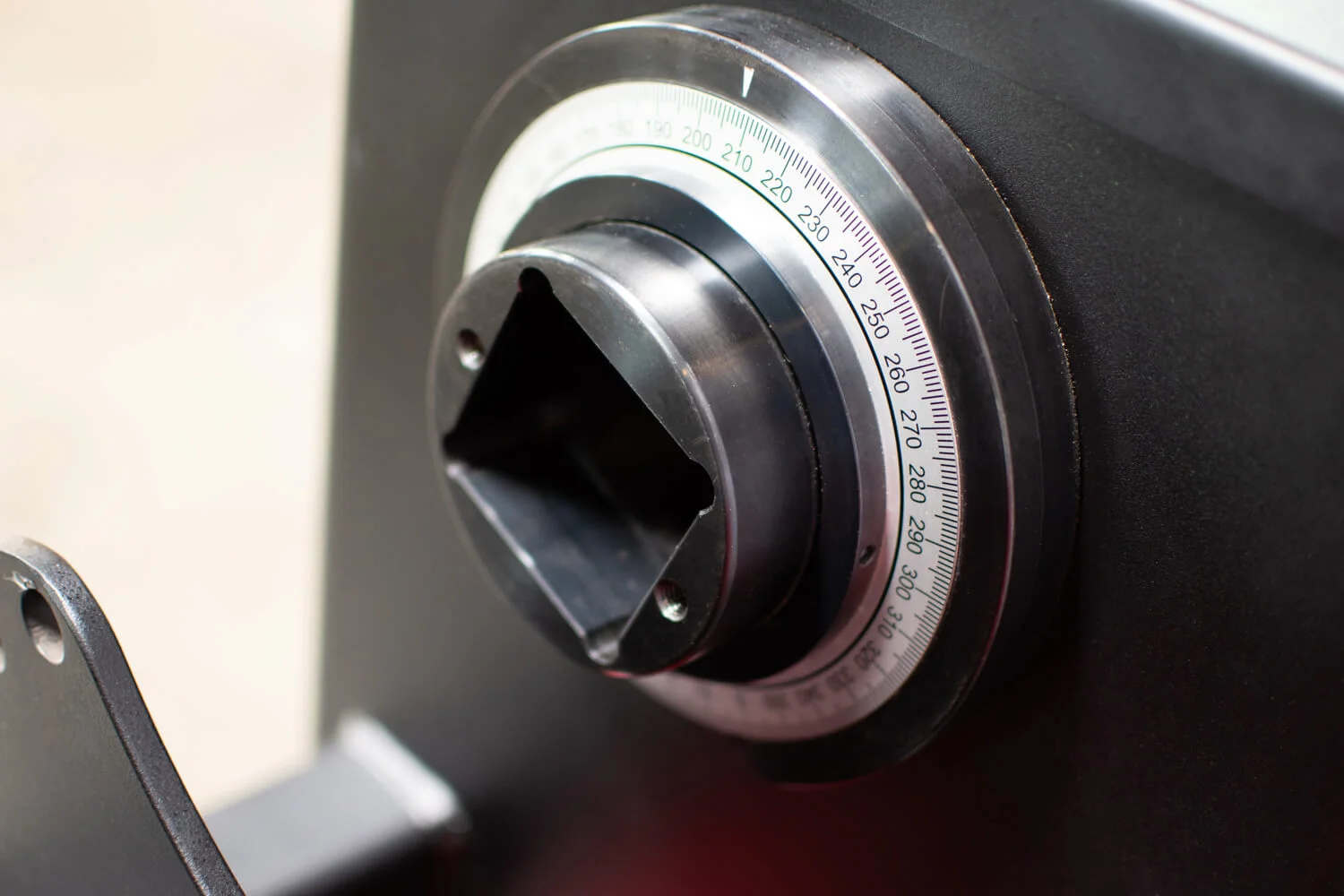

  • Adjustable millimeter scale on its head to make all parts the same.

  • Electric panel command with double button, right and left , which makes it a very easy handling machine.

Click Here to Pre-Order



MT150A-Control Panel.jpg

MT150A Control Panel

The electric panel of the scroll forming Machine MT150A is characterized by its simplicity and easy handling. Great capacity of production and it allows to program the starting point and the end point of the piece to be made.

  • Easy handling.

  • Digital Screen.

  • Touchpad.

  • Piece counter.

  • Automatic unbolt.

  • Capacity for different 8 memories.

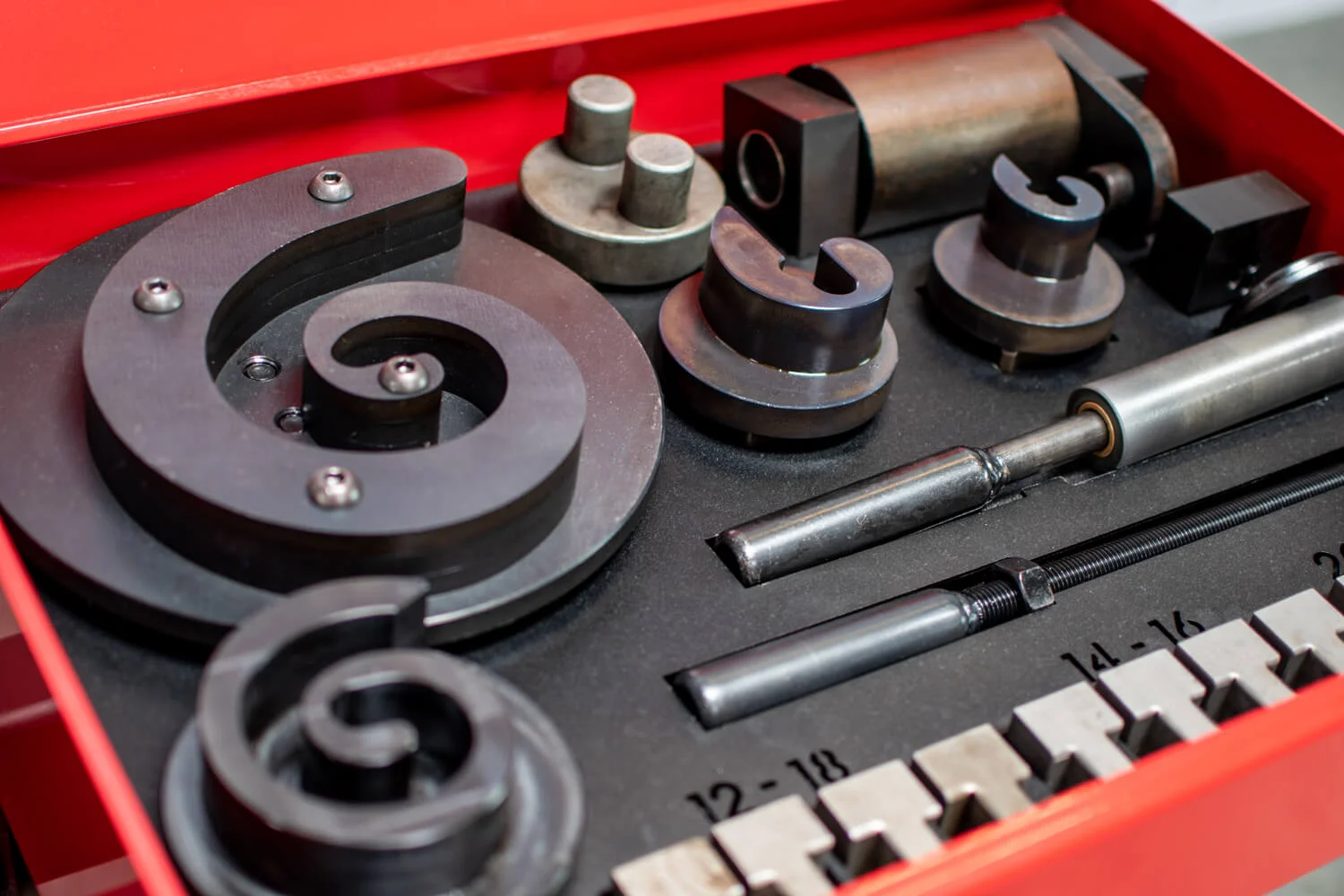

INCLUDED ACCESSORIES FOR AUTOMATIC TWISTING MACHINE MT150A

Tooling to twist square bar 12mm and 18 mm or 1/4 and 5/8 Inches Whitwort
(INCLUDED)

Tooling to twist square bar 12mm and 18mm or 1:4 and 5:8 Inches Whitwort.png

Tooling made of treated steel F1140 to make twisting in 12x12mm and 18x18mm square bar or 1/4x1/4" and 5/8x5/8" Inches  Whitwort, in conventional carbon steel.

UNITS PER MACHINE: 4
REF: 120-01-01-00074 --(12x12mm and 18x18mm)

REF: 125-01-01-00100 --(1/4x1/4" and 5/8x5/8"  inches Whitwort)



Tooling to twist square bar 14 and 16 mm or 3/8 and 1/2 Inches Whitwort
(INCLUDED)

Tooling made of treated steel F1140 to make twisting on square bar 14x14mm and 16x16mm or 3/8x3/8" and 1/2x1/2" inches Whitwort, in conventional treated carbon.


UNITS PER MACHINE: 4
REF: 120-01-01-00075 --(14x14mm and 16x16mm)
REF: 125-01-01-00101 --(3/8x3/8" and 1/2x1/2" inches Whitwort)



Tooling to twist square bar 20mm and flat bar 35x10 mm or 3/4" and 1 1/4"x3/8"Inches Whitwort
(INCLUDED)

Tooling made of treated steel F1140 to make twisting on square 20x20mm and Flat bar 35x10mm or 3/4x3/4" and 1 1/4"x3/8" Inches Whitwort, in conventional carbon steel.

UNITS PER MACHINE: 4
REF: 120-01-01-00076 --(20x20mm and 35x10mm)
REF: 125-01-01-00102 --(3/4x3/4" and 1 1/4"x3/8"Inches Whitwort)



Starting Die for Spiral Diam. 80mm
(INCLUDED)

Tooling to make the Spiral Start Diam. 80mm.png

Tooling made of treated steel F1140 to make the start of the spiral in flat bar, square or round, Max. 10mm thickness.

REF: 120-01-01-00094
SCROLL EXTERNAL DIAM.: 80mm.
MAX. CAPACITY: 40x8mm



Starting Die for Spiral Diam. 100mm
(INCLUDED)

Tooling for Spiral Start Diam. 100mm.png

Tooling made of treated steel F1140 to make the start of the spiral in flat bar, square or round, max. 16mm thickness.

REF: 120-01-01-00093
SCROLL EXTERNAL DIAM.: 100mm.
MAX. CAPACITY.: 40x10mm Max: 16mm.



Tooling for Links and Hooks
(INCLUDED)

Tooling for Hooks and Chains.png

Microfusion treated tooling to make all kinds of  folding operations, hooks, links, hooks, chains, etc...

REF: 120-01-01-00110
MA. CAPCITY: 16mm round or square.
Flat bar 40x10mm
It folds all kind of material.



Spiral Tooling Diam. 120mm
(INCLUDED)

Spiral Tooling Diam. 120mm.png

Tooling made of treated steel F1140 to make the second operatoon of the spiral in flat bar, square or round, max. 10mm thickness.

REF: 120-01-01-00060
SCROLL EXTERNAL DIAM.: 120mm.
MAX. CAPACITY: 40x8mm



Spiral Tooling Diam. 220mm
(INCLUDED)

Spiral tooling Diam. 220mm.png

Tooling made of treated steel F1140 to make the second operatoon of the spiral in flat bar, square or round, max. 16mm thickness.

REF: 130-01-01-00125
SCROLL EXTERNAL DIAM.: 220mm.
MAX. CAPACITY: 40x10mm Max: 16mm.



Tooling For Braiding Round Bars
(INCLUDED)

Tooling for braiding round bars.png

Tooling made of treated steel  F1140 to make braids using round rods, maximum three rods of 8mm diam. each.

REF: 120-01-01-00085
MAX. CAPACITY.: 3 de 8mm.



Tooling for Rings 80mm
(INCLUDED)

Flat Bent Rings 80mm.png

Tooling made of steel F1140 to make rings with inner diameter  80mm either in round or square bar.

REF: 130-01-01-00124
RING INTERNAL DIAM.: 80mm.
MAX. CAPACITY: round or square 16mm.
The spiral is cut and various rings can be obtained to be put between the balausters.





OPTIONAL TOOLING FOR AUTOMATIC TWISTING MACHINE MT150A

Flat Bent Rings Tooling Int. Diam. 96,100,110mm
(OPTIONAL)

Flat bent rings, Inner Diam. 96,100,110mm.png

Steet tooling to make bents in round and square, called British rail.

REF: 140-01-01-00001
INTERNAL DIAMETER: 96,100,110mm
MAX. CAPACITY: Redondo o cuadrado de 16mm.
WEIGHT: 10 Kg.

Belly Top Railin Tooling Diam. 225mm
(OPTIONAL)

Belly Top Railing Tooling Diam. 225mm.png

Tooling to make  the Belly Top railing Style, very  used in balconies and windows.

REF: 140-01-01-00002
INTERNAL DIAMETER: 225mm.
MAX. CAPACITY: 16mm round or square.
WEIGHT: 12 Kg.

Basket Tooling
(OPTIONAL)

BASKETS TOOLING.png

Tooling to make ornamental baskets of all kinds in different sizes, in round or square bars.

REF: 140-01-01-00005
MAX . CAPACITY: 4mm in square or 10mm in round bars..
WEIGHT: 45Kg.

Available tooling for millimeter and inch square sizes

Flat Bar Folding Tooling
(OPTIONAL)

Flat Bar Bending Tooling.png

Tooling made of treated steel to fold flat bars, handrails or clod of all kinds.

REF: 140-01-01-00003
MAX. CAPACITY: Flat bar 40x10mm.
Bend with minimum external radious.
WEIGHT: 3,1 Kg.

Edge Scroll Tooling
(OPTIONAL)

Edge Scroll Tooling.png

Tooling made of treated steel to make edged scrolls or edged spirals in order to give it a different aspect, it's very used in some countries.

REF: 140-01-01-00004
MAX. CAPACITY:  16mm Round or square
WEIGHT: 0,75 kg.



BASKETS TOOLING

The Baskets Tooling can fit any of our wrought machines MT150A or MT500A.
Four square bars put together and welded in their extremes are placed on the tooling. Then twist to one side and then to the opposite one. It is in this moment when  the tooling tractions the piece and contracts it, accomplishing a perfect finish. The piece will take one shape or another depending on the amount of turns given.

Available tooling for millimeter and inch square sizes



DIMENSIONS OF THE MACHINE AUTOMATIC TWISTING MACHINE MT150A

Dimensions of the machine: 2260x 630x1120 mm.

Weight: 260 Kg.

Tariff Item Code:  84622998

Other Features:

  • Palletized bench to move the machine easily to the working site or storage.

  • The machine is delivered completetly assembled.


USES OF THE MACHINE: AUTOMATIC TWISTING MACHINE MT150A

Automatic Scroll Forming machine Nargesa MT150A makes all kind of pieces for the ornamental  forging, balausters, scrolls, etc... Used in: window grills, handrails, tables, chairs, windows, fences... Makin a lot of different shapes in square, rouns, tubular profiles, handrails and flat bars, etc...
