MX700 INDUSTRIAL HYDRAULIC IRONWORKER
Call us at (704)703-9400 to check on availability.
Price: $22,000
Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
The QUANTUM NARGESA MX700 Hydraulic Punching machine is known for its versatility. It can be used for many functions from punching metal sheet, flat bar, tube, angle, etc. Bending, cutting, inlaying, punching, tube notching, embossing.. It can handle them all. It can be adapted for any kind of tooling , even one made by the customer himself. Its versatility and ease of use makes it essential for any metal working workshop.
Swinging front safety protection.
Activation with safety pedal.
Digital display.
Parts and strokes counter.
FEATURED CHARACTERISTICS:
PUNCHING: All kinds of punches can be supplied: round ones, square, oval, locks punches... Punching can be also made in a tube.
OTHER APPLICATIONS: There are a lot more applications for it. More than 40 standard tooling to make different jobs.
NO STANDARD APPLICATIONS: If the customer requires it, we can manufacture under-request tooling to make all kinds of parts.
ADVANTAGES: It is different from the rest of the other multifunctional universal punching machines because of its 350mm gooseneck, 160mm displacement and wide working table that allows to fit any kind of tooling. Many of our customers make their own tooling.
Fast change of tooling, max. 30 seconds.
Displacement adjustment allows an increase on productivity.
There is no maximum dimension for punching.
STANDARD EQUIPMENT PROVIDED WITH THE MACHINE: It's composed by a round set of punching tooling on his choice. The other tooling are all optional, each machine can be equipped as desired by the customer.
Call us at (704)703-9400 to check on availability.
Price: $22,000
Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
The QUANTUM NARGESA MX700 Hydraulic Punching machine is known for its versatility. It can be used for many functions from punching metal sheet, flat bar, tube, angle, etc. Bending, cutting, inlaying, punching, tube notching, embossing.. It can handle them all. It can be adapted for any kind of tooling , even one made by the customer himself. Its versatility and ease of use makes it essential for any metal working workshop.
Swinging front safety protection.
Activation with safety pedal.
Digital display.
Parts and strokes counter.
FEATURED CHARACTERISTICS:
PUNCHING: All kinds of punches can be supplied: round ones, square, oval, locks punches... Punching can be also made in a tube.
OTHER APPLICATIONS: There are a lot more applications for it. More than 40 standard tooling to make different jobs.
NO STANDARD APPLICATIONS: If the customer requires it, we can manufacture under-request tooling to make all kinds of parts.
ADVANTAGES: It is different from the rest of the other multifunctional universal punching machines because of its 350mm gooseneck, 160mm displacement and wide working table that allows to fit any kind of tooling. Many of our customers make their own tooling.
Fast change of tooling, max. 30 seconds.
Displacement adjustment allows an increase on productivity.
There is no maximum dimension for punching.
STANDARD EQUIPMENT PROVIDED WITH THE MACHINE: It's composed by a round set of punching tooling on his choice. The other tooling are all optional, each machine can be equipped as desired by the customer.
Call us at (704)703-9400 to check on availability.
Price: $22,000
Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
The QUANTUM NARGESA MX700 Hydraulic Punching machine is known for its versatility. It can be used for many functions from punching metal sheet, flat bar, tube, angle, etc. Bending, cutting, inlaying, punching, tube notching, embossing.. It can handle them all. It can be adapted for any kind of tooling , even one made by the customer himself. Its versatility and ease of use makes it essential for any metal working workshop.
Swinging front safety protection.
Activation with safety pedal.
Digital display.
Parts and strokes counter.
FEATURED CHARACTERISTICS:
PUNCHING: All kinds of punches can be supplied: round ones, square, oval, locks punches... Punching can be also made in a tube.
OTHER APPLICATIONS: There are a lot more applications for it. More than 40 standard tooling to make different jobs.
NO STANDARD APPLICATIONS: If the customer requires it, we can manufacture under-request tooling to make all kinds of parts.
ADVANTAGES: It is different from the rest of the other multifunctional universal punching machines because of its 350mm gooseneck, 160mm displacement and wide working table that allows to fit any kind of tooling. Many of our customers make their own tooling.
Fast change of tooling, max. 30 seconds.
Displacement adjustment allows an increase on productivity.
There is no maximum dimension for punching.
STANDARD EQUIPMENT PROVIDED WITH THE MACHINE: It's composed by a round set of punching tooling on his choice. The other tooling are all optional, each machine can be equipped as desired by the customer.
CALCULATION OF PUNCHING CAPACITY
In the PDF file we will show you how to calculate the punching capacity for the different thicknesses, materials and shapes... What thicknesses can be punched and with which punch diameter. Ideas and suggestions to improve jobs performance and increase punching capacity.

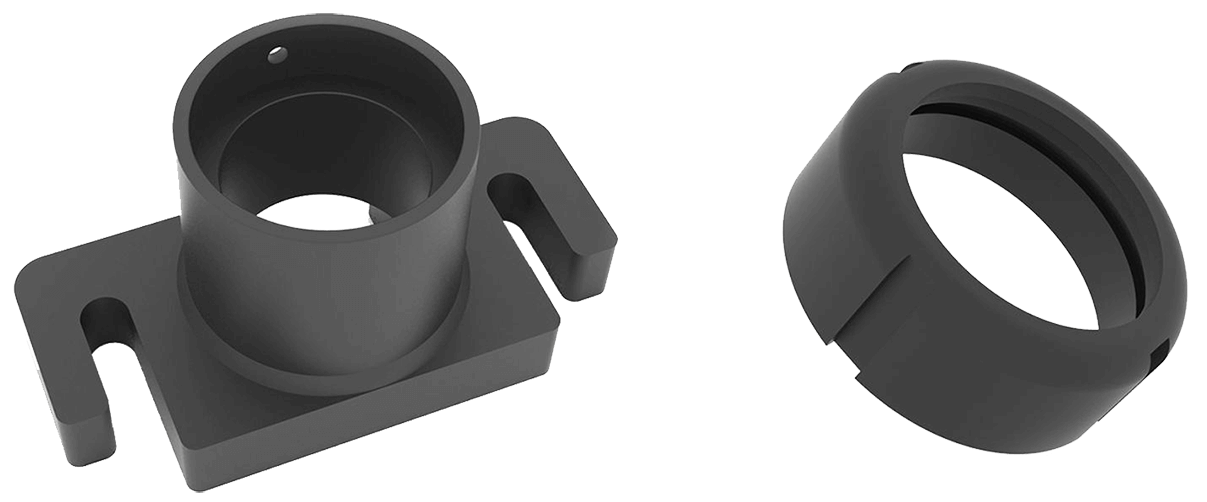

FITTING NUT FOR PUNCHES AND BASE HOLDER FOR DIES (INCLUDED)
All Nargesa Hydraulic Punching Machines are equipped with the punching tool that include the fitting nut for punches and the base holder for dies. The rest of accessories are optional, which means each customer equips his machine as desired.

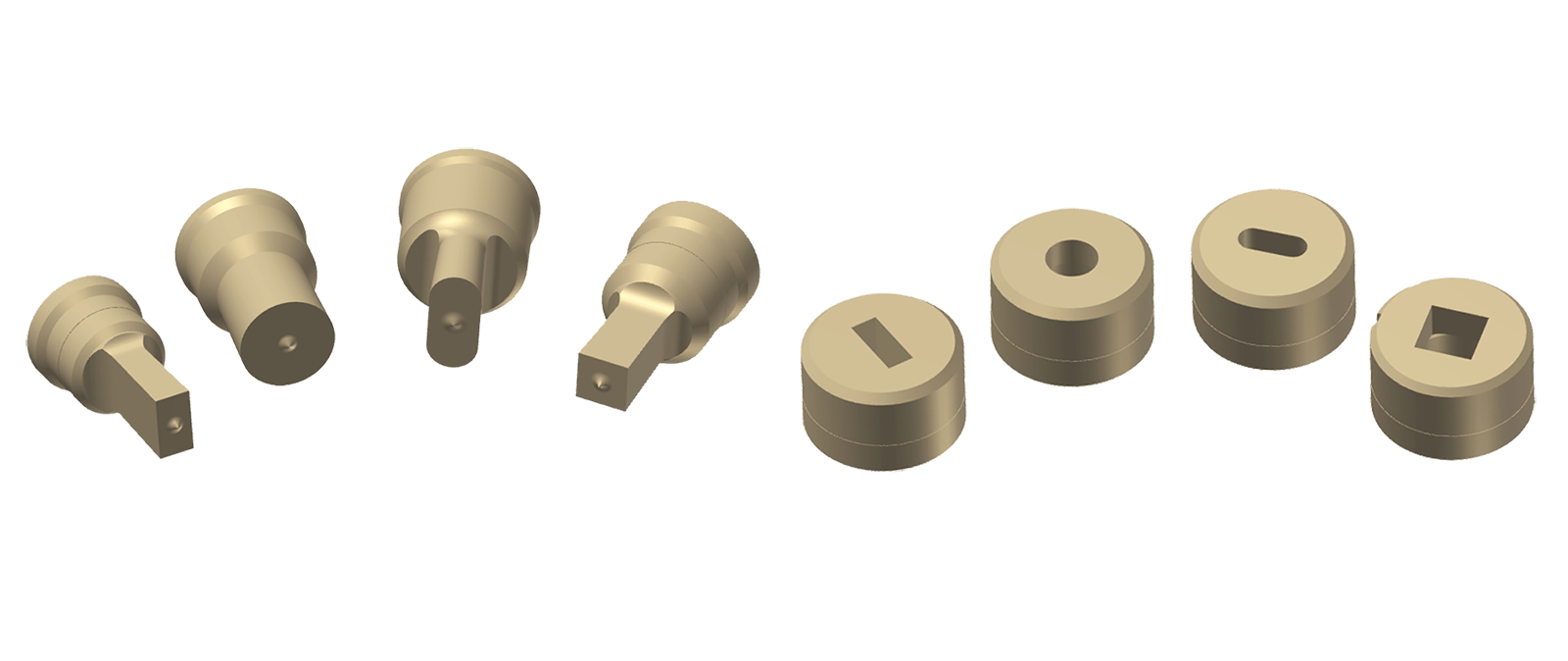

ROUND, SQUARE, RECTANGULAR, OVAL PUNCHES AND DIESFOR NARGESA MX700 (OPTIONAL)
In Nargesa we have a wide catalog of punches and dies of all kinds. If the size the customer needs is not on this list, we make it.
FLATTENING TOOLING MX700
(OPTIONAL)
It’s an extractor which acts as the flat bar holder at the punching time to prevent the flat bar from deformation while being punched.
REF: 140-02-02-00042
FLAT BAR MAX. THICKNESS: 15mm.
WEIGHT:15 Kg.
FOLDING TOOLING 100mm MX700
(OPTIONAL)
Tooling to fold metal sheet and flat bar up to 100mm. Punch: 88º. Die with 56mm and de 26mm "V".
REF: 140-02-02-00033
MAX. FOLDING LENGTH: 100mm.
MAX. FOLDING THICKNESS: 8 to 12mm.
WEIGHT: 9 Kg.
FOLDING TOOLING 350mm MX700
(OPTIONAL)
Tooling to fold metal sheet and flat bar up to 170mm. Punch 88º. Die with 56mm and 26mm "v"'s.
REF: 140-02-02-00034
MAX. FOLDING LENGTH: 170mm.
MAX. FOLDING THICKNESS: 8 to 12mm.
WEIGHT: 13 Kg.
FOLDING TOOLING 350mm MX700
(OPTIONAL)
Tooling to fold metal sheet and flat bar up to 350mm. Punch: 88º. Die with adjustable V of 120mm, 80mm, 40mm and 16mm.
REF: 140-02-02-00035
MAX. FOLDING LENGTH: 350mm.
MAX. FOLDING THICKNESS: 20mm.
WEIGHT: 45 Kg

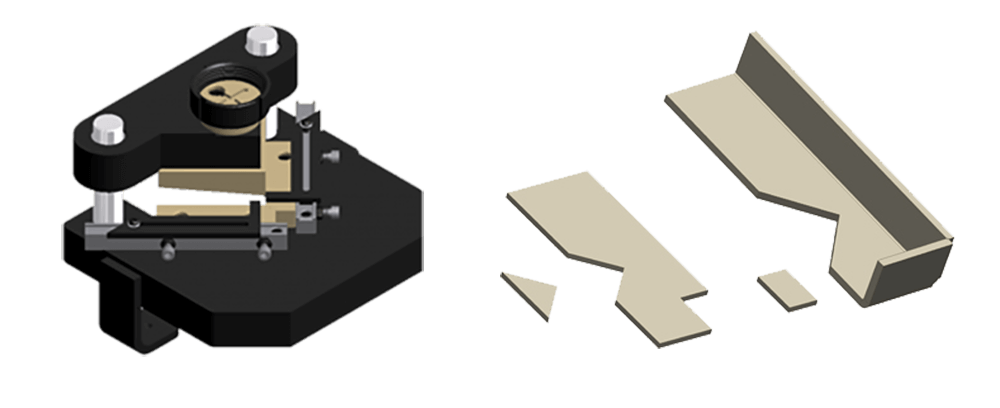

STRIPPER DIE 90º ADJUSTABLE 100x100 MX700
(OPTIONAL)
Tooling for stripping metal sheet, angle, etc... Adjustable up to 100x100mm from 90º fix.
REF: 140-02-02-00032
MAX. CUTTING CAPACITY: 100x100x4mm
WEIGHT: 35 Kg
STRIPPER DIE 90º ADJUSTABLE 150x150 MX700
(OPTIONAL)
Tooling to strip metal sheet, angle, etc... Adjustable up to 150x150mm to 90º fix.
REF: 140-02-02-00001
MAX. CUTTING CAPACITY: 150x150x8mm
WEIGHT: 38 Kg.

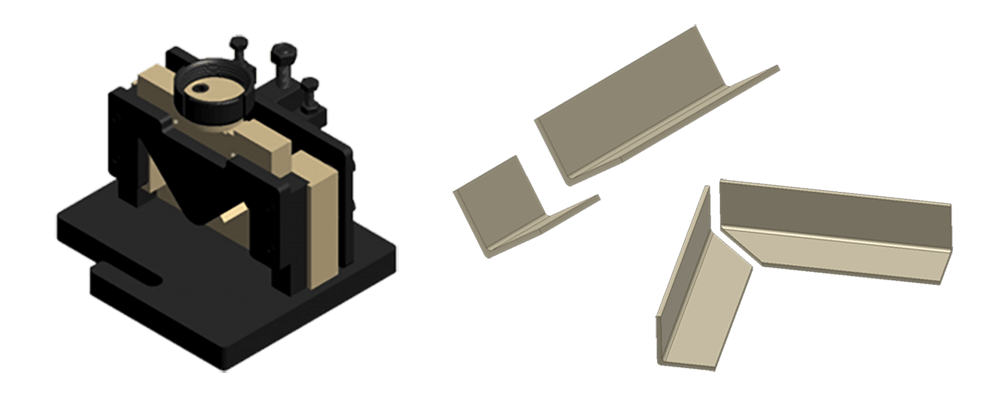

ANGLE CUTTING TOOLING MX700
(OPTIONAL)
Tooling to cut angle to 90º and 45º.
REF: 140-02-02-00036
MAX. STRAIGHT CUT CAPACITY: 80x80mm
MAX. MITER CUT CAPACITY: 50x50mm
WEIGHT: 35Kg.
FLAT BAR CUTTING TOOLING 100x12mm MX700
(OPTIONAL)
Tooling to cut metal sheet or flat bar from 0.8mm thickness up to 12mm.
REF: 140-02-02-00037
MAX. CUTTING CAPACITY: 100x12mm.
WEIGHT: 29 Kg

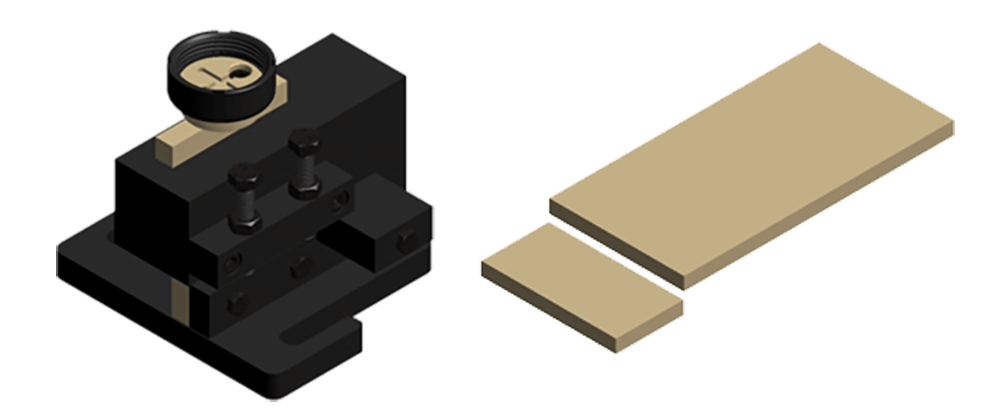

FLAT BAR CUTTING TOOLING 200x20mm MX700
(OPTIONAL)
Tooling to cut metal sheet or flat bar from 0.8mm up to 20mm thickness.
REF: 140-02-02-00002
MAX. CUTTING CAPACITY: 200x20mm.
WEIGHT: 54 Kg.

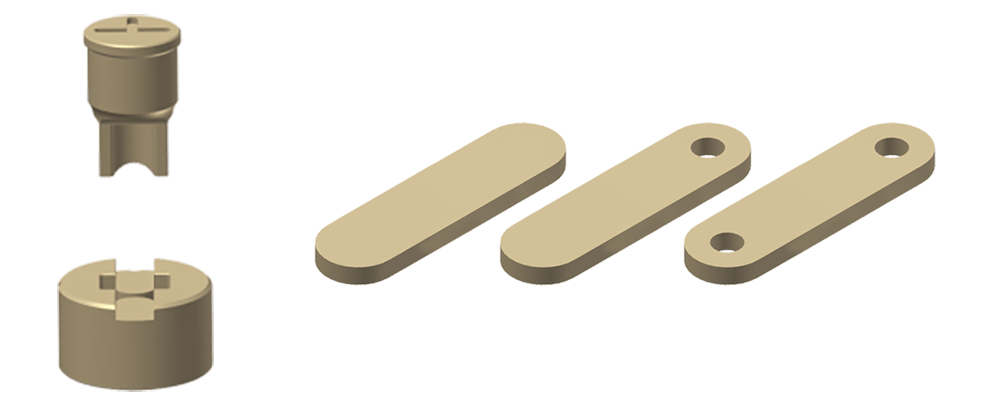

FLAT BAR ROUND END TOOLING MX700
(OPTIONAL)
Tooling to make all kinds of flat bars with round ends, with or without hole, straight, round... Very used as handles, stands, etc... Starting from a metal strip, a piece with the desired length comes out of it with every stroke. See Download section for more information.
ARROW TOOLING FOR METAL SHEET MX700
(OPTIONAL)
Tooling to punch metal sheet in arrow shape for fences.
REF: 140-02-02-00041
MAX. SHEET THICKNESS: 3mm
WEIGHT:22 Kg
ARROW TOOLING FOR PIPES MX700
(OPTIONAL)
Tooling to flatten and cut pipe on its end in an arrow shape. Suitable for different diameters.
REF: 140-02-02-00040
MAX. PIPE DIAMETER: 30x2mm
MIN. PIPE DIAMETER: 10x2mm
WEIGHT: 20 Kg
FENCE POST ENDS TOOLING MX700
(OPTIONAL)
Tooling to flatten and pierce pipes for fences. It admits different pipe diameters. The pipe size is exchangeable.
REF: 140-02-02-00039
MAX. PIPE DIAMETER: 50mm
MIN. PIPE DIAMETER: 10mm
HOLE DIAMETER: Exchangeable.
WEIGHT: 24 Kg

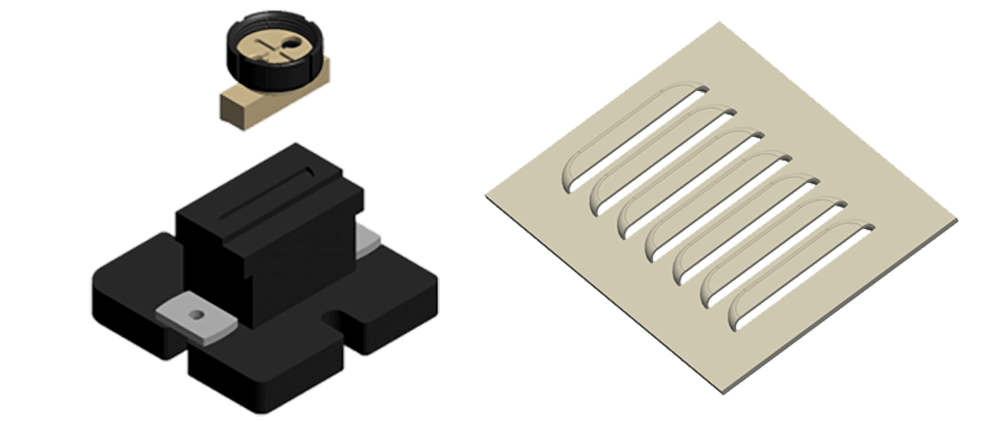

VENTILATION GRILL TOOLING MX700
(OPTIONAL)
Tooling to make the ventilation grill in metal sheet. The amount of punching operations is adjustable. They're made one by one.
REF: 140-02-02-00031
PUNCH SIZE: 100X20mm.
MAX. THICKNESS: 2mm.
WEIGHT:21 Kg
TOOLING FOR PUNCHING ANGLE AND U SHAPE PROFILES
(OPTIONAL)
Tooling to punch angles. Exchangeable punches and dies of different sizes.
REF: 140-02-01-00031
MAX. HOLE DIAMETER: 28mm
MIN. HOLE DIAMETER: 2mm.
WEIGHT: 9 Kg

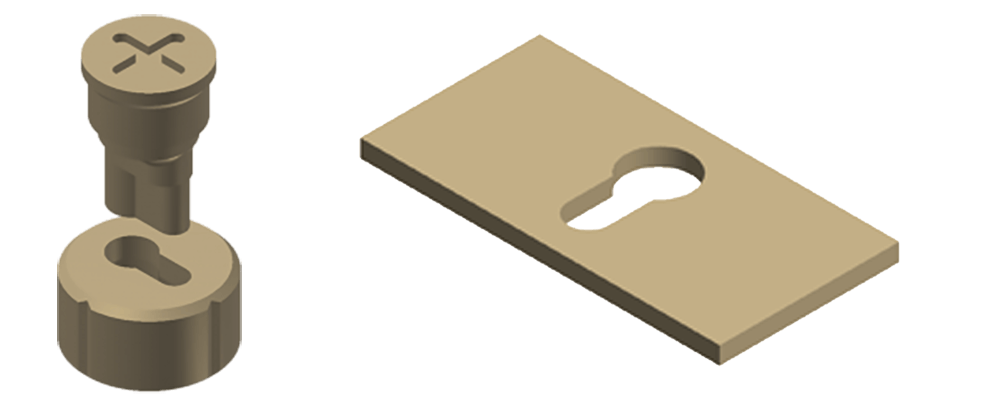

PUNCH AND DIE FOR LOCKS
(OPTIONAL)
Punch and die to make locks holes in metal sheet.
Necessary complements: CAB60 and TAP40
REF: 140-02-01-00036
MAX. THICKNESS: 6mm
WEIGHT:1 Kg
PIPE NOTCHING TOOLING MX700
(OPTIONAL)
Tooling to notch pipes from Ø16 to Ø60mm. It means to cut off the end of a pipe so it can be perpendicularly joined to another pipe . In the PDF file you will see all kinds and sizes we have.

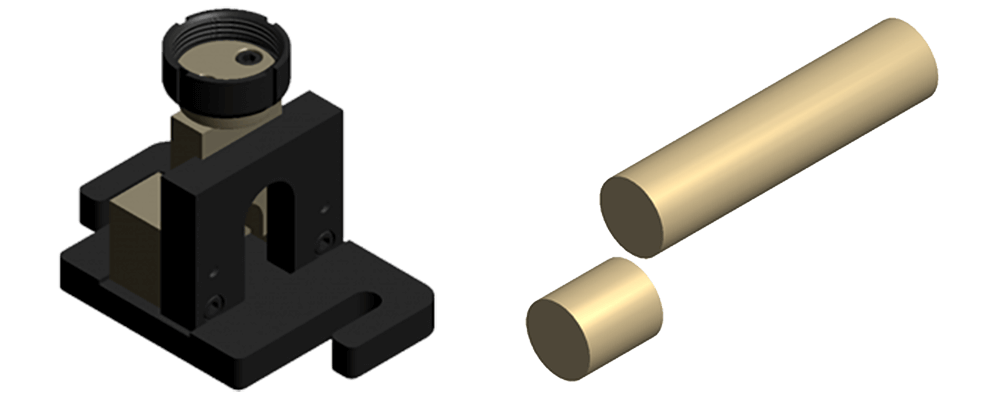

ROUND BAR CUTTING TOOLING MX70
(OPTIONAL)
Tooling to cut round bar from 3mm up to 35mm.
REF: 140-02-02-00038
MAX. CUTTING DIAMETER: 35mm.
MIN. CUTTING DIEMETER: 3mm.
WEIGHT:16 Kg

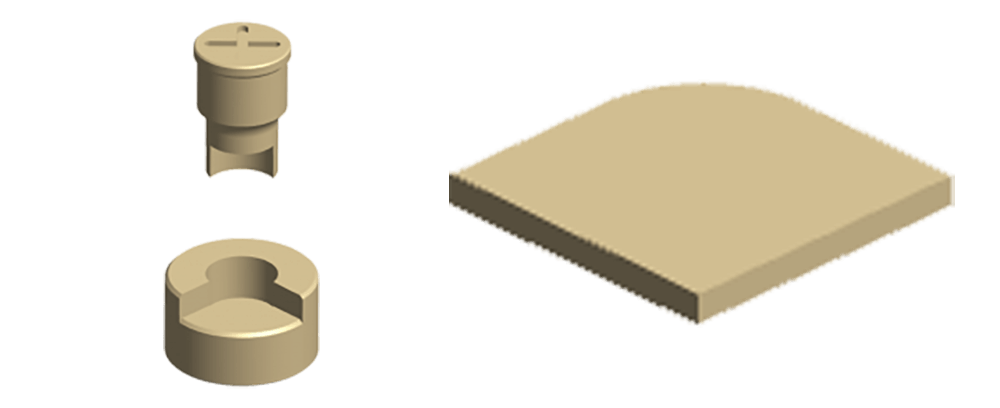

TOOLING TO ROUND OFF CORNERS MX700
(OPTIONAL)
Tooling to round off the corners in metals sheets of different radius. In the PDF file you will be able to see all kinds we have.
INFO HYDRAULIC PUNCHING MACHINE MX700
Hydraulic Punching Machine MX700 is different from the other ones because of its long displacement and working gooseneck that allows it to be adapted a number of dies and tooling. Its versatility and features makes it a fast payback machine. It carries out the same functions of 5 different machines.
Gooseneck (Neck): 350 mm.
Piston displacement: 160 mm.
Mx. Height. : 390 mm.
DIMENSIONS OF THE MACHINE HYDRAULIC PUNCHING MACHINE MX700
Dimensions of the machine: 1150x1390x2080 mm.
Weight: 2000 Kg.
Tariff Item Code: 84624990
Other features:
Palletized base to move it easily to the working site or storage.
The machine is delivered completely mounted.
USES OF THE MACHINE: HYDRAULIC PUNCHING MACHINE MX700
The Hydraulic Punching Machine Nargesa MX700 can punch any kind of profile: Flat bar, steel sheet, Pipe, angle, UPN, U profile, T profile, IPN, etc... They can be fit different tooling for tube notching, stripping metal sheet, fabricate arrow ending in steel sheet and pipes, roud up steel sheet corners. They can be fitted any kind of tooling made by the customer himself or bought from any other manufacturers.
