MX340G INDUSTRIAL HYDRAULIC IRON WORKER


MX340G INDUSTRIAL HYDRAULIC IRON WORKER

7,395.00

Call us at (909)476-8007 to check on availability.

Electrical Options and Pricing:

  • 220V / 3PH / 60Hz - $7,395

  • 480V / 3PH / 60Hz - $7,395

  • 220V / 1PH / 60Hz - $7,995

The QUANTUM NARGESA MX340G Hydraulic Ironworker (Punching Machine) is widely-known for its extensive versatility. This unit can perform numerous working functions, such as punching materials (like sheet metal, flat bar, tube, angle, U profile, T profile, UPN, IPN, etc..) Bending, Cutting, Inlaying, Tube Notching, Embossing, and it doesn’t end there. The MX340G can be adapted to be used with tooling of any kind, even tooling that is made by you, the customer. If you’re looking for a versatile, efficient and easy to use workhouse, then the MX340G is an essential piece of equipment for your metalworking shop floor.

ADVANTAGES: Our MX Series Ironworkers stand out in many ways, but they are literally like no other Ironworker on the market, because of its 7”/180mm goose neck, the 3.93”/100mm displacement and the wide working table that allows you to fit all kind of tooling. It is not in uncommon for our customers to make their own tooling, since it is so easy to adapt their custom tooling to the MX340G.

  • Extremely Fast Tooling Changeover - Max. of 30 Seconds.

  • The Displacement Adjustment allows for an increase in productivity.

  • There is no maximum dimension for punching.

  • Swinging front safety protection.

  • Start/Activation with safety pedal.

  • Digital display.

  • Parts and strokes counter.

  • Alarm diagnosis.

Click Here to Pre-Order

DOWNLOADS


PUNCHING: All kinds of punches can be supplied: round ones, square, oval, locks punches... Punching can even be made in a tube!

OTHER APPLICATIONS: There are a multitude of applications that the MX340G Ironworker can handle. (There are more than 40 optional standard tool sets that we offer and are available to help you complete any jobs that comes your way.)

NO STANDARD APPLICATIONS: If you require, we can manufacture custom tooling to make all kinds of parts.

STANDARD EQUIPMENT PROVIDED WITH THE MACHINE: The MX340G includes one punch and die of your choice within the capacity of the machine. The other tooling offered for this unit is optional. Keep in mind that each machine can be equipped by you, as desired.



CALCULATION OF PUNCHING CAPACITY



In the PDF file we will show you how to calculate the punching capacity for the different thicknesses, materials and shapes... What thicknesses can be punched and with which punch diameter. Ideas and suggestions to improve jobs performance and increase punching capacity.


FITTING NUT FOR PUNCHES AND BASE HOLDER FOR DIES
(INCLUDED)

FITTING NUT FOR PUNCHES AND BASE HOLDER FOR DIES.png

All Nargesa Hydraulic Punching Machines are equipped with the punching tool that include the fitting nut for punches and the base holder for dies. The rest of accesories are optional, which means each customer equips his machine as desired. In Optional Accessories, at the bottom of the page, he'll find the list of all possible standard punches and dies.

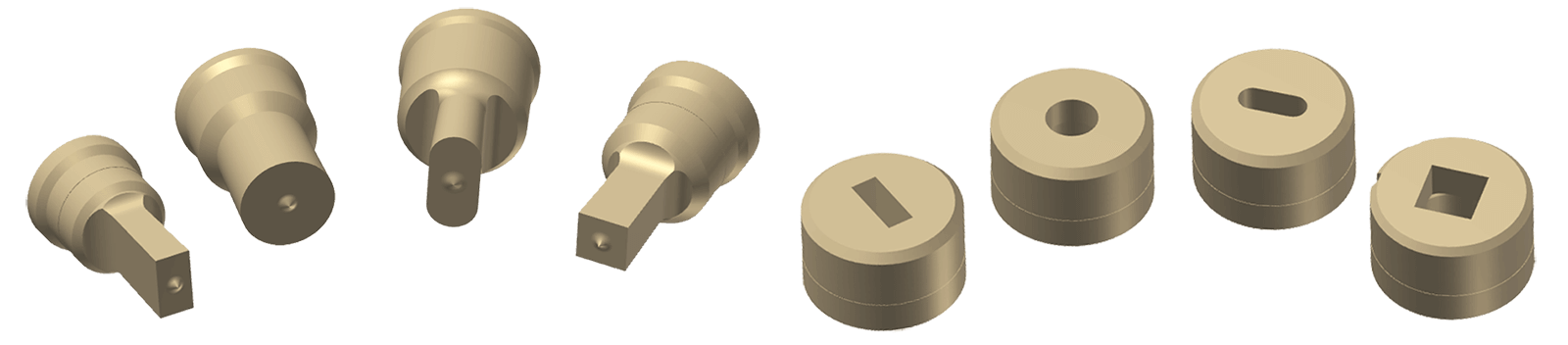

ROUND PUNCHES AND DIES, SQUARE PUNCHES, OVAL PUNCHES, RECTANGULAR, NARGESA
(OPTIONAL)

In Nargesa we have a wide catalog of punches and dies of all kinds. If the size the customer needs is not in the list, we can make it. In the PDF file you could see all the sizes we have.



FLATTENING EXTRACTOR
(OPTIONAL)

FLATTENING EXTRACTOR-MX340.png

Extractor that acts like flattening flat bars while punching so they cannot be distorted during that process.

REF: 140-02-01-00039
MAX. THICKNESS FOR FLAT BAR OR SOLID BAR: 15mm.
WEIGHT:15 Kg.



STRIPPER TOOLING 90º ADJUSTABLE 100x100
(OPTIONAL)

STRIPPER DIE 90º ADJUSTABLE 100x100 MX700.png

Sheet stripping tooling, angle etc. adjustable up to 100x100mm to 90º fix.

REF: 140-02-01-00005
MAX. CUTTING CAPACITY: 100x100x4mm
WEIGHT: 35 Kg.



ANGLE CUTTING TOOLING
(OPTIONAL)

ANGLE CUTTING TOOLING MX700.png

Tooling to cut angle to 90º  and  45º.

REF: 140-02-01-00001
MAX STRAIGHT CUTTING CAPACITY: 60x60mm
MAX.MITRE CUTTING CAPACITY: 50x50
WEIGHT: 32Kg.

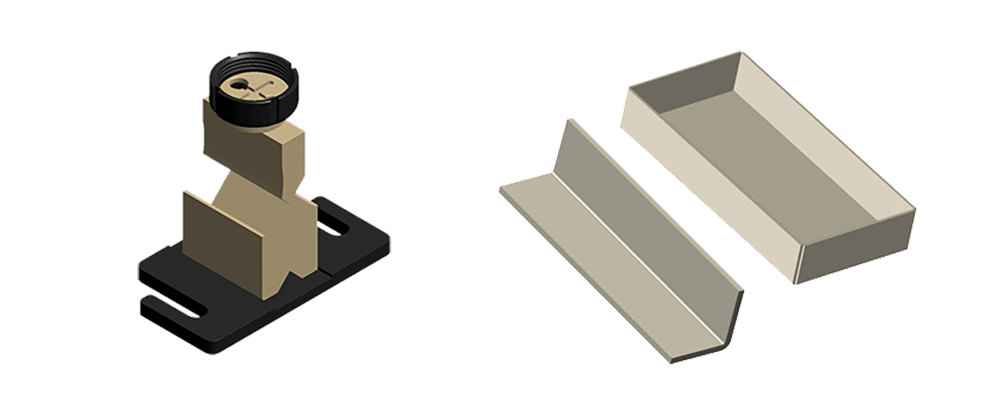

FOLDING TOOLING 100mm
(OPTIONAL)

FOLDING TOOLING 100mm MX700.png

Tooling to fold steel sheet and flat bar up to 100mm. Punch 88º. Die with 56mm and 26mm V's.

REF: 140-02-01-00003
MAX. FOLDING LENGTH: 100mm.
MAX. THICKNESS: 8 to 12mm.
WEIGHT: 8 Kg.



FOLDING TOOLING 170mm
(OPTIONAL)

FOLDING TOOLING 170mm MX700.png

Tooling to fold steel sheet and flat bar up to 170mm. Punch 88º. Die with 56mm and V 26mm V's.

REF: 140-02-01-00004
MAX. FOLDING LENGTH: 170mm.
MAX. FOLDING THICKNESS: 8 to 12mm.
WEIGHT: 12 Kg.


FLAT BAR CUTTING TOOLING 100x10mm
(OPTIONAL)

Tooling to cut metal sheet or flat bar from 0.8mm up to 10mm thickness.

REF: 140-02-01-00002
MAX. CUTTING CAPACITY: 100x10mm.
WEIGHT: 28 Kg.

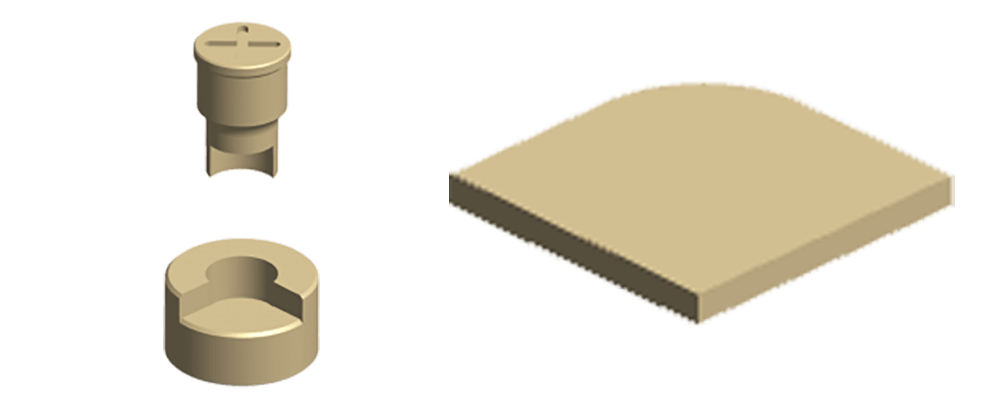

TOOLING TO ROUND OFF CORNERS
(OPTIONAL)

TOOLING TO ROUND OFF CORNERS MX700.png

Tooling to round off the corners in metals sheets of different radius. In the PDF file you will be able to see all kinds we have.



FLAT BAR ROUND END TOOLING
(OPTIONAL)

FLAT BAR ROUND END TOOLING MX700.png

Tooling to make all kinds of flat bars with round ends, with or without hole, straight, round...Very used as handles, stands, etc... Starting from a metal strip, a piece with the desired length comes out of it with every stroke. In the PDF file you will see all kinds of shapes and sizes we have.

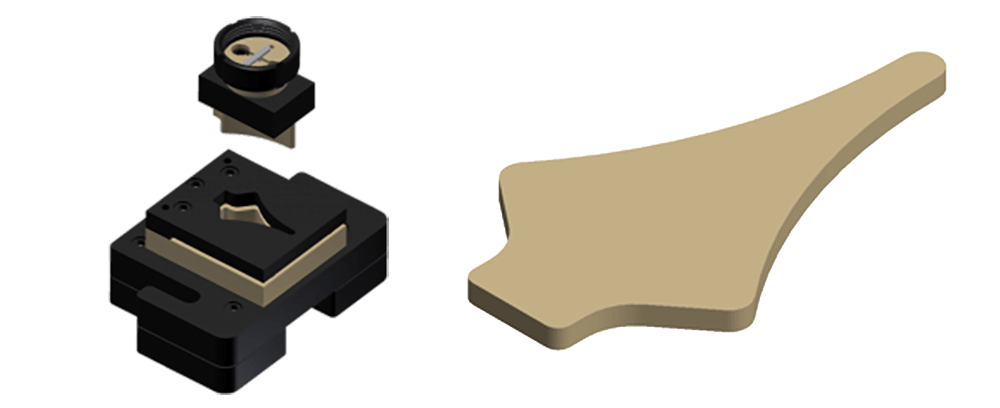

ARROW TOOLING FOR SHEET METAL
(OPTIONAL)

Tooling to punch steel sheet  in arrow shape for fencing.

REF: 140-02-01-00006
MAX. SHEET THICKNESS: 3mm
WEIGHT:21 Kg.



ARROW TOOLING FOR PIPES
(OPTIONAL)

ARROW TOOLING FOR PIPES MX700.png

Tooling to flatten and cut pipe in arrow shape. Suitable to different diameters.

REF: 140-02-01-00007
MAX. PIPE DIAMETER: 30x2mm
MIN. PIPE DIAMETER: 10x2mm
WEIGHT:19 Kg.



ROUND BAR CUTTING TOOL
(OPTIONAL)

Tooling to cut round solid bar from 3mm up to 35mm.

REF: 140-02-01-00035
MAX. CUTTING DIAMETER: 35mm.
MIN. CUTTING DIAMETER: 3mm.
WEIGHT:15 Kg.



PIPE ENDS FENCING TOOL
(OPTIONAL)

Tooling to flatten and punch the extreme of pipes for fencing. Admits different pipes diameters. The hole size is exchangeable.

REF: 140-02-01-00040
MAX PIPE DIAMETER: 50mm
MIN. PIPE DIAMETER: 10mm
HOLE DIAMETER: Intercambiable.
WEIGHT: 23 Kg.



PIPE NOTCHING TOOL
(OPTIONAL)

PIPE NOTCHING TOOLING MX700.png

Pipe notching tooling from Ø16 to Ø60mm. It consists of cutting the extreme of a pipe so it can be joined to another one perpendicularly. In the  PDF file you will be able to see all kinds and sizes we have.

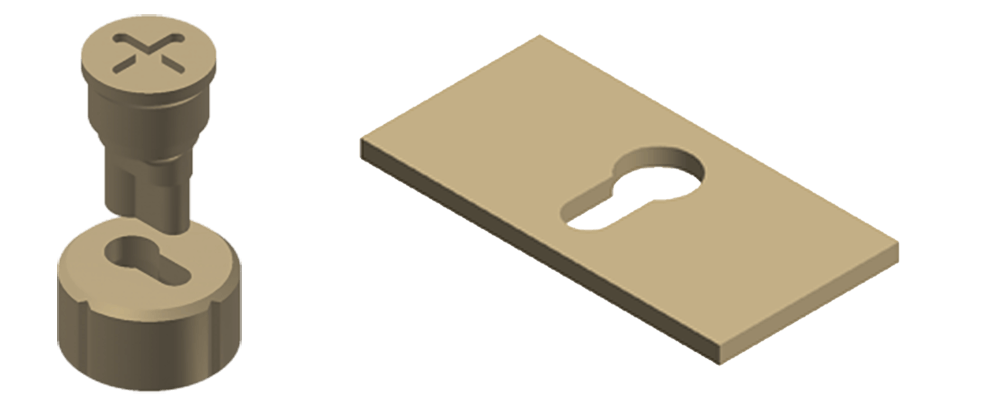

PUNCH AND DIE FOR LOCKS
(OPTIONAL)

PUNCH AND DIE FOR LOCKS.png

Punch and die to make locks holes in metal sheet.
Necessary complements: CAB60 and TAP40

REF: 140-02-01-00036
MAX. THICKNESS: 6mm
WEIGHT:1 Kg.

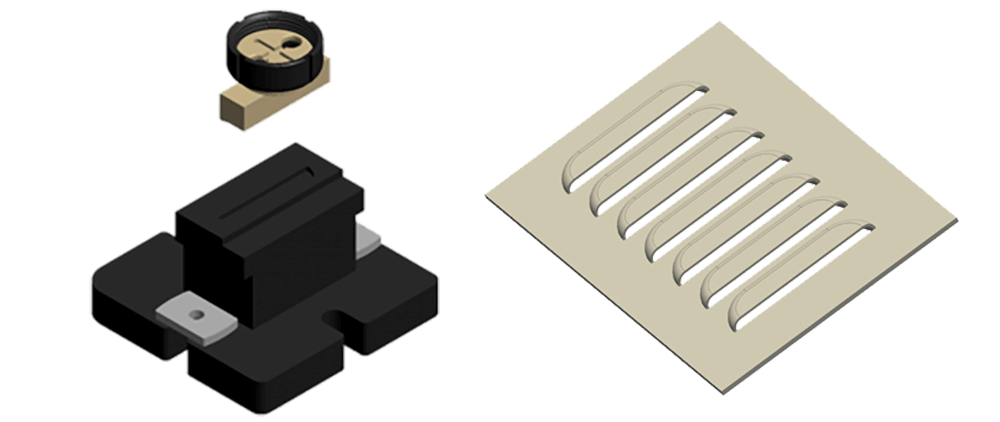

VENTILATION GRILL TOOLING
(OPTIONAL)

VENTILATION GRILL TOOLING MX700.png

Tooling to make ventilation grill in metal sheet. With adjustable punching operations since they're made one by one.

REF: 140-02-01-00010
PUNCHING SIZES: 100X20mm.
MAX. THICKNESS: 2mm.
WEIGHT:20 Kg.

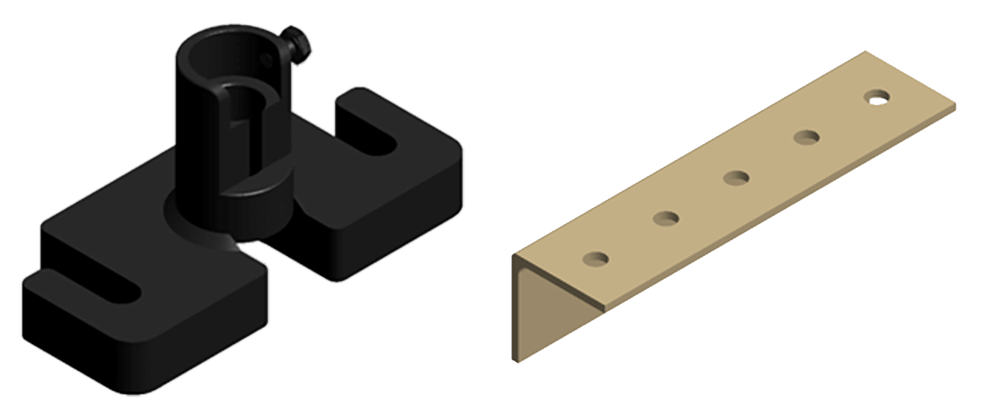

TOOLING FOR PUNCHING ANGLE AND U PROFILE
(OPTIONAL)

TOOLING FOR PUNCHING ANGLE AND U SHAPE PROFILES.png

Tooling to punch angles. Exchangeable punches and dies of different sizes.

REF: 140-02-01-00031
MAX. HOLE DIAMETER: 28mm
MIN. HOLE DIAMETER: 2mm.
WEIGHT: 9 Kg.





Hydraulic Punching Machine MX340G is different from the other ones because of its long displacement and working gooseneck that allows it to be adapted a number of dies and tooling. Its versatility and features makes it a fast payback machine. It carries out the same functions of 5 different machines.


  • Gooseneck (Neck): 180 mm.

  • Piston displacement: 100 mm.

  • Mx. Height. : 220 mm.


DIMENSIONS OF THE MACHINE HYDRAULIC PUNCHING MACHINE MX340

Dimensions of the machine: 700x 800x1800 mm.

Weight: 615 Kg.

Tariff Item Code:  84624990

Other features:

  • Palletized base to move it easily to the working site or storage.

  • The machine is delivered completely mounted.


USES OF THE MACHINE: HYDRAULIC PUNCHING MACHINE MX340G

The Hydraulic Punching Machine Nargesa MX340G can punch any kind of profile: Flat bar, steel sheet, Pipe, angle, UPN, U profile, T profile, IPN, etc... They can be fit  different tooling for tube notching, stripping metal sheet, fabricate arrow ending in steel sheet and pipes, roud up steel sheet corners. They can be fitted any kind of tooling made by the customer himself or bought from any other manufacturers.
