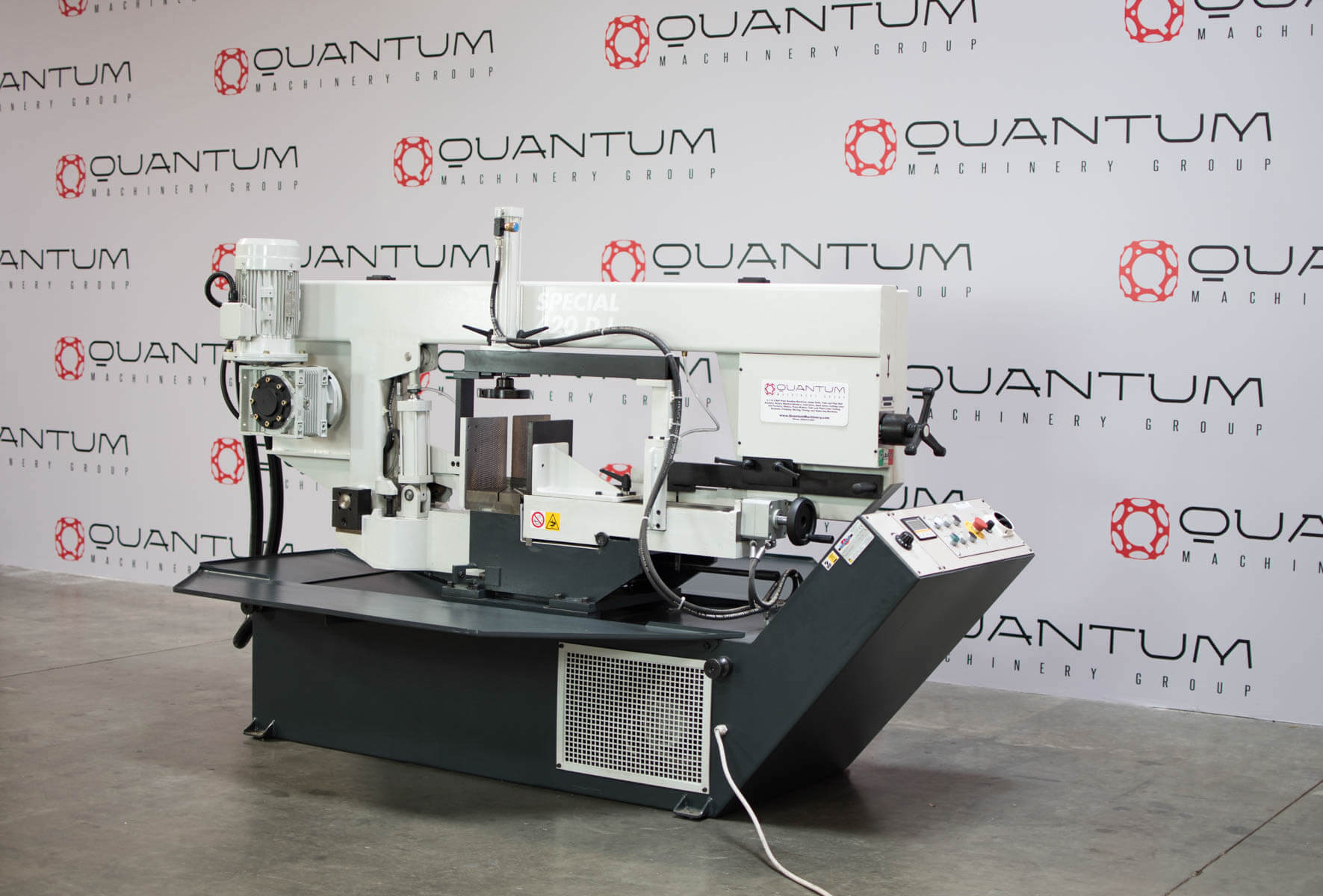

S 420 DI: Semi-Automatic Band Saw with Variable Speed Inverter (15-5/8" Round Tube Capacity)
Includes 1 Blade, Variable Speed Inverter, Vertical Hydraulic Clamp, and Laser for Saw Cut
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Includes 1 Blade, Variable Speed Inverter, Vertical Hydraulic Clamp, and Laser for Saw Cut
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Includes 1 Blade, Variable Speed Inverter, Vertical Hydraulic Clamp, and Laser for Saw Cut
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
The essential basic characteristics of our Quantum S-420-DI Semi-Automatic Band Saw (such as the rigidity of the blade support, the flywheel dimensioning, band saw blade guides, and band stretching) have been extensively studied thoroughly in order to avoid yielding of the band - ultimately increasing the S-420-DI’s durability above all other band saws of this size in the marketplace, and assists to improve the linearity of the cuts, as well as the cutting time.
QUANTUM MACC S-420-DI BAND SAW CUTTING CAPACITIES AND SPECIFICATIONS:
Round Tube:
Straight Cut: 14-3/4" or 14.75"
45° Left Cut: 14-3/4" or 14.75"
45° Right Cut: 14-3/4" or 14.75"
60° Left Cut: 10-1/8" or 10.125"
60° Right Cut: 10-1/2" or 10.5"

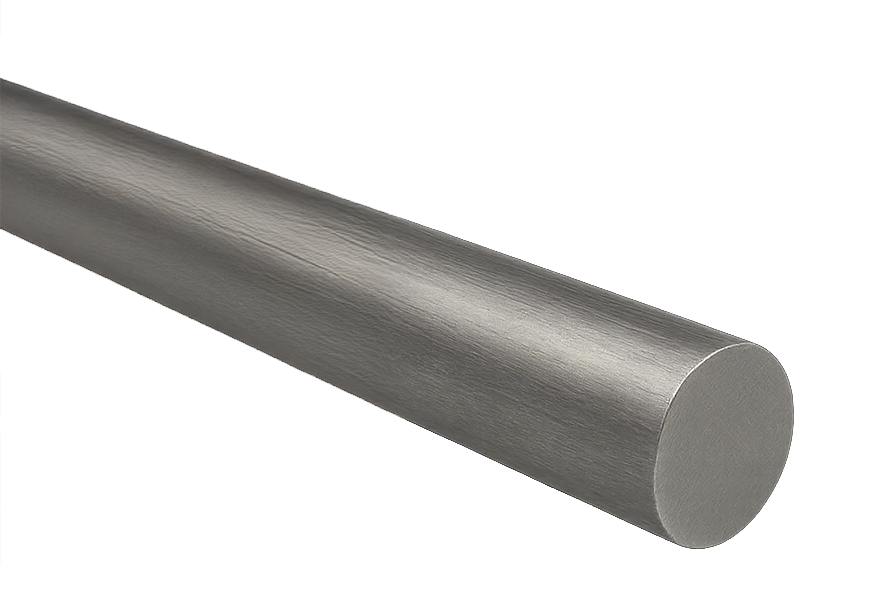

Solid Round:
Straight Cut: 5-3/4" or 5.75"
45° Left Cut: 5-3/4" or 5.75"
45° Right Cut: 5-3/4" or 5.75"
60° Left Cut: 5-3/4" or 5.75"
60° Right Cut: 5-3/4" or 5.75"
Square Tube:
Straight Cut: 14-1/4" or 14.25"
45° Left Cut: 13-1/4" or 13.25"
45° Right Cut: 13-1/4" or 13.25"
60° Left Cut: 9-3/4" or 9.75"
60° Right Cut: 9-3/4" or 9.75"
Rectangular Tube:
Straight Cut: 14-1/4"H x 19-1/2"W or 14.25"H x 19.5"W
45° Left Cut: 11-3/4"H x 14-1/8"W or 11.75"H x 14.125"W
45° Right Cut: 11-3/4"H x 14-1/8"W or 11.75"H x 14.125"W
60° Left Cut: 14-1/4"H x 9"W or 14.75"H x 9"W
60° Right Cut: 11-3/4"H x 9-1/2"W or 11.75"H x 9.25"W
Operation:
Cycle start is obtained by pressing the relevant start button.
The machine performs the following operations during the cutting cycle:
1. Vice closing and activation of band motor.
2. Cutting bow down stroke.
3. Return of bow to initial position.
4. Band motor stop.
5. Vice opening.
Includes: Variable Speed Inverter, Vertical Hydraulic Clamp and Laser for Saw Cut.
Appropriately dimensioned flywheels.
Strong blade guides with tight stress-raiser bearings and adjustable widia tips.
Band stretching is obtained by electro-mechanical blade tensioner with microswitch for blade rotation.
Safety device on the flywheel casing and on the blade.
Adjustable stop for cuts of the same size.
Blade cleaning device with brush.
Vice Jaws Height: 7.87" (200 mm)
Vice Jaws Length: 7.28" (185 mm)
Bed Height: 30" (760 mm)
Cutting Thickness: 0.059" (1.5 mm)
Cutting Range: 60° Left up to 60° Right.
Blade Size: 4,610 x 34 x 1.1mm
Maximum Vice Opening: 22" (559 mm)
Machine Weight: 1,850 lbs. (839 kg.)
Variable Speed Inverter: 37-75 Feet per Minute
Motor Hydraulic Gearcase: 0.37 kW
Electropump for Band Cooling: 0.09 kW
Overall Dimensions (without Bar Stop): 7'-5”H x 2'-3”W x 9'-3”L or 90”H x 28”W x 112”L or 2,286 mm H x 711 mm W x2,845 mm L
Overall Dimensions (with Bar Stop): 7'-5”H x 5'-6”W x 9'-3”L or 90”H x 68”W x 112”L or 2,286 mm H x 1,727 mm W x 2,845 mm L
This Saw also Includes: Instruction Manual, Service Tools & 1 Band Saw Blade.
