NEW 350-S: 14" Semi-Auto, Pivot-Style Cold Saw (4-1/4" Round Tube Capacity)


NEW 350-S: 14" Semi-Auto, Pivot-Style Cold Saw (4-1/4" Round Tube Capacity)

6,900.00

Ready to place an order, or do you have any questions?
Call us at (909) 476-8007

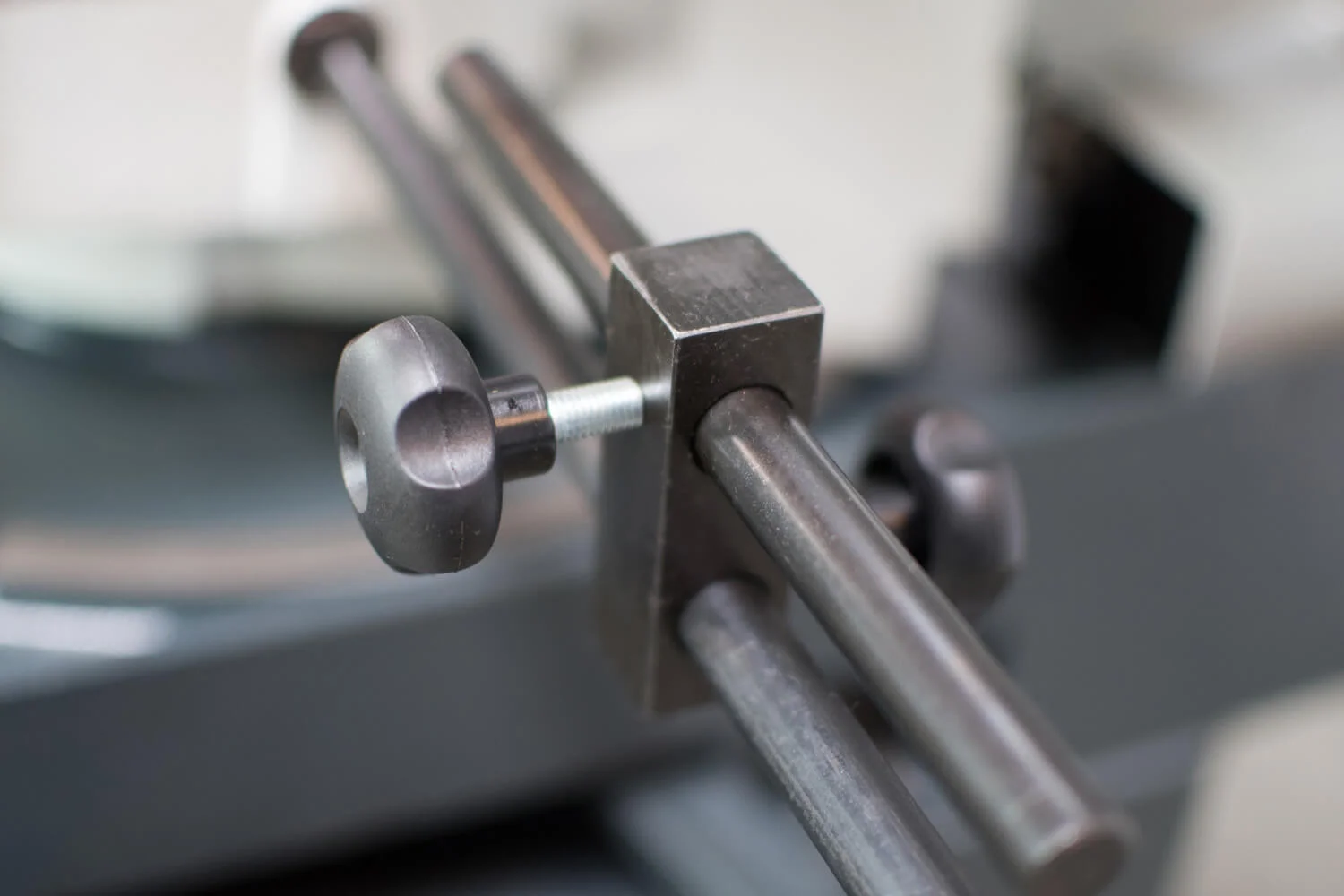

The Quantum Macc NEW 350-S Semi-Automatic Cold Saw has a movable head that swivels 45 degrees left and 90 degrees right. The reduction unit is in an oil bath with a double hinged pin that has an eccentric bush. The NEW 350-S Cold Saw is equipped with a dual quick-locking vice and a sliding counter-vice for longitudinal cutting. Has a 0.035 kW power-driven pump for band cooling, along with a coolant filter. This unit is also equipped with a Jet Separation System to keep the blade oiled, has a Bar Support Arm, and a Bar Stop. Manual, service tools and steel pedestal come with the machine.

Cycle start is obtained by pressing the relevant start pedal. The machine performs the following operations during the cutting cycle:

  1. Closing of Vice & Activation of Blade Motor.

  2. Cutting Head Begins Down-Stroke.

  3. Completes Cut & Head Returns to Initial Position & Blade Motor Stops.

  4. The Vice will then Open.

    (REPEAT)

Options (Options are at an additional cost):

  • (+$1,000) Equip the NEW 350-S with a Variable Speed Inverter

Click Here to Pre-Order

NEW 350-S COLD SAW CUTTING CAPACITIES:

Round Tube Cutting Capacities:

  • Round Tube Cutting at 90° (Straight Cut): 4-1/4"

  • Round Tube Cutting at 45° Right: 3-1/8"

  • Round Tube Cutting at 45° Left: 3-1/8"

Square Tube Cutting Capacities:

  • Square Tube Cutting at 90° (Straight Cut): 3-7/8"

  • Square Tube Cutting at 45° Right: 3-1/8"

  • Square Tube Cutting at 45° Left: 3-1/8"

Solid Round Cutting Capacities:

  • Solid Round Cutting at 90° (Straight Cut): 2-1/4"

  • Solid Round Cutting at 45° Right: 2-1/8"

  • Solid Round Cutting at 45° Left: 2-1/8"

Rectangular Tube Cutting Capacities:

  • Rectangular Tube Cutting at 90° (Straight Cut): 3-1/8" x 4-5/8"

  • Rectangular Tube Cutting at 45° Right: 3-1/8" x 3-1/8"

  • Rectangular Tube Cutting at 45° Left: 3-1/8" x 3-1/8"

NEW 350-S COLD SAW SPECIFICATIONS:

— Blade Size Used: 350 x 2.5 x 32mm Bore HSS Blade

— Cost Per 350mm Blade: $120 Each

— 2 Speeds: 40 & 80 R.P.M. (Saw can be equipped with Variable Speed Inverter)

— Weight: 618 lbs. (280 kg.)

— Maximum Vice Opening: 4.7” (120mm)

— Overall Dimensions: 58” Width x 40” Length x 48” Height (1475 x 1000 x 1200 mm)
