NEW 300 EDV: 12" Manual, Pivot-Style Cold Saw (3-1/2" Round Tube Capacity)
Includes Pedestal/Stand and 1 Blade
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
The Quantum Macc NEW 300 EDV Manual Cold Saw has the capability of moving the head 45 degrees left and 45 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and coolant filter. The NEW 300 EDV is equipped with a sliding counter dual vice that comes complete with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal.
Includes Pedestal/Stand and 1 Blade
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
The Quantum Macc NEW 300 EDV Manual Cold Saw has the capability of moving the head 45 degrees left and 45 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and coolant filter. The NEW 300 EDV is equipped with a sliding counter dual vice that comes complete with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal.
Includes Pedestal/Stand and 1 Blade
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
The Quantum Macc NEW 300 EDV Manual Cold Saw has the capability of moving the head 45 degrees left and 45 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and coolant filter. The NEW 300 EDV is equipped with a sliding counter dual vice that comes complete with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal.

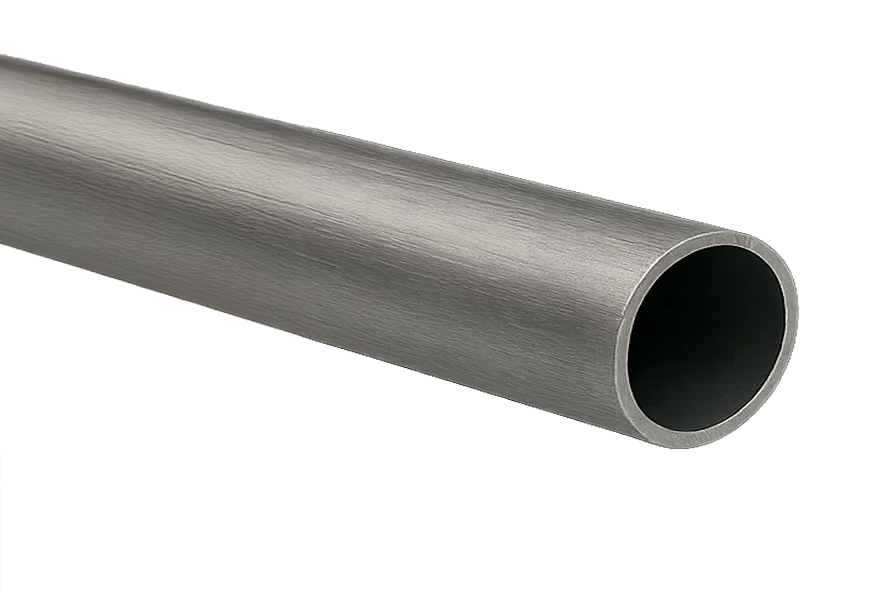

Round Tube:
Straight Cut: 3-1/2" or 3.50"
45° Left Cut: 3-1/8" or 3.125"
45° Right Cut: 3-1/8" or 3.125"
Square Tube:
Straight Cut: 3-1/8" or 3.125"
45° Left Cut: 2-3/4" or 2.75"
45° Right Cut: 2-3/4" or 2.75"
Solid Round:
Straight Cut: 2-1/8" or 2.125"
45° Left Cut: 1-3/4" or 1.75"
45° Right Cut: 1-3/4" or 1.75"
Rectangular Tube:
Straight Cut: 2-1/2"H x 4-1/4"W or 2.5"W x 4.25"H
45° Left Cut: 2-1/2"H x 2-1/2"W or 2.5"W x 2.5"H
45° Right Cut: 2-1/2"H x 2-1/2"W or 2.5"W x 2.5"H
NEW 300 EDV COLD SAW SPECIFICATIONS:
Movable Cutting Head: From 45° Left up to 45° Right.
Double-Hinged Pin with Eccentric Bush.
Reduction Unit in Oil Bath.
Double-Quick Locking Vice.
Coolant Filter.
Jet Separation System to keep the Blade Oiled.
Sliding Counter-Vice for Longitudinal Cutting.
24V Low Voltage Installation withhold-to-run Head Control Knob.
0.06 kW Power-Driven Pump for Band Cooling.
Blade Size: 300 x 2.5 x 32mm Bore HSS Blade
Maximum Vice Opening: 4.7” (120mm)
Machine Weight: 364 lbs. (165 kg.)
Overall Dimensions: 4'-8” W x 3'-3” L x 3'-8” H or 58” W x 40” L x 46” H or 1,475 mm L x 1,000 mm W x 1,150 mm H.
Additionally, this Saw Includes: Instruction Manual, Service Tools & 1 HSS 300mm Cold Saw Blade.
