TA 400-A CUTTING CAPACITIES:
Round Tube:
Straight Cut: 5-1/4" or 5.25"
Square Tube:
Straight Cut: 4-1/4" or 4.25"
Solid Round:
Straight Cut: 2-1/4" or 2.25"
Rectangular Tube:
Straight Cut: 3-3/4"H x 7"W or 3.75"H x 7"W
TA 400-A SPECIFICATIONS:

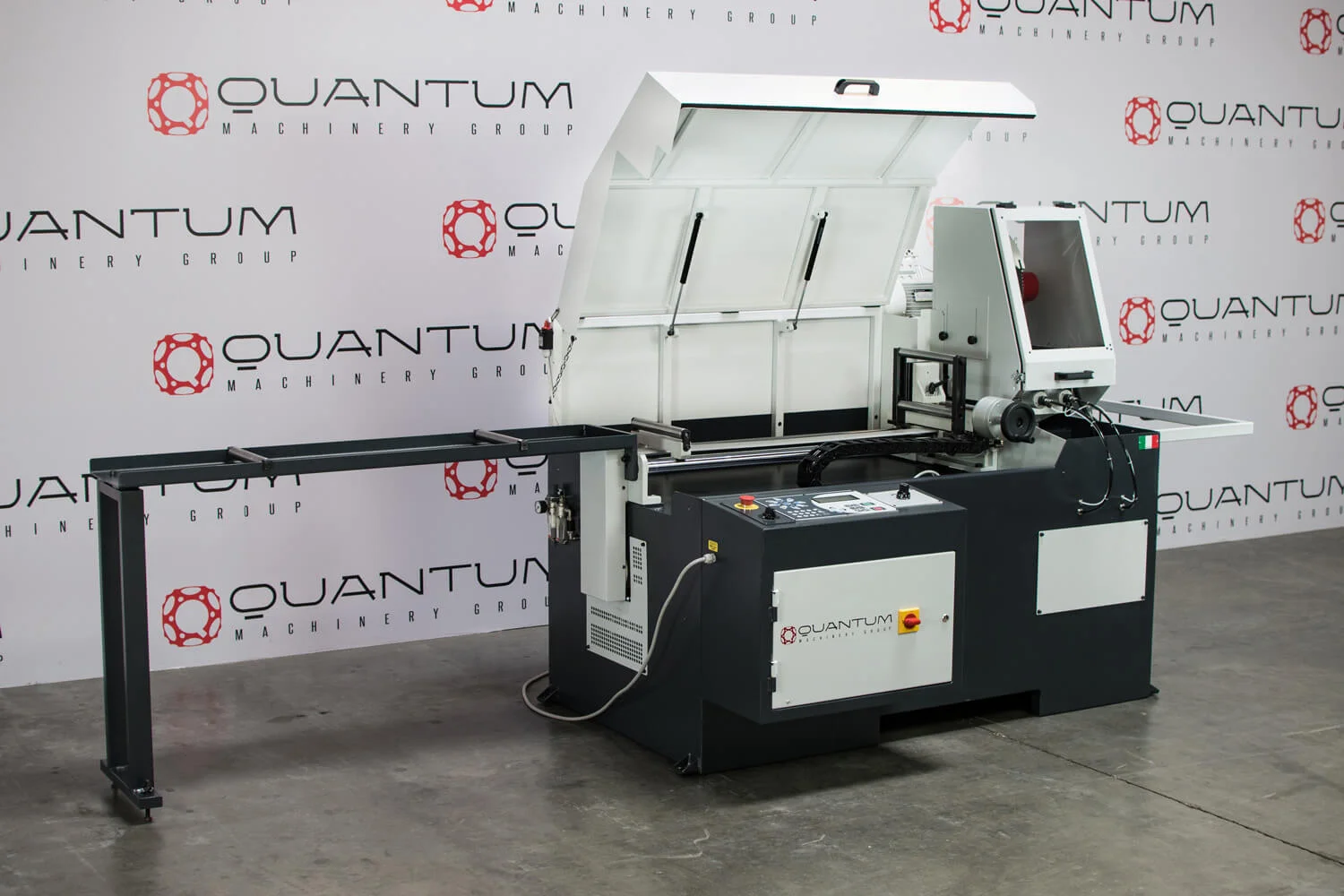

Automatic circular saw for cutting solid or profiles of aluminum or light alloys.
Supplied with 39 programs, each of them with 50 steps for a total of 1950 cutting positions with relevant piece-counter.
Blade holder shaft on bearings.
Two pneumatic vices.
Teflon jaws to fix the piece.
Blade Size: 400 x 2.5 x 32mm Bore Carbide Tip
Maximum Vice Opening: 7” (180 mm)
Machine Weight: 1,125 lbs. (510 kg.)
Blade Speed: 3,000 R.P.M.
Overall Dimensions: 5'-6"H x 12'-5"W x 5'-3"L or 67”H x 150”W x 63”L or 1,700mm H x 3,800 mm W x 1,600 mm L
This Saw Includes: the Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Bore Carbide Tip
