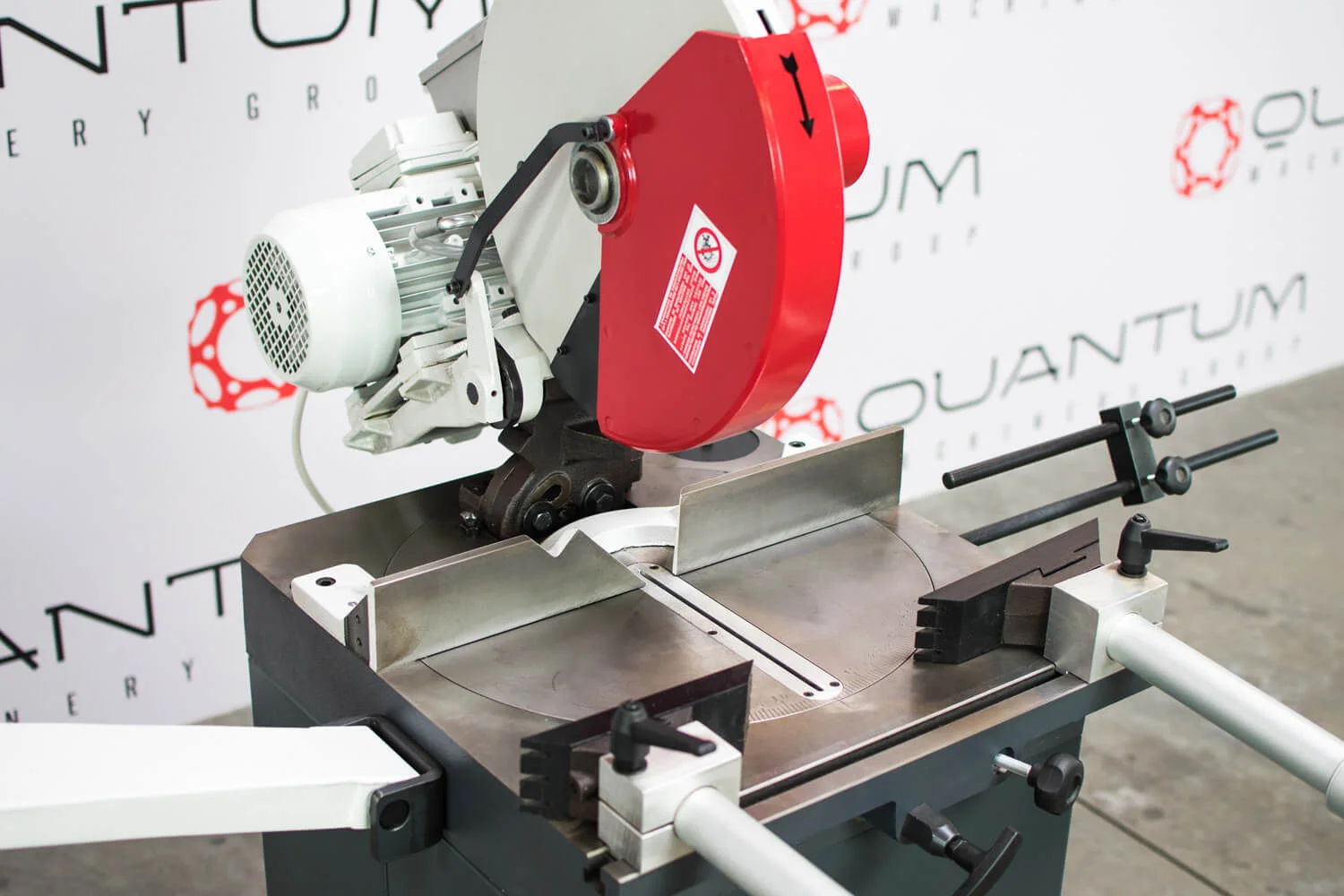

TA 400: 15.75" Manual Non-Ferrous, Aluminum Cutting Saw (5-1/2" Round Tube Capacity)
INCLUDES STEEL PEDESTAL/STAND, PEDAL CONTROLLED PNEUMATIC VICE, RAPID STOP ON MOTOR AND 1 BLADE
READY TO PLACE AN ORDER, OR DO YOU HAVE ANY QUESTIONS?
CALL US AT (704) 703-9400
The Quantum Macc TA 400 Non-Ferrours features, manual shear for cutting solid or section bars made of aluminum or light alloys. Knob with small stake ensuring fast positioning of the head to 0° and 45° right and left. The overall dimensions: 59" x 40" x 36" High. Instructions manual and spare parts included. The blade holder shaft is on bearings with Teflon jaws to hold the piece. Two manual vices and bar support arm with bar stop. Available In 220V / 3PH or 480V / 3PH.
INCLUDES STEEL PEDESTAL/STAND, PEDAL CONTROLLED PNEUMATIC VICE, RAPID STOP ON MOTOR AND 1 BLADE
READY TO PLACE AN ORDER, OR DO YOU HAVE ANY QUESTIONS?
CALL US AT (704) 703-9400
The Quantum Macc TA 400 Non-Ferrours features, manual shear for cutting solid or section bars made of aluminum or light alloys. Knob with small stake ensuring fast positioning of the head to 0° and 45° right and left. The overall dimensions: 59" x 40" x 36" High. Instructions manual and spare parts included. The blade holder shaft is on bearings with Teflon jaws to hold the piece. Two manual vices and bar support arm with bar stop. Available In 220V / 3PH or 480V / 3PH.
INCLUDES STEEL PEDESTAL/STAND, PEDAL CONTROLLED PNEUMATIC VICE, RAPID STOP ON MOTOR AND 1 BLADE
READY TO PLACE AN ORDER, OR DO YOU HAVE ANY QUESTIONS?
CALL US AT (704) 703-9400
The Quantum Macc TA 400 Non-Ferrours features, manual shear for cutting solid or section bars made of aluminum or light alloys. Knob with small stake ensuring fast positioning of the head to 0° and 45° right and left. The overall dimensions: 59" x 40" x 36" High. Instructions manual and spare parts included. The blade holder shaft is on bearings with Teflon jaws to hold the piece. Two manual vices and bar support arm with bar stop. Available In 220V / 3PH or 480V / 3PH.
Round Tube:
Straight Cut: 5-1/4" or 5.25"
45° Left Cut: 5-1/8" or 5.125"
45° Right Cut: 5-1/8" or 5.125"
Square Tube:
Straight Cut: 4-1/4" or 4.25"
45° Left Cut: 4-3/4" or 4.75"
45° Right Cut: 4-3/4" or 4.75"
Solid Round:
Straight Cut: 2-1/4" or 2.25"
45° Left Cut: 2-1/4" or 2.25"
45° Right Cut: 2-1/4" or 2.25"
Rectangular Tube:
Straight Cut: 4-3/4"H x 7"W or 4.75"H x 7"W
45° Left Cut: 4-3/4"H x 5-3/4"W or 4.75"H x 5.75"W
45° Right Cut: 4-3/4"H x 5-3/4"W or 4.75"H x 5.75"W
TA 400 SPECIFICATIONS:
TECHNICAL DATA & FEATURES:
Movable Cutting Head: From 45° Left up to 45° Right and Inclinable head up to 45° left.
Manual circular saw for aluminium.
24V low voltage installation with hold-to-run head control handle.
Locking pin ensures fast positioning of the head.

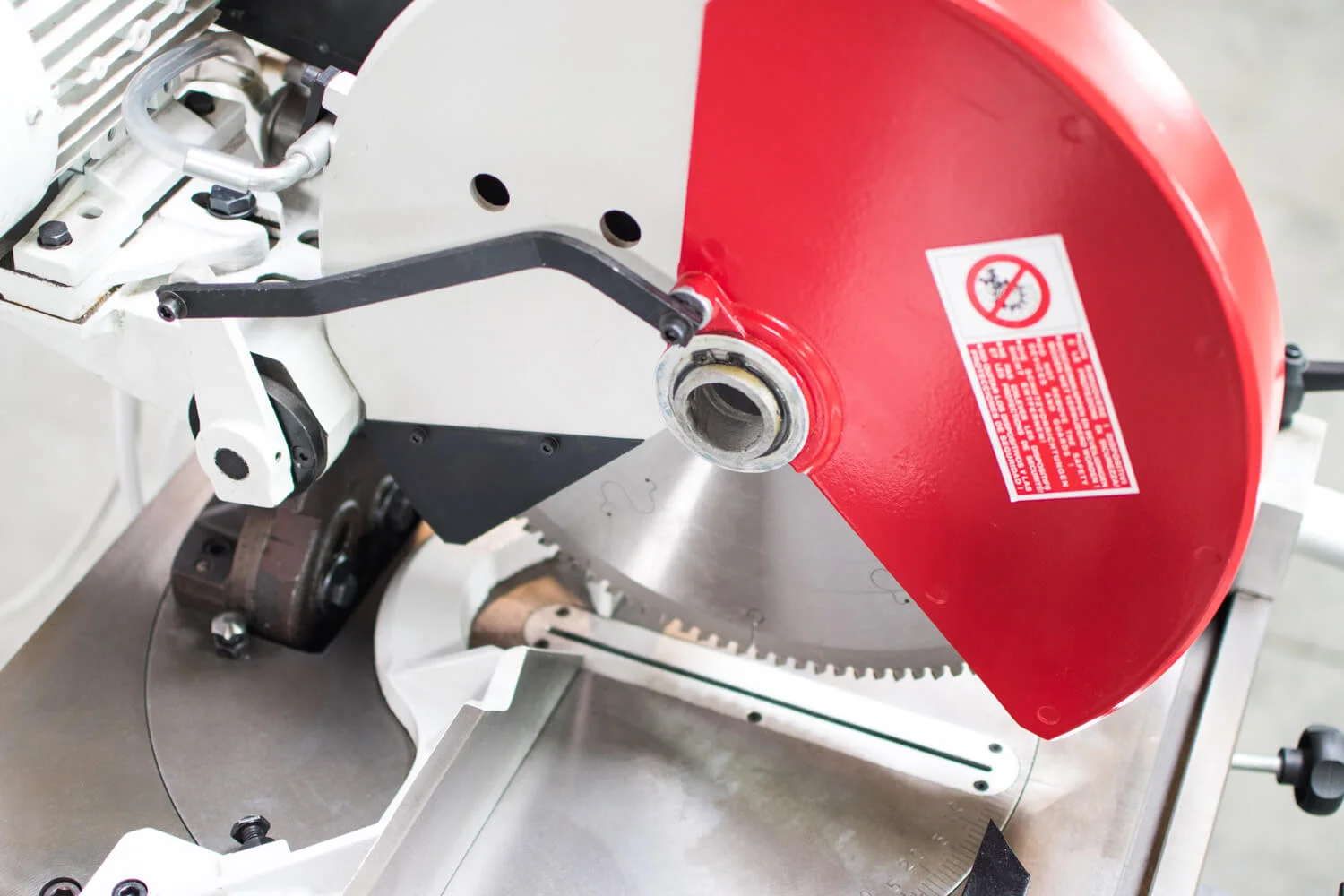

Blade holder shaft on bearings.
Movable bed assembled on spheres.

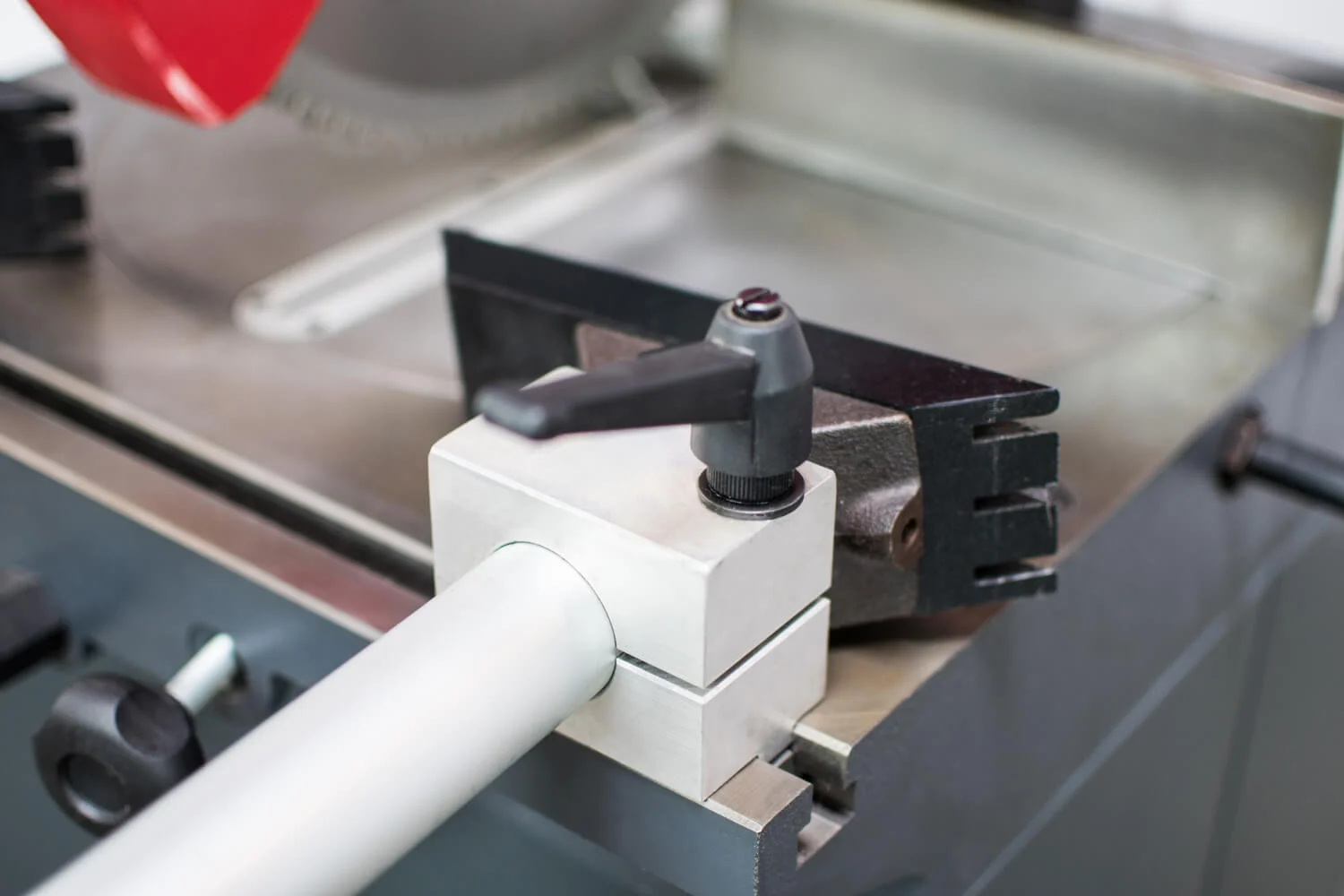

Two manual vices and Teflon jaws for material clamping.
Blade Size: 400 x 2.5 x 32mm Bore Carbide Tip
Maximum Vice Opening: 7” (180 mm)
Machine Weight: 350 lbs. (160 kg.)
Blade Speed: 3,000 R.P.M.
Overall Dimensions: 3'H x 5'W x 3'-3"L or 36”H x 59”W x 40”L or 900 mm H x 1,500 mm W x 1,000mm L
Available In 220V / 3PH or 480V / 3PH.
This Saw Includes: Steel Pedestal/Stand, Pedal Controlled Pneumatic Vice, Rapid Stop on Motor, Instruction Manual, Service Tools & 1 Bore Carbide Tip Blade.
