C2006 6.5 FOOT HYDRAULIC SHEAR
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Price: $47,300
Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
The last generation of QUANTUM NARGESA CNC Vertical cut shears are made of stabilized, welded steel that allows to take on big jobs without deformation.
Cutting Length: 2030mm.
Max. Thickness in Mild Steel: 6mm.
Max. Thickness in Stainless Steel: 4mm.
ADVANTAGES OF VERTICAL CUT INSTEAD OF SWING CUT:
Energetic saving: Resistance of material in vertical cut is much lower, which becomes a considerable energetic saving.
Cutting quality: Clean, perfect and accurate cut.
Life of the blades: The blades wear is almost nule. The life of the blades is 4 times higher than other shearing systems.
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Price: $47,300
Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
The last generation of QUANTUM NARGESA CNC Vertical cut shears are made of stabilized, welded steel that allows to take on big jobs without deformation.
Cutting Length: 2030mm.
Max. Thickness in Mild Steel: 6mm.
Max. Thickness in Stainless Steel: 4mm.
ADVANTAGES OF VERTICAL CUT INSTEAD OF SWING CUT:
Energetic saving: Resistance of material in vertical cut is much lower, which becomes a considerable energetic saving.
Cutting quality: Clean, perfect and accurate cut.
Life of the blades: The blades wear is almost nule. The life of the blades is 4 times higher than other shearing systems.
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Price: $47,300
Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
The last generation of QUANTUM NARGESA CNC Vertical cut shears are made of stabilized, welded steel that allows to take on big jobs without deformation.
Cutting Length: 2030mm.
Max. Thickness in Mild Steel: 6mm.
Max. Thickness in Stainless Steel: 4mm.
ADVANTAGES OF VERTICAL CUT INSTEAD OF SWING CUT:
Energetic saving: Resistance of material in vertical cut is much lower, which becomes a considerable energetic saving.
Cutting quality: Clean, perfect and accurate cut.
Life of the blades: The blades wear is almost nule. The life of the blades is 4 times higher than other shearing systems.
TECHNICAL FEATURES
Cutting length: 2030mm.
Cutting capacity: 6mm in steel (450N/mm2)andy 4mm in S.S.(700N/mm2)

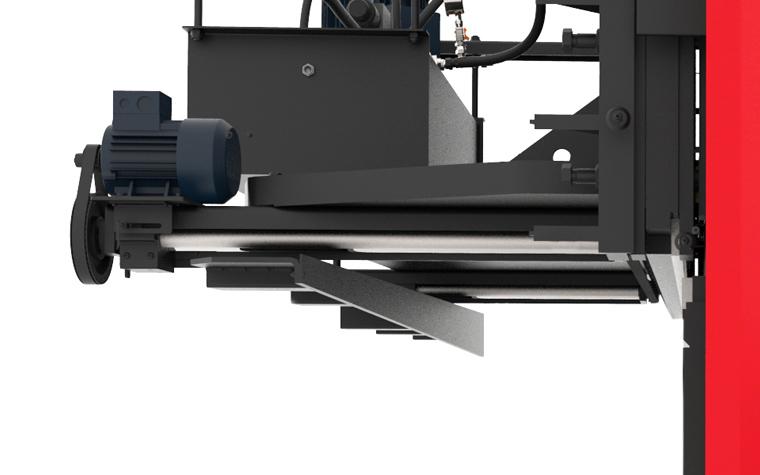

CNC back gauge.
Digital display.
Gauge displacemnt: 700mm.
Accuracy and repeatability of positioning from +/- 0,1mm.
4-edged lower and upper blades Suitable for stainless steel.
Goose neck for cuts with bigger length: 190mm.
Cutting area lit up by leds.
Thin marking zone for manual cutting.
Strokes per minute: 10 Strokes. (All length)
Independent hydraulic rammers: 10 units.
Millimeter squaring arm, 1000mm length.
Two 1000mm-millimetered stand arms.
Fix cut inclination: 1,75º
Driving with safety pedal and emergency stop.
Back overture with safety optoelectronic devices.
Motor power: 5,5 KW/ 7,5 HP
3-Phased tension: 400 V.
Hydraulic Pump: 16 liters.
Container capacity: 73 liters.
TECHNICAL FEATURES OF CNC CONTROL
Automatic and manual driving.
Cyclical cuts control.
50 programs with 10 cutting cycles each.
Digital display.
Counter for strokes and pieces.
Accuracy and repeatability of its positioning +/- 0,1 mm margin.
Alarm diagnose
DIMENSIONS OF THE HYDRAULIC SHEARS C2006 CNC MACHINE
Dimensions of the machine: 2671x2364x1762 mm.
Weight: 4850 Kg.
Tariff Item Code: 84623991
Other Features:
The machine is delivered completely asssembled.
USES OF THE MACHINE: HYDRAULIC SHEARS C2006 CNC
Last generation CNC vertical cut Shears C2006, allows cutting any kind of metal in a clean and exact way. The shearing is much more accurate, what turns out in a reduced energetic consumption and minimum wear of blades.
