The MC650 Roll Bender (Bend up to 4" O.D. Round Tube)
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz

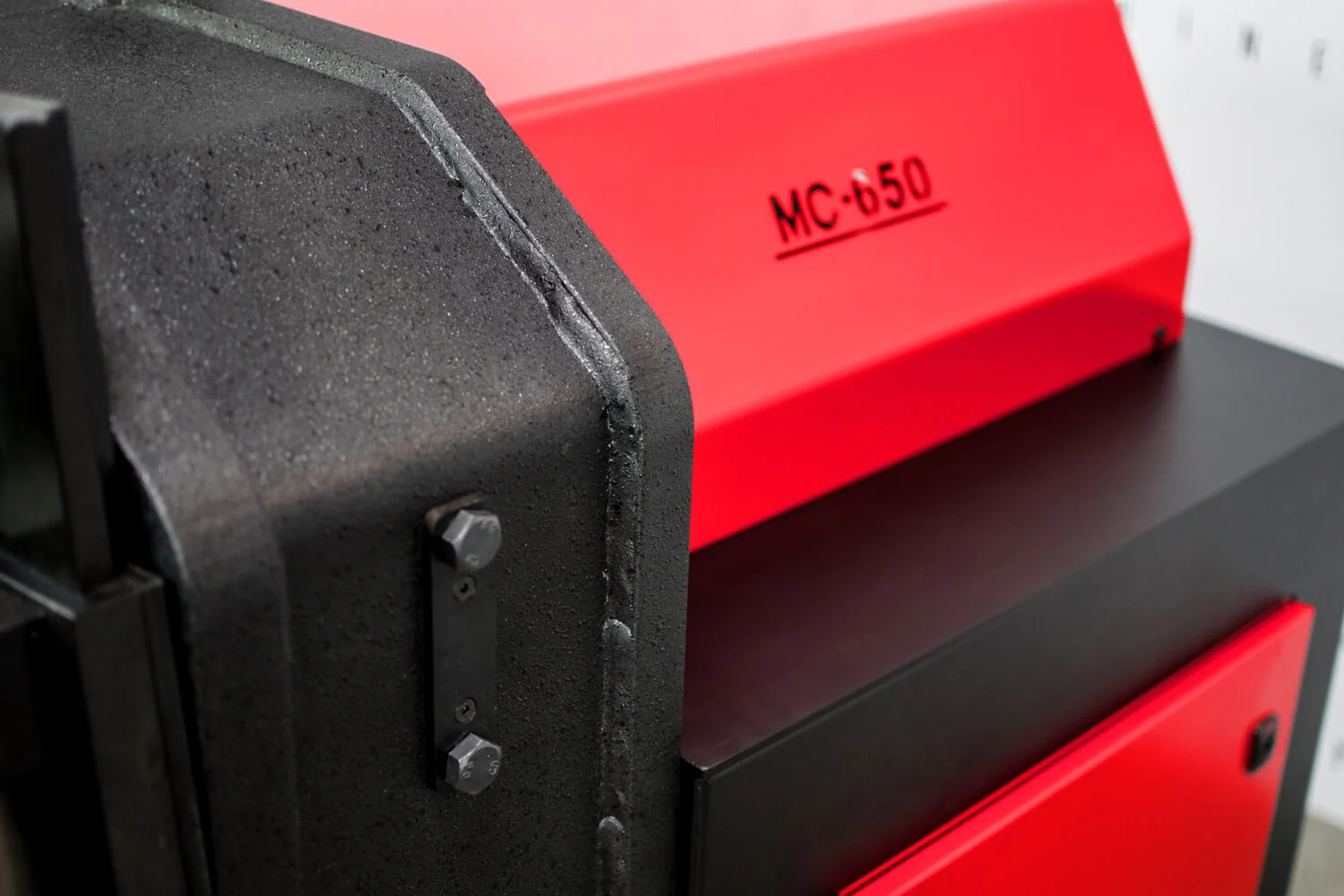

The MC650 Nargesa section and pipe bending machine is made of welded and machined sheet steel, making it very tough and stable. It is ideal for manufacturing flanges, greenhouses, railings, large structures for buildings such as circular beams for roofs, domes, bridge abutments, metal pergolas, curved marquees, structures for tunnels... Urban furniture such as street lamps, protections for roundabouts, bicycle parking stands, tree protectors, railings, public transport marquees, bollards or movable bollards, children's play parks and all sorts of circular figures in different large and small sections and tubes. All products Nargesa are according to the European directives and regulations CE regarding manufacturing of industrial machinery. We supply the section bending machine MC650 with 9 rollers and standard washers, that can be combined and make all kinds of profiles. (Square pipe, rectangular, square bar, round and rectangular bars, U profile, T profile, angle, flat bar, edged bar ...) It is only for special round pipes when we need special rollers.
All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
The MC650 Nargesa section and pipe bending machine is made of welded and machined sheet steel, making it very tough and stable. It is ideal for manufacturing flanges, greenhouses, railings, large structures for buildings such as circular beams for roofs, domes, bridge abutments, metal pergolas, curved marquees, structures for tunnels... Urban furniture such as street lamps, protections for roundabouts, bicycle parking stands, tree protectors, railings, public transport marquees, bollards or movable bollards, children's play parks and all sorts of circular figures in different large and small sections and tubes. All products Nargesa are according to the European directives and regulations CE regarding manufacturing of industrial machinery. We supply the section bending machine MC650 with 9 rollers and standard washers, that can be combined and make all kinds of profiles. (Square pipe, rectangular, square bar, round and rectangular bars, U profile, T profile, angle, flat bar, edged bar ...) It is only for special round pipes when we need special rollers.
All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz
The MC650 Nargesa section and pipe bending machine is made of welded and machined sheet steel, making it very tough and stable. It is ideal for manufacturing flanges, greenhouses, railings, large structures for buildings such as circular beams for roofs, domes, bridge abutments, metal pergolas, curved marquees, structures for tunnels... Urban furniture such as street lamps, protections for roundabouts, bicycle parking stands, tree protectors, railings, public transport marquees, bollards or movable bollards, children's play parks and all sorts of circular figures in different large and small sections and tubes. All products Nargesa are according to the European directives and regulations CE regarding manufacturing of industrial machinery. We supply the section bending machine MC650 with 9 rollers and standard washers, that can be combined and make all kinds of profiles. (Square pipe, rectangular, square bar, round and rectangular bars, U profile, T profile, angle, flat bar, edged bar ...) It is only for special round pipes when we need special rollers.
All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...
THE MC650 BENDING CAPACITIES:
Solid Round:
1.96" with a Minimum Radius of 11.8" Inches
1.57" with a Minimum Radius of 7.87" Inches
1" with a Minimum Radius of 7" Inches
Solid Square:
1.8" x 1.80" with a Minimum Radius of 12" Inches
1.57" x 1.57" with a Minimum Radius of 11" Inches
0.98" x 0.98" with a Minimum Radius of 8" Inches
0.79" x 0.79" with a Minimum Radius of 6" Inches
C-Channel (Easy Way):
4.72" with a Minimum Radius of 28" Inches
3.94" with a Minimum Radius of 28" Inches
3.15" with a Minimum Radius of 16" Inches
C-Channel (Hard Way):
4.72" with a Minimum Radius of 24" Inches
3.94" with a Minimum Radius of 24" Inches
3.15" with a Minimum Radius of 14" Inches
T-Channel (Easy Way):
3.15" with a Minimum Radius of 20" Inches
2.36" with a Minimum Radius of 16" Inches
1.57" with a Minimum Radius of 6" Inches
T-Channel (Hard Way):
3.15" with a Minimum Radius of 20" Inches
2.75" with a Minimum Radius of 16" Inches
2.36" with a Minimum Radius of 8" Inches
1.57" with a Minimum Radius of 6" Inches
Round Tube:
4" x .140" with a Minimum Radius of 20" Inches
4" x .120" with a Minimum Radius of 20" Inches
3.5" x .160" with a Minimum Radius of 28" Inches
1.38" x .100" with a Minimum Radius of 5" Inches
1" x .060" with a Minimum Radius of 5" Inches
Square Tube:
2.76" x 2.76" x .160" with a Minimum Radius of 30" Inches
2.4" x 2.4" x .120" with a Minimum Radius of 30" Inches
1.5" x 1.5" x .120" with a Minimum Radius of 12" Inches
Angle (Leg-Out):
2.76" with a Minimum Radius of 23.6" Inches
1.5" with a Minimum Radius of 10" Inches
Flat Bar (Easy Way):
4.7" x 0.790" with a Minimum Radius of 10" Inches
3.93" x 0.980" with a Minimum Radius of 14" Inches
3.15" x 0.790" with a Minimum Radius of 8" Inches
Flat Bar (Hard Way):
4.72" x 0.590" with a Minimum Radius of 49" Inches
3.15" x 0.790" with a Minimum Radius of 18" Inches
2.36" x 0.590" with a Minimum Radius of 12" Inches
1.97" x 0.590" with a Minimum Radius of 6" Inches
0.79" x 0.390" with a Minimum Radius of 6" Inches
*Please Note - Minimum Radii shown may require multi-pass. The sizes shown above are the maximum capacity with minimum radii. Round Profiles and Special Profiles shown above will require dedicated tooling. When bending smaller sections, the machine will be able to bend very small radii.*
The MC650 Features and Specifications:
All 3 Rolls are Driven.
Rollers Speed: 5 R.P.M.
Motor Power: 3 KW
Weight of Machine: 2,760 lbs.
Useful Axes Length: 6.29" / 160mm
Diameter of Rollers: 7.95" / 202mm
MC-650 Machine Dimensions: 51" x 39" x 51"
Diameter of Axes: 2.55" Lower / 3.15" Higher (65mm Lower / 80mm Higher)
Voltages Available: 220 Volt / 3 Phase, 480 Volt / 3 Phase or 220 Volt / 1 Phase
Safe transmision by treated and flat pinions.
Steel treated and rectified axis.
Improved energy efficiency with Electro-Hydraulic Operation.
Max. bending capacity in round tube: 4 inches or 101.6mm.
Visual display of dimensions.
Bending limits programmable with potentiometers.
Bender operations control desk supplied as standard with the machine.
Horizontal and vertical working position, without needing to fit special accessories. The MC650 Nargesa Section and Tube & Pipe bending machine has been designed to work in either vertical or horizontal position without needing to fit any extra accessories. Its structure enables it to be laid down to work in the horizontal position - ideal for large diameter work or installations with height limitations.
Side corrector rollers to rule the bending operation supplied as standard with the machine.
Straightener rollers to curve angles supplied as standard with the machine.
Electronically controlled positioning of the asymmetric rollers.
Three traction rollers, ideal and essential to bend round pipe, with smooth surface not to get the pipe or profile damaged.
Bending regulation apart from the lower rollers which permits to make bending operations in smaller diameters and to give better use to the material than in other bending machines.
It's equipped with 9 standard rollers by means of which you can make all kinds of profiles. Square pipe, rectangular, solid square bar, round and rectangular, U profile, T profile, angle, flat bar, edge flat bar... Optional rollers can be supplied for round pipe or tube (See optional accessories at the bottom of the page)
STANDARD TOOLING CONFIGURATION:
The MC-650 is equipped with 9 standard pieces, by means of which the user can work all kinds of profiles. Square, Rectangular Tube, Square Bars, C-Channel, T-Channel, Angle, Flat Bar, and Edged Flat Bar. Adjustable rollers, by washers with the size of profile which allows us to make bending to different profile sizes.
When the user has to bend any kind of profile at radius wider than 6.5 feet or if there are height problems in the facilities, it is really uncomfortable to work vertically. It will be enough with just bending the machine down so the bending operation is made horizontally with the help of a support or stands where we place the piece in order to obtain an acceptable job. For instance, when you need to bend arches for a greenhouse.
