PP200: Horizontal Press Brake


PP200: Horizontal Press Brake

8,695.00

$8,695 (PRE-ORDER)

Ready to place an order, or do you have any questions? Call us at (909)476-8007

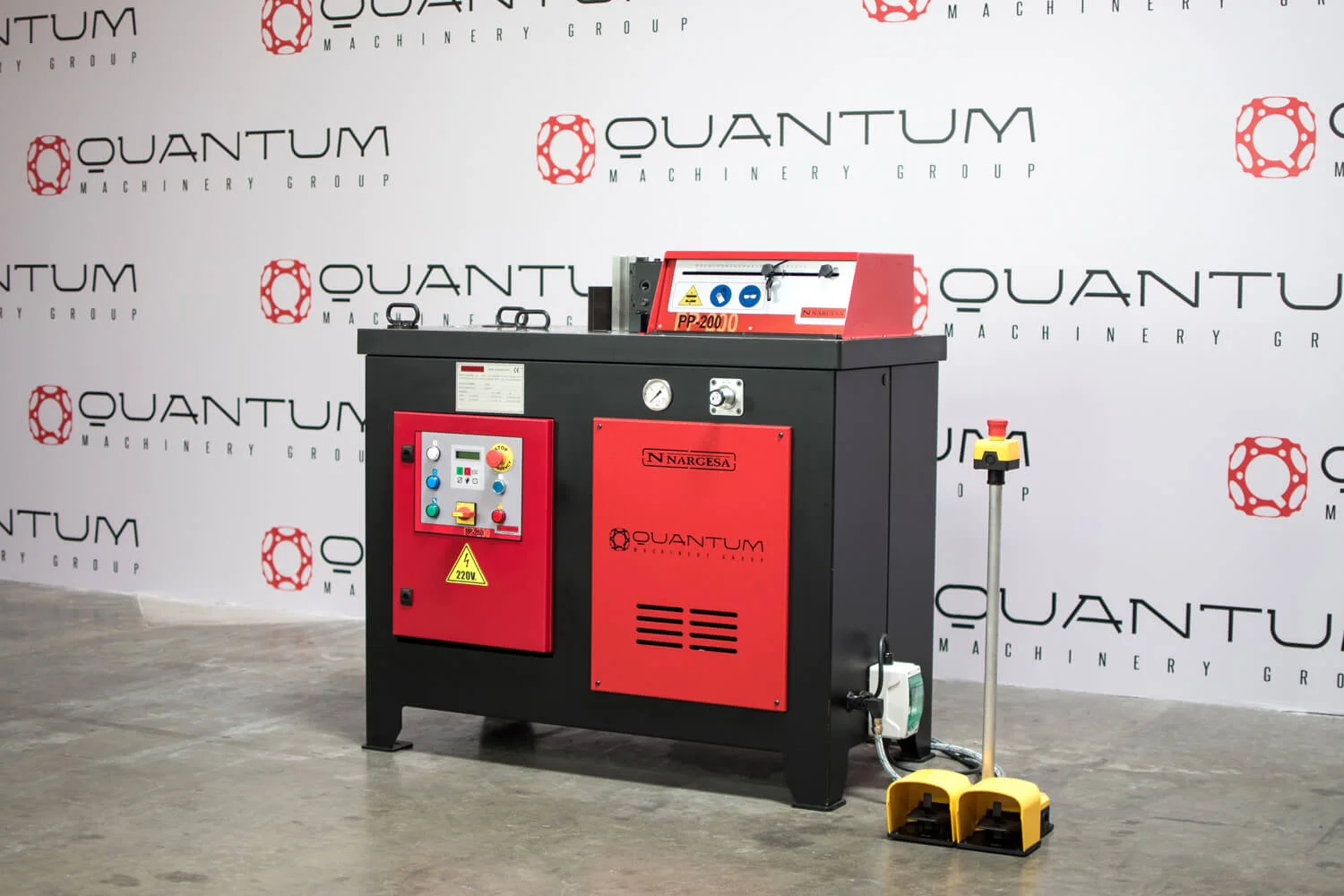

The versatility of the 20 Tons Horizontal Press Brake NARGESA PP200 allows us to bend, fold, cut and shape in cold, stretch and reduce, inlay, notch and assemble... Horizontal Bending Press Brake PP200 has been manufactured in a 2.36" (60mm) thick welded steel monoblock, stabilized and mechanized. Its robustness, versatility and easy handling are just three of the best features our hydraulic horizontal bending machine has.

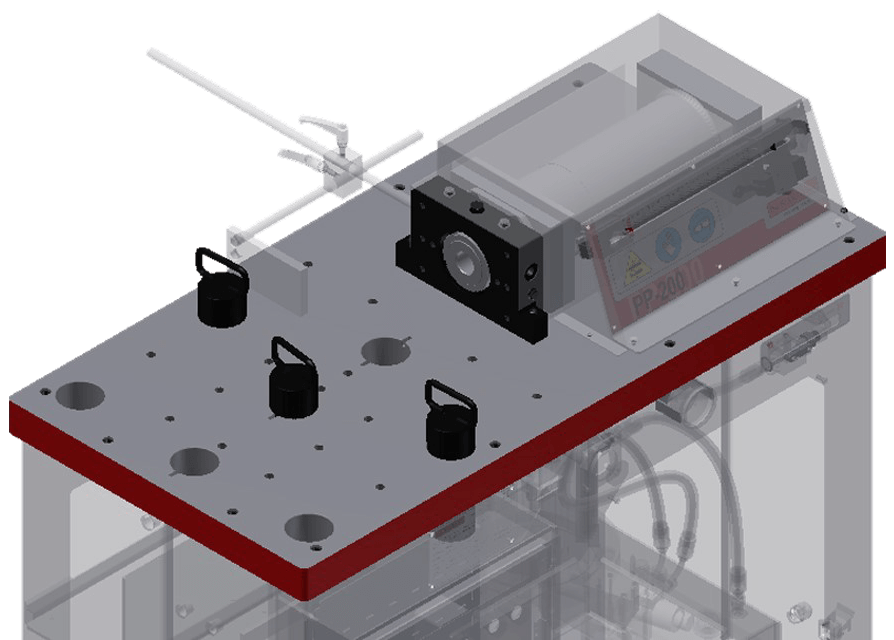

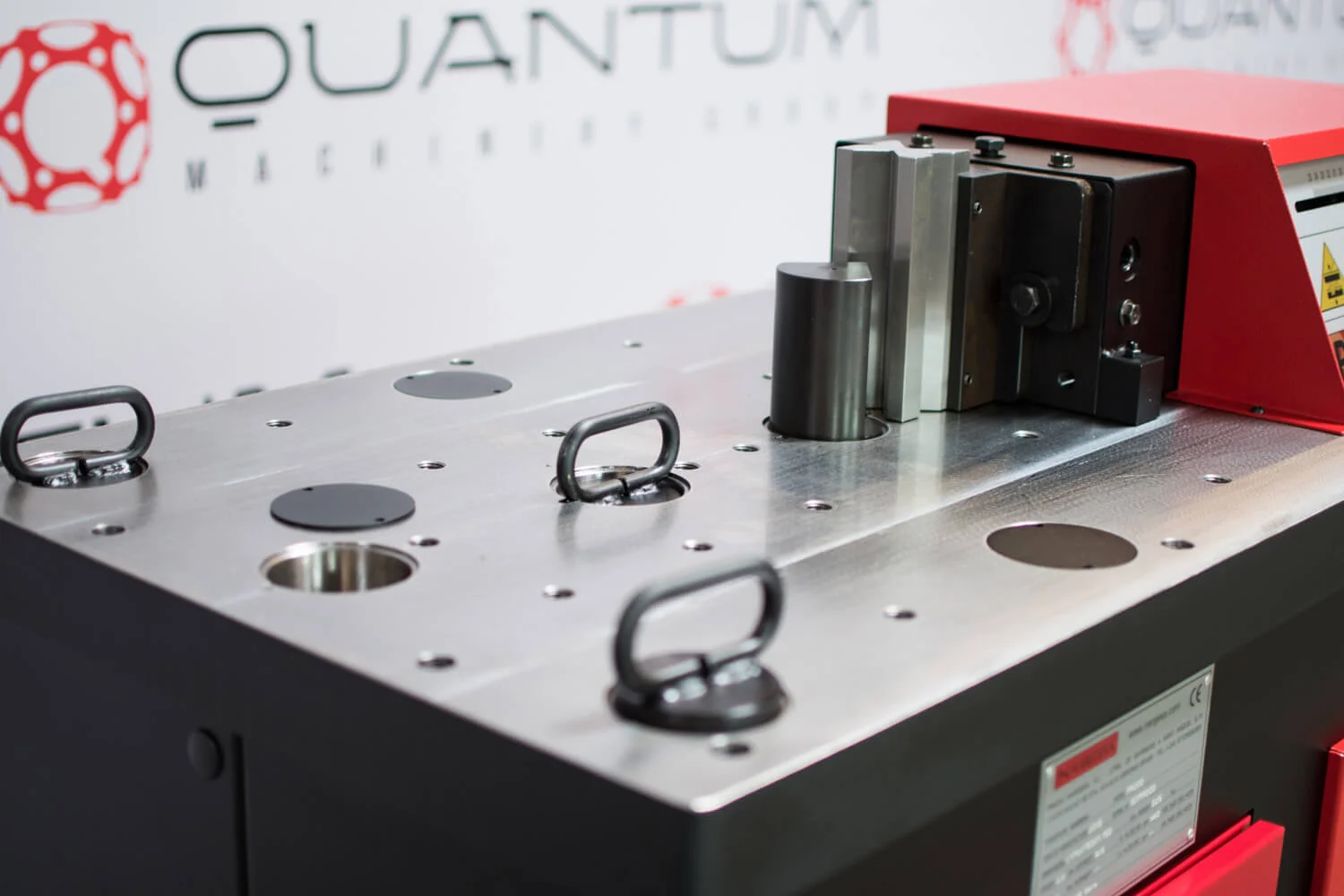

The advantage of the Horizontal Bending Press PP200 is to have a really simple head drive so that all our customers can adapt any die manufactured by  themselves. To add more options when fastening tools, the workbench has a series of clamping holes distributed throughout the area to ease up the fixing.

Click Here to Pre-Order




3 year warranty.png

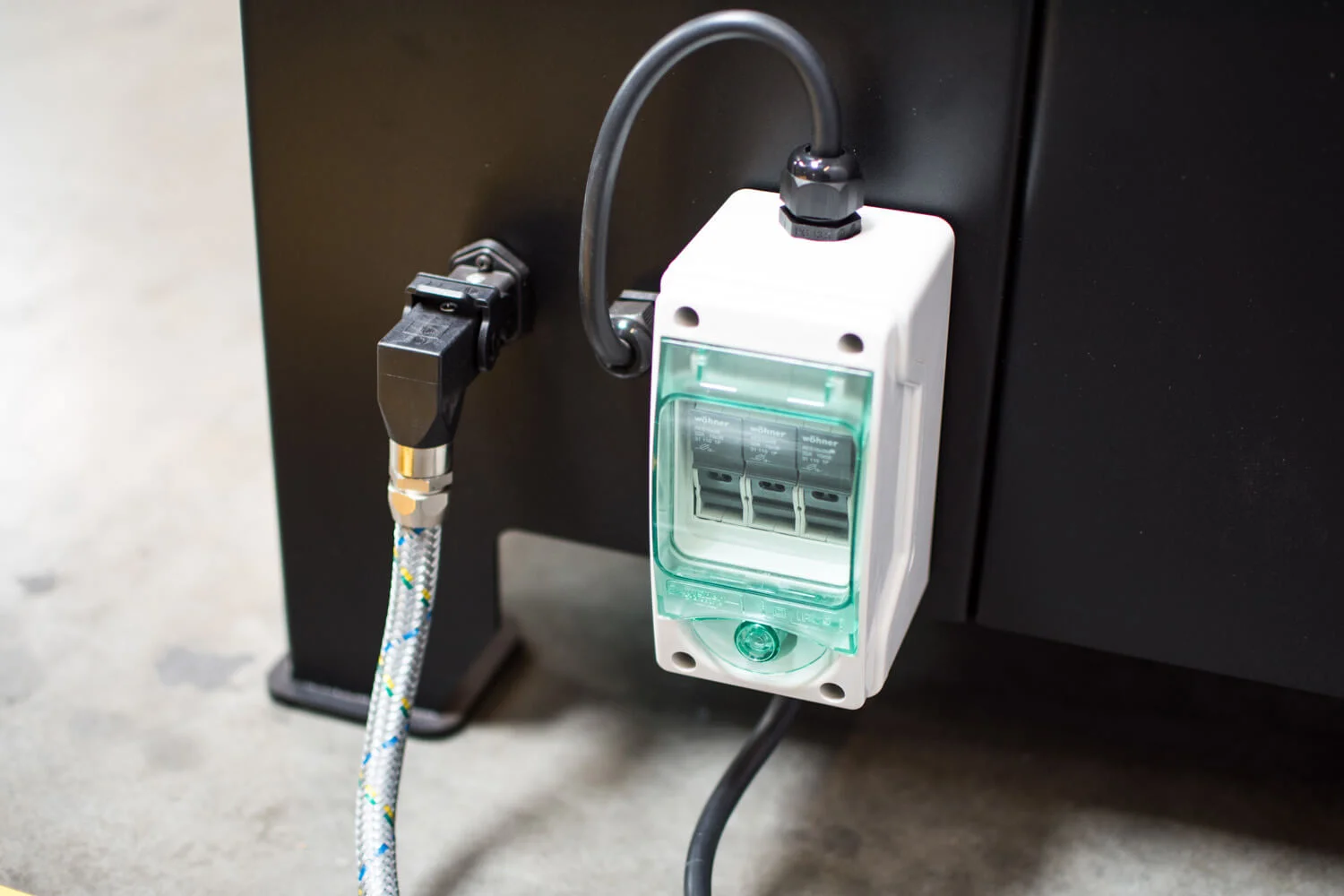

  • Easy handling: The machine is sent completely assembled, it is only necessary to connect it to the required power supply and start performing.

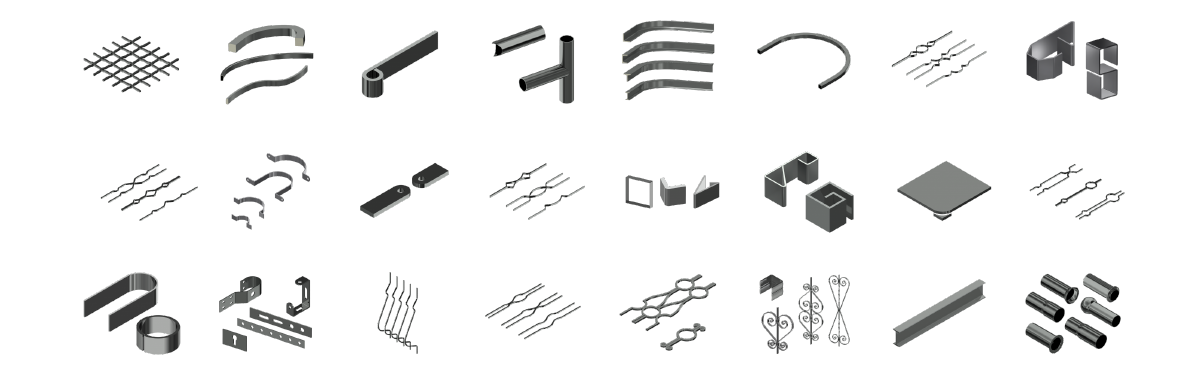

  • Versatility: Nargesa PP200 has a catalog with a great deal of optional tooling. (See optional tooling and sample video below)
  • Easy fabrication of tooling: The customer himself or any toolmaker can manufacture dies and  punches.
  • Folding operation with no risk of damaging the punches and dies with thick materials unlike conventional press brakes.

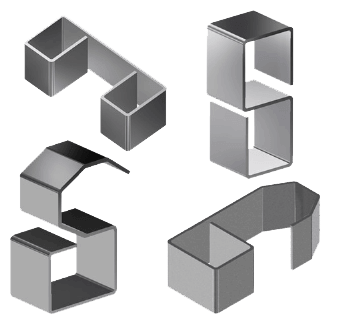

  • Folding flat bars and sheets into completely close shapes. Conception of this horizontal bending press brake allows to make folding operations that are impossible to be carried out on a conventional press brake.
  • Fast tool change, punches and dies: This change does not take more than 30 seconds most of the times.

INCLUDED ACCESSORIES

STANDARD EQUIPMENT PROVIDED WITH THE MACHINE: Horizontal press brake PP200 includes the complete 4V’s folding die.

Folding Die at 5.9" (150mm)
V-Openings: 0.63" (16mm), 0.86" (22mm), 1.37" (35mm), 1.96" (50mm)

Folding or bending die up to 150mm with 4 openings (16, 22, 35, 50mm) and a punch of 88º. This multi-V die allows 1mm up to 8mm sheet to be folded. The 70mm outer diameter punch allows to make completely closed shapes to a minimum of 75mm inner wing.

V = 0.63" (16mm): Sheet from 0.040" to 0.120" (1 to 3mm)
V = 0.86" (22mm): Sheet from 0.080" to 0.150" (2 to 4mm)
V = 1.37" (35mm): Sheet from 0.120" to 0.230" (3 to 6mm)
V = 1.96" (50mm): Sheet from 0.150" to 0.315" (4 to 8mm)
Max. Folding Length: 5.90" (150mm)
Max. Folding Thickness: 0.315" (8mm)
(Standard Tooling provided along with the machine.)


The advantage of the Horizontal Bending Press PP200 is to have a really simple head drive so that all our customers can adapt any die manufactured by  themselves. To add more options when fastening tools, the workbench has a series of clamping holes distributed throughout the area to ease up the fixing.
