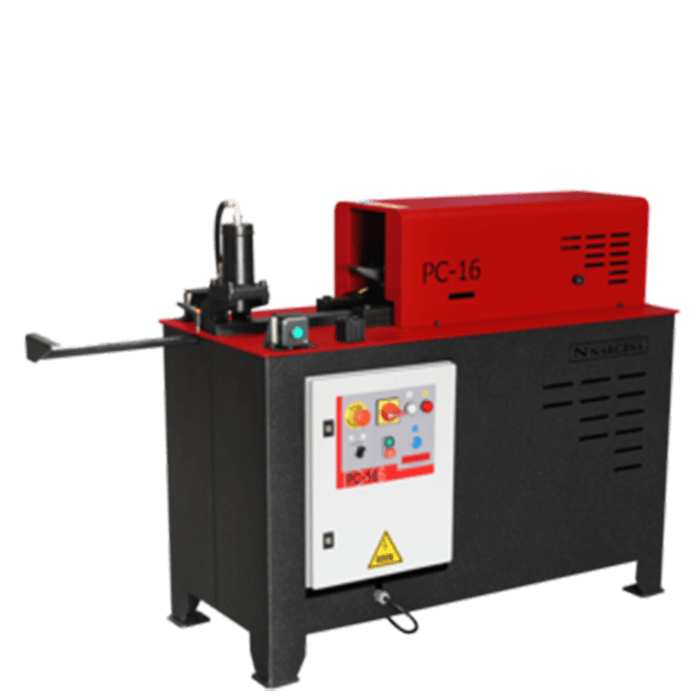

PC16: INDUSTRIAL END WROUGHT IRON MACHINE
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Price: $11,000
Electrical Options:
220V / 3PH / 60Hz
480V / 3PH / 60Hz
220V / 1PH / 60Hz
The End Hot Wrought Machine QUANTUM NARGESA PC16, eases up the rolling job of hot steel. It rolls up the snail forged shaped end. This decorations are commonly used as extremes in scrolls and decorative parts. Gates, windows, fencing, metal furniture, etc...
Easy handling: Any worker is able to carry out this job, even without any previous preparation.
Readiness: Thousands of parts can be made in one working day.
Value and prestige: There are few craftsmen who can make these kinds of wrought jobs.
Sales: Possibility of selling parts with the forged extremes to different companies or steel stores.
TECHNICAL FEATUERS
Adjustment of displacement or turns.
Adjustment of pressure according to material thickness.
Safety double command for the cycle drive.
Hydraulic clamp for the piece fastening.
Maximum capacity in round: 20mm
Maximum capacity in square: 20mm
Maximum capacity in flat bar: 50x10mm
Working speed: 45 mm/s
Return speed: 70 mm/s
Cycle time: 10 seconds
Pieces per minute: 4 pieces.
Engine power: 2,2 KW/ 3 CV (HP)
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Price: $11,000
Electrical Options:
220V / 3PH / 60Hz
480V / 3PH / 60Hz
220V / 1PH / 60Hz
The End Hot Wrought Machine QUANTUM NARGESA PC16, eases up the rolling job of hot steel. It rolls up the snail forged shaped end. This decorations are commonly used as extremes in scrolls and decorative parts. Gates, windows, fencing, metal furniture, etc...
Easy handling: Any worker is able to carry out this job, even without any previous preparation.
Readiness: Thousands of parts can be made in one working day.
Value and prestige: There are few craftsmen who can make these kinds of wrought jobs.
Sales: Possibility of selling parts with the forged extremes to different companies or steel stores.
TECHNICAL FEATUERS
Adjustment of displacement or turns.
Adjustment of pressure according to material thickness.
Safety double command for the cycle drive.
Hydraulic clamp for the piece fastening.
Maximum capacity in round: 20mm
Maximum capacity in square: 20mm
Maximum capacity in flat bar: 50x10mm
Working speed: 45 mm/s
Return speed: 70 mm/s
Cycle time: 10 seconds
Pieces per minute: 4 pieces.
Engine power: 2,2 KW/ 3 CV (HP)
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
Price: $11,000
Electrical Options:
220V / 3PH / 60Hz
480V / 3PH / 60Hz
220V / 1PH / 60Hz
The End Hot Wrought Machine QUANTUM NARGESA PC16, eases up the rolling job of hot steel. It rolls up the snail forged shaped end. This decorations are commonly used as extremes in scrolls and decorative parts. Gates, windows, fencing, metal furniture, etc...
Easy handling: Any worker is able to carry out this job, even without any previous preparation.
Readiness: Thousands of parts can be made in one working day.
Value and prestige: There are few craftsmen who can make these kinds of wrought jobs.
Sales: Possibility of selling parts with the forged extremes to different companies or steel stores.
TECHNICAL FEATUERS
Adjustment of displacement or turns.
Adjustment of pressure according to material thickness.
Safety double command for the cycle drive.
Hydraulic clamp for the piece fastening.
Maximum capacity in round: 20mm
Maximum capacity in square: 20mm
Maximum capacity in flat bar: 50x10mm
Working speed: 45 mm/s
Return speed: 70 mm/s
Cycle time: 10 seconds
Pieces per minute: 4 pieces.
Engine power: 2,2 KW/ 3 CV (HP)
The End Hot Wrought Machine Nargesa PC16
eases up the rolling job of hot steel. It rolls up the snail forged shaped end. This decorations are commonly used as extremes in scrolls and decorative parts.Gates, windows, fencing, metal furniture, etc...
All Nargesa products are according to the CE regulations for the manufacturing of industrial machinery.

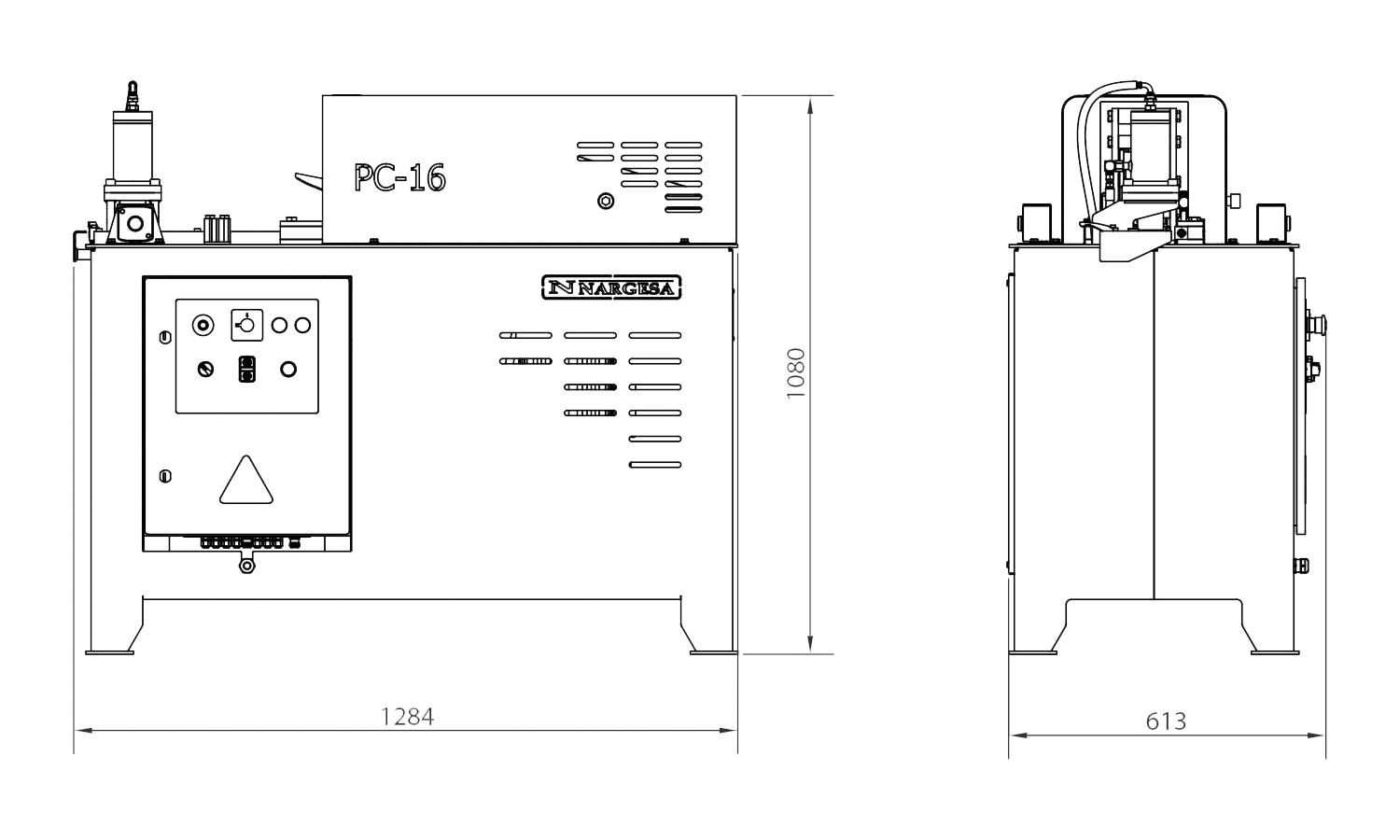

DIMENSIONS OF THE MACHINE END HOT WROUGHT IRON MACHINE PC16
Machine Dimensions: 1350x620x1120 mm.
Weight: 310 Kg.
Tarif Code: 84622991
Other features:
Palletized bench to transport the machine easily to its working site or storage.
The machine is delivered completely assembled.
USES OF THE MACHINE: END HOT WROUGHT IRON MACHINE PC16
The Hot Wrought Machine Nargesa PC16, rolls up hot steel making a snail shaped extreme. It is used to create scrolls and designs for ornamental forging in doors, windows, gates, metal furniture, etc...
